Hamiltonian Mechanics: The Geometric Engine Powering Physics Simulations
Share this article
When simulating physical systems—whether a simple spring-mass oscillator or a relativistic particle—the Hamiltonian framework provides a profound geometric perspective. At its core lies a powerful observation: the state of any mechanical system lives on the cotangent bundle of its configuration space, and its evolution is governed by a symplectic flow that conserves energy.
The Phase Space: Where States Reside
Consider a particle constrained to move on a circle ($S^1$). Its position $q$ is a point on the circle, but its full state requires momentum $p$, a covector in the dual space $T_q^S^1$. The resulting phase space $T^S^1$ forms a cylinder:
The cotangent bundle $T^S^1$ is a cylinder, where each vertical fiber represents possible momenta at a position $q$.*

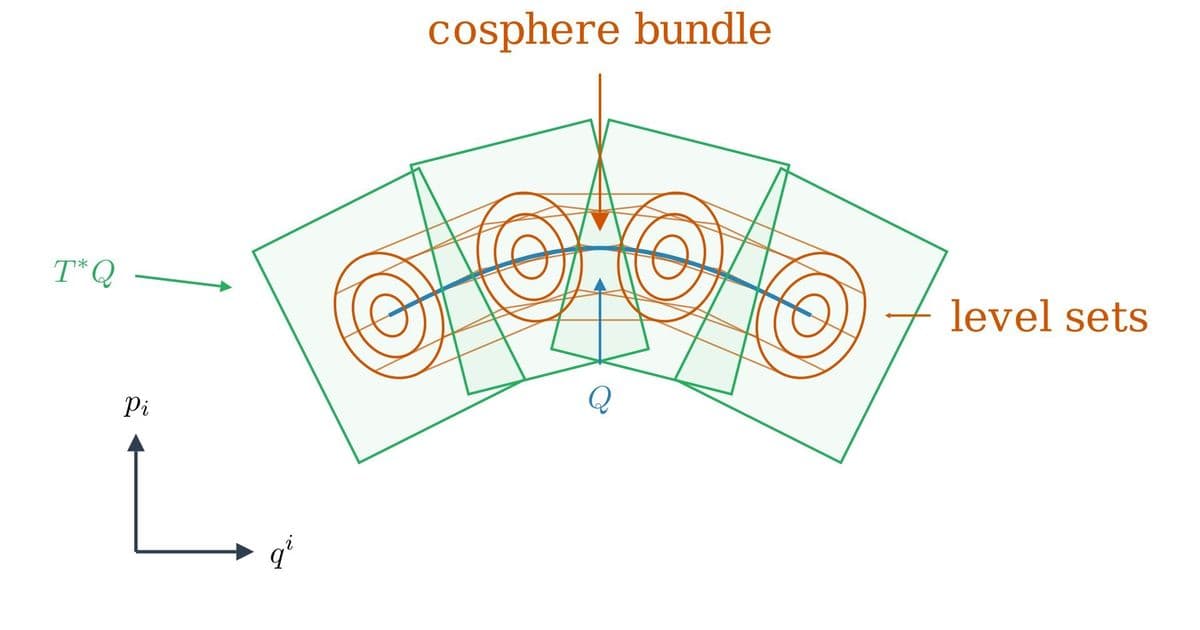

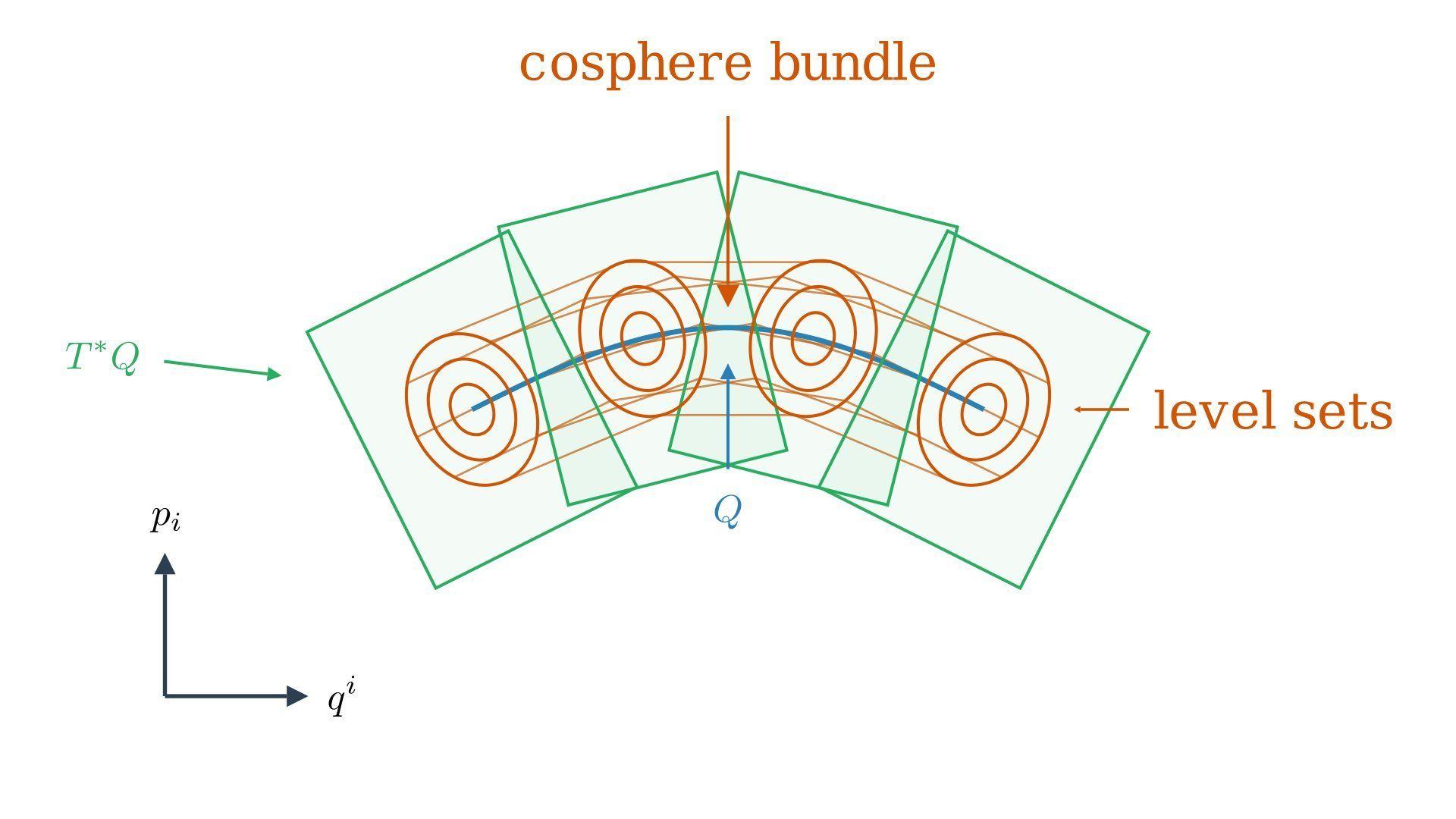

This generalizes: for any configuration space $X$ (a smooth manifold), the phase space $M = T^*X$ is a $2n$-dimensional symplectic manifold equipped with a canonical 2-form:
$$
\omega = dp_i \wedge dq^i
$$
This symplectic form $\omega$ is closed ($d\omega=0$) and non-degenerate, making it a geometric "rulebook" for energy conservation. Critically, $\omega$ lets us convert functions to vector fields via:
$$
f \mapsto X_f = -\omega^{-1}(df)
$$
When $f$ is the Hamiltonian $H$ (total energy), $X_H$ generates the system's time evolution.
Organizing Dynamics: The Hamiltonian Hierarchy
Hamiltonians decompose into geometrically meaningful tiers:
Degree 0 (Potentials): $H = V(q)$
- Effect: Pure force, e.g., gravity. Flow shifts momentum: $\dot{p}_i = -\partial V/\partial q^i$.
Degree 1 (Vector Fields): $H = V^i p_i$
- Effect: Spatial transport, e.g., a steady current. Flow moves positions: $\dot{q}^i = V^i$.
Degree 2 (Kinetic Energy): $H = \frac{1}{2}g^{ij}p_i p_j$
- Effect: Geodesic motion. For a Riemannian metric $g$, this encodes inertia. Flow trajectories solve $
abla_{\dot{q}}\dot{q} = 0$.
- Effect: Geodesic motion. For a Riemannian metric $g$, this encodes inertia. Flow trajectories solve $

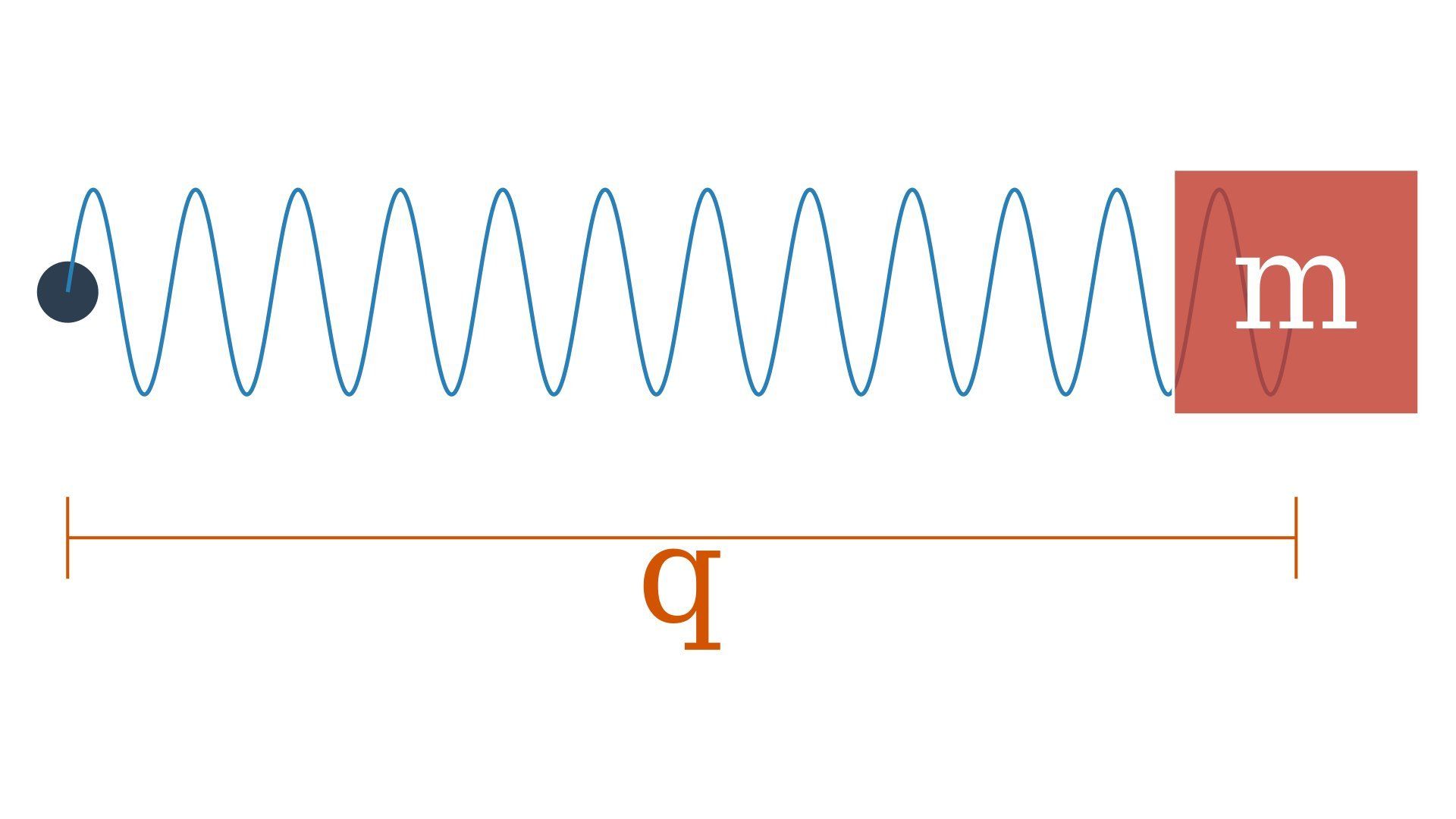

A spring-mass system: $H = \frac{1}{2m}p^2 + \frac{1}{2}kq^2$ generates rotational flow in phase space.
Magnetic Fields & Relativity: Unified Extensions
The framework natively extends to exotic physics:
- Magnetic Deformation: A magnetic field $B$ (closed 2-form) deforms $\omega$ to $\omega_B = \omega + \pi^*B$. The Lorentz force emerges geometrically:
$$
abla_{\dot{q}}\dot{q} = g^{-1}(\iota_{\dot{q}} B)
$$
- Relativity: Embed spacetime as $X \times \mathbb{R}$. The Lorentzian metric $g_X - dt^2$ defines a Hamiltonian:
$$
H = \frac{1}{2}g^{ij}p_ip_j - \frac{1}{2}s^2
$$
where $s$ is timelike momentum. Flow lines become worldlines in spacetime.
Why Developers Should Care
Hamiltonian mechanics isn't just theoretical elegance—it enables structure-preserving simulations. Symplectic integrators (e.g., Verlet) leverage $\omega$'s conservation to avoid energy drift in long-term simulations. The Poisson bracket ${f,g} = \omega^{-1}(df,dg)$ further provides:
- Conservation laws (Noether's theorem)
- Efficient probabilistic evolution (Liouville's equation)
As simulations stretch into relativistic regimes or magnetic environments, this geometric foundation ensures physical fidelity. The Hamiltonian lens turns physics into geometry—and geometry into executable code.
