In a breakthrough that bridges biomedical engineering and surgical innovation, a collaborative team from the US and South Korea has created a handheld "bone-healing gun" inspired by sci-fi concepts. This device, derived from a modified commercial glue gun, allows surgeons to extrude custom scaffolds onto fracture sites in real-time, potentially transforming how complex bone injuries are treated. Unlike static metal grafts, these implants degrade over months while encouraging natural bone regrowth—a leap toward personalized, point-of-care medicine.

The Limitations of Conventional Bone Repair

Complex fractures, such as those from trauma or cancer resections, often fail to heal without intervention. Current solutions rely heavily on titanium alloy implants, which are expensive, time-consuming to produce, and lack personalization. 3D printing has emerged as an alternative, but it introduces its own hurdles. As Jung Seung Lee, a biomedical engineering researcher at Sungkyunkwan University and co-lead of the project, explains:

"3D printing has been highlighted as a novel approach to make such personalized implants, but this also requires substantial time and money. We needed something faster and more adaptable for the operating room."

This drove the team to reimagine the humble glue gun as a surgical tool.

Engineering the Healing Gun: Simplicity Meets Precision

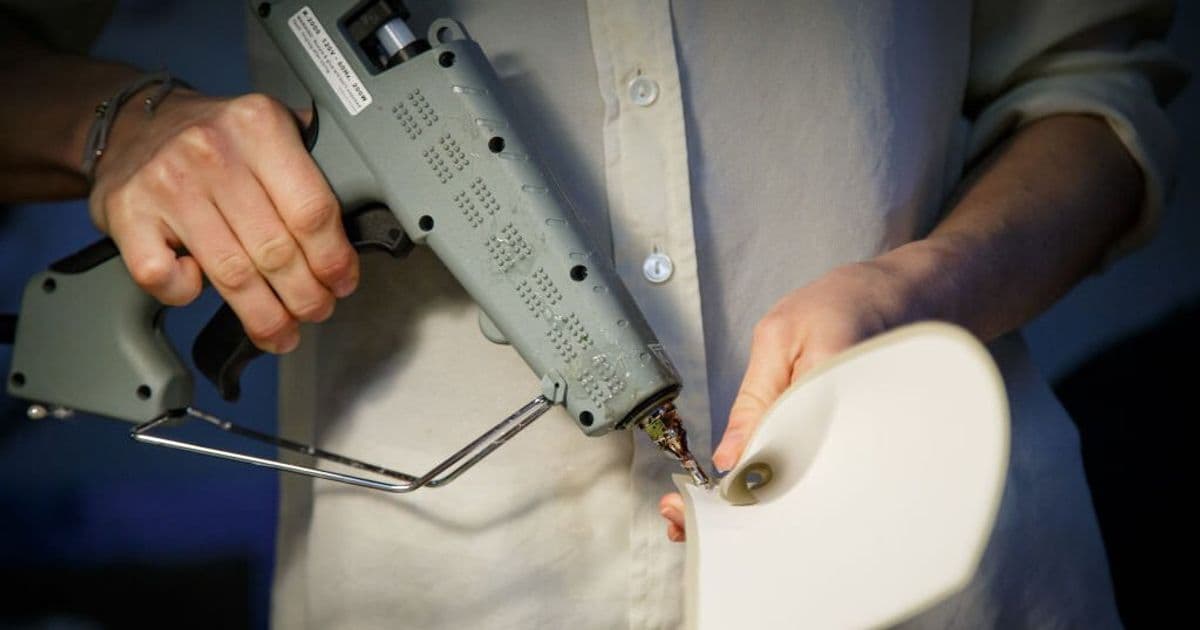

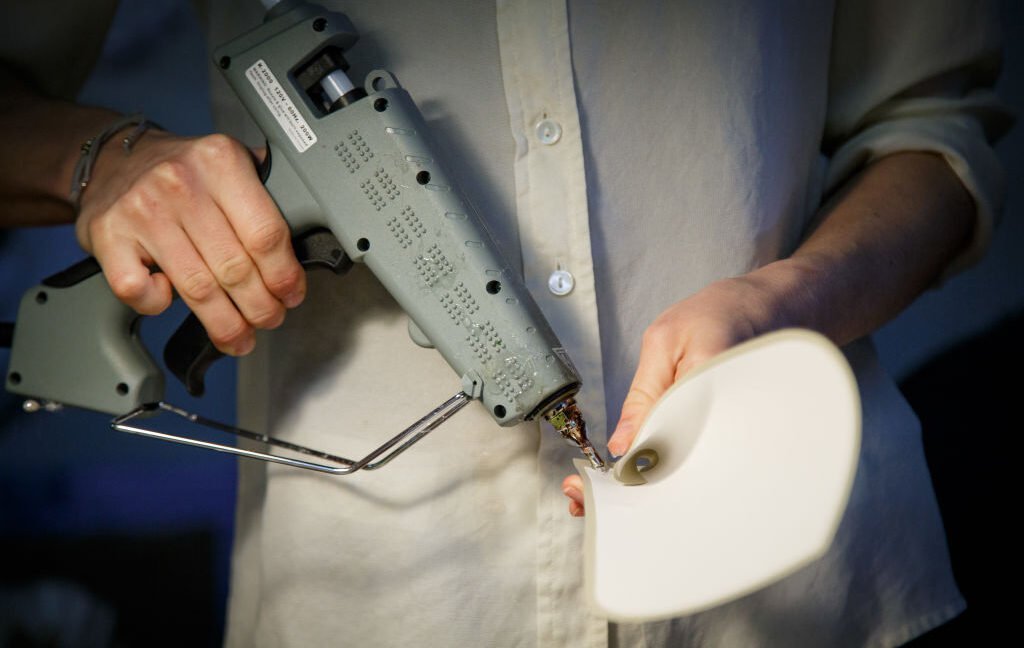

The device itself is a cleverly adapted commercial hot glue gun, reconfigured to operate at lower temperatures for biological safety. By modulating the heating element and refining the tip module, the team achieved precise control over scaffold resolution and extrusion. "It was basically a tweaked commercially available hot glue gun," Lee said. "We modulated the temperature, and by adjusting the tip module, we could control the resolution of the extruded scaffold."

Surgeons can now aim the device at a fracture, pull the trigger, and deposit a filament that solidifies into a supportive lattice on contact—holding bone fragments together while integrating with living tissue.

The Science Behind the 'Bone-Healing Bullets'

The true innovation lies in the material, dubbed "bone-healing bullets." Developing it required overcoming critical challenges: melting at a tissue-safe temperature (below 60°C), matching bone's mechanical strength, ensuring biodegradability, and enabling strong adhesion. After extensive experimentation, the team formulated a blend of:

  • Polycaprolactone: An FDA-approved thermoplastic that degrades harmlessly in the body within months.
  • Hydroxyapatite: A mineral naturally found in bone that stimulates tissue regeneration.

"We experimented with various proportions and finally nailed the formulation that checked all the boxes," Lee noted. This biocompatible composite extrudes smoothly at 60°C—far cooler than standard adhesives—and provides immediate structural support while gradually ceding space to new bone growth.

Promising Results and Lingering Hurdles

In rabbit trials, femurs treated with the healing gun showed faster recovery compared to those repaired with commercial bone cement. The scaffold successfully fostered new tissue formation, though degradation rates proved slower than ideal, limiting full bone restoration. This underscores key areas for refinement:

  • Infection Prevention: Lee plans to incorporate antibiotics that release gradually to combat post-surgical risks.
  • Load-Bearing Capacity: Rabbits are lightweight; tests in larger animals (e.g., pigs) are essential to evaluate human-scale durability.
  • Precision Challenges: Handheld operation demands high skill, as minor positioning errors could compromise outcomes. "It is true that the system requires practice," Lee acknowledged. Future versions may integrate robotic guides or real-time imaging for accuracy. "This could be our next-gen bone printing device."

Aiming for a New Era in Orthopedics

This bone-healing gun exemplifies how repurposing everyday technology can yield transformative medical advances. By enabling on-site implant fabrication, it slashes costs and wait times—making personalized care accessible in resource-limited settings. As Lee's team iterates toward clinical applications, the device could one day turn complex surgeries into streamlined procedures, where healing begins with the pull of a trigger. The journey from lab to operating room is ongoing, but the shot has been fired in the race to redefine regenerative medicine.

Source: Based on research reported by Jacek Krywko for Ars Technica.
