For golfers and tech enthusiasts alike, the quest for affordable launch monitor technology has often felt like chasing a mirage. Commercial systems offering precise ball flight data typically cost thousands of dollars, placing them out of reach for most amateurs. Enter PiTrac: an ambitious, open-source DIY project aiming to shatter that barrier with a target price tag of just $300, built on a foundation of accessible hardware and sophisticated software.

Article illustration 1

The Tech Stack: A Hacker's Playground
PiTrac isn't just about tracking golf balls; it's a deliberate exploration platform. The developers are leveraging a diverse array of technologies, many new to them, pushing boundaries in embedded systems and real-time processing:

  • Core Hardware: Raspberry Pi 5 (targeting dual-camera support) handles the computational heavy lifting, interfacing with cameras via the Libcamera stack and sensors through libgpiod.
  • Computer Vision & Math: OpenCV is indispensable for critical tasks like high-speed ball tracking, spin rate calculation, and trajectory prediction, demanding a deep dive into linear algebra for matrix transformations and filtering.
  • Messaging & Serialization: Active-MQ (JMS) manages communication between components, while JSON and Msgpack handle efficient data serialization for performance-critical paths.
  • Fabrication: FreeCAD designs and Prusa MK4S 3D printers create the custom housing, while KiCad is used for schematic capture and PCB layout of specialized interface boards.

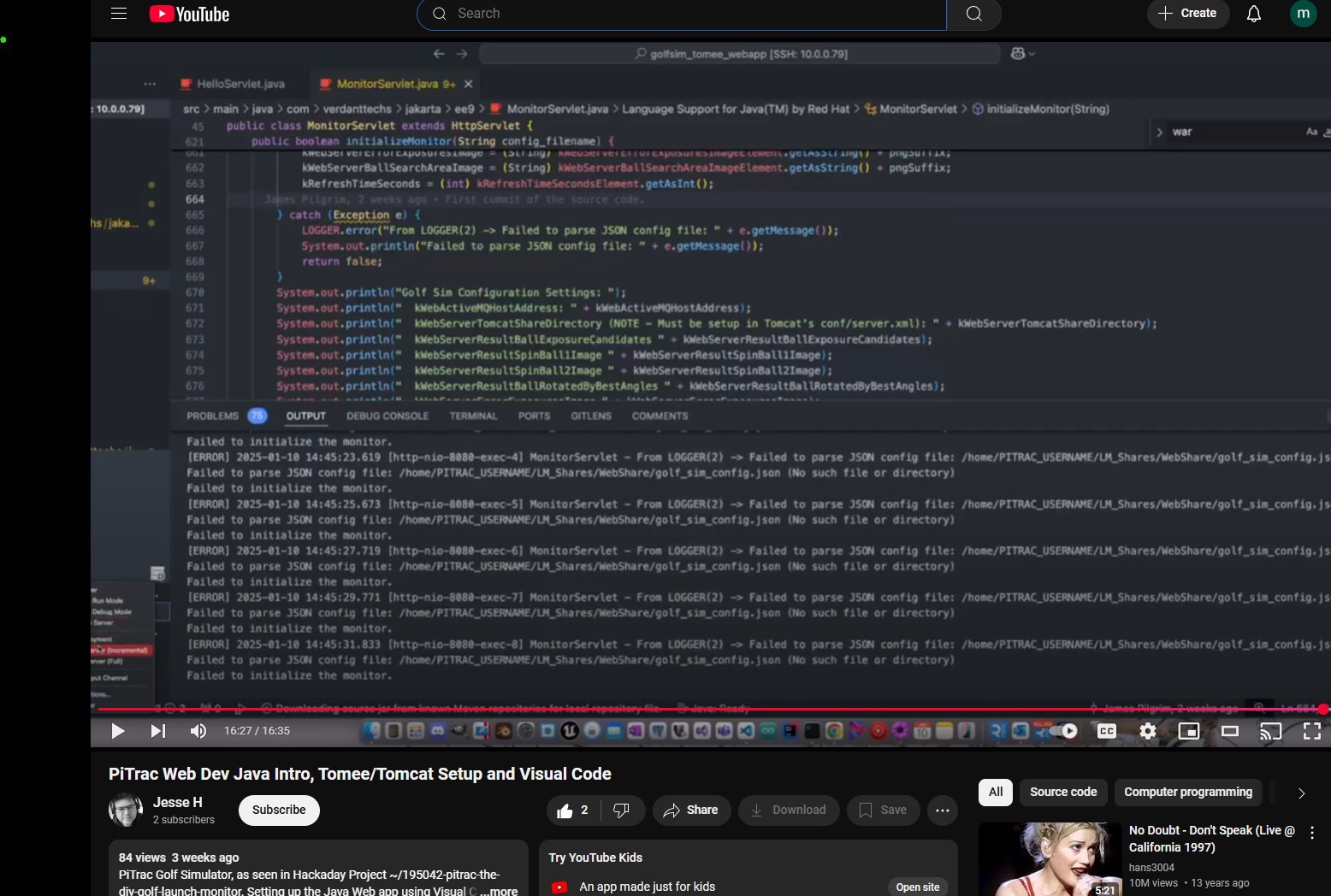

  • Software Foundation: The core application is primarily C++ (aiming for commercial-grade architecture and testability), built with Meson/Ninja and Boost libraries, complemented by Python/Unix scripts for calibration utilities. A Jakarta Server Pages (JSP) web interface hosted on Tomee provides the user dashboard.

The $300 Challenge: Cost Engineering in Action
Hitting the sub-$300 target is a significant engineering hurdle. The team acknowledges being currently over budget by approximately $100 but has a clear path to savings:

"The new Raspberry Pi 5 should be able to support both of the system cameras, which could decrease the price by around $50 by avoiding a second Pi," the project notes highlight.

This consolidation exemplifies the project's pragmatic approach, balancing performance needs with cost constraints. Further optimizations likely involve refining the BOM, exploring alternative sensor options, and leveraging economies of scale for custom PCBs.

Article illustration 4

PCB design in KiCad is crucial for integrating sensors and interfaces efficiently.

Beyond the Fairway: A Blueprint for Complex DIY Systems
PiTrac's significance extends beyond golf. It serves as a compelling case study in integrating disparate hardware and software components into a cohesive, real-time system:
1. Sensor Fusion: Combining high-speed camera data with potentially other sensors (like radar or MEMS) requires precise synchronization and calibration.
2. Real-Time Processing: Tracking a golf ball traveling at high speeds demands low-latency image processing and algorithmic efficiency, pushing the limits of the Raspberry Pi platform.
3. Mechanical Integration: Designing a robust, vibration-resistant housing that precisely positions cameras and sensors is non-trivial, solved here via parametric CAD and 3D printing.

Early 3D model renders of the PiTrac housing, designed in FreeCAD and printed on a Prusa MK4S.

The project openly shares its journey, including the re-learning of complex mathematics and the adoption of unfamiliar tools, making it a valuable resource for developers tackling similar multidisciplinary projects. While the final on-course validation videos are eagerly anticipated, PiTrac already demonstrates the remarkable potential of open-source collaboration and accessible technology to democratize tools once reserved for professionals. Its success could inspire a new wave of affordable sports tech and sophisticated DIY instrumentation, proving that with ingenuity and modern SBCs, even the most data-intensive applications can be brought within reach.
