When Windows 10 launched in 2015, it introduced Direct3D 12—a low-level graphics API promising unprecedented control over GPU hardware. A decade later, D3D12 has undergone a quiet revolution, accumulating over 50 major features and countless quality-of-life improvements that transformed how developers interact with modern graphics hardware. Unlike its predecessor's monolithic updates, D3D12 evolved through continuous, incremental enhancements that collectively reshaped the graphics landscape.

The Silent Evolution

Contrary to perceptions of stagnation between major version numbers, D3D12 received steady transformative updates:

  • Ray Tracing (DXR): Revolutionized real-time lighting with hardware-accelerated path tracing, evolving from basic implementations to sophisticated Shader Execution Reordering pipelines
  • Mesh Shaders: Replaced traditional vertex processing with compute-like amplification/mesh stages enabling procedural geometry and meshlet culling
  • Variable Rate Shading (VRS): Introduced intelligent pixel shading reduction through per-draw, per-primitive, or screen-space tile rate controls
Article illustration 3

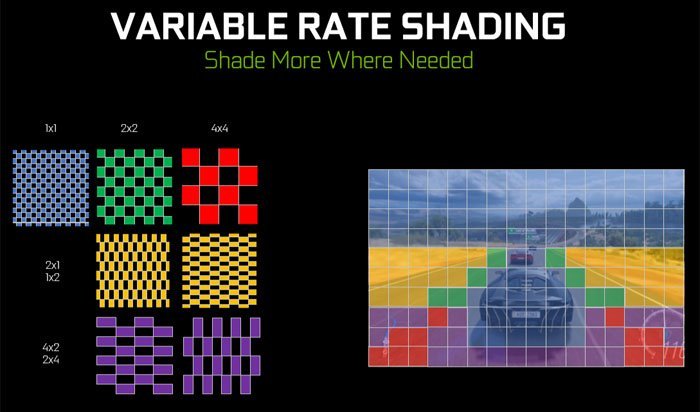

Variable Rate Shading allowed selective shading rate reduction (Source: Microsoft)

"Enhanced Barriers finally fixed D3D12's most confusing abstraction—replacing opaque resource states with explicit Vulkan-style synchronization that better reflects actual hardware behavior." - Technical deep dive observation

Shader Revolution

HLSL underwent its own metamorphosis, gaining capabilities once exclusive to CPU-side languages:

// SM 6.6+ bindless access example
Texture2D tex = ResourceDescriptorHeap[descriptorIndex];
float4 color = tex.Sample(sampler, uv);

// Wave operations for GPU parallelism
if (WaveActiveAnyTrue(isShadowed)) {
    // Cooperative shadow processing
}

Key advancements include:
- Bindless resources: Dynamic descriptor access replacing rigid root signature constraints
- 16-bit precision: FP16/INT16 support for memory/ALU optimizations
- Wave operations: Subgroup coordination intrinsics for warp-level parallelism
- HLSL 2021: Templates, operator overloading, and C++-style scoping

Developer Experience Breakthroughs

Behind-the-scenes improvements drastically reduced friction:

  1. Agility SDK: Decoupled API updates from OS releases through modular delivery
  2. Debug Layer Callbacks: Vulkan-style validation messaging for real-time diagnostics
  3. DRED (Device Removed Extended Data): GPU crash forensics via command breadcrumbs
  4. GPU Upload Heaps: Resizable BAR integration enabling direct CPU writes to VRAM

Personal Workflow Transformations

Long-term D3D12 adopters evolved their approaches fundamentally:

  • Bindless Everywhere: "Root signatures became nearly irrelevant—descriptor indices in constant buffers replaced endless descriptor table management."
  • HLSL/C++ Code Sharing: Shared structs and math libraries blurring CPU/GPU boundaries
  • Template Metaprogramming: Generic HLSL code for material systems and math utilities
  • Shader Debugging Renaissance: "Bindless printf and GPU-driven debug drawing became indispensable diagnostics tools"
Article illustration 5

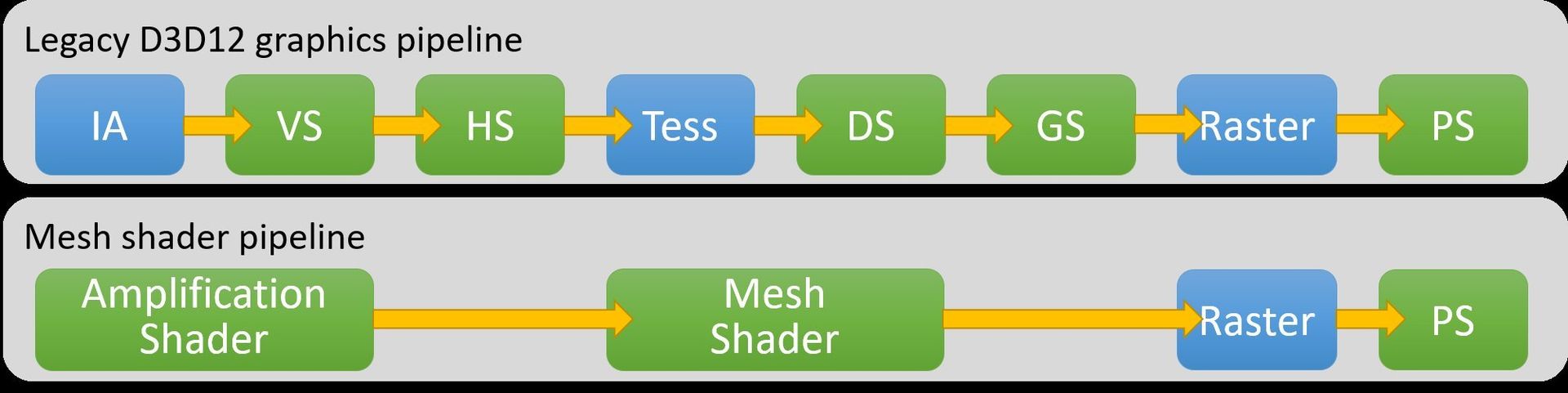

Mesh shader pipeline replacing traditional vertex processing (Source: Microsoft)

The Unfinished Revolution

Despite massive progress, challenges remain. Work Graphs—D3D12's ambitious GPU work creation system—show promise but face uncertain adoption due to inconsistent performance gains. Meanwhile, tools still struggle with bindless introspection, requiring bytecode instrumentation to track dynamically accessed resources.

As ray tracing transitions from novelty to necessity and mesh shaders redefine geometry pipelines, D3D12's next decade will likely focus on reducing abstraction gaps between developer intent and hardware execution. The API's evolution proves that in graphics programming, revolution often arrives not as explosions, but as relentless iteration.

Source: Ten Years of D3D12 by MJP
