For decades, inconsistent findings plagued neuroimaging studies of attention-deficit/hyperactivity disorder (ADHD), with researchers reporting contradictory results about structural brain differences. A groundbreaking study published in Molecular Psychiatry now identifies scanner-related measurement bias as a primary culprit—and delivers a technical solution with far-reaching implications for medical imaging and multi-site research.

The Scanner Noise Problem

Meta-analyses show wildly varying reports: some ADHD studies find reduced gray matter in prefrontal regions while others show no differences or even volume increases. The root issue lies in multi-site research where different MRI scanners introduce measurement bias—technical variations in signal acquisition that masquerade as biological differences. Traditional fixes like ComBat harmonization reduce this noise but inadvertently strip away genuine biological variance (sampling bias) through over-correction.

# Traditional harmonization model (ComBat)
# Often removes both measurement AND biological variance
brain_data ~ scanner_batch + covariates

Enter the Traveling-Subject Method

The research team pioneered an elegant alternative: scan the same 14 healthy participants ("traveling subjects") across four different 3T MRI scanners at Japanese research institutions. This provided a ground-truth dataset to isolate pure scanner noise:

Brain\ structures = X_m^T m + X_p^T p + e

Where:
- m = measurement bias (scanner-specific noise)
- p = participant biological signature

By applying ridge regression to this model, researchers created scanner-specific correction factors that could be applied to independent ADHD/TD datasets—preserving true biological differences while eliminating technical artifacts.

Technical Validation

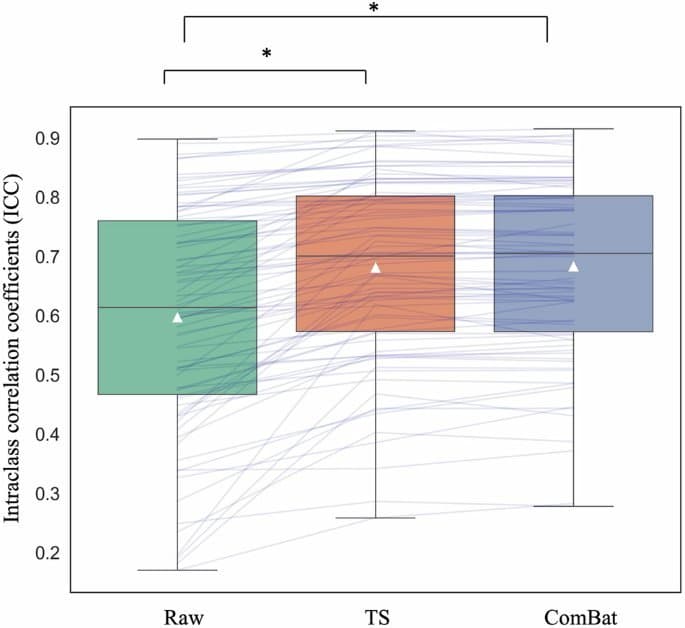

  • Reliability: Intraclass correlation coefficient (ICC) significantly improved versus raw data (0.681 vs. 0.597, p<0.05)
  • Bias Preservation: TS reduced measurement bias vs raw data (0.048 vs 0.056) while maintaining sampling bias (0.035 vs 0.038). ComBat reduced measurement bias further (0.031) but catastrophically eroded sampling bias (0.025).
  • ADHD Findings: Only TS-corrected data revealed consistent volume reductions across 8 regions in ADHD vs controls, most notably the right middle temporal gyrus (β=−0.277, p<0.001)—a region critical for attention regulation.

"The traveling-subject approach acts like a calibration standard for MRI research," explains lead researcher Dr. Yoshifumi Mizuno. "It’s the equivalent of using the same ruler across labs instead of trying to statistically compensate for different rulers' inaccuracies."

Why This Matters for Tech

  1. Reproducibility Crisis: Solves a fundamental hurdle in neuroimaging where ≥50% of brain regions showed false scanner-driven "differences" in raw data.
  2. Federated Learning: Enables reliable aggregation of MRI data across hospitals/institutions without centralized data sharing.
  3. Medical AI: Provides cleaner training data for diagnostic algorithms by decoupling scanner effects from pathology signals.

The team has open-sourced their harmonization pipeline on OSF, inviting validation across modalities (fMRI, DTI) and disorders. As multi-site collaborations become the norm for studying rare conditions or diverse populations, this methodology offers a much-needed anchor for technical reliability.

Source: Shou et al. Brain structure characteristics in children with attention-deficit/hyperactivity disorder elucidated using traveling-subject harmonization. Molecular Psychiatry (2025). DOI: 10.1038/s41380-025-03142-6
