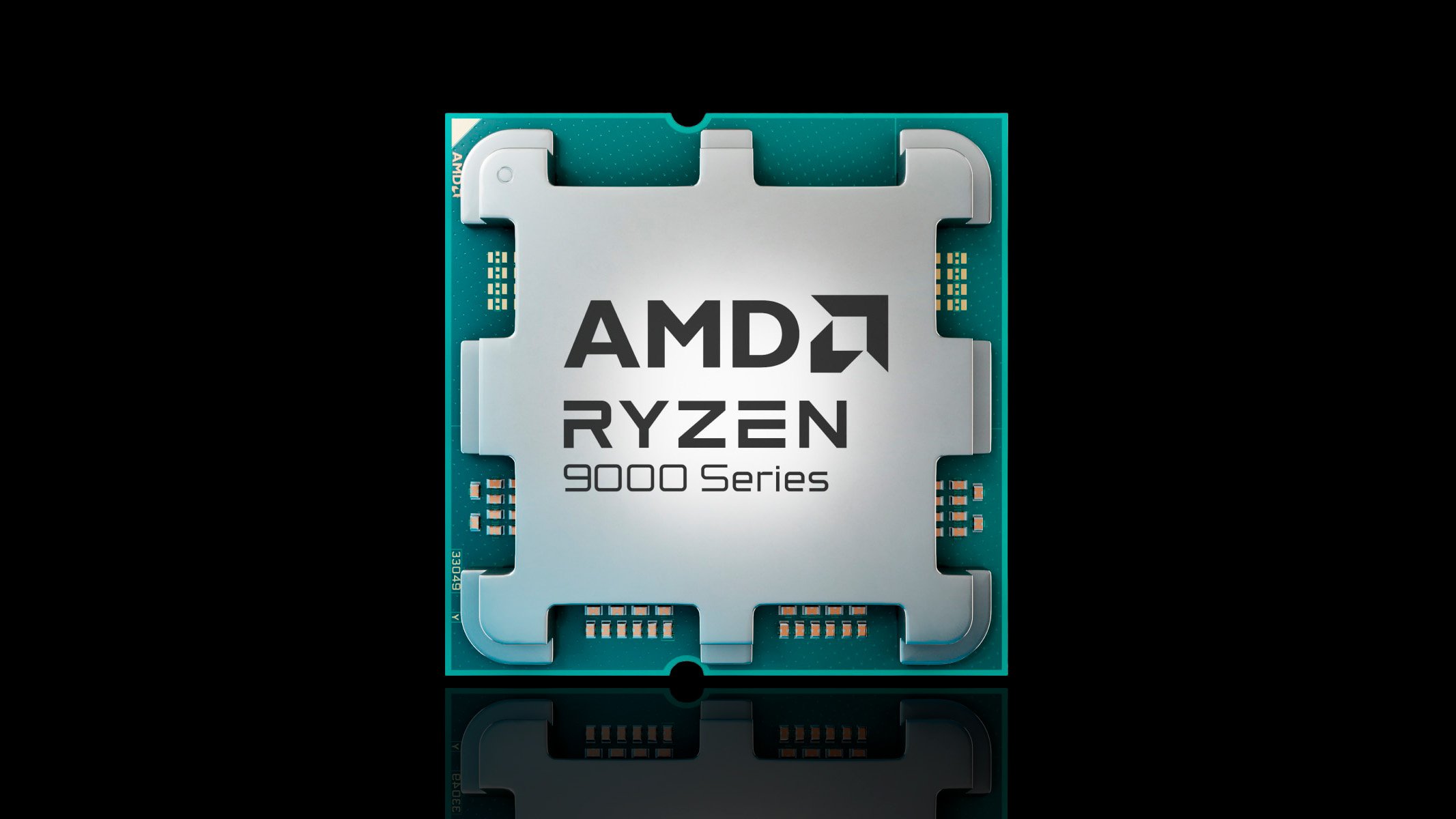

Ryzen 9850X3D Binning Data Reveals Factory Overclocked 9800X3D Design

New binning data from 13 Ryzen 7 9850X3D samples has confirmed what many suspected: AMD's latest X3D processor is essentially a factory-overclocked version of the 9800X3D rather than a fundamentally different chip design.

Voltage Requirements Tell the Story

The binning results, published by overclocker sugi0lover on overclock.net forums, reveal that achieving the 9850X3D's 400MHz higher boost clock requires substantially more voltage than the 9800X3D needs for its stock frequencies. The data shows that while most 9850X3D samples can reach 5.625GHz, they require voltages ranging from 1.271V to 1.355V, with an average around 1.31V.

This contrasts sharply with Hardwareluxx's own 9800X3D testing, which achieved maximum boost clocks with just 1.119V. The voltage difference is significant - the best 9850X3D samples use 13% more voltage than the 9800X3D, while the worst-performing 9850X3D sample requires a whopping 21% more voltage.

Silicon Quality Variations

The 13 samples showed interesting variations in silicon quality, measured using Asus's SP (Silicon Potential) rating system. The SP ratings ranged from 118 to 121, with most samples scoring 120. The best chip achieved 5.625GHz at just 1.271V with an SP rating of 120, while the slowest sample managed 5.611GHz at 1.348V with an SP rating of 118.

Memory and Infinity Fabric Performance

Memory and Infinity Fabric performance varied across the samples, though not necessarily correlating with core voltage efficiency. All 13 chips achieved 2200MHz on the Infinity Fabric, with the top three reaching 2233MHz. Memory stability ranged from 8200MT/s for the worst chip to 8600MT/s for the best performers.

Interestingly, the chips with the best memory and fabric performance didn't necessarily have the best core voltage efficiency or clock speeds, suggesting AMD's binning process for this particular CPU may prioritize different characteristics than typical enthusiast expectations.

Factory Overclock Confirmed

These results confirm that the 9850X3D isn't simply a better-binned version of the 9800X3D. Instead, it appears AMD is using higher voltages to push the 9800X3D silicon to achieve the higher boost clocks, essentially creating a factory-overclocked variant.

This design approach explains why independent testing has shown the 9850X3D consuming approximately 30% more power than the 9800X3D while delivering only about 3% average performance improvement. The power efficiency trade-off is substantial for relatively modest clock gains.

Market Implications

The binning data suggests that AMD's strategy with the 9850X3D was to extract maximum performance from existing 9800X3D silicon rather than developing a new chip variant. This approach allows AMD to offer a higher-clocked option without the development costs of a new silicon design, though at the expense of power efficiency.

For enthusiasts, this means the 9850X3D may not offer the same silicon lottery opportunities as typical CPU launches, as the binning appears focused on achieving specific voltage targets rather than finding exceptional outliers. The relatively narrow voltage range across samples (1.271V-1.355V for 5.625GHz) supports this interpretation.

The data also raises questions about thermal design and cooling requirements, as the higher voltages will generate more heat even at similar clock speeds to the 9800X3D. Users considering the 9850X3D should factor in these power and thermal characteristics when planning their system builds.
