The A20 Gate: Xbox's Unintended Backdoor

As the original Xbox approaches its 20th anniversary, security researchers revisit one of its most critical hardware vulnerabilities – the A20 address line exploit. This flaw, rooted in 1970s CPU architecture, allowed hackers to bypass Microsoft's security measures and dump the console's secret ROM.

Legacy Tech Haunts Modern Hardware

The vulnerability traces back to Intel's 8088 processor (1979) with its 20 physical address lines (A0-A19). These limited the CPU to 1MB of addressable memory (2^20 bytes). To access memory, engineers used segment registers with a calculation:

Physical Address = (Segment Register << 4) + Offset

This scheme caused address wraparound – attempts to access memory beyond 0x000FFFFF circled back to 0x00000000. When IBM's 1984 PC/AT introduced 24-bit addressing (16MB support), they added a physical A20 gate to maintain backward compatibility by forcing the 21st address line (A20) to zero when enabled.

Xbox's Fatal Inheritance

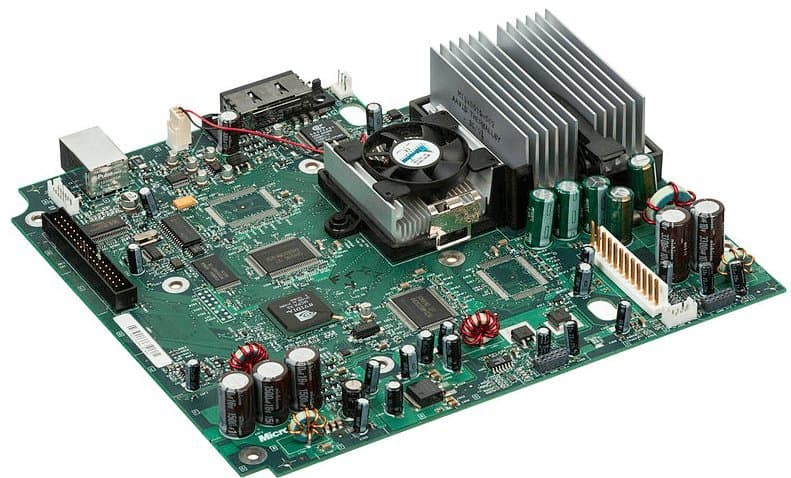

The original Xbox's 733MHz Pentium III retained this legacy feature. During boot, the processor starts execution at address 0xFFFFFFF0 (secure ROM). But when researchers grounded the A20 line:

"The Xbox boots at 0xFFEFFFF0 instead – directly into flash memory. This bypasses all security checks and keeps the secret ROM powered on," explained Michael Steil (aka mist) of the Xbox Linux Project.

Technical Exploitation

The memory map shift created a critical vulnerability:

  • Normal Boot:

    • CPU starts at 0xFFFFFFF0 (Secure ROM)
    • ROM verifies and loads 2nd bootloader (2BL)
    • 2BL verifies and loads kernel

  • A20 Grounded:

    • CPU starts at 0xFFEFFFF0 (Flash memory)
    • Attacker-controlled code executes first
    • Secret ROM remains accessible for dumping
// Simplified address translation with A20 disabled
#define A20_MASK 0xFFEFFFFF
uint32_t physical_address = virtual_address & A20_MASK;

This hardware-level flaw enabled:
- Arbitrary code execution before secure boot
- Full ROM dumps exposing cryptographic secrets
- Permanent console jailbreaks

Legacy of a Vulnerability

The A20 exploit demonstrated how legacy hardware features could undermine modern security architectures. Microsoft's Xbox team reportedly never engaged with researchers who discovered the flaw, leaving it unpatched in shipped hardware. This vulnerability became foundational to Xbox homebrew development and remains a landmark case in hardware security studies.

Source: Connor Tumbleson - The Xbox and A20 Line (2021)
