Beyond Retina Resolution: Metamaterial Magic Powers 25,000 PPI Electronic Paper

{{IMAGE:3}}

The Pixel Density Holy Grail

For decades, display engineers have chased the elusive "retina display" benchmark—where pixel density matches the human eye's maximum resolving power. At an 8mm display size (matching dilated pupil dimensions), this requires roughly 23,000 pixels per inch (PPI). Conventional technologies hit fundamental walls:

• Emissive displays (OLED/micro-LED): Suffer from luminosity collapse, color crosstalk, and fabrication nightmares below 4μm pixels
• Existing e-paper (E Ink): Caps out below 1,000 PPI due to electrophoretic capsule limits
• Static metasurfaces: Achieve nanoscale color but lack dynamic control

{{IMAGE:4}}

How Metamaterial Pixels Shatter Limits

The breakthrough leverages tungsten trioxide (WO₃) nanodisks that undergo electrochemically triggered insulator-to-metal transitions. Key innovations:

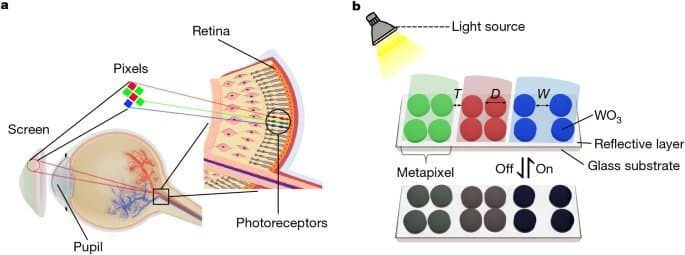

1. **Electrochromic Metapixels**: 110nm-thick WO₃ nanodisks on Pt/Al reflector dynamically modulate refractive index (Δn ≈ 0.45) and absorption (k from 0.01→0.4) via ion intercalation:
   WO₃ + xM⁺ + xe⁻ → M_xWO₃
2. **Structural Color Mastery**: Precise diameters (180-320nm) and spacings (40-200nm) exploit Mie resonances to generate pure RGB. Hybrid CMY emerges via subpixel interference at 60-380nm gaps
3. **Lateral Nanoelectrodes**: 500nm gaps between working/counter electrodes enable 40ms switching (>25Hz video) via intensified E-fields
4. **Bistable Efficiency**: Near-zero static power (0.5mW/cm²) due to open-circuit color retention >150 seconds

Performance Beyond Theory

Experimental results defy conventional display physics:

• 25,000+ PPI: Validated via SEM/microscopy of 420nm RGB pixels
• 80% Reflectance: Maintained even at sub-wavelength scales
• 50% Optical Contrast: Critical for readability under ambient light
• >95% Modulation: Achieved within 40ms pulses (±4V in LiClO₄/acetonitrile)

{{IMAGE:5}}

Real-World Demonstrations

The team showcased capabilities with two landmark demos:

Anaglyph 3D Butterfly:

• 35,000 PPI cyan/magenta channels
• Passive binocular disparity rendering

Klimt's 'The Kiss':

• 4,300 × 700 resolution on 1.9×1.4mm canvas
• CMY subtractive mixing with 1/4000th smartphone area

The VR/AR Revolution

This technology uniquely enables truly immersive headsets:

*Natural Light Integration*:
- Waveguide-compatible architecture uses ambient illumination
- Eliminates bulky backlights → ultra-compact form factors

*Energy Harvesting Synergy*:
- <2mW/cm² operation pairs with micro-solar cells
- Enables self-powered wearable displays

Remaining challenges include color gamut expansion (currently ~70% sRGB in electrolytes) and developing ultra-dense TFT backplanes. Yet with video-rate nanoscale control achieved, the era of retina-matched virtual reality is finally within sight—where displays vanish into visual experience.
