BrosTrend 5GbE PCIe Adapter Review: Realtek RTL8126 NIC Performance and Value Analysis

The networking landscape is evolving rapidly, and 5GbE connectivity is becoming increasingly accessible to mainstream users. Today we're examining the BrosTrend 5GbE PCIe adapter, which leverages the newer Realtek RTL8126 chip to deliver a cost-effective solution for upgrading from traditional 1GbE networks. At under $35, this adapter provides an attractive option for users looking to step up their networking game without breaking the bank.

Hardware Overview and Design

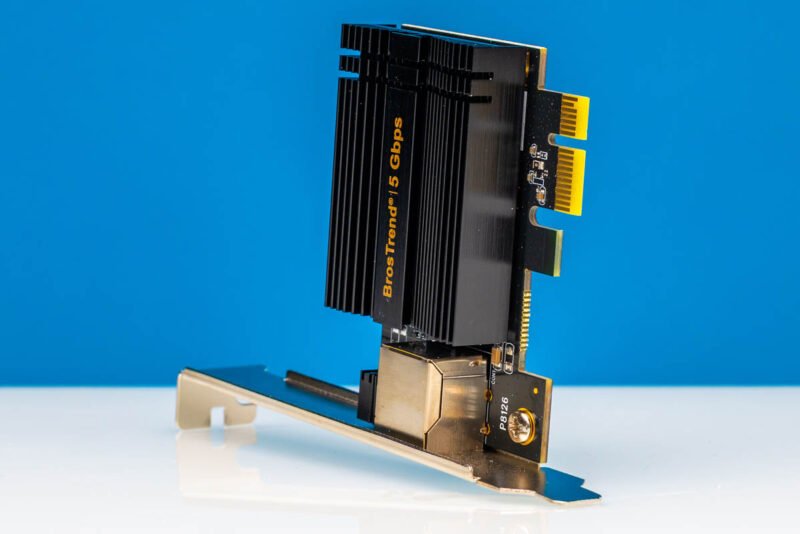

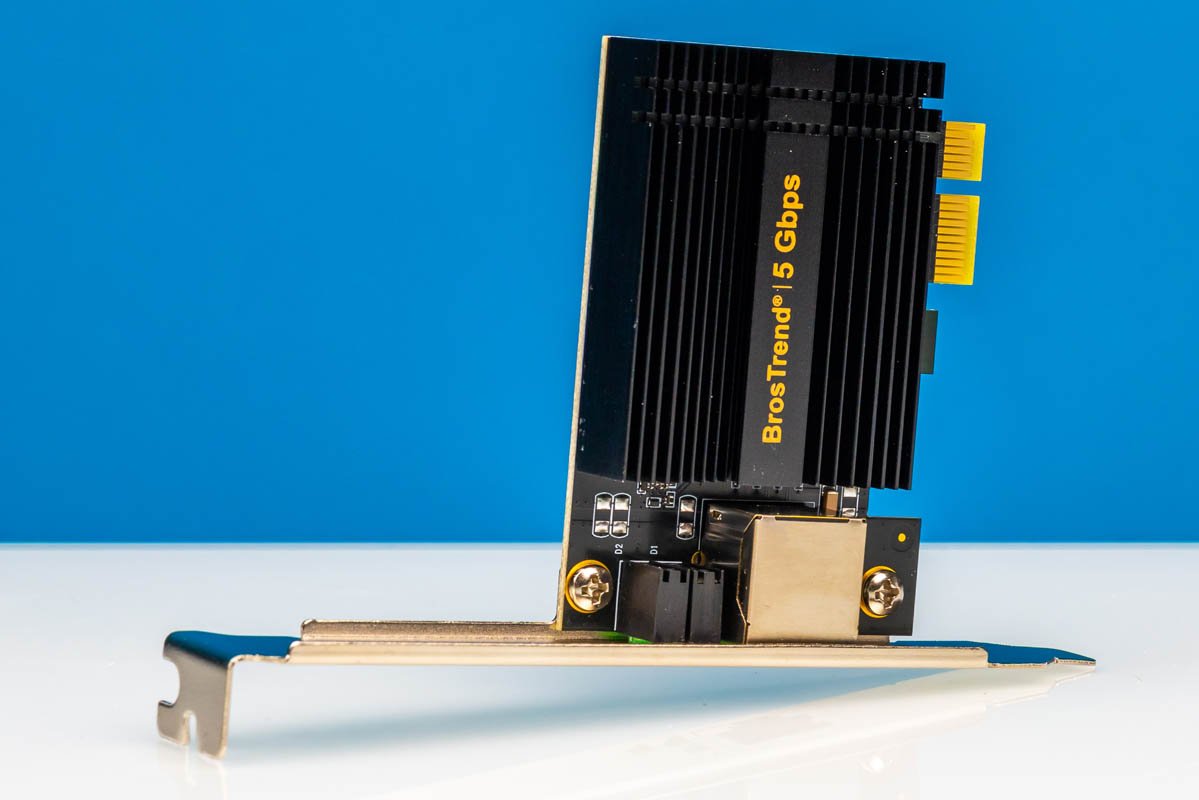

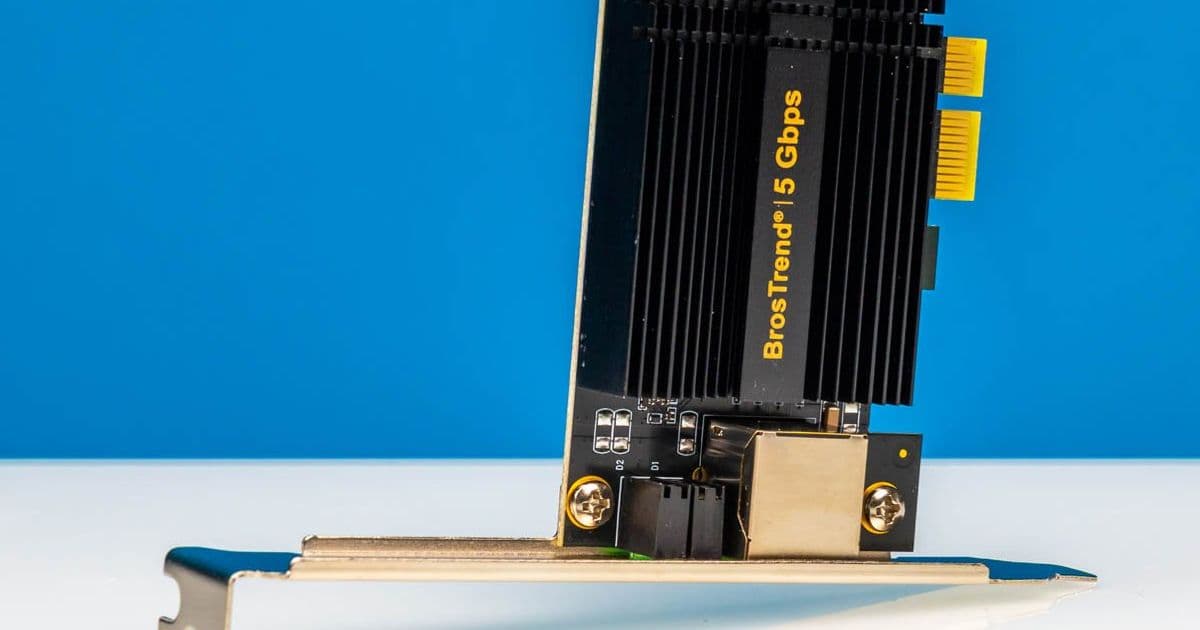

The BrosTrend 5GbE adapter is remarkably compact, especially considering it comes with a full-height bracket. This small form factor makes it ideal for systems where space is at a premium. The card's diminutive size doesn't compromise its functionality, as it's packed with features that make it versatile for various system configurations.

One of the standout features is the PCIe Gen3 x1 interface. This is particularly significant because many systems lack PCIe Gen4 x1 slots, which are required for higher-speed networking like 10Gbps. The Gen3 x1 slot compatibility means this adapter can be installed in a wide range of systems, from older desktops to modern compact builds. This broad compatibility is a major selling point for users with diverse hardware setups.

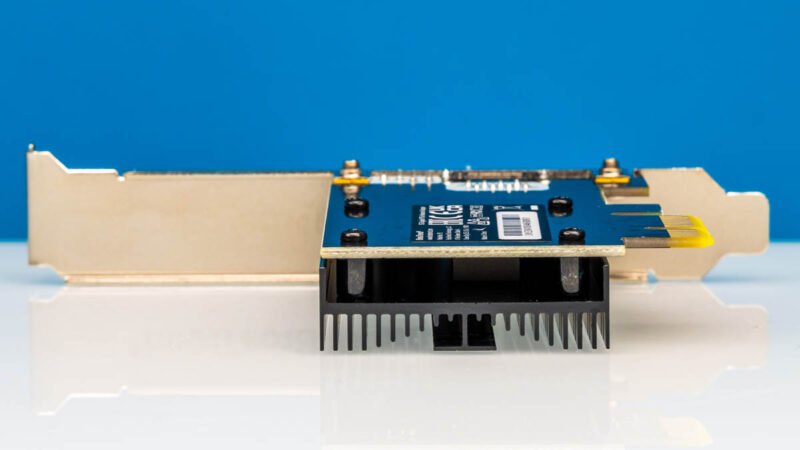

The attention to detail on this card is noteworthy. Both the heatsink and PCIe bracket are branded, which is often missing from budget network cards. While this might seem like a minor detail, it speaks to the overall quality and thoughtfulness of the design. The heatsink itself is interesting - it's not solid, which makes sense given that these cards typically consume only 1.5-2.5W of power. This low power draw means extensive cooling isn't necessary, though the heatsink does provide some thermal management.

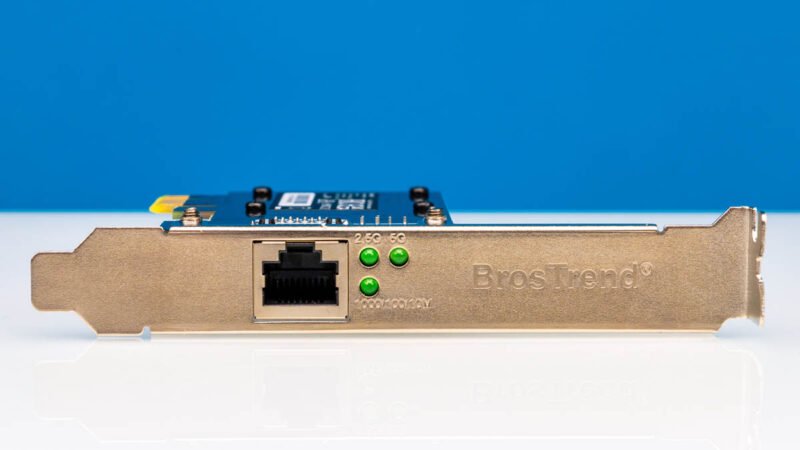

We also get a low-profile bracket in the package, adding to the adapter's versatility. This allows installation in slim systems or rack-mounted servers where full-height cards might not fit. The inclusion of both bracket types demonstrates BrosTrend's consideration for different user needs and system configurations.

Performance Testing

After installation, driver support is generally good, especially on newer operating systems. The Realtek RTL8126 chip, released in 2023 with cards appearing in 2024, has seen improving driver support as it becomes more widespread.

For our performance testing, we used the standard iperf3 test to validate the 5Gbps capability. The results were exactly what we expected - solid 5Gbps performance that delivers on the card's promises. Interestingly, despite having high-end network testing gear, we found that iperf3 remains a reliable tool for testing this class of device. The simplicity and effectiveness of iperf3 make it particularly suitable for evaluating NIC performance in this speed range.

Market Position and Value Proposition

The pricing landscape for networking adapters is interesting. 2.5GbE NICs are now available for around $20, while 10GbE options start around $49. The BrosTrend 5GbE adapter sits at approximately $34, positioning it as a mid-range option that offers significant performance benefits over 1GbE and 2.5GbE solutions.

The key differentiator for this card is its compatibility with PCIe Gen3 x1 slots. For users with systems that lack the necessary slots for faster NICs, this represents the fastest upgrade path available. Additionally, the low-profile design ensures it can fit into almost any system, from full-tower desktops to compact mini-PCs.

Final Assessment

The BrosTrend 5GbE PCIe adapter delivers on its core promises. It looks professional, performs as expected, and is priced competitively. For users with older systems or those looking for an easy upgrade path to 5GbE, this card represents excellent value.

We're particularly impressed with the build quality and attention to detail, especially considering the price point. The inclusion of both full-height and low-profile brackets, the branded heatsink, and the overall compact design all contribute to a positive user experience.

For those looking to purchase, the card is available through Amazon, and we've included an affiliate link to the specific model we tested.
