Enthusiast Loses 14TB HDD to SATA Power Cable Mixup - A Cautionary Tale About PSU Cable Standardization

A painful lesson in hardware compatibility has cost one PC enthusiast their entire 14TB storage drive, as a simple cable mixup led to catastrophic data loss. The incident, shared on Reddit by user HellBlade64, serves as a stark reminder of the dangers lurking in modern PC building when modular PSU cables aren't handled with extreme care.

The Fatal Mistake

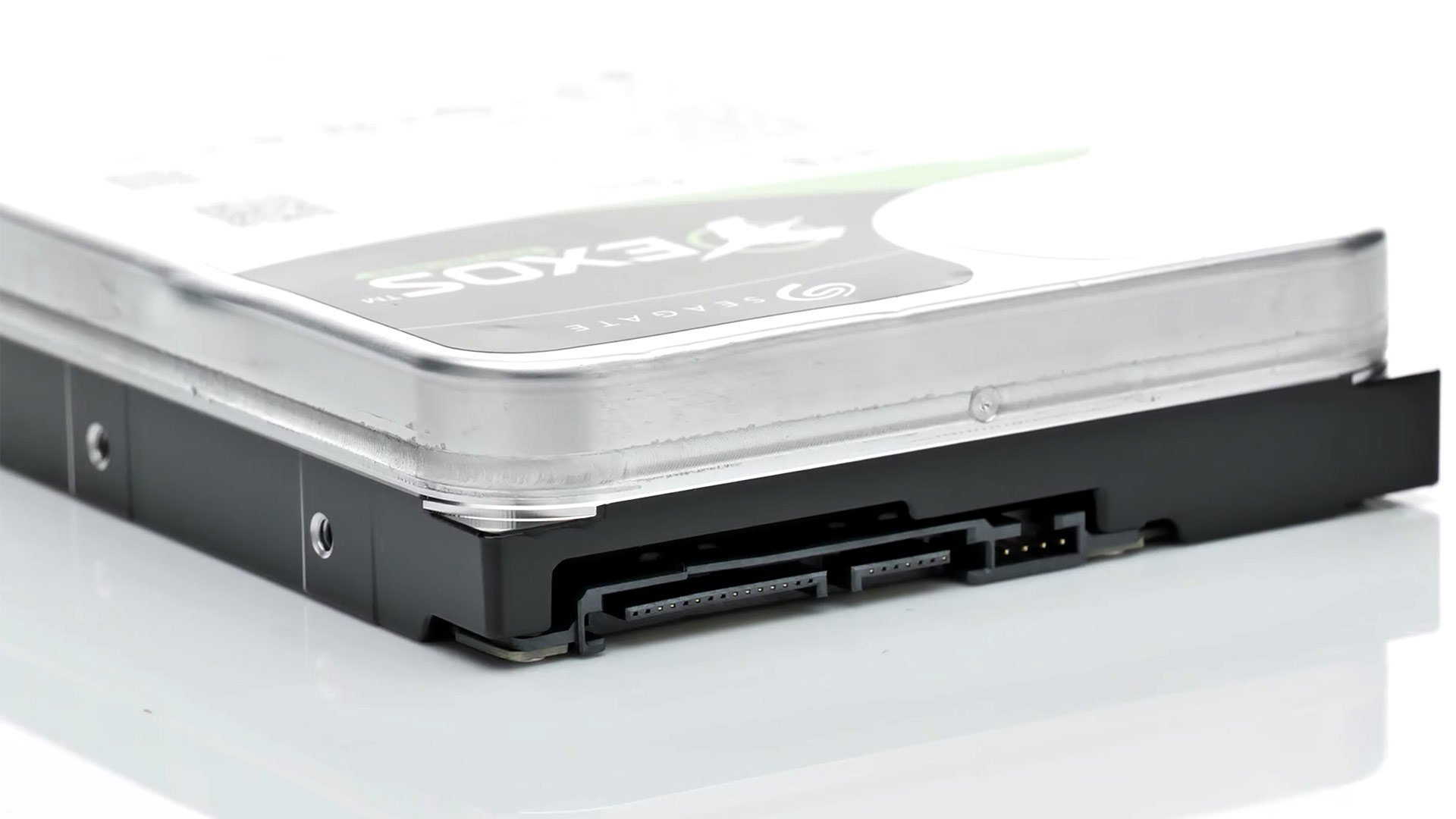

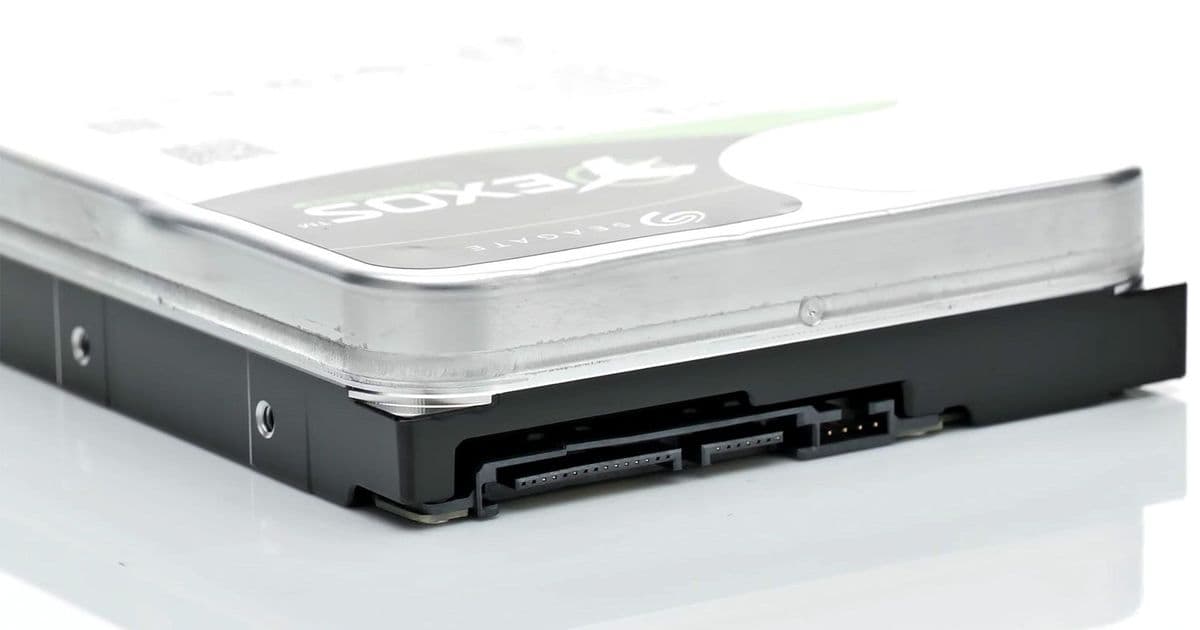

The Redditor, who had been using their Seagate Exos X16 14TB drive for over 14 years, made the critical error of using a modular SATA power cable that didn't come with their Seasonic Focus power supply unit. Despite knowing about the risks of mixing modular cables between different PSUs, they "threw caution to the wind" - a decision that proved devastatingly expensive.

The drive died with an unceremonious "click," becoming completely unresponsive and taking with it many un-backed-up videos. HellBlade64 described this as the "biggest mistake I've ever made," expressing disappointment rather than anger at their own carelessness.

Why This Happens: The Standardization Problem

The root cause of this disaster lies in the lack of standardization between PSU manufacturers - and even between different models from the same brand. This creates a dangerous situation where cables that look identical can have completely different pin configurations.

With SATA drives, the risk is particularly acute because both 12V (for the drive motor) and 5V (for the logic) lines share the same cable. When using an incompatible modular cable, these voltages can be reversed. Since drive electronics typically lack protection against such mishaps, the HDD controller can be fried in milliseconds by receiving 12V where it expects 5V.

The "click" sound HellBlade64 heard was likely the PSU's protection mechanism tripping to prevent damage to itself from the shorted SATA drive electronics. The PSU would then prevent system reboots until the damaged drive was disconnected.

Could the Data Be Recovered?

Fellow Redditors suggested that the lost data might be recoverable through a drive electronics swap. While I'm not a data recovery expert, this assessment seems plausible - the data on the platters was likely intact, with only the electronics being fried. However, such recovery work is best left to professional data recovery services rather than attempted as a DIY project.

Prevention: The Critical Safety Message

This incident underscores a crucial safety message for PC builders: Never mix modular cables between different PSUs unless the manufacturer explicitly guarantees compatibility. This warning applies even to cables from the same brand, as pin configurations can vary between models.

For those who have already experienced such a failure, implementing a robust backup strategy becomes paramount. Regular backups - whether to cloud storage, secondary drives, or NAS systems - can prevent such catastrophic data loss from becoming permanent.

The PC building community continues to grapple with this issue, as modular PSUs remain popular for their cable management benefits despite the inherent risks. Until the industry adopts universal standards for modular PSU cables, builders must exercise extreme caution and treat each PSU's cables as proprietary components that should never be interchanged.

This cautionary tale serves as a reminder that in PC building, knowledge of potential risks means little without consistent application of best practices. The convenience of modular PSUs comes with responsibility - and sometimes, the price of a moment's carelessness can be measured in terabytes of irreplaceable data.
