Strategic Design Patterns for Secure Multitenant RAG Implementations

Microsoft's Azure Architecture Center recently published comprehensive guidance on designing secure multitenant Retrieval-Augmented Generation (RAG) solutions, addressing a critical gap in enterprise AI implementation strategies. This technical blueprint provides concrete architectural patterns for organizations building AI systems that serve multiple customers while maintaining strict data isolation—a fundamental requirement in regulated industries like healthcare, finance, and legal services.

Foundational RAG Patterns

RAG architectures enhance foundation models by retrieving proprietary data to ground responses. The guidance establishes two baseline single-tenant patterns:

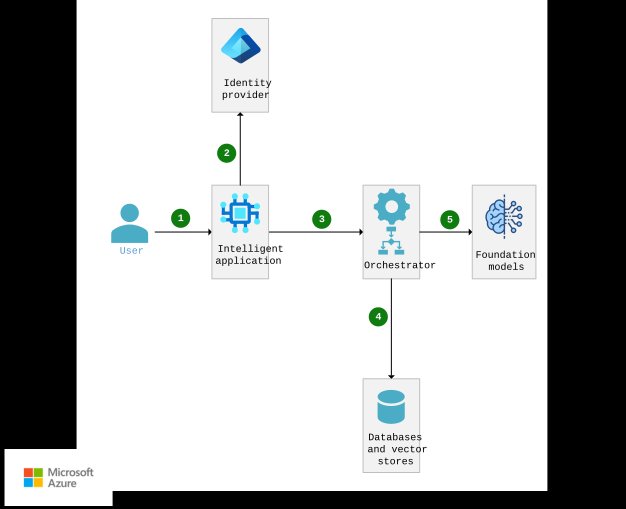

1. Orchestrator-Driven Architecture: An intelligent application routes user queries through an orchestration layer that retrieves context from data stores before submitting to foundation models. This maintains full control over data retrieval logic.

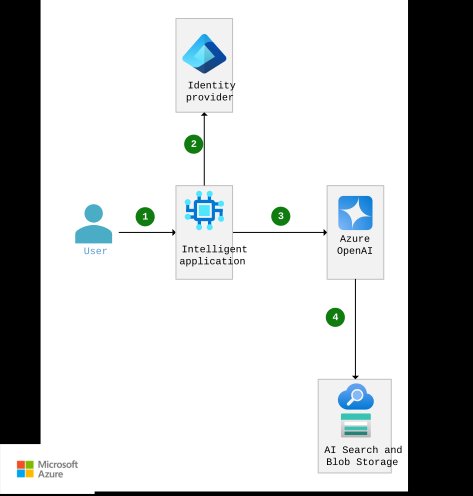

1. Direct Access Architecture: Leveraging Azure OpenAI's On Your Data feature (now deprecated), applications connect directly to data stores without custom orchestration. This simplifies implementation but reduces control over retrieval precision.

Multitenancy Implementation Challenges

Transitioning to multitenant environments introduces complex requirements:

• Data Isolation: Preventing cross-tenant data leakage
• Authorization Granularity: Enforcing role-based access within tenant organizations
• Performance Isolation: Mitigating noisy neighbor effects
• Cost Allocation: Attributing resource consumption accurately

Strategic Storage Models

The guidance compares two primary approaches with distinct trade-offs:

Store-Per-Tenant	Multitenant Store
Dedicated instance per customer	Shared instance with partitioned data
✅ Strong data/performance isolation	✅ Lower management overhead
✅ Simplified cost allocation	✅ Scales to more tenants
❌ Higher operational complexity	❌ Requires robust security trimming
❄️ Cost-inefficient for small tenants	❄️ Potential noisy neighbor issues

Hybrid approaches combining tenant-specific stores with shared knowledge repositories are common in practice. Healthcare implementations, for example, might isolate patient records per tenant while sharing medical reference databases.

Critical Implementation Patterns

Identity Federation Solutions must propagate authenticated identities through all layers. Azure Active Directory tokens should flow from frontend applications through orchestrators to data stores, enabling:

• Tenant identification via claims
• Row-level security enforcement
• Audit trail generation

Security Trimming Beyond tenant isolation, document-level authorization requires:

1. Metadata tagging for sensitivity
2. Attribute-based access control policies
3. Query rewriting with tenant/role filters

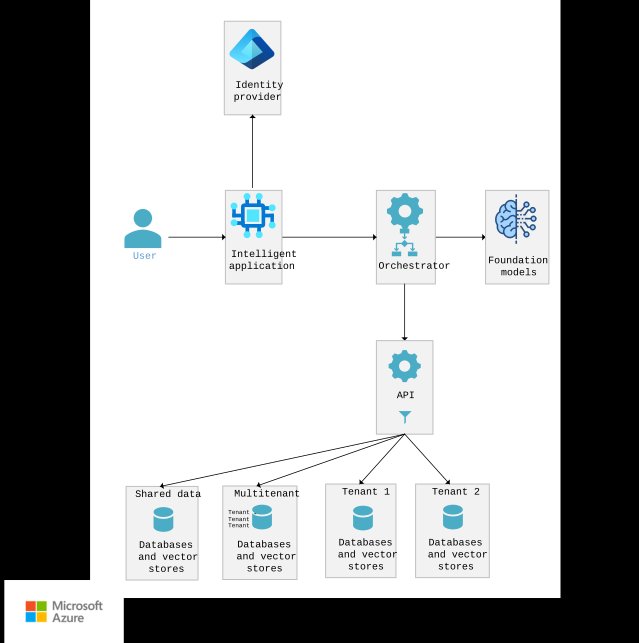

API Abstraction Layer The guidance strongly recommends deploying a dedicated data access layer:

This centralizes:

• Tenant routing logic
• Security filtering
• Query transformation
• Audit logging

Encapsulating these concerns simplifies compliance validation and prevents authorization logic from scattering across application layers.

Strategic Implications

This architectural guidance arrives as enterprises face increasing pressure to deploy multitenant AI solutions safely:

1. Regulatory Alignment: Patterns help satisfy GDPR/HIPAA requirements for data segregation
2. Cost Optimization: Storage model selection directly impacts operational expenditure
3. Vendor Flexibility: While Azure-focused, principles apply to any cloud's RAG implementation
4. Future-Proofing: API layer abstraction eases migration from deprecated services

For teams implementing RAG, these patterns resolve critical tension between rapid AI adoption and enterprise security requirements. The full documentation provides implementation specifics including Azure Policy recommendations, partitioning strategies for Cosmos DB, and integration patterns for Azure SQL row-level security.
