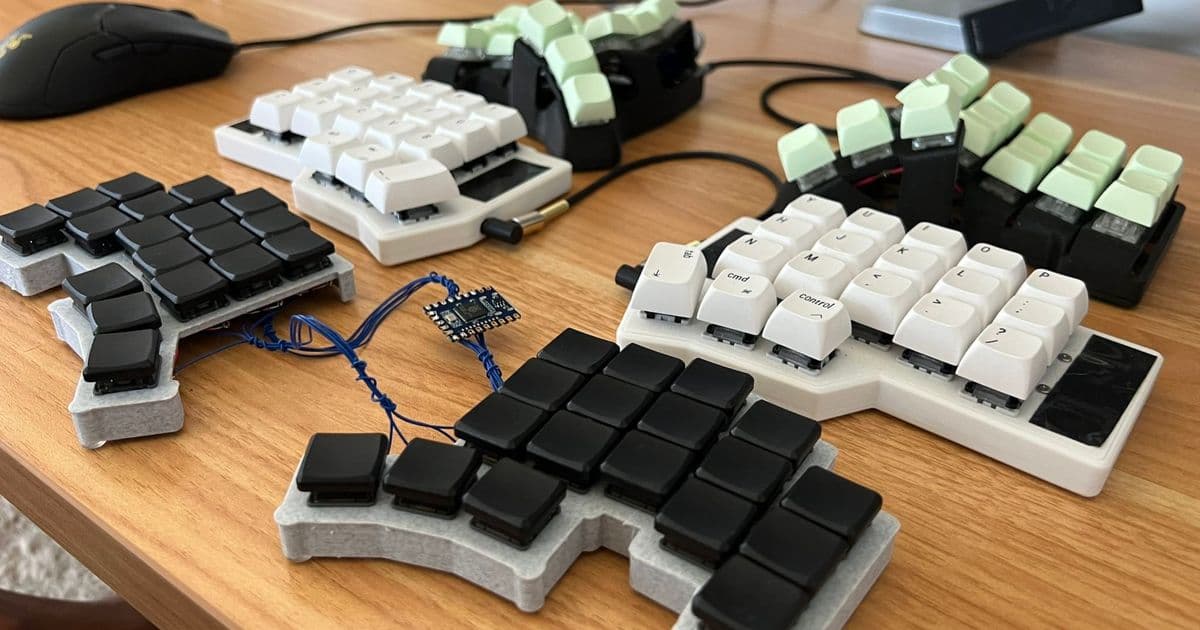

A Beginner’s Guide to Split Keyboards

For those experiencing discomfort during long typing sessions, split keyboards present a compelling ergonomic alternative to traditional peripherals. By separating keyboard halves, these designs allow hands to rest at shoulder-width distances, reducing ulnar deviation and shoulder tension. This guide examines the landscape of split keyboard options while acknowledging the significant learning curve involved in adopting non-traditional layouts.

Layout Fundamentals

Three primary layout categories exist:

• Row-staggered: Traditional alignment requiring minimal retraining but offering limited ergonomic benefits
• Column-staggered: Vertical key alignment matching natural finger motion arcs, requiring significant muscle memory retraining
• Ortholinear: Uniform grid layouts prioritizing aesthetic consistency over anatomical alignment

Most ergonomic advocates transition from row-staggered to column-staggered designs, which constitute the majority of modern split keyboards. Interestingly, users who regularly switch between traditional and split layouts report minimal interference once initial adaptation occurs, typically requiring 3-4 weeks of dedicated practice.

Implementation Pathways

Low-Commitment Approach

For those prioritizing immediate usability:

• Logitech ERGO K860 maintains row-staggering with gentle curvature
• Keychron Q10 Alice layout provides subtle separation
• Kinesis Freestyle 2 offers modular tenting accessories
• Ultimate Hacking Keyboard features swappable thumb modules

These options deliver separation benefits without demanding layout retraining. Advanced functionality like layers can be added through software like Karabiner Elements (macOS) or Kanata (cross-platform).

Ergonomic Optimization

Those willing to invest in retraining gain access to:

Key Reduction Philosophy Smaller layouts (42-34 keys) minimize finger travel by using:

• Mod-tap functionality (single keys performing dual actions)
• Combos (simultaneous keypresses triggering commands)
• Multiple layers (contextual key remapping)

Examples range from the Lily58 (58 keys) to the Sweep (34 keys). Extreme reductions like the 30-key Hummingbird demonstrate niche aesthetic pursuits.

Geometric Variations

• Column splay (angled key alignment)
• 3D sculpting (Glove80, Charybdis)
• Unibody designs (Reviung41)
• Experimental interfaces (Svalboard, Charachorder)

Critical Accessories

• Tenting: Neutral wrist positioning via laptop risers, phone stands, or camera mounts
• Pointing Devices: Integrated trackballs (Charybdis), touchpads (Toucan), or trackpoints (TPS42)
• Wireless Solutions: ZMK firmware enabling Bluetooth operation with battery management considerations

Selection Methodology

Key decision factors:

1. Required key count (more keys ease transition)
2. Hand geometry compatibility
3. Feature priorities (tenting, pointing devices)

Validation tools:

• YAL Tools keyboard database
• SplitKB Compare layout visualizer
• Cardboard prototyping templates

Acquisition Channels

Pre-built Options

• Premium: ZSA Voyager, Kinesis Advantage360
• Mid-range: beekeeb, SplitKB
• Budget: Aliexpress boards (with firmware reflashing recommended)

DIY Approaches

• PCB fabrication via JLCPCB/PCBWay
• Handwiring with 3D-printed cases
• Custom design via Ergogen or Cosmos

Current Market Landscape (2026)

Keyboard	Price Tier	Keys	Open Source
Kinesis Advantage	$$$	76-80	No
Glove80	$$$	80	No
Lily58	$$	58	Yes
Corne	$	36-42	Yes
Sweep	$	34	Yes

Adaptation Philosophy

The ergonomic journey involves balancing immediate comfort against long-term efficiency gains. While split keyboards alleviate physical constraints, their value manifests through consistent use and thoughtful customization. Those embarking on this path should prioritize sustainable practice over immediate proficiency, recognizing that the most significant benefits emerge after the initial adaptation period.
