Build Your Own NES Handheld with ESP32-S3: A DIY Gaming Console Project

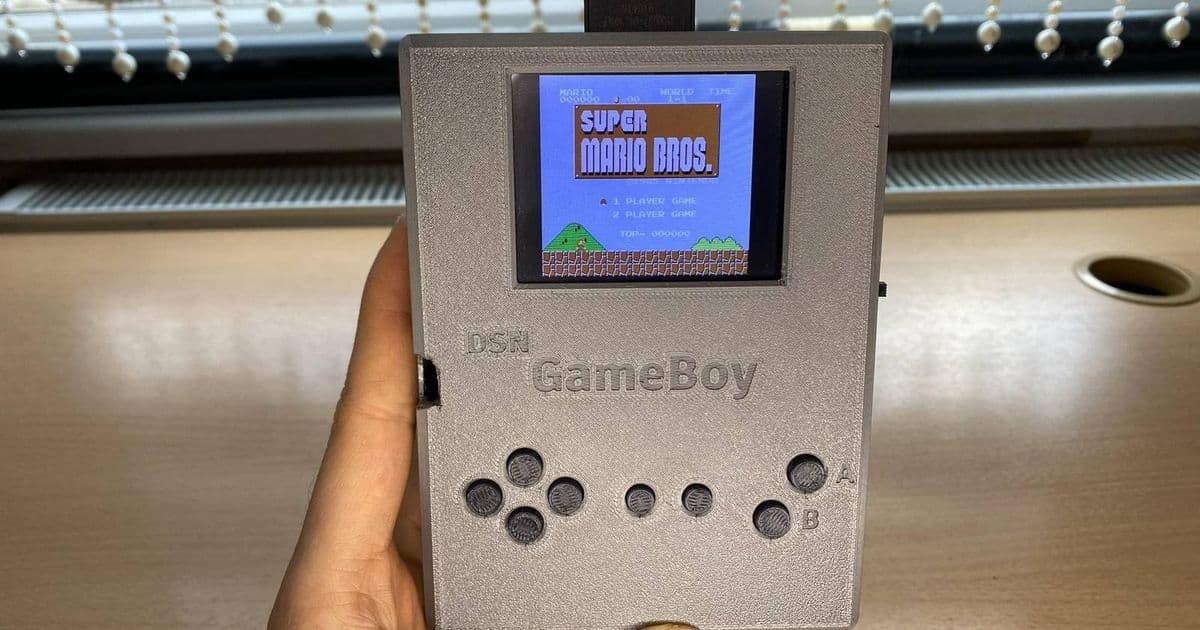

For gaming enthusiasts who prefer building over buying, this DIY NES handheld console project offers the perfect blend of retro gaming nostalgia and modern electronics tinkering. Created by DSN Industries, this portable gaming device transforms an ESP32-S3 microcontroller into a capable NES emulator that fits in your pocket.

The Core Components

The project centers around the ESP32-S3 16R8 development board, which provides the processing power needed for smooth NES emulation. The dual-core architecture of the ESP32-S3 ensures games run at full speed without the lag or frame drops that plague lesser emulators.

For the display, the build uses an ILI9341 Touch SPI TFT module, offering vibrant color reproduction and responsive touch controls. This 2.2-inch screen provides the perfect balance between portability and visibility for classic NES titles.

Audio quality gets a significant boost from the MAX98357A I2S amplifier module paired with a 3W 4Ω speaker. This combination delivers crystal-clear game sounds that capture the distinctive chiptune audio of 8-bit gaming.

Storage and Game Library

The system uses a microSD card for storage, allowing you to load hundreds of NES ROMs onto a single card. This approach provides virtually unlimited game library expansion without requiring complex storage solutions or expensive proprietary cartridges.

Complete Control Scheme

One of the standout features is the full 8-button control layout, including a directional pad, A/B buttons, and Start/Select buttons. This configuration ensures compatibility with virtually all NES games, from simple platformers to complex RPGs that require multiple inputs.

Building the Console

The project requires some basic electronics skills and soldering, but DSN Industries provides comprehensive documentation to guide builders through the process. The GitHub repository includes detailed wiring diagrams, component lists, and software setup instructions.

Why Build Instead of Buy?

While commercial retro handhelds offer convenience, building your own provides several advantages:

• Customization: Choose exactly which components to use and how to configure them
• Learning experience: Gain hands-on knowledge of electronics, programming, and retro gaming
• Cost control: Select components that fit your budget without paying for unnecessary features
• Pride of ownership: There's something special about playing games on a device you built yourself

Getting Started

Before diving in, you'll need:

• Basic soldering equipment
• A computer for programming the ESP32-S3
• Patience for troubleshooting and fine-tuning
• Access to the DSN Industries GitHub repository for instructions

The project represents an excellent entry point into DIY electronics, combining relatively simple hardware with the satisfaction of creating a functional gaming device. Once completed, you'll have a portable NES console that's ready for gaming on the go, all built with your own hands.

For those interested in expanding beyond NES emulation, the ESP32-S3 platform supports various other retro gaming systems, making this project a foundation for future handheld console builds.
