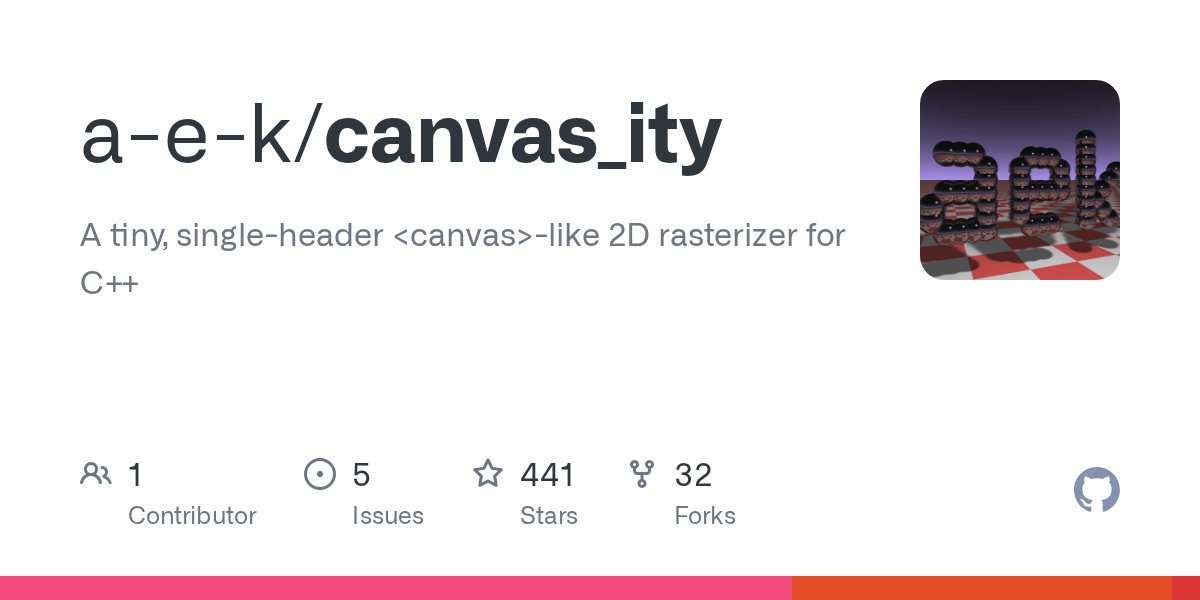

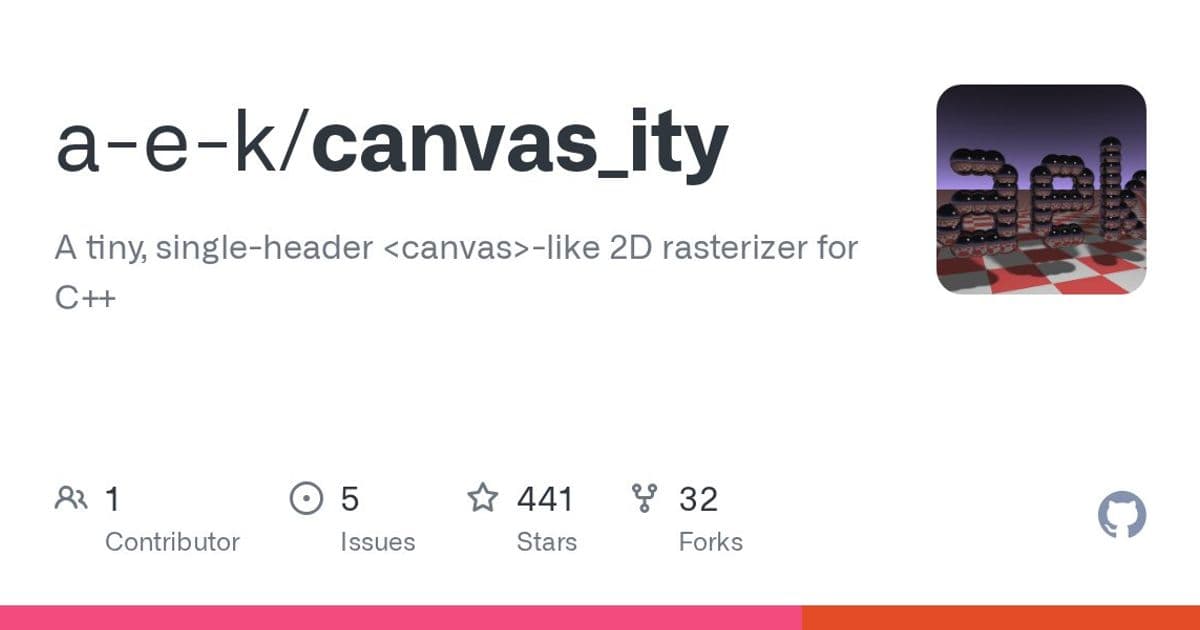

canvas_ity: A Tiny C++ Library That Brings HTML5 Canvas to Native Code

The world of 2D graphics programming has long been dominated by either heavyweight frameworks or low-level pixel manipulation. Enter canvas_ity, a tiny, single-header C++ library that brings the familiar HTML5 canvas API to native code with remarkable fidelity and quality.

A Faithful Canvas Implementation

At its core, canvas_ity is designed to be a high-quality, easy-to-use rasterizer that closely models the W3C HTML5 2D canvas specification. The library takes an opinionated approach, prioritizing rendering quality and ease of use over raw speed. This philosophy is evident in its refusal to provide options for trading off quality for performance—a deliberate choice that ensures consistent, high-quality output.

The API surface is carefully crafted to feel natural in C++ while maintaining the essence of the HTML5 canvas. While the underlying implementation is meticulously based on the specification, the surface-level API has been adapted to avoid strings and auxiliary classes, making it more idiomatic for C++ developers. The goal is ambitious yet clear: this library could theoretically serve as the foundation for a conforming HTML5 2D canvas implementation if wrapped with JavaScript bindings.

Quality-First Rendering

What sets canvas_ity apart is its uncompromising approach to rendering quality. The library employs several sophisticated techniques that are often overlooked in simpler rasterizers:

Trapezoidal Area Antialiasing provides exceptionally smooth edges, even for lines that are nearly horizontal or vertical. This is particularly important because these orientations are notoriously difficult to antialias well with simpler approaches.

Gamma-correct blending and interpolation are used throughout the rendering pipeline. This means the library linearizes all colors, premultiplies alpha on input, and converts back to unpremultiplied sRGB on output. The result is perceptually uniform line thicknesses, reduced muddiness in gradients (especially noticeable in transitions like red to green), and the elimination of dark fringes during opacity interpolation.

Bicubic convolution resampling is employed whenever patterns or images need to be resampled. This technique smoothly interpolates when magnifying images and provides excellent antialiasing when minifying, even handling simultaneous magnification and minification along different axes.

Ordered dithering on output helps reduce banding in subtle gradients while maintaining compression-friendly results—a thoughtful touch that balances visual quality with practical concerns.

High-curvature handling in line joins ensures that thick lines are drawn correctly as if traced with a wide pen nib, even in areas of sharp curvature. This attention to detail prevents the "bite-like artifacts" that simpler curve offsetting approaches often produce.

Remarkably Compact Design

Perhaps the most impressive aspect of canvas_ity is its size. The entire library consists of just over 2,300 lines of code (excluding comments and blank lines), with each line limited to 78 columns. Measured differently, it contains fewer than 1,300 semicolons. When compiled with appropriate size optimizations, the object code can be less than 36 KiB on x86-64 architectures.

This compact size doesn't come at the expense of functionality. The library supports nearly everything in the W3C HTML5 2D canvas specification, with the notable exceptions of hit regions and certain property getters. The accompanying automated test suite achieves 100% line coverage, demonstrating both the library's completeness and the feasibility of testing such a compact codebase thoroughly.

Ease of Integration

canvas_ity's design philosophy extends to its integration model. As a single-header library with no external dependencies beyond the standard C++ library, it's remarkably easy to incorporate into projects. There's nothing to link—the implementation is included directly in your code by defining CANVAS_ITY_IMPLEMENTATION before including the header.

The library is pure CPU code, requiring neither a GPU nor a GPU context, making it highly portable. It uses no static or global variables, allowing different canvas instances to be safely used concurrently across threads without locking. Memory allocation is minimal and predictable, with flat std::vector instances embedded in the canvas class handling all dynamic memory needs after reaching the high-water mark.

Practical Usage

The example provided in the repository demonstrates the library's capabilities beautifully. A complete program renders a star with multiple layers: a yellow fill with drop shadow, a thick red stroke with rounded joins, a dashed orange stroke with circular caps, and a shine layer using a linear gradient with source-atop compositing. The result is written to a TGA file, showcasing the library's ability to produce complex, multi-layered graphics with ease.

The API mirrors the HTML5 canvas closely, with functions like move_to, line_to, close_path, fill, and stroke providing immediate-mode drawing. Properties like line_join, line_cap, and global_composite_operation give fine-grained control over rendering, while gradient and pattern support enables sophisticated visual effects.

Limitations and Considerations

While canvas_ity is remarkably capable, it does have limitations that potential users should consider. The trapezoidal antialiasing can overestimate coverage where paths self-intersect within a single pixel, potentially leading to a grittier appearance in these cases. Clipping uses an antialiased sparse pixel mask rather than geometric path intersection, making it not subpixel-accurate.

Text rendering is intentionally basic, supporting only left-to-right text without hinting, kerning, ligatures, text shaping, or layout. For sophisticated text needs, the library recommends using another library to provide glyphs or paths and feeding those results to canvas_ity.

Security considerations are important: TrueType font parsing is not secure and should only be used with known-good or sanitized fonts. The library also doesn't perform parameter checking for non-finite floating-point values.

Performance-wise, canvas_ity is single-threaded, not explicitly vectorized, and not GPU-accelerated. While it copies data to avoid ownership issues, users needing maximum speed are better served by more fully-featured libraries.

Development and Licensing

canvas_ity is distributed under the permissive ISC license, making it suitable for both open-source and commercial projects. The author has chosen to keep the project feature-complete and not currently accept outside code contributions, though bug reports and discussions are welcome.

The accompanying test suite is comprehensive, offering not just correctness verification but also benchmarking capabilities, PNG output generation, and expected image hash management. The CMake configuration enables extensive warnings and supports static analysis, dynamic analysis, code size measurement, and test coverage analysis.

Conclusion

canvas_ity represents an elegant solution to the problem of bringing high-quality 2D vector graphics to native C++ applications. Its combination of HTML5 canvas compatibility, uncompromising rendering quality, minimal footprint, and ease of integration makes it particularly well-suited for applications where simplicity and quality are paramount.

Whether you're building a lightweight graphics application, prototyping a UI system, or simply want the familiarity of the canvas API in a native context, canvas_ity offers a compelling option. It demonstrates that with careful design and focused priorities, it's possible to create a graphics library that is both powerful and remarkably compact.
