OpenAI has published the architecture of its Codex App Server, a bidirectional protocol that decouples the Codex coding agent's core logic from its various client surfaces, enabling unified AI agent experiences across multiple platforms.

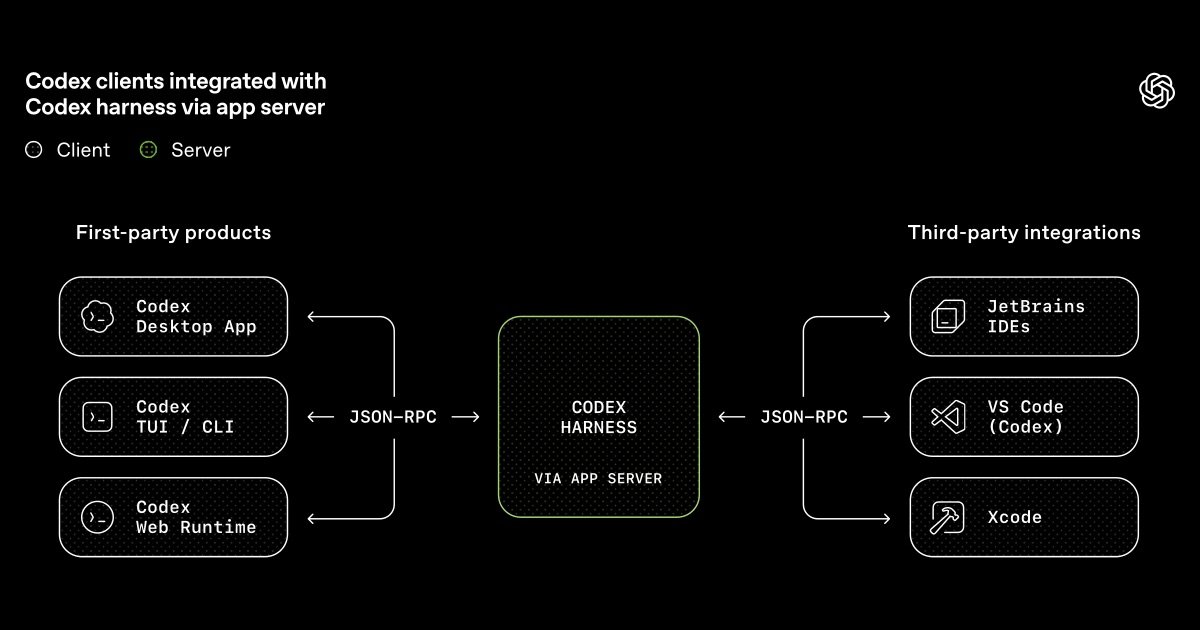

OpenAI has recently published a detailed architecture description of the Codex App Server, a bidirectional protocol that decouples the Codex coding agent's core logic from its various client surfaces. The App Server now powers every Codex experience, including the CLI, the VS Code extension, the web app, the macOS desktop app, and third-party IDE integrations from JetBrains and Apple's Xcode, through a single, stable API.
The Challenge of Agent Interactions
The central challenge, as described by OpenAI engineer Celia Chen, is that agent interactions are fundamentally different from simple request/response exchanges. One user request can unfold into a structured sequence of actions that the client needs to represent faithfully: the user's input, the agent's incremental progress, artifacts produced along the way.
To model this complexity, OpenAI designed three conversation primitives:
Item: The atomic unit of input or output with an explicit lifecycle of "started", optional streaming "delta" events, and "completed". This can be a user message, an agent message, a tool execution, an approval request, or a diff.
Turn: Groups the sequence of items produced by a single unit of agent work, initiated by user input.
Thread: The durable container for an ongoing session, supporting creation, resumption, forking, and archival with persisted event history so clients can reconnect without losing state.
Protocol Design and Communication

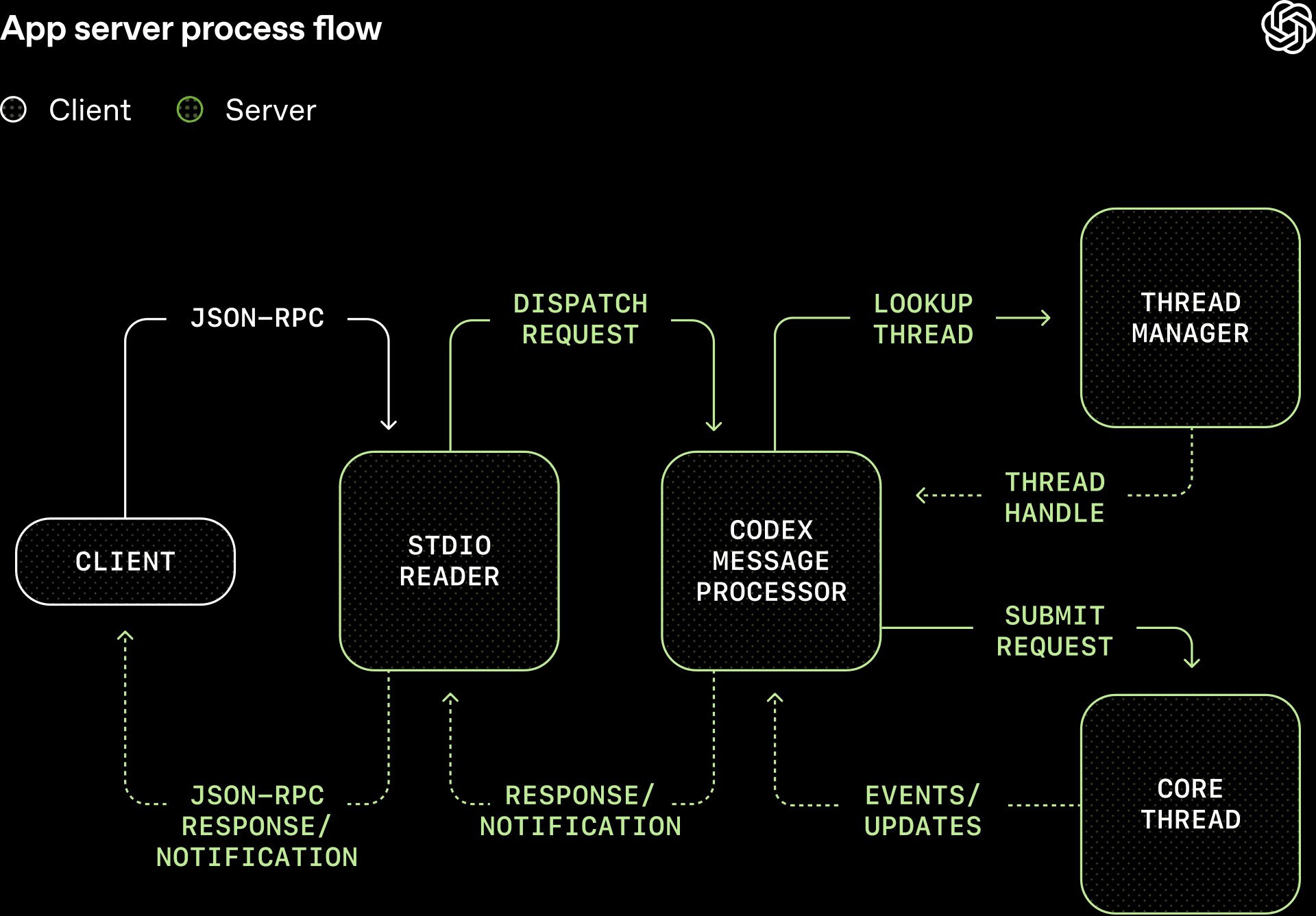

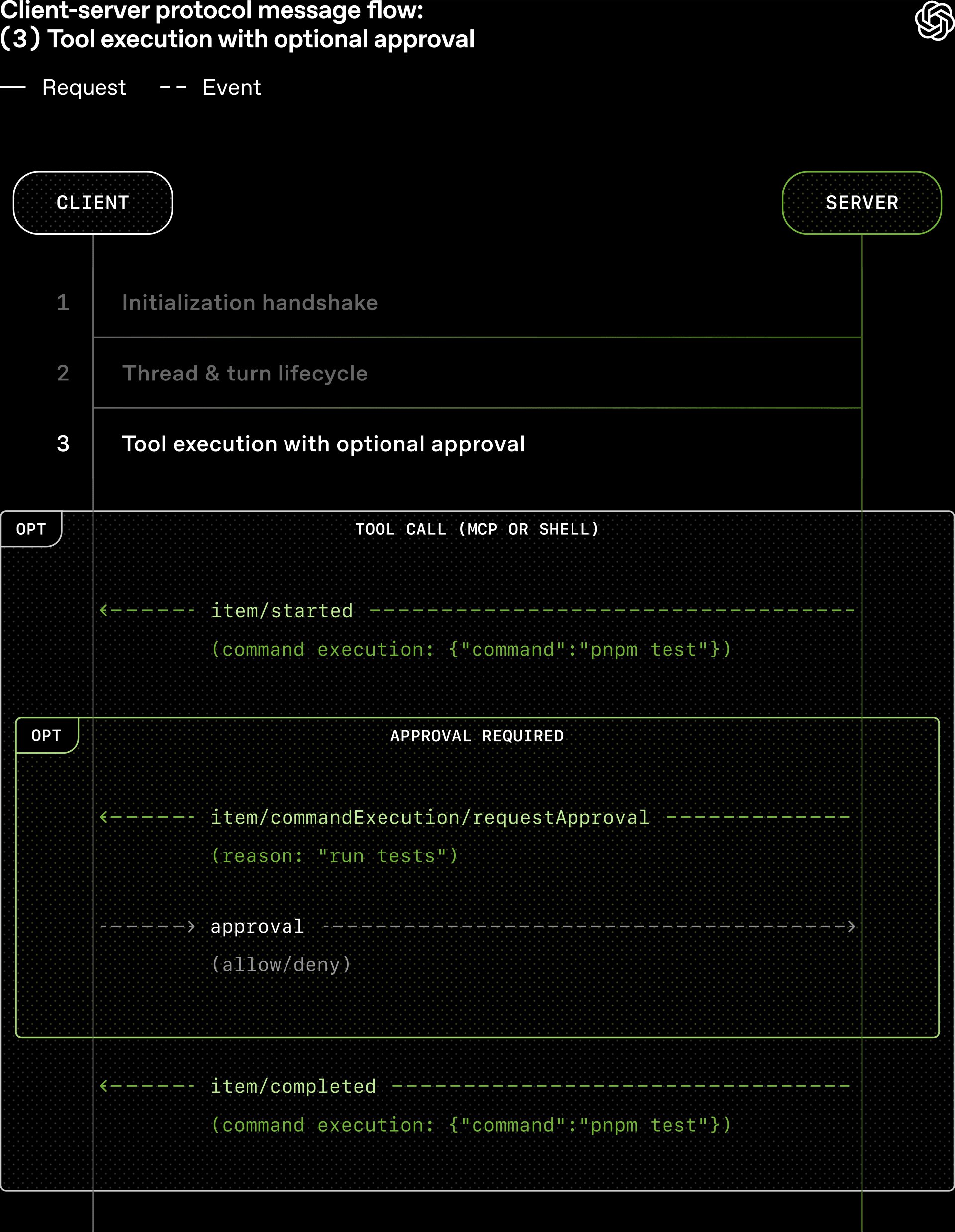

The protocol supports server-initiated requests. When the agent needs approval before executing a command, the server sends a request to the client and pauses the turn until it receives an "allow" or "deny" response. Communication uses JSON-RPC streamed as JSONL over stdio, and OpenAI has designed it to be backward compatible so older clients can safely talk to newer server versions.
Why Not MCP?
Notably, OpenAI tried and rejected the Model Context Protocol (MCP) before arriving at this design. Chen explains that when building the VS Code extension, the team initially experimented with exposing Codex as an MCP server, but "maintaining MCP semantics in a way that made sense for VS Code proved difficult." The richer session semantics required for IDE interactions, such as streaming diffs, approval flows, and thread persistence, did not map cleanly onto MCP's tool-oriented model.
OpenAI still supports running Codex as an MCP server for simpler workflows, but recommends the App Server for full-fidelity integrations.
Deployment Patterns
The article describes three deployment patterns used by clients to embed the App Server:
Local clients like the VS Code extension and desktop app bundle a platform-specific binary, launch it as a child process, and keep a bidirectional stdio channel open.
Partners like Xcode decouple release cycles by keeping the client stable while pointing to a newer App Server binary, allowing them to adopt server-side improvements without waiting for a client release.
The Codex Web runtime takes a different approach: a worker provisions a container, launches the App Server inside it, and the browser communicates via HTTP and Server-Sent Events — keeping the browser-side UI lightweight while the server remains the source of truth for long-running tasks.
Industry Context and Standards
The App Server's evolution parallels broader industry efforts to standardize agent-editor communication. The Agent Client Protocol (ACP), initiated by Zed Industries and now supported by JetBrains, takes a complementary approach: where OpenAI's App Server is a protocol specific to the Codex harness, ACP aims to be a universal standard for connecting any coding agent to any editor, drawing a direct analogy to how the Language Server Protocol standardized language tooling a decade ago.
Codex CLI itself is listed among ACP-compatible agents. The coexistence of these approaches reflects an industry still determining the right abstraction boundaries for agent integration — a space OpenAI acknowledges is "evolving quickly."
Open Source and Availability
All source code for the Codex App Server is available in the open-source Codex CLI repository, and the protocol documentation includes schema generation tools for TypeScript and JSON Schema to facilitate client bindings in any language.
The publication of this architecture represents a significant step toward standardizing how AI coding agents integrate with development environments. By providing a stable, bidirectional protocol that handles the complexities of agent interactions — including streaming progress, approval flows, and session persistence — OpenAI is addressing a fundamental challenge in the AI development tooling space.
This approach offers several advantages over simpler protocols like MCP for complex IDE integrations. The explicit lifecycle management of items, the grouping into turns, and the durable thread abstraction provide the semantic richness needed for sophisticated agent experiences while maintaining backward compatibility.
As the industry continues to evolve toward more agentic development workflows, the patterns established by the Codex App Server may influence how other AI coding tools approach their integration strategies. The tension between specialized protocols like OpenAI's App Server and universal standards like ACP will likely continue as the ecosystem matures and the optimal abstraction boundaries become clearer.
