Xbox Series X Transformed into Gaming PC with 3D Printed Components and Low-Profile RTX 5060

YouTuber PhaseTech has successfully transformed an Xbox Series X console into a fully functional gaming PC, pushing the boundaries of compact computing and demonstrating the console's potential as a PC platform. The project builds upon the creator's previous work converting an Xbox One S into a gaming PC, showcasing the evolution of console modding capabilities.

Technical Specifications and Component Selection

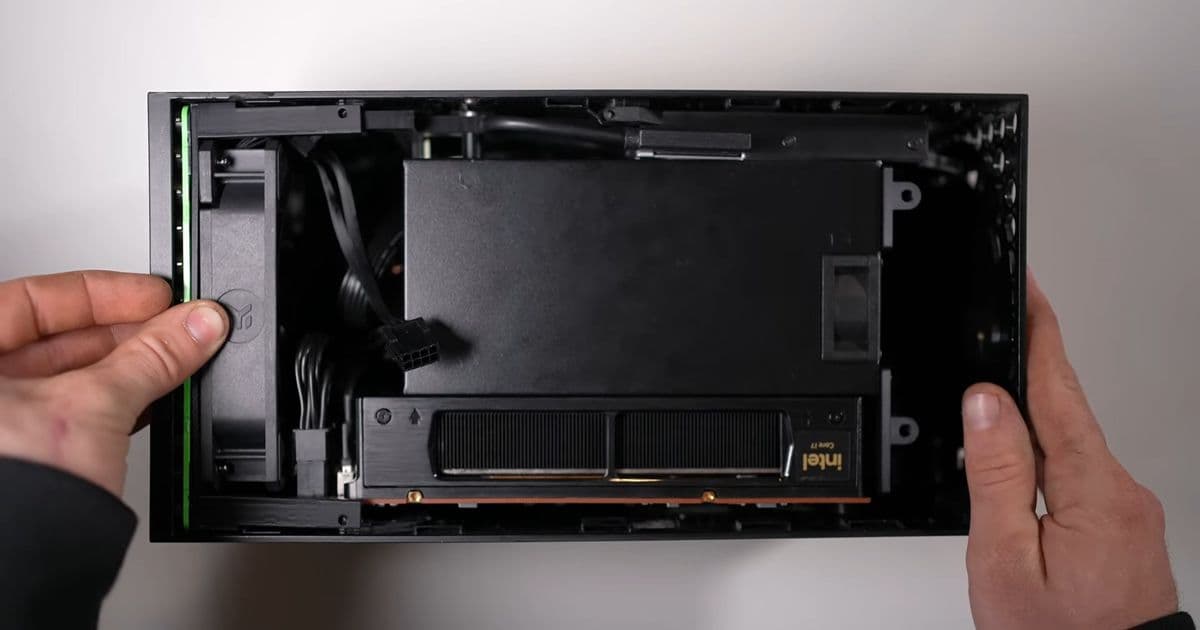

The build centers around Intel's NUC 12 Extreme PCIe compute card, featuring a Core i7-12700 processor, 32GB of DDR4 memory, and a 1TB NVMe SSD. This choice was driven by the Xbox Series X's clamshell design, which proved too narrow to accommodate standard Mini-ITX motherboards. At just 4.75 inches thick, the NUC 12 Extreme is nearly 2 inches thinner than typical Mini-ITX boards, making it the ideal solution for fitting inside the console's compact chassis.

For graphics processing, PhaseTech selected a low-profile Gigabyte RTX 5060 graphics card. This specific model was crucial to the build's success, as it allowed the power supply to be mounted above the GPU within the Xbox chassis. A full-height graphics card would have made this configuration impossible, potentially requiring an external power supply solution.

The power supply is a 600W Flex ATX unit, chosen for its compact form factor and sufficient wattage to power both the NUC and RTX 5060 combination. This integrated power solution maintains the console's clean, self-contained design.

3D Printed Components and Custom Modifications

The heart of this project lies in the extensive use of 3D printed components. PhaseTech designed and fabricated numerous brackets to provide structural support and proper mounting points for all components within the Xbox chassis. These custom brackets serve multiple purposes:

• Reinforcing the compute card and graphics card to prevent bending within their PCIe slots
• Supporting the 120mm cooling fan installation
• Securing the power supply in its designated position
• Maintaining the DVD-ROM drive's functionality

The creator also designed a custom 3D printed back panel featuring precise cutouts for the rear I/O ports, ensuring full compatibility with the PC components while maintaining a clean aesthetic.

Salvaged Components and Compatibility Work

Demonstrating resourcefulness, PhaseTech salvaged the DVD drive from the original Xbox Series X internals and modified it to work with the PC configuration. This approach preserves the console's disc drive functionality while adapting it for PC use.

Additional work was required to make the front power button compatible with the NUC 12 Extreme, ensuring the modified console retains its original user interface elements.

Performance and Thermal Management

After completing the build, PhaseTech reported satisfactory performance with CPU and GPU temperatures hovering around 75°C. This thermal performance is impressive given the compact enclosure and demonstrates effective heat management within the constrained space.

The build includes a 120mm exhaust fan, which provides adequate cooling for the components while maintaining the console's relatively quiet operation.

Significance and Future Implications

This project represents a significant achievement in console modding, demonstrating what's possible when combining enthusiast-level skills with modern compact computing components. The Xbox Series X chassis, while not the smallest computer case available, ranks among the smallest platforms capable of housing a full-fledged PC with integrated power supply and optical drive.

For context, the Corsair One i500 is approximately 3.62 x 1.42 x 5.87 times larger than the Series X, highlighting the impressive space efficiency achieved in this build.

Industry Context and Microsoft's Future Plans

The project takes on additional significance given Microsoft's confirmation of Project Helix, which aims to create a unified platform capable of playing both Xbox and PC games. This build serves as a practical demonstration of the convergence between console and PC gaming platforms that Microsoft is pursuing.

Technical Challenges and Solutions

Several key challenges were overcome during this project:

1. Space Constraints: The Xbox Series X's compact design required careful component selection and placement
2. Power Delivery: Integrating a sufficient power supply within the limited space
3. Thermal Management: Ensuring adequate cooling without compromising the compact form factor
4. Structural Integrity: Creating mounting solutions that prevent component stress and damage
5. Interface Compatibility: Adapting console-specific features like the power button and optical drive for PC use

Conclusion

PhaseTech's Xbox Series X PC conversion represents a remarkable achievement in compact computing and console modding. By successfully integrating Intel's NUC 12 Extreme, a low-profile RTX 5060, and custom 3D printed components, the project demonstrates the potential for creating powerful, compact gaming systems from existing console hardware.

The build not only showcases technical expertise but also provides insights into the future of gaming hardware, where the lines between consoles and PCs continue to blur. As manufacturers like Microsoft pursue unified gaming platforms, projects like this offer a glimpse into the possibilities of compact, powerful gaming systems that maintain the convenience of console form factors while delivering PC-level performance.

For enthusiasts interested in similar projects, this build serves as both inspiration and a practical guide, demonstrating that with the right components, tools, and expertise, remarkable transformations of gaming hardware are possible.
