AI Accelerates Chip Design Automation While Humans Remain the Strategists

Image credit: Getty Images / Ettiene Laurent

For decades, semiconductor design has relied on engineers iterating on floorplans, routing, and micro‑architectural policies. Recent advances in large language models (LLMs) and reinforcement‑learning agents are now inserting themselves into that loop, delivering “superhuman” layout choices for specific, well‑structured problems.

---

1. Where AI Is Already Out‑performing Humans

1.1 Layout generation for TPUs

Google DeepMind’s AlphaChip system has been used on three generations of Tensor Processing Units. In head‑to‑head comparisons, AlphaChip produced floorplans with 4‑6 % lower wire‑length and 3‑5 % better timing closure than the best human‑crafted designs. Those gains translate into roughly 0.8 % higher peak FLOPs per watt at the same process node.

1.2 Design‑space optimization tools

Synopsys reports that its DSO.ai tool has crossed the 100‑tape‑out threshold in production. Customers such as STMicroelectronics and SK hynix have logged:

• 3× faster iteration cycles (design to sign‑off),
• Up to 25 % reduction in dynamic power for comparable performance targets.

1.3 Micro‑architectural policy discovery

At UC Berkeley, the ArchAgent project built on DeepMind’s AlphaEvolve framework generated a new cache replacement policy in 48 hours. The policy delivered a 5.3 % IPC improvement on Google’s multi‑core trace set and a modest 0.9 % gain on SPEC06 after an additional 18 days of refinement. Those numbers are comparable to the incremental gains achieved by a full‑time research team over a quarter.

---

2. How the Tools Work

2.1 Reinforcement learning for floorplanning

AlphaChip treats the placement of macro blocks as a sequential decision problem. The agent receives a reward based on estimated timing, power, and routing congestion. By sampling millions of candidate layouts in a simulated environment, it converges on configurations that human designers would rarely explore due to time constraints.

2.2 Gradient‑based design‑space exploration

DSO.ai builds a differentiable surrogate model of the post‑layout performance metrics. Designers specify a cost function (e.g., power × area), and the optimizer follows the gradient to locate a local optimum. Because the surrogate is trained on a few hundred high‑fidelity simulations, the overall exploration cost stays low.

2.3 LLM‑driven policy synthesis

ArchAgent prompts an LLM with a formal description of the cache hierarchy, workload characteristics, and a target metric (IPC). The model returns candidate state‑machine descriptions, which are then compiled and evaluated on trace data. Human engineers prune infeasible candidates and refine the reward function, creating a feedback loop that speeds up the search.

---

3. Limits and the Role of Human Engineers

Even with these gains, the consensus among the interviewed researchers is that human guidance remains essential. The primary challenges are:

1. Specification ambiguity – AI models need precise, quantifiable objectives. Vague goals (“best chip for AI”) lead to solutions that satisfy the prompt but miss critical constraints such as thermal envelope or test‑coverage metrics.
2. Generalization – Models trained on a specific node or architecture can falter when ported to a new process. For example, a layout that is optimal on a 5 nm node may violate design‑for‑manufacturability rules on a 3 nm node.
3. Verification overhead – AI‑generated artifacts still require full sign‑off, including DRC, LVS, and timing sign‑off. The time saved in synthesis is partially offset by additional verification passes.

Professor Borivoje Nikolić likens the situation to earlier automation waves: “The first impact is cost reduction – we automate what was previously manual. The second impact is the discovery of designs that humans never thought of.” At present, the industry is still in the cost‑reduction phase.

---

4. Emerging Applications Beyond Digital Logic

4.1 Analog circuit synthesis

Projects such as AnalogGenie use GPT‑style models to propose transistor topologies for low‑noise amplifiers. Early prototypes have generated viable schematics for 30‑120 GHz power amplifiers, cutting initial concept time from weeks to days.

4.2 Power‑grid formalization

Igor Markov points out that power‑and‑ground network specifications are often written in natural language. Converting those descriptions into formal routing constraints can now be done in hours instead of days, freeing designers to focus on higher‑level trade‑offs.

---

5. Market Implications

5.1 Productivity vs. headcount

The current AI tools act as force multipliers. A team of five layout engineers equipped with DSO.ai can achieve the throughput of a ten‑person team using legacy flows. However, the tools do not replace the need for senior architects who define the architecture, set the performance targets, and validate the final silicon.

5.2 Skills shift

Engineers who can write effective prompts, interpret model outputs, and integrate them into existing EDA pipelines are in higher demand. Companies are adding “AI‑EDA specialist” roles to their recruiting pipelines, often requiring a mix of circuit design experience and Python/ML fluency.

5.3 Cost dynamics

If AI reduces the average design‑cycle time from 12 months to 8 months for a 7 nm ASIC, the capital cost per wafer can drop by 15‑20 %. That savings may be reinvested into more aggressive node migrations or into exploring novel architectures such as spatial‑AI accelerators.

---

6. Outlook

The trajectory suggests three near‑term milestones:

1. Standardization of formal specifications – Industry consortia will need to adopt machine‑readable design intent formats (e.g., JSON‑based constraint languages) to unlock the full potential of AI agents.
2. Hybrid verification loops – Combining AI‑generated designs with rapid, AI‑assisted verification (e.g., learned DRC predictors) will close the current verification gap.
3. Cross‑node portability – Training models on multi‑node datasets will mitigate the “old topology bias” that hampers analog and mixed‑signal migrations.

In the longer view, as LLMs become more capable of reasoning about physics‑level constraints, we may see AI suggesting entirely new architectural blocks—much like AlphaFold opened new routes in protein engineering. Until that point, the most realistic expectation is a collaborative workflow where AI handles the repetitive, data‑heavy portions and human experts steer the creative direction.

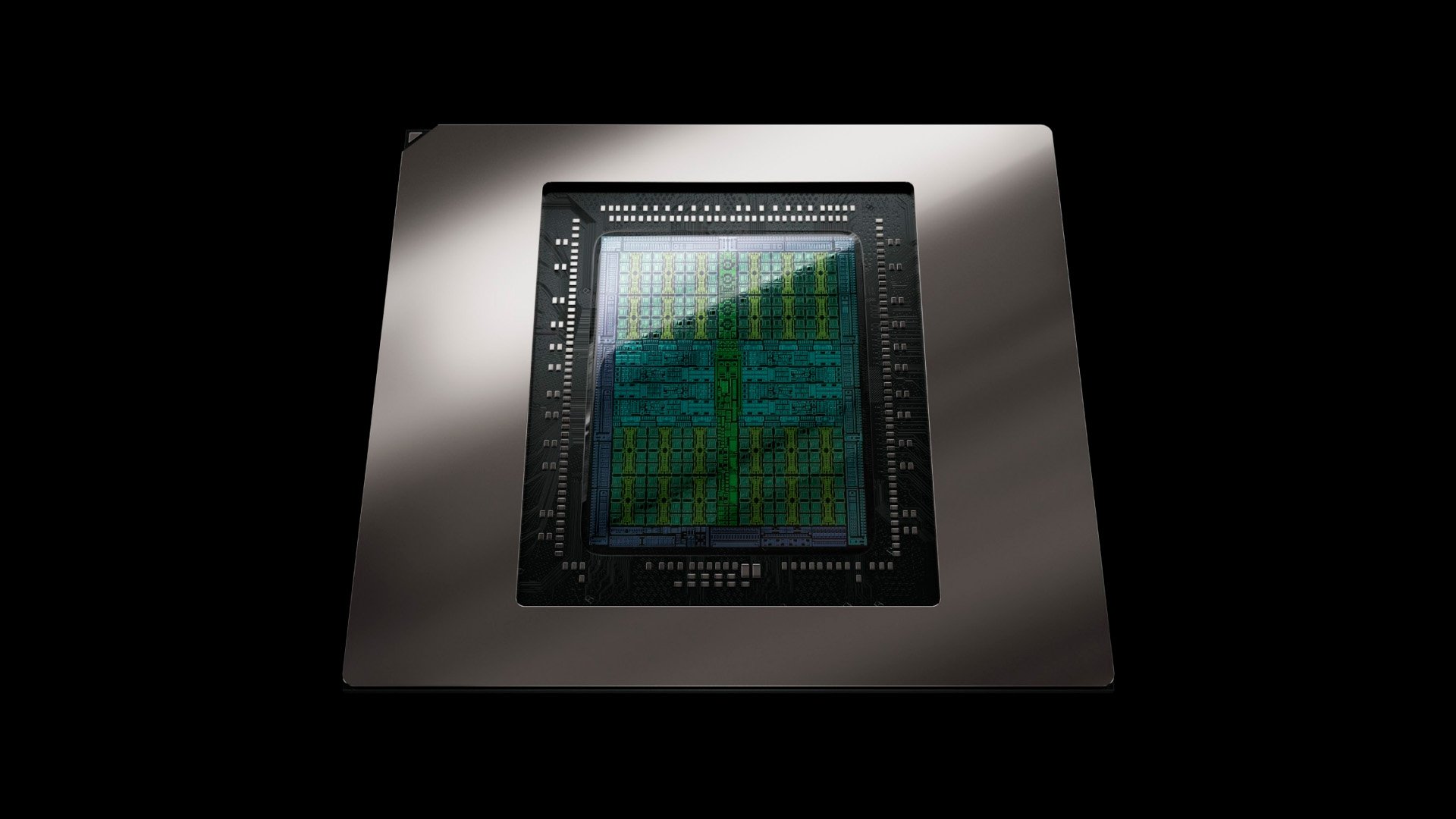

Image credit: Nvidia

---

For a deeper dive into the technical details of AlphaChip, DSO.ai, and ArchAgent, see the linked papers and tool documentation.
