Arctic's new 4U cooler for AMD SP5 processors offers excellent value at $55, providing quiet operation and solid cooling performance for EPYC 9004/9005 series CPUs in a compact form factor.

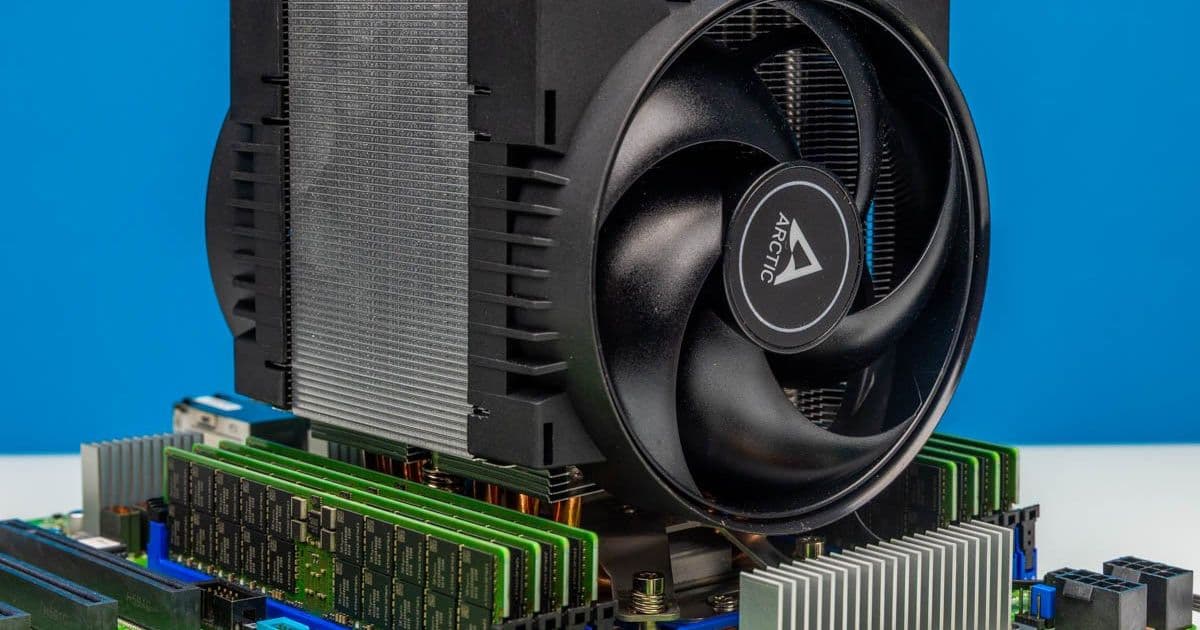

The Arctic Freezer 4U-SP5 represents a significant value proposition in the server cooling market, offering capable thermal performance for AMD SP5 platform processors at roughly half the price of premium alternatives. At approximately $55, this cooler targets system builders working with AMD EPYC 9004 and 9005 series processors including Genoa, Bergamo, and Turin variants.
Design and Build Quality

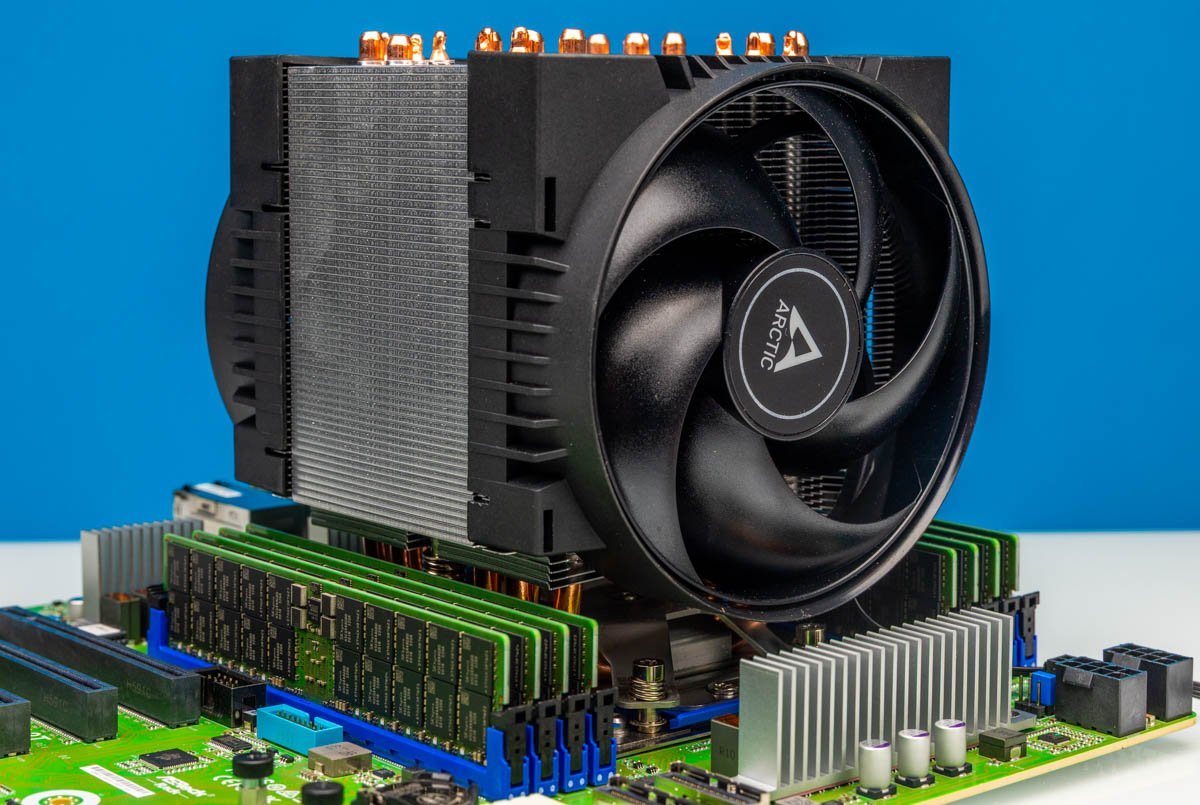

The 4U tower design immediately sets this cooler apart from lower-profile options. The taller form factor allows Arctic to utilize a 120mm fan, which significantly reduces noise levels compared to smaller, higher-RPM alternatives typically found in server environments. This is particularly important when cooling high-end server processors that can generate substantial heat under load.
One clever design element is the heatsink profile. Unlike many server coolers that extend deep into the motherboard area, Arctic has kept the heatsink relatively shallow. This design choice maintains accessibility to the front and rear SP5 mounting screws, making installation and maintenance more straightforward.
For the side mounting points, Arctic employs an innovative solution: a long extension rod that threads through the heatsink body, allowing you to secure the side retention from the top of the tower. This eliminates the need to reach awkwardly around the cooler during installation.

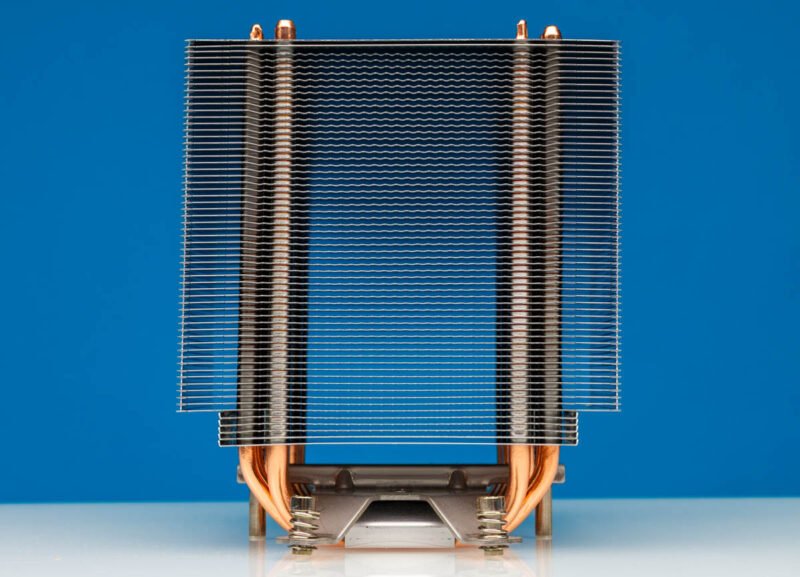

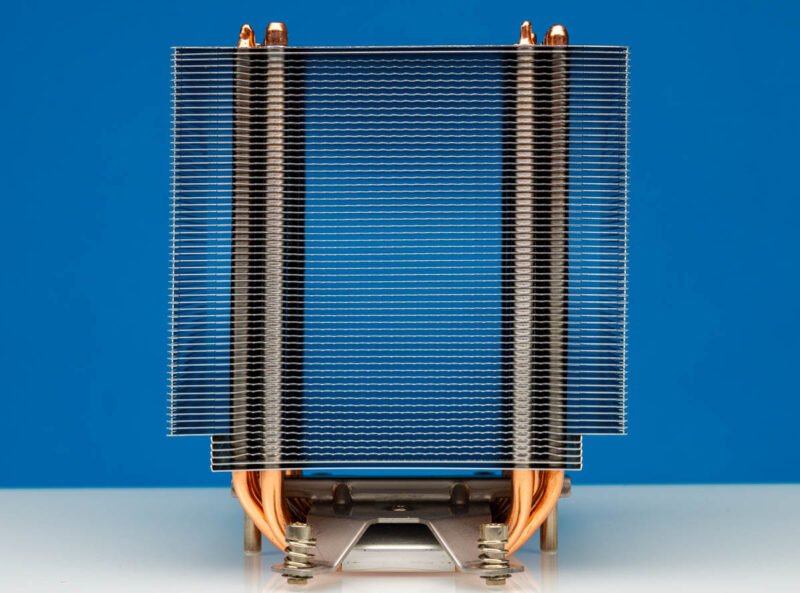

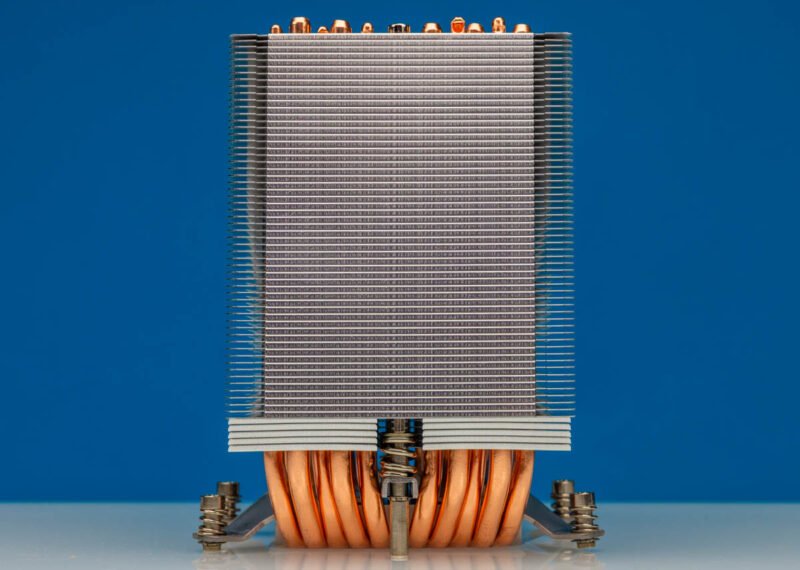

The heatsink itself is notably wide to accommodate the ten heatpipes, which necessitates a narrower base to ensure clearance for DDR5 RDIMM slots. This is a practical compromise that maintains memory compatibility without sacrificing thermal performance.
Unique Features
Arctic has incorporated several distinctive design elements that set this cooler apart:

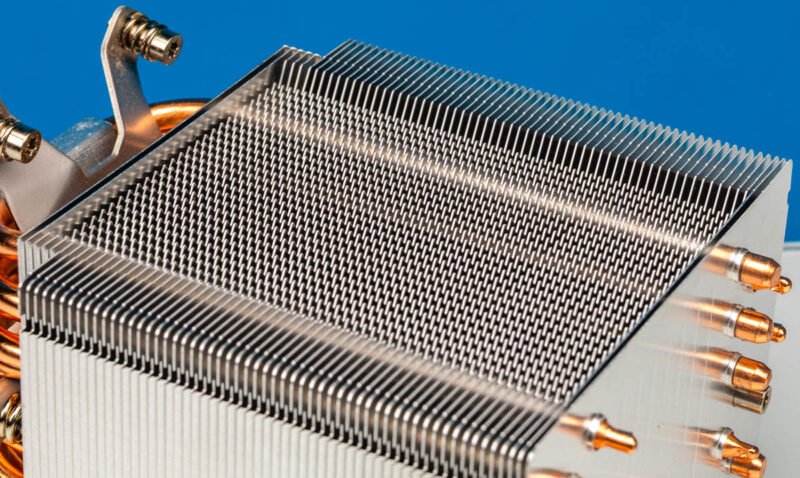

- Pointed fin design: Rather than flat fins, the heatsink features multiple points across the fin structure, potentially increasing surface area and improving heat dissipation
- Heatpipe visibility: The top of the cooler showcases all ten heatpipe ends along with the Arctic logo, creating an interesting visual element
- Torx mounting system: The side retention uses Torx screws, which provide better torque control and reduce the risk of stripping compared to Phillips head screws
Installation Experience
Installation proves straightforward and user-friendly. The cooler comes with two Arctic dual ball-bearing 120mm fans that feature 4-pin PWM control. A notable convenience is the included Y-splitter cable, allowing both fans to be powered from a single motherboard header - particularly useful given that many server motherboards position fan headers near the board's leading edge.
However, the fan cable length could be longer. Server motherboards often have CPU fan headers positioned away from the CPU socket, and the included cables may not reach in all chassis configurations.
The cooler does not include pre-applied thermal compound, which is somewhat unusual for server-grade cooling solutions. Instead, Arctic includes two tubes of MX-6 thermal paste and a small Torx wrench. While enthusiasts might appreciate this approach, it introduces potential variability in thermal performance, especially concerning given that SP5 server chips can cost thousands of dollars.
Performance and Compatibility
In testing with the ASRock Rack TURIND8-2L2T motherboard, the cooler demonstrated excellent compatibility. There were no fitment issues with DDR5 RDIMMs, though accessing the last memory slots in a cramped chassis could prove challenging.
The cooler's TDP rating isn't specified on Arctic's official spec page, which is a notable omission. Server CPUs often have wide power consumption ranges depending on the specific SKU and workload, making this information valuable for system builders.
Value Proposition
At $55-60, the Arctic Freezer 4U-SP5 delivers compelling value:
- Price advantage: Costs roughly half of comparable premium coolers
- Noise reduction: 120mm fan operation provides quieter cooling than smaller alternatives
- Build quality: Solid construction with thoughtful design elements
- Included accessories: Fans, thermal paste, and installation tools
Areas for Improvement
The cooler would benefit from several refinements:
- Longer fan cables to accommodate various motherboard layouts
- Pre-applied thermal compound for consistency and convenience
- Published TDP specifications for better system planning
- Slightly improved memory slot access in tight configurations
Final Assessment
The Arctic Freezer 4U-SP5 successfully delivers on its core promise: providing capable cooling for AMD SP5 processors at an accessible price point. While it lacks some of the refinements found in premium alternatives, the fundamental cooling performance and build quality are solid.
For system builders working with AMD EPYC 9004/9005 series processors who prioritize value and quiet operation, this cooler represents an excellent choice. The installation process is straightforward, compatibility is good, and the price point makes it particularly attractive for lab environments or production systems where multiple units might be needed.
The minor shortcomings - primarily the lack of pre-applied thermal compound and unspecified TDP rating - are reasonable trade-offs given the significant cost savings. For most users, the benefits of this cooler will far outweigh these considerations.
