be quiet! Pure Power 13 M 650W PSU Analysis: Efficiency Overcertification Signals Market Strategy Shift

The German engineering firm be quiet! has released its Pure Power 13 M 650W power supply unit, positioning it strategically between mainstream and premium segments. Certified as 80 Plus Gold but delivering efficiency metrics exceeding Platinum standards (93.3% at 230VAC), this unit exemplifies how manufacturers are exploiting certification gaps to gain competitive advantage. Built on FSP's established platform, the design prioritizes thermal headroom and acoustic performance while making calculated compromises in capacitor selection and physical dimensions.

Technical Architecture Breakdown
The PSU utilizes a half-bridge LLC resonant converter topology with synchronous rectification - a cost-effective solution common in mid-range units. Notable design choices include:

• Power Components: STM 24N60DM2 MOSFETs for primary conversion and Toshiba TK20A60W MOSFETs for active PFC

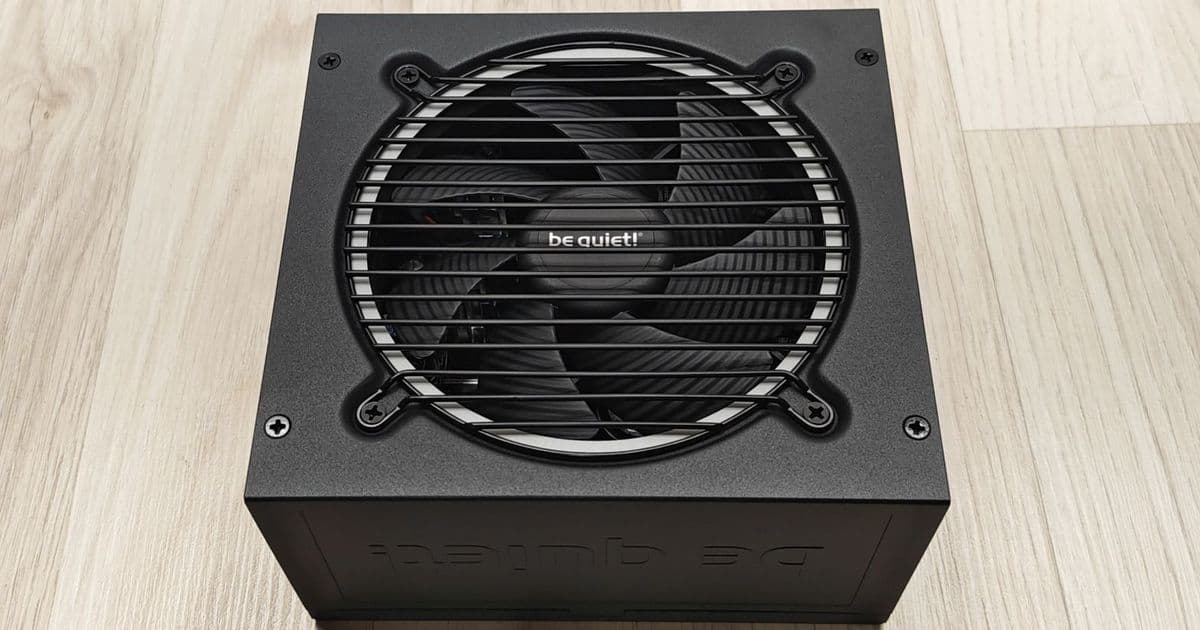

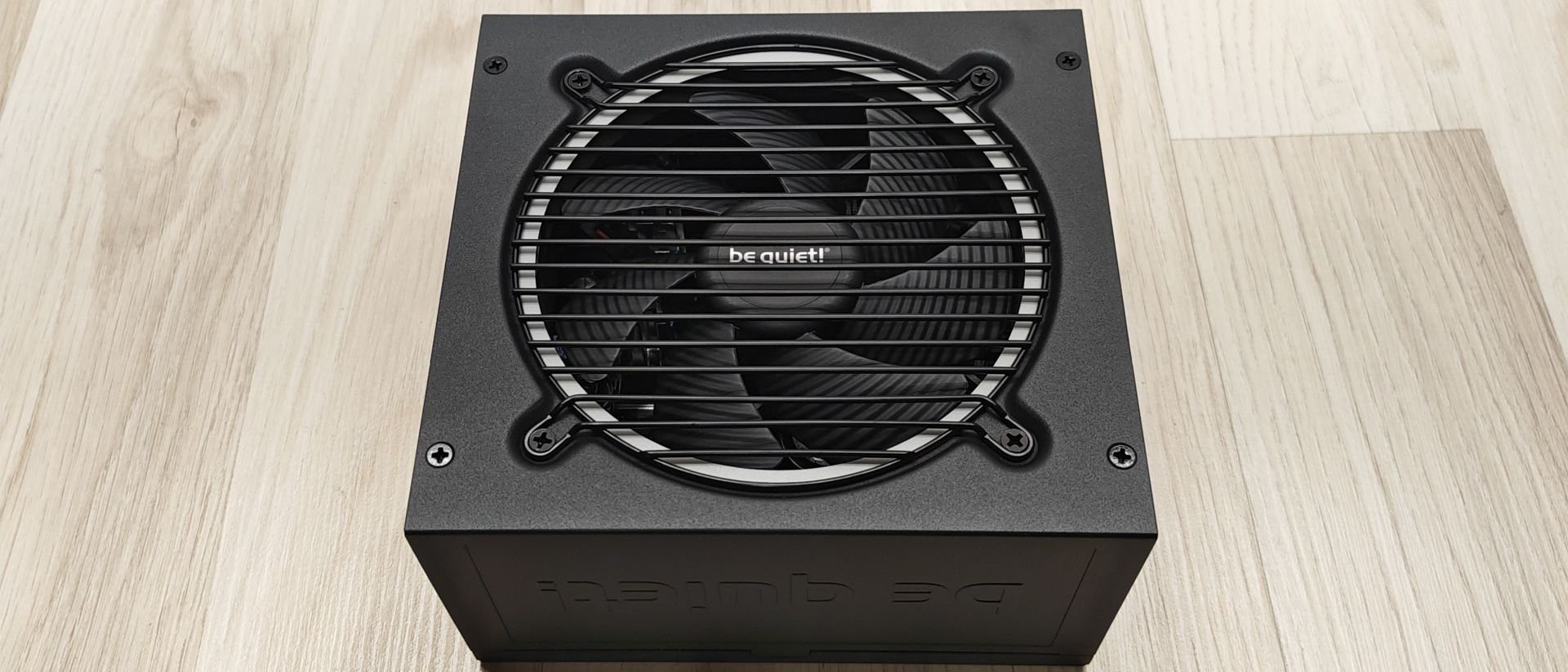

• Cooling System: Semi-passive 120mm rifle-bearing fan (QF2-12025-MS) activating at >200W loads
• Capacitor Selection: Bulk filtering handled by Elite capacitors instead of premium Japanese brands, raising longevity concerns despite 10-year warranty

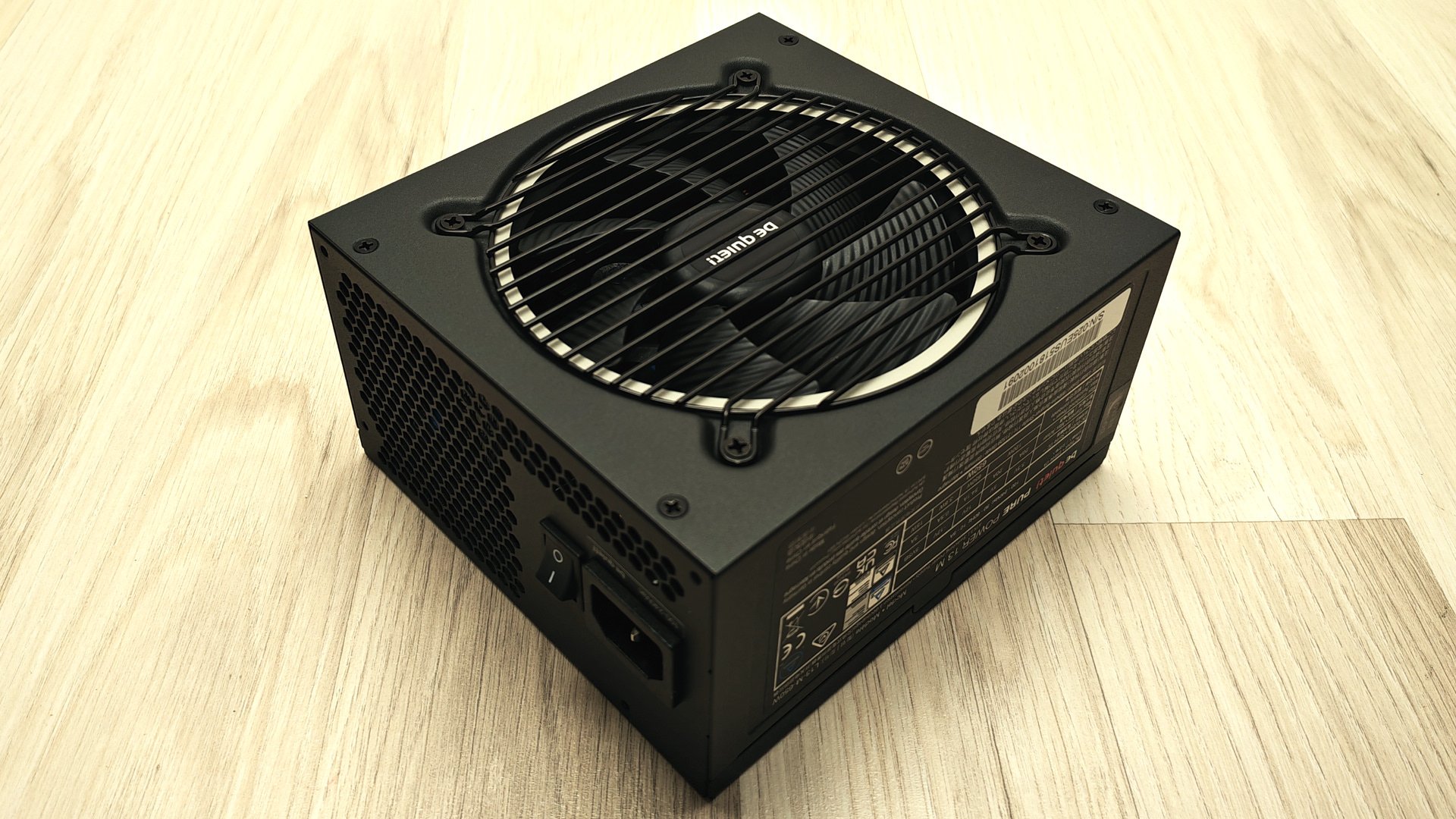

• Dimensions: 160mm depth exceeds standard ATX sizing to accommodate thermal margins

Electrical performance metrics defy certification levels:

Metric	12V Rail	5V Rail	3V Rail
Voltage Reg.	±1%	±1.5%	±1.6%
Ripple Supp.	30mV	20mV	20mV
Efficiency*	94% peak (230VAC)

*Exceeds 80Plus Platinum requirements

Supply Chain Implications

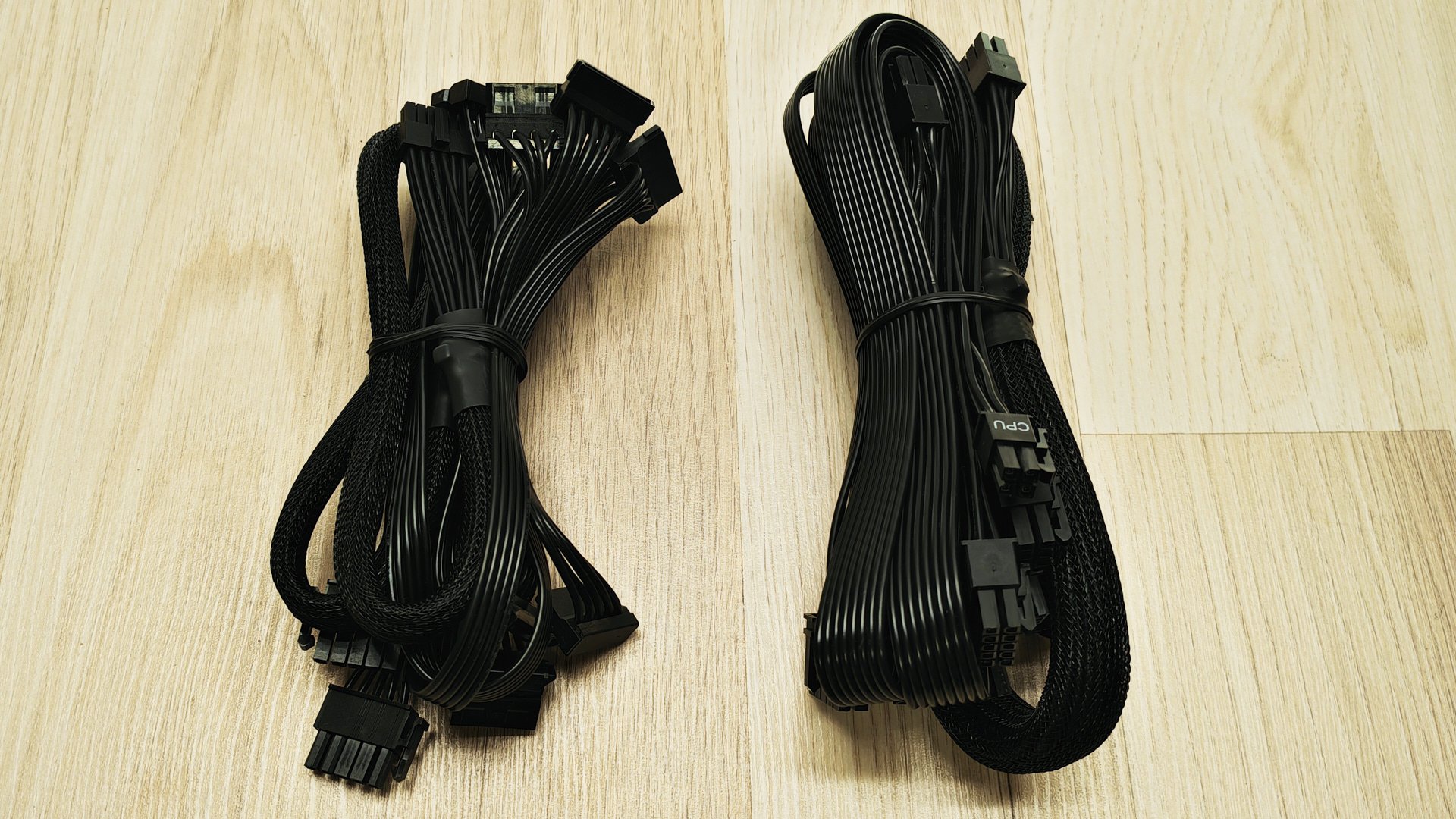

FSP's in-house manufacturing enables tighter quality control compared to contract production models, though the Elite capacitor selection reveals strategic cost optimization. This component choice - atypical for units carrying decade-long warranties - suggests be quiet! is leveraging FSP's bulk purchasing power while banking on platform maturity to ensure reliability. The asymmetric CPU power configuration (4+4 pin + 4 pin EPS) further indicates reuse of existing tooling to minimize production costs.

Market Positioning Analysis
At $99 MSRP, the Pure Power 13 M targets value-conscious enthusiasts through:

1. Certification Arbitrage: Platinum performance at Gold pricing creates perceived value
2. Compliance Futureproofing: ATX 3.1 and 12V-2x6 connector support ensures compatibility with next-gen GPUs
3. Acoustic Prioritization: Semi-passive operation maintains brand identity in sub-400W workloads

Competitive analysis shows the unit occupies a unique niche:

Competitor	Cert.	Efficiency	Warranty	Price
Pure Power 13M	Gold	93.3%	10-year	$99
Corsair RM650x	Gold	91.5%	10-year	$110
Seasonic FOCUS	Plat	92.5%	10-year	$130

Thermal testing reveals deliberate engineering tradeoffs: While fan profiles maintain near-silent operation below 90% load, aggressive speed ramping occurs at maximum capacity - a reliability-first approach that contradicts be quiet!'s silent branding but protects components during peak demands.

Industry Implications
This release signals two market trends:

• Efficiency Overcertification: Manufacturers increasingly understate certifications to segment products while delivering higher-tier performance
• Warranty-Led Confidence: Extended warranties compensate for cost-reduced components, shifting risk management to OEMs

The Pure Power 13 M 650W represents a calculated compromise: sacrificing premium capacitors and compact dimensions to deliver Platinum efficiency in a Gold-priced package. For mainstream builds prioritizing acoustic performance and futureproof connectivity over absolute component pedigree, it establishes a compelling value proposition that challenges traditional certification hierarchies.
