DockFrame Expansion Card Ecosystem Transforms USB-C Ports into Modular Tool Hubs

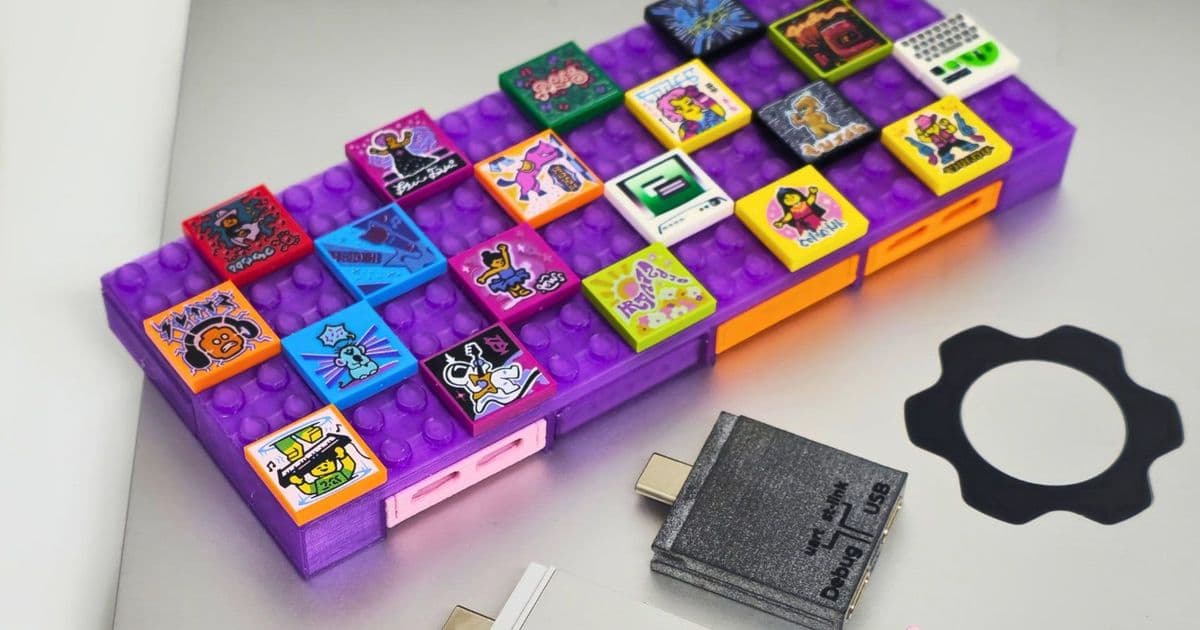

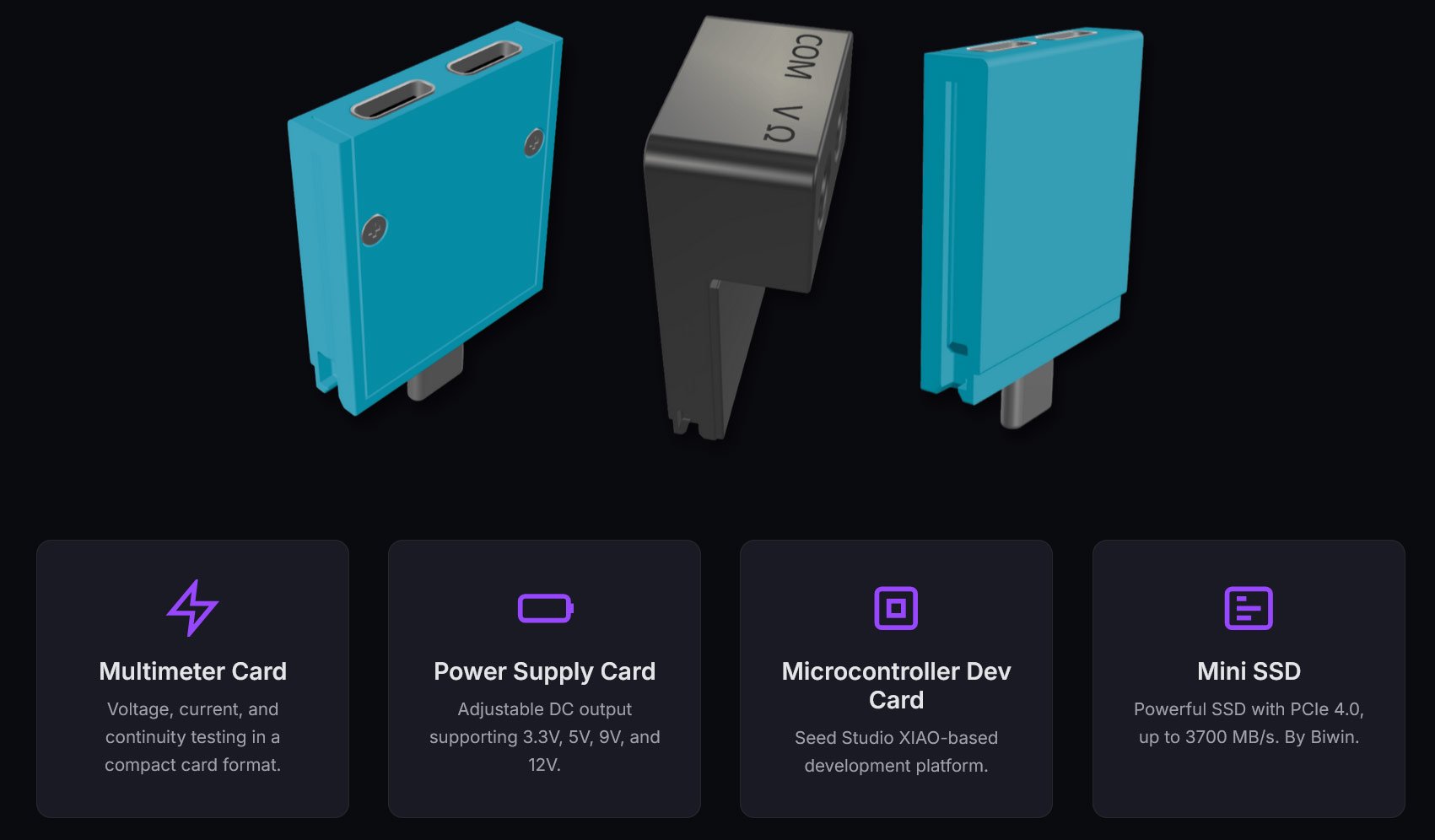

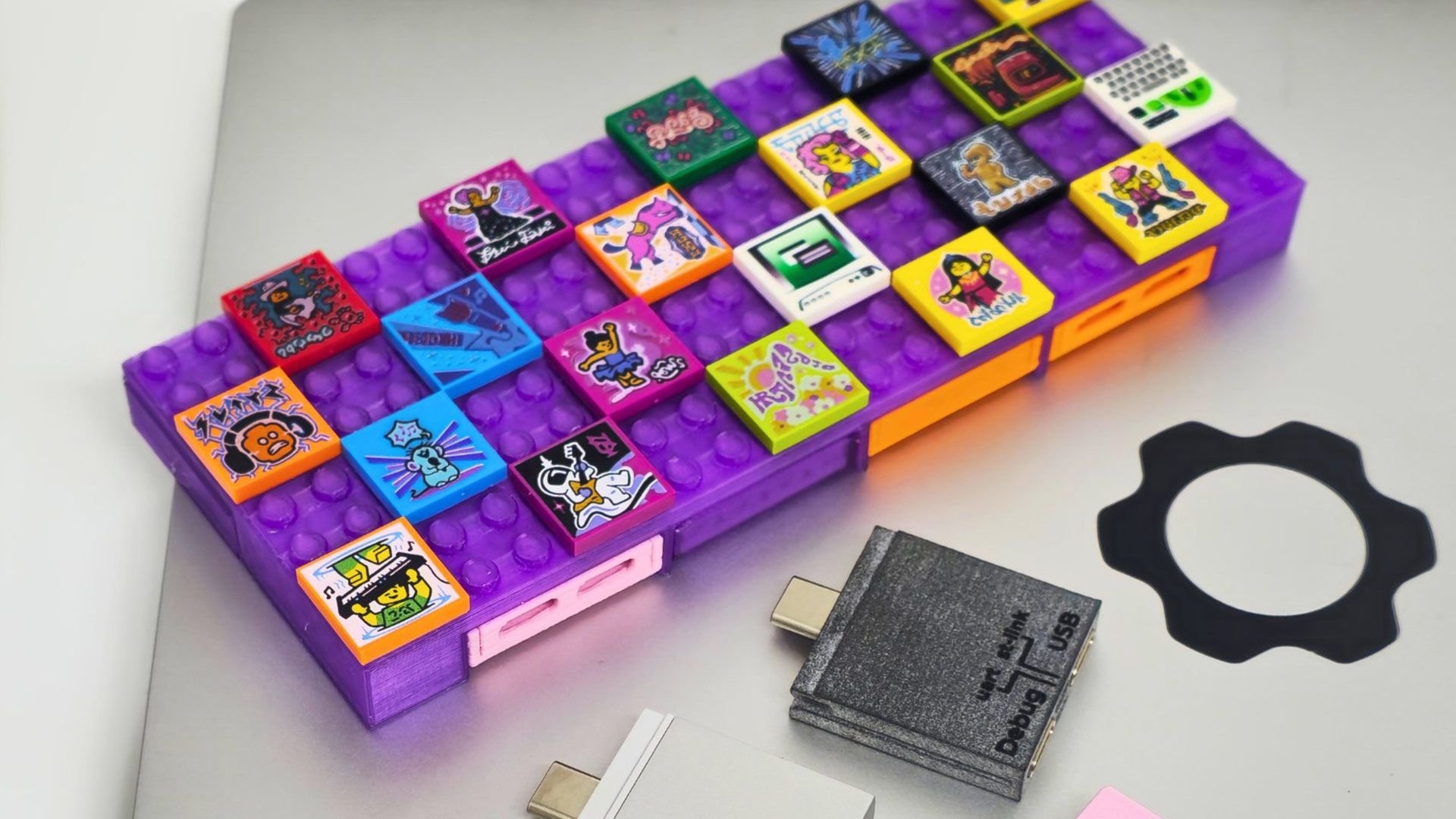

HW Media Lab LLC has unveiled its DockFrame prototype, a USB-C docking station that integrates with Framework's modular expansion card ecosystem while introducing specialized 'Tool Cards' for technical applications. The device features four hot-swappable slots compatible with Framework's existing 24 expansion cards (priced at $11 each), while extending functionality with five new tool-oriented modules: a multimeter card, power supply card, microcontroller development card, mini SSD card, and dual USB-C card.

Technically, DockFrame requires a full-function USB-C 3.2 Gen 2 port (10Gbps) supporting Power Delivery (up to 100W), DisplayPort Alt Mode, and high-speed data transfer. Each card slot operates through dedicated PCB routing that maintains signal integrity across the USB4/TB4-compatible interface. The microcontroller card reportedly uses an ARM Cortex-M7 processor running at 480MHz with 1MB SRAM, enabling programmable I/O control via USB-C passthrough. Meanwhile, the SSD card leverages PCIe 3.0 x2 NVMe interfaces to deliver sequential read/write speeds up to 1,800/1,500 MB/s using M.2 2230 SSDs.

Supply chain analysis indicates HW Media Lab sources microcontroller units from STMicroelectronics and SSD controllers from Phison, aligning with Framework's existing component procurement channels. This shared sourcing strategy potentially lowers manufacturing costs—though specialized tool cards may carry higher BOM costs than standard expansion cards due to added components like the multimeter's 16-bit ADC (Analog-to-Digital Converter) or the power supply card's programmable buck converter. Production scalability remains dependent on global MCU availability, which has stabilized at 95% capacity utilization after 2023 shortages.

Market implications center on expanding USB-C's utility beyond basic peripherals. The tool cards transform laptops into portable engineering workstations—the multimeter card measures voltage (0-30V) and resistance, while the microcontroller card enables rapid prototyping. This positions DockFrame against traditional USB test equipment like Saleae logic analyzers, but at potentially lower price points. Framework's open ecosystem (documented at Framework Expansion Cards) allows third-party innovation, with HW Media Lab actively soliciting community input via developer outreach.

Pricing remains unannounced, but component-level costing suggests a $50-$70 base dock with tool cards ranging from $15-$35 depending on functionality. The standalone card compatibility (usable directly with phones/tablets) creates a secondary revenue stream. If production scales successfully, DockFrame could capture 15-20% of the niche engineering tool market by 2027, particularly appealing to electronics hobbyists and field technicians seeking modular, upgradeable solutions.
