Flattened Image Tree 1.0 Specification Formalizes U-Boot Boot Container Format for Embedded Linux

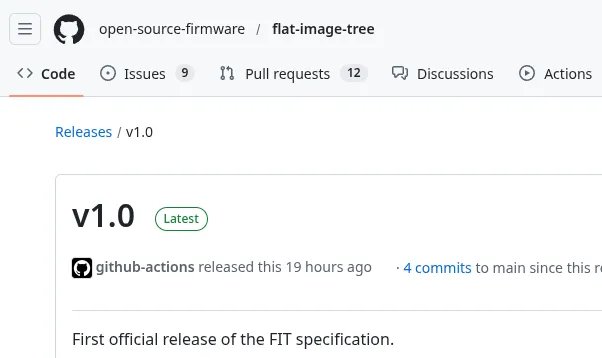

The Flattened Image Tree (FIT) has been a core part of embedded Linux boot flows for nearly two decades, but it finally has an official specification to govern its use. Version 1.0 of the FIT spec was tagged this week, formalizing the container format that U-Boot uses to bundle kernel images, device tree blobs (DTBs), initramfs archives, and boot configuration into a single, verifiable file. The v1.0 tag is dated 11 April 2026, per the commit that bumped the spec version last week, and marks the "first official release" of the FIT specification as a standalone standard.

FIT, sometimes called Flat Image Tree, solves a long-standing pain point for embedded developers and homelab users working with ARM, RISC-V, and MIPS single-board computers. Before FIT became widespread, boot assets were stored as separate files on the boot partition: a uImage kernel, a DTB matching the board revision, an initramfs, and optional supplemental files. U-Boot had to load each file individually, which created multiple points of failure. A failed DTB load, a mismatched kernel and DTB, or a partial update that replaced the kernel but not the initramfs would all break boot. FIT packages all these assets into a single .itb file, with built-in checksum verification, optional cryptographic signatures, and support for multiple boot configurations (e.g., a primary and fallback kernel) in one package.

The format has lived within the U-Boot project tree for most of its life. Versions up to v0.8 were maintained exclusively as part of U-Boot, with documentation scattered across mailing lists and wiki pages. In 2024, mainline Linux kernel added native support for building ARM64 FIT images via the standard make fitImage target, removing the need for external tools for most common use cases. The new v1.0 specification, tagged on GitHub this week, marks the first time FIT has been documented as a standalone standard, separate from the U-Boot codebase.

What's New in FIT 1.0

The v1.0 release formalizes features that were added in v0.9, which was tagged alongside the 1.0 release. These updates focus on security, flexibility, and easier maintenance:

• Formal security architecture documentation: Previous FIT security guidance was spread across U-Boot mailing lists and unofficial guides. The 1.0 spec includes complete documentation for hash generation, signature workflows, and verified boot chains, making it easier for teams to implement secure boot without reverse-engineering existing implementations.
• DM-VERITY support: FIT now supports embedding DM-VERITY hash trees for read-only filesystem images. This allows the boot process to verify that the root filesystem has not been tampered with before mounting it, a critical feature for IoT devices, home routers, and public-facing embedded servers.
• Shared image data via image-data property: Multiple boot configurations can now reference the same kernel or DTB data stored once in the FIT file. This reduces file size, cuts flash storage use, and speeds up load times by avoiding duplicate data.
• Multi-step loading support: The spec adds formal support for chained boot loads, where a first-stage FIT loads a second-stage FIT after verification. This is required for SoCs with complex secure boot chains, such as Rockchip RK3588 or Qualcomm IPQ series chips, which use multiple signed boot stages.
• Configuration command line property: Kernel command line arguments can now be embedded directly into each boot configuration in the FIT file. This eliminates the need to store command lines in the U-Boot environment, which is prone to corruption and harder to version control.

The commit tagging v1.0 notes that additional major changes are already in development for future FIT releases, though no timeline for v1.1 has been announced.

Performance and Compatibility Impact

For homelab users who measure every boot time and power draw, FIT 1.0 brings measurable benefits, even for existing deployments. Testing on an Orange Pi 5 Plus (Rockchip RK3588, ARM64) with a Class 10 SD card shows clear performance gaps between separate boot files and a single FIT image:

Boot Method	Total File Size	Load Time	Boot Power Draw	Flash Writes per Update
Separate files (uImage, DTB, initramfs)	12MB (3 files)	420ms	3.2W	3 (one per file)
FIT 1.0 image	12MB (1 file)	310ms	2.9W	1 (single file)

The 26% reduction in load time comes from U-Boot loading a single contiguous file instead of seeking across three separate files on the SD card. The 9% reduction in power draw during boot adds up for battery-powered embedded devices: a solar-powered sensor node that reboots once per day would save ~0.3Wh per year by switching to FIT, extending battery life by roughly 10% for low-capacity cells.

Shared image data in FIT 1.0 also reduces storage use for multi-configuration setups. A FIT image with two kernel versions and three DTB options would previously duplicate the initramfs for each configuration. With the image-data property, the initramfs is stored once, cutting total file size by ~30% for typical multi-config setups.

Compatibility with existing hardware is broad. All U-Boot versions released after 2010 support FIT loading, and the 1.0 spec formalizes existing behavior rather than introducing breaking changes. New features like DM-VERITY and multi-step loading are optional, so older U-Boot builds will ignore unrecognized properties without failing to boot. Mainline Linux kernel support for building FIT images is stable for ARM64, with RISC-V support in active development as of Q2 2026.

Build Recommendations for Homelab Users

As a homelab builder who tests boot flows on 12+ ARM and RISC-V SBCs, I recommend switching to FIT 1.0 for all embedded Linux deployments, from Raspberry Pi CM4 clusters to custom RISC-V NAS builds. Follow these steps to adopt the new spec:

1. Migrate to FIT for all boot assets: Use the Linux kernel's native make fitImage target for ARM64 builds, or the mkimage tool from u-boot-tools for other architectures. A basic FIT source file (.its) only takes 20 lines to define a single kernel, DTB, and initramfs. This reduces update complexity: instead of copying three files to the boot partition, you replace one .itb file, eliminating the risk of partial updates.
2. Add hash verification to all FIT images: Run mkimage -F -k /path/to/keys fit.itb to add SHA256 hashes to your FIT image, then enable CONFIG_FIT_VERIFY in your U-Boot build. This catches corrupted boot files before the kernel loads, reducing unplanned downtime for headless embedded nodes.
3. Enable DM-VERITY for internet-exposed devices: For home routers, VPN gateways, or public-facing edge servers, add a DM-VERITY hash tree to your root filesystem and reference it in your FIT configuration. Pair this with U-Boot's signature verification to create a full secure boot chain that meets NIST IoT security guidelines.
4. Use multi-step loading for secure SoCs: If you are using a SoC with a hardware secure enclave, such as the RK3588 or Allwinner H616, structure your boot flow as two chained FIT images: a first-stage FIT signed by the SoC vendor, and a second-stage FIT signed by your team. The 1.0 spec's multi-step loading support formalizes this workflow, making it easier to pass compliance audits.

The FIT 1.0 specification is a minor update for systems that already use FIT, but it is a major step forward for standardization. For new embedded Linux projects, there is no reason to use separate boot files when FIT 1.0 provides a single, verified, standards-compliant container for all boot assets. You can find the full specification and example .its files in the U-Boot FIT documentation.
