GMKtec Evo X2 AI Mini PC Review: Compact Strix Halo Powerhouse

Compact Power Meets AI Potential

The mini PC market has evolved dramatically, with manufacturers packing increasingly powerful components into smaller form factors. GMKtec's Evo X2 AI Mini PC represents a significant leap forward, combining AMD's Strix Halo architecture with generous memory configurations to create a versatile system that punches well above its weight class.

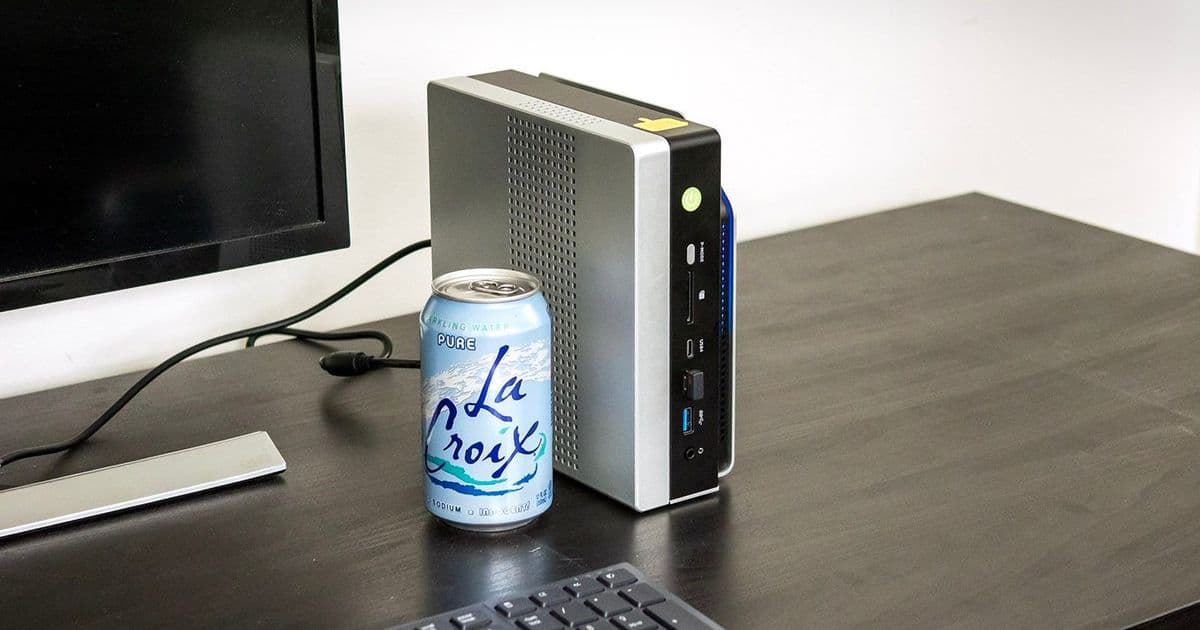

Design and Build Quality

The Evo X2's design philosophy prioritizes function over form. The two-tone black and silver chassis provides adequate contrast, but the overall aesthetic feels somewhat dated - as if it could have debuted a decade ago. The green power button, while distinctive, leans more toward budget gadget territory than premium mini-desktop aesthetics.

Form Factor Considerations

• Dimensions: 3.03 x 7.6 x 7.32 inches (193 x 186 x 77 mm)
• Weight: Compact enough for desk placement
• Orientation: Vertical-only due to ventilation design
• VESA mounting: Not supported

The ventilation perforations along one side force vertical-only orientation, which may limit placement options for some users. While the footprint is impressively small - more compact than the Framework Desktop - GMKtec's reliance on a hefty external 230-watt power brick somewhat undermines the space-saving benefits.

Build Quality Assessment

The chassis construction shows thoughtful engineering:

• Lower half: Sturdy aluminum construction
• Upper shell: Plastic but feels solid, not flimsy
• Internal components: Well-organized layout
• Cooling solution: Effective but audible under load

Port Selection and Connectivity

One area where the Evo X2 truly shines is its comprehensive port selection. The system offers exceptional connectivity for a mini PC of its size:

Front Panel Ports:

• 2x USB-A 3.2 Gen2 ports
• 1x USB-C 4.0 (USB4) port
• 1x 3.5mm audio combo jack
• 1x Full-size SD card reader

Rear Panel Ports:

• 1x DisplayPort 1.4
• 1x HDMI 2.1
• 1x USB4 (USB-C) port
• 1x USB-A 3.2 Gen2 port
• 2x USB 2.0 ports
• 1x 3.5mm audio jack
• 1x 2.5 Gbps Ethernet

This configuration supports up to four simultaneous displays, making it ideal for multi-monitor setups. The inclusion of Wi-Fi 7 and Bluetooth 5.4 via the MediaTek MT7925 networking card ensures future-proof wireless connectivity.

Performance Architecture

The heart of the Evo X2 is AMD's Ryzen AI Max+ 395 processor, featuring the innovative Strix Halo architecture. This mobile chip defies expectations with its desktop-class capabilities:

Key Specifications:

• CPU: AMD Ryzen AI Max+ 395 (16 cores/32 threads)
• GPU: AMD Radeon 8060S integrated graphics
• Memory: 64GB or 128GB LPDDR5X-8000
• Storage: 1TB or 2TB PCIe 4.0 SSD
• Power Supply: 230W external adapter

Unified Memory Architecture

What truly sets the Strix Halo platform apart is its unified memory architecture. Unlike traditional systems where CPU and GPU memory are separate, the Evo X2's GPU can access system RAM directly:

• 64GB model: Up to 32GB GPU-accessible memory
• 128GB model: Up to 96GB GPU-accessible memory

This massive GPU memory pool is unprecedented for integrated graphics and opens new possibilities for AI workloads, content creation, and memory-intensive applications.

Gaming Performance

Despite featuring integrated graphics, the Radeon 8060S delivers surprisingly capable 1080p gaming performance:

Test Configuration:

• Resolution: 1920 x 1080
• Game: Star Wars Jedi: Fallen Order
• Settings: Epic visual quality

Results:

• Average FPS: 90-110
• Minimum FPS: 70 (complex scenes)
• Maximum FPS: 120+ (cutscenes)

The system maintains smooth, fluid gameplay across various titles. In comparative testing against the Framework Desktop (which uses identical hardware), the Evo X2 showed competitive performance:

• Shadow of the Tomb Raider: 91 FPS (vs 87 FPS)
• Cyberpunk 2077: 28 FPS (vs 22 FPS)
• Red Dead Redemption 2: 62 FPS (vs 57 FPS)
• Borderlands 3: 78 FPS (vs 103 FPS)*

*Borderlands 3 results may represent an anomaly

Productivity and AI Workloads

The Evo X2 excels in productivity scenarios, leveraging its powerful CPU and abundant memory:

CPU Performance:

• Handbrake encoding: Comparable to Framework Desktop
• Geekbench scores: Nearly identical to Framework Desktop
• Thermal performance: Stable under sustained load

AI Development Capabilities:

The system's massive memory pool makes it particularly well-suited for local AI development:

• Local LLM hosting: Multiple large language models supported
• Privacy-focused: All processing occurs locally
• Cost-effective: Significantly cheaper than traditional workstations

GMKtec provides an "AIPC" application for AI model management, though the user experience could be improved. The app requires online registration and offers access to models like DeepSeekV3, with support for additional large language models.

Thermal and Acoustic Performance

Cooling System:

• CPU fan with RGB lighting (non-configurable via software)
• Physical fan mode button for performance profiles
• Three performance modes: High, Balanced, Quiet

Noise Characteristics:

• CPU benchmarks: Noticeably audible across living room
• Gaming workloads: Much more controlled, quieter operation
• Temperature management: Effective, with CPU averaging 61°C under stress

Upgradeability and Maintenance

Internal Access:

• Requires removing rubber feet and screws
• Top half chassis removal reveals M.2 slots
• Adhesive feet lose effectiveness after removal
• Limited to storage upgrades (CPU/GPU/RAM soldered)

Storage Options:

• Two M.2 slots available for upgrades
• PCIe 4.0 support for fast storage
• Base configuration includes 1TB or 2TB SSD

Software and Warranty

Pre-installed Software:

• Minimal bloatware
• AIPC application for AI model management
• Windows 11 Home included

Warranty Coverage:

• One-year manufacturer warranty
• Support through GMKtec's online channels

Pricing and Value Proposition

The Evo X2's value proposition depends heavily on intended use:

Configuration Pricing:

• 64GB/1TB: $1,499 (MicroCenter), $1,699 (Amazon)
• 96GB/2TB: $1,799.99 (direct from GMKtec)
• 128GB/2TB: $2,299 (MicroCenter), $2,199 (direct)

Value Analysis:

Strengths:

• Exceptional memory capacity for AI workloads
• Competitive pricing vs. Framework Desktop
• Strong 1080p gaming performance
• Comprehensive port selection
• Future-proof connectivity (Wi-Fi 7)

Limitations:

• External power brick reduces portability
• Build quality feels budget-oriented
• Limited upgrade options
• Fan noise under heavy load

Target Audience and Use Cases

The Evo X2 is best suited for:

1. AI Developers: The massive GPU-accessible memory makes local AI model training and inference practical
2. Content Creators: 64GB+ memory handles demanding creative applications
3. Multi-monitor Users: Four display support accommodates complex workflows
4. Space-Constrained Environments: Compact footprint fits tight spaces

Less Ideal For:

• Pure gaming enthusiasts (better performance available in mid-towers)
• Users needing frequent hardware upgrades
• Those requiring VESA mounting
• Budget-conscious buyers seeking maximum performance per dollar

Competitive Landscape

Vs. Framework Desktop:

• More affordable at similar configurations
• Slightly larger footprint
• Better port selection
• External power brick vs. internal PSU

Vs. Traditional Mid-towers:

• Significantly smaller form factor
• Less upgrade flexibility
• Lower maximum performance potential
• Better suited for space-constrained environments

Final Assessment

The GMKtec Evo X2 AI Mini PC represents a compelling option in the compact computing space, particularly for users who can leverage its unique strengths. While it won't replace a high-end gaming desktop for enthusiasts, it offers an impressive combination of performance, memory capacity, and connectivity in a remarkably small package.

The system's true value emerges for AI development, content creation, and multi-tasking scenarios where the massive memory pool provides tangible benefits. For these use cases, the Evo X2 delivers workstation-class capabilities at a fraction of the cost of traditional systems.

Recommendation:

• Buy if: You need massive memory for AI workloads, want 1080p gaming in a compact form factor, or require extensive connectivity in a small space
• Skip if: You're a hardcore gamer seeking maximum performance, need extensive upgradeability, or have strict noise requirements

At $1,499 for the base configuration, the Evo X2 offers reasonable value for its target audience, though the price premium over traditional systems remains significant for users who won't fully utilize its capabilities.
