Inside Apple's 40W Dynamic Power Adapter: Teardown Reveals Engineering Mastery for Peak 60W Performance

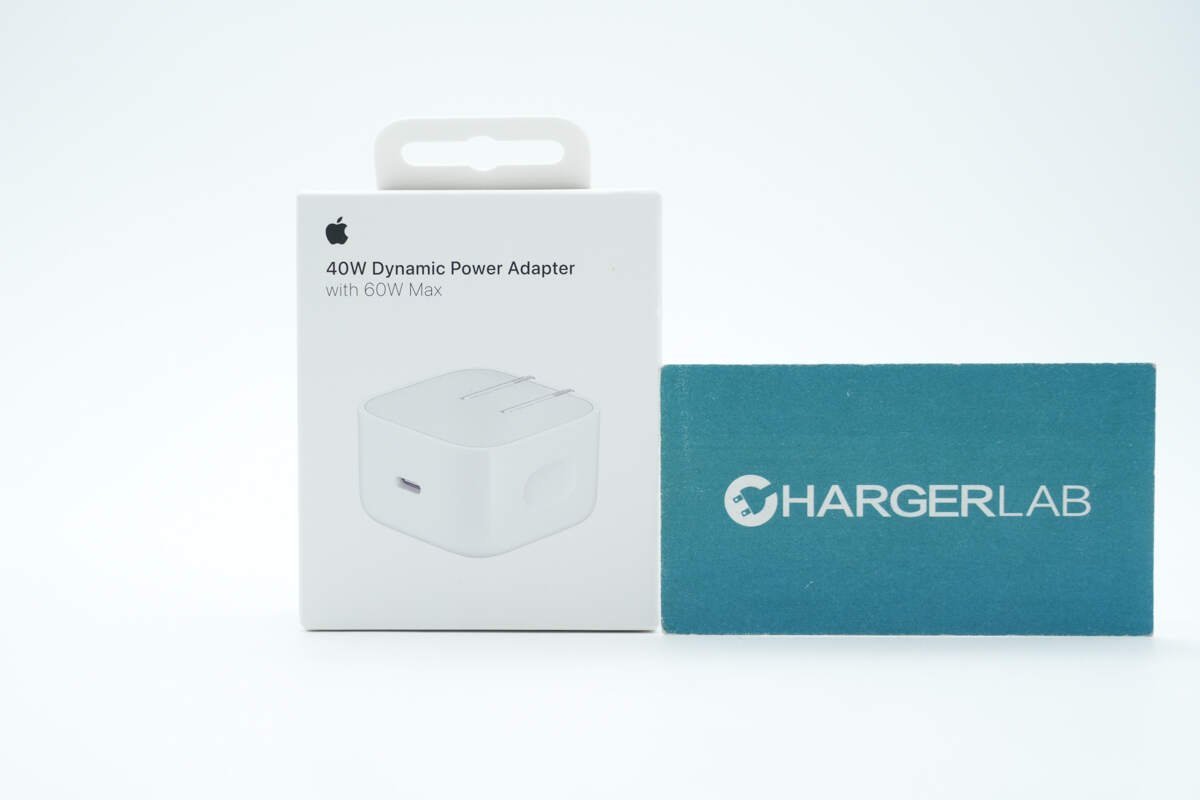

At Apple's 2025 Fall Event, the spotlight wasn't just on the iPhone 17—it also shone on the 40W Dynamic Power Adapter, a $39 powerhouse that redefines fast charging. Priced accessibly and sized like Apple's humble 20W charger, this adapter boasts a "dynamic" twist: it can surge to 60W for high-demand devices like MacBooks while maintaining 40W stability for iPhones. ChargerLAB's teardown reveals how Apple packed such punch into a 45.7mm x 45.7mm x 28.1mm frame with foldable prongs, weighing just 80g. For developers, this isn't just a charger; it's a case study in power density and intelligent energy management.

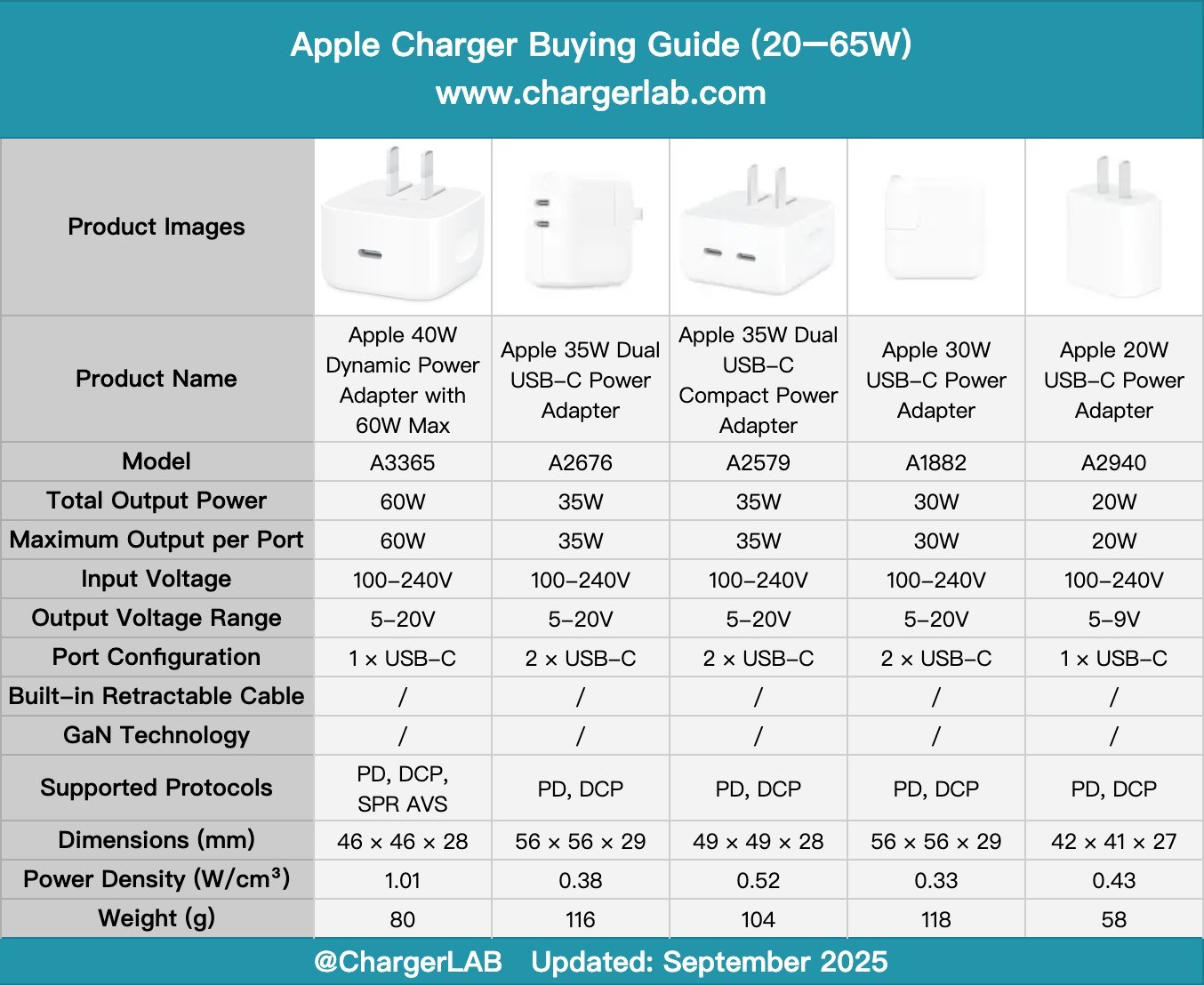

The Compact Giant: Design and Performance

The adapter's unassuming exterior hides sophisticated engineering. Measuring identically to Apple's 20W model, it supports USB PD 3.0 with fixed PDOs (5V/3A, 9V/3A, 15V/2.67A, 20V/2A), enabling rapid charging—27W for an iPhone 16 Pro Max and nearly 56W for a MacBook Air M3. As ChargerLAB notes, this "peak 60W, stable 40W" approach dynamically adjusts output based on device needs, a feat achieved through active voltage scaling (AVS) and digital power sharing (DPS). The graphite-lined casing and foldable prongs emphasize portability, but the real magic lies inside.

Teardown: Decoding the Power Architecture

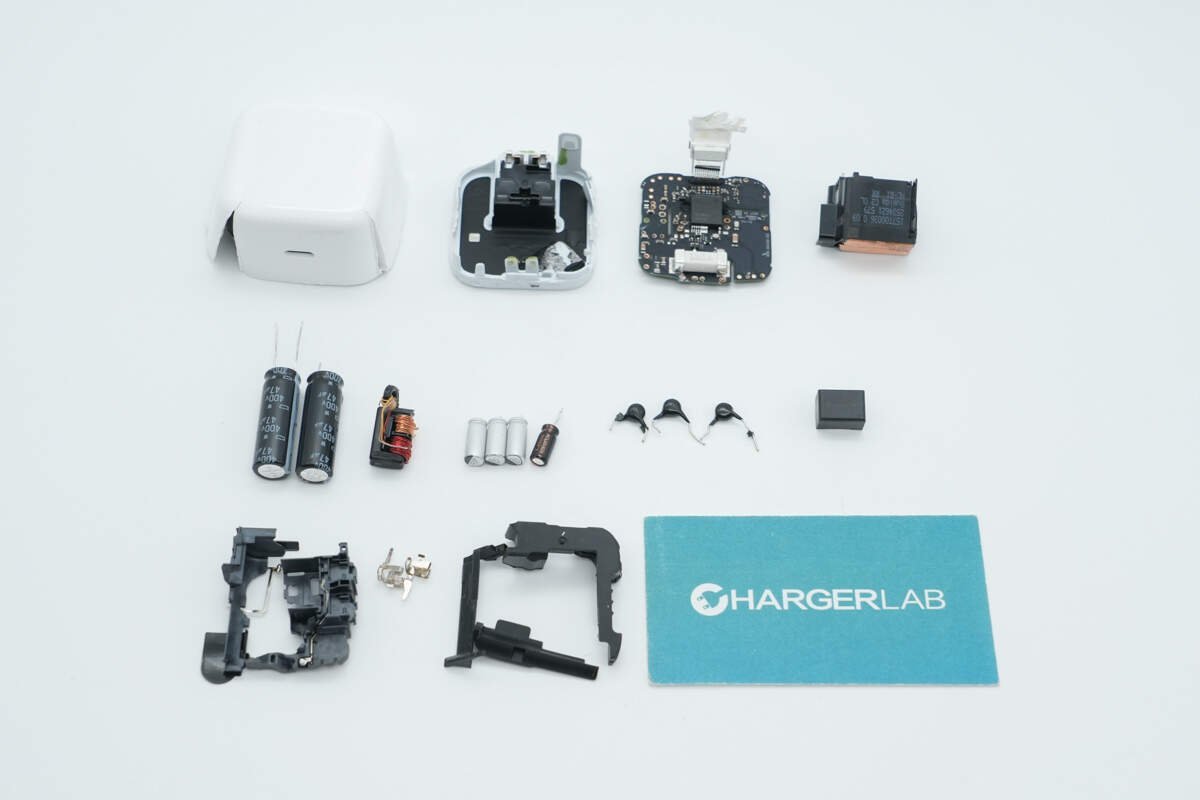

Cracking open the ultrasonic-welded enclosure exposes a PCBA module swathed in thermal management: graphite pads, foam cushions, and insulating tape. This isn't overkill—it's essential for handling heat during 60W peaks. The layout is meticulously organized:
- Input Side: Features a two-stage common mode choke for EMI filtering, a DIODES bridge rectifier (RTT10KL), and parallel NCC 400V 47μF electrolytic capacitors.
- Core Intelligence: Power Integrations' custom ZN1612F controller integrates the primary MOSFET, sync rectifier control, and feedback, slashing component count. Paired with RECTRON's RM85N100DF sync rectifier (100V, 4.6mΩ), this chip enables efficient high-frequency switching.
- Output Precision: Infineon's CYPDC1185B2-32E protocol chip negotiates power delivery, while Nichicon 25V 270μF solid capacitors ensure clean output. A TI TLV9001 op-amp and thermistor team up for real-time temperature monitoring, throttling power if overheating looms.

Why This Matters for Tech Professionals

For hardware engineers, this teardown is a masterclass in integration. The ZN1612F's all-in-one design reduces board space by 30% compared to discrete solutions, echoing trends in sustainable electronics. Meanwhile, the dynamic power delivery—orchestrated by Infineon's chip—showcases adaptive energy distribution, crucial for ecosystems with mixed-device charging. Developers should note: this isn't just about faster iPhones. It signals Apple's investment in USB PD as a backbone for cross-device compatibility, reducing e-waste by eliminating proprietary chargers.

Thermal management is equally innovative. The thermistor and graphite padding allow sustained 60W bursts without bulk—essential for VR headsets or future AI-driven gadgets. As ChargerLAB highlights, such refinements make this adapter a compelling choice for iPhone 17 users and power-hungry peripherals. In a world racing toward gallium nitride chargers, Apple proves silicon still has surprises.

Source: ChargerLAB
