Nexcom's APPC160 C21-01 Brings Intel Core Ultra 5 to Fanless Industrial Panel PCs

Nexcom has officially launched the APPC160 C21-01, a 15.6-inch fanless industrial panel PC designed specifically for system integrators and modern smart manufacturing builders. The standout feature here is the slim-bezel design with an IP65 rating for extreme AI-edge processing capabilities, making it much better than the IP53-rated Simply NUC Bloodhound mini-PC.

Built around the Intel Core Ultra 5 125U processor with 12 cores and 14 threads, this industrial panel PC supports up to 32GB of DDR5 5600MHz memory and fast PCIe 4.0 M.2 SSD storage. It also includes an M.2 Key E 2230 slot for Wi-Fi/BT, along with four dedicated antenna holes for robust wireless communication.

The 15.6-inch panel features a full HD 1920x1080 10-point P-Cap touch display with 7H surface hardness. It has up to 400 nits of brightness, which is kind of in the lower end of the spectrum compared to products like waveshare ESP32-S3 4.3inch AI Voice or the ESP32-P4-WIFI6-Touch-LCD-4.3-C. But it has a 1000:1 contrast ratio, 16.7M colors, and a 178-degree viewing angle.

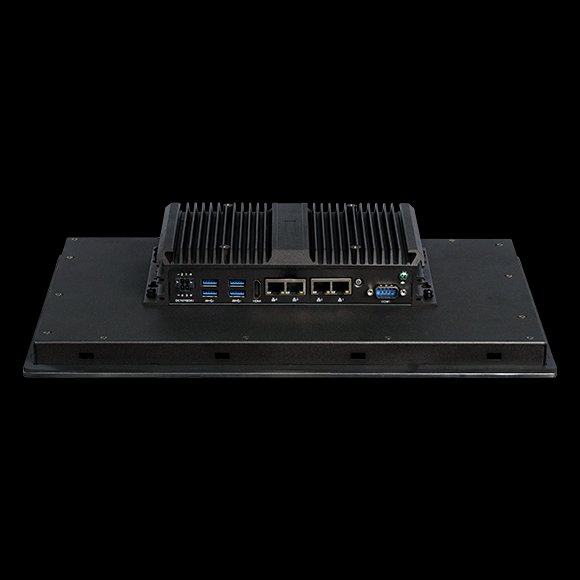

Moreover, it includes four USB 3.2 Gen1 ports and a DB9 serial port for expansion. On top of that, we also have four Gigabit Ethernet (Intel I210) ports, which can be used to connect the unit to multiple IP devices. It's powered via 12V, 19V, or 24V DC input and uses TPM 2.0 for security.

The PC comes in a slim form factor measuring only 388.1mm x 245.3mm x 67.6mm and supports VESA 100 and wall mounting. The system is CE and FCC Class A certified and supports Windows 11 IoT, Windows 10 IoT, and Ubuntu.

On paper, the features look all well and good, but there are a few little things to watch out for. First of all, it uses an HDMI 1.4 instead of newer HDMI 2.1 or DisplayPort. On top of that, it doesn't have many I/Os, so folks running setups that demand massive I/O expansion for multiple proprietary add-in cards, that single Mini PCIe slot can feel a bit limiting.

At the time of writing, the APPC160 C21-01 is not available for direct purchase, and you have to submit an inquiry for orders or more details.

This industrial panel PC represents a significant step forward for edge computing in manufacturing environments, combining the latest Intel Core Ultra processor with a fanless design that can withstand harsh conditions. The IP65 rating means it's protected against dust and low-pressure water jets from any direction, making it suitable for factory floors, food processing areas, and outdoor installations.

The Intel Core Ultra 5 125U brings Intel's latest architecture to industrial applications, featuring a hybrid core design with performance and efficiency cores that can handle both demanding AI workloads and power-sensitive operations. The 12-core, 14-thread configuration provides substantial parallel processing capability for industrial automation, machine vision, and real-time data analysis tasks.

While the 400-nit brightness might seem modest compared to consumer displays, it's actually quite reasonable for industrial environments where glare control and readability in various lighting conditions are more important than raw brightness numbers. The 7H surface hardness rating indicates good scratch resistance, which is crucial for touch panels in industrial settings where tools and equipment might come into contact with the screen.

The four Gigabit Ethernet ports are particularly noteworthy for industrial applications, allowing the PC to connect to multiple network segments, PLCs, cameras, and other industrial equipment simultaneously. This kind of connectivity is essential for modern smart factories where different systems need to communicate reliably and securely.

However, the limitations become apparent when considering expansion needs. The single Mini PCIe slot and lack of modern display outputs like DisplayPort or HDMI 2.1 could be restrictive for users who need to connect multiple high-resolution displays or add specialized industrial I/O cards. The HDMI 1.4 limitation means 4K output at 30Hz maximum, which might not be sufficient for some high-resolution industrial visualization applications.

For system integrators and manufacturers looking to deploy AI-enabled edge computing solutions in challenging environments, the APPC160 C21-01 offers a compelling package of performance, durability, and connectivity. The fanless design eliminates moving parts that could fail in dusty or vibrating environments, while the IP65 rating provides peace of mind for installations where dust and moisture are concerns.

The support for multiple operating systems including Windows IoT variants and Ubuntu gives flexibility for different application requirements, whether you're running industrial control software, AI inference workloads, or custom Linux-based solutions.

Pricing and availability details remain to be announced, but given the specialized nature of this equipment and the current market for industrial computing solutions, expect it to be positioned at a premium compared to standard commercial PCs. The value proposition lies in the combination of industrial-grade durability, modern processing capabilities, and the specific feature set tailored for manufacturing and automation applications.
