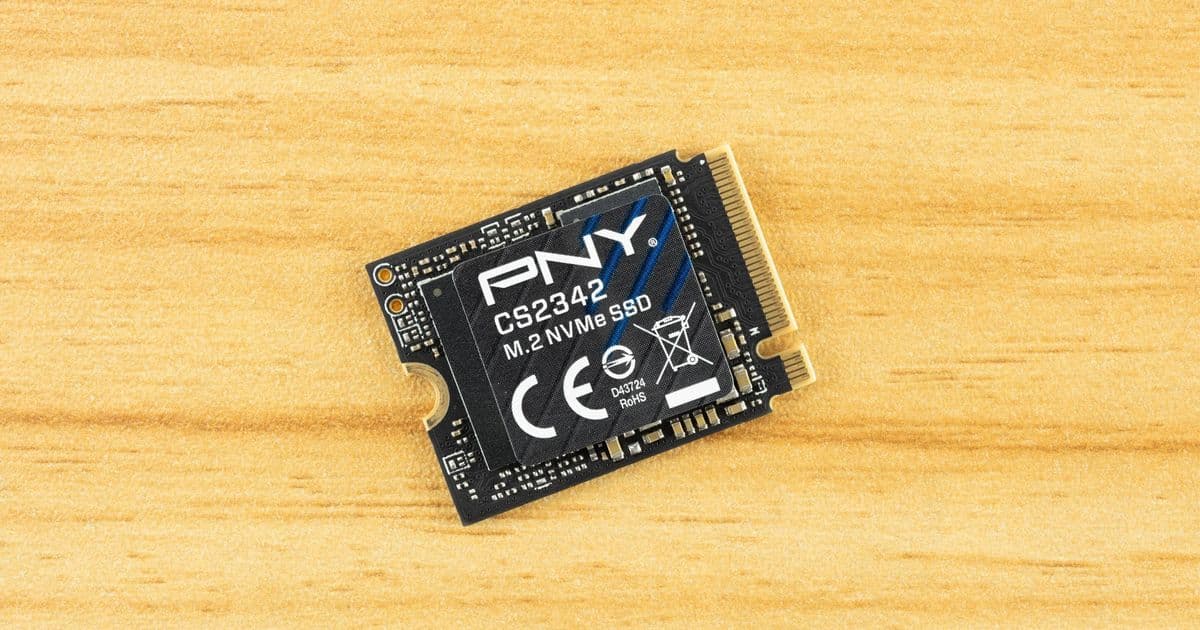

PNY CS2342 2TB SSD Review: High-Capacity TLC Performance In M.2 2230

The PNY CS2342 represents a compelling option in the increasingly competitive M.2 2230 SSD market, where manufacturers must balance performance, capacity, and thermal constraints in an extremely compact package. At 2TB capacity, this drive delivers impressive sequential speeds of up to 7,300 MB/s reads and 6,000 MB/s writes while maintaining a single-sided design that makes it ideal for space-constrained devices like ultrabooks and compact gaming handhelds.

Market Context and Value Proposition

M.2 2230 drives have historically occupied a premium segment of the SSD market. Initially, this was due to their niche status with limited manufacturer support, but recent years have seen a shift toward premium pricing driven by memory supply constraints. High-capacity drives in this form factor have become particularly expensive as manufacturers grapple with flash memory shortages and increased demand.

The CS2342 enters this market at a strategic price point of $269.99 for the 2TB model, positioning itself as an accessible option for users seeking maximum capacity in the smallest possible footprint. This pricing is particularly noteworthy given that the drive uses TLC NAND flash rather than the more cost-effective QLC alternatives found in some competing products.

Technical Specifications and Architecture

At the heart of the CS2342 lies the Phison E27T controller, a proven solution that has appeared in several high-performance M.2 2230 drives. This controller is paired with Kioxia's 162-layer TLC NAND flash (BiCS6), representing mature and reliable technology that has been well-optimized for this specific application.

The drive's single-sided design is particularly impressive given its 2TB capacity. Most high-capacity M.2 2230 drives require dual-sided designs to accommodate the additional NAND packages, but PNY has managed to achieve this capacity with a single NAND package through efficient die stacking and controller optimization.

Specification	Detail
Form Factor	M.2 2230 (single-sided)
Interface	PCIe 4.0 x4 NVMe 1.4
Controller	Phison E27T
DRAM	HMB (Host Memory Buffer)
Flash	Kioxia 162-Layer TLC (BiCS6)
Sequential Read	7,300 MB/s
Sequential Write	6,000 MB/s
Endurance	600TBW (1TB), 1,200TBW (2TB)
Warranty	5 years

Performance Characteristics

The CS2342 delivers excellent all-around performance that should satisfy most users' needs. While PNY doesn't publish random IOPS specifications, the hardware configuration suggests the drive can achieve approximately 1 million IOPS in optimal conditions. This level of performance is more than adequate for typical consumer workloads, including gaming, content creation, and general productivity tasks.

Sequential performance reaches the upper limits of what's achievable in the M.2 2230 form factor over PCIe 4.0. The 7,300 MB/s read speed and 6,000 MB/s write speed place the CS2342 among the faster options in this category, though it's worth noting that thermal constraints inherent to the small form factor may prevent sustained peak performance during extended write operations.

Thermal Considerations

One of the primary challenges with M.2 2230 drives is thermal management. The compact nature of the form factor means that all components are packed into a very small space, which can lead to heat buildup during intensive operations. The CS2342's single-sided design helps mitigate this somewhat, as there's more room for heat dissipation on the PCB side.

PNY lists the drive's power draw at 3.3V/2.6A, which translates to under 9W, though SMART data indicates a peak rating of 5.70W. In practical use, the drive typically consumes less than this peak rating. However, users should be aware that thermal padding or a low-profile heatsink may be beneficial, particularly in devices with limited airflow or inadequate cooling for M.2 drives.

Software and Support

PNY provides a straightforward software package for the CS2342, including an SSD Toolbox for monitoring and diagnostics, as well as Acronis True Image for cloning and backup operations. The inclusion of both tools covers the essential needs of most users, from firmware updates to data migration.

The SSD Toolbox provides access to secure erase functions, performance testing, and SMART data monitoring. While not as feature-rich as some third-party alternatives, it offers a centralized interface for managing the drive's health and performance.

Competitive Landscape

In the M.2 2230 space, options are somewhat limited, particularly for high-capacity drives. The CS2342's primary competitors include the Kingston NV3 (which uses QLC flash for lower cost) and the Corsair MP600 Micro in the M.2 2242 form factor. For users prioritizing reliability over maximum performance, the Transcend MTE410S offers an alternative with its SMI controller and BiCS5 flash, though at the cost of some performance.

Users who can accommodate the slightly larger M.2 2242 form factor have additional options, including the aforementioned Corsair MP600 Micro and various other drives that may offer better value or specific feature sets tailored to particular use cases.

Use Case Considerations

The CS2342 is particularly well-suited for:

• Ultrabooks and thin-and-light laptops where space is at a premium
• Compact gaming handhelds like the Steam Deck (with appropriate adapters)
• Small form factor PCs where M.2 2230 is the only available slot
• Users who prioritize single-sided design for easier installation or thermal management

For users who don't require the absolute maximum capacity in this form factor, or who have the option to use M.2 2242 or 2280 drives, there may be more cost-effective alternatives that still meet their performance needs.

Conclusion

The PNY CS2342 successfully delivers on its promise of high-capacity TLC performance in the M.2 2230 form factor. While it may not be the most power-efficient drive available, and there are certainly faster options in larger form factors, it strikes an excellent balance for users who need maximum capacity in minimum space.

The combination of mature hardware, proven controller technology, and accessible pricing makes the CS2342 a strong contender in a competitive segment. For users who value the convenience of a single-sided 2TB drive with PCIe 4.0 speeds, the CS2342 represents one of the best options currently available.
