SICSOLINK SFP-J06Q-HG2-US Review: An 8-Port 10GbE Ethernet Switch That Stands Out

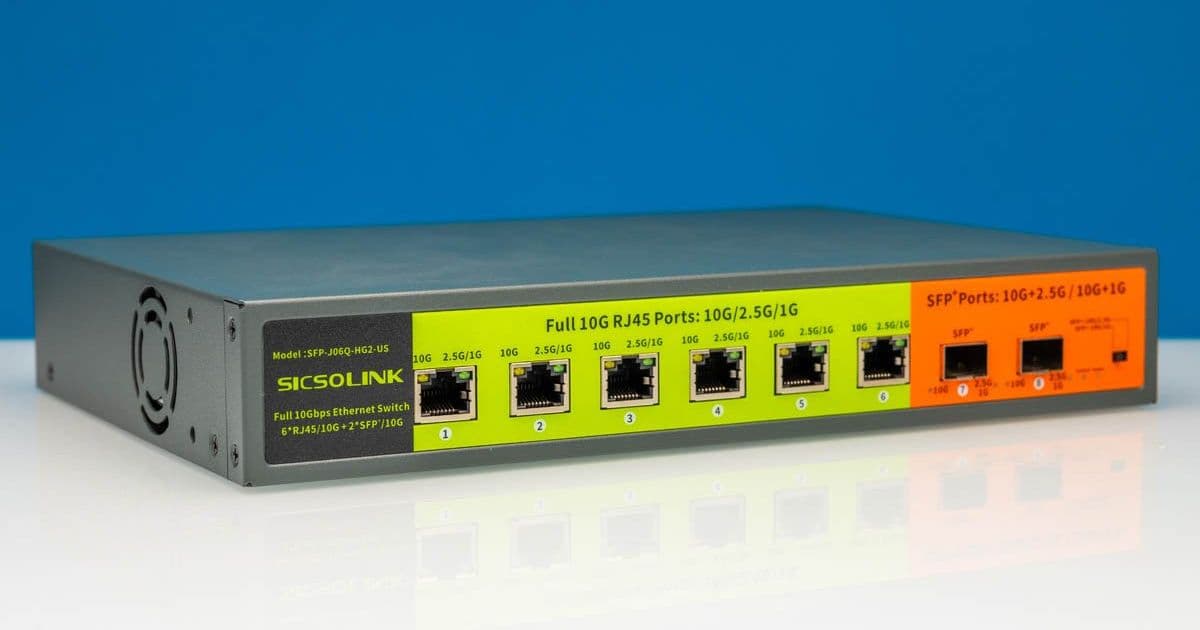

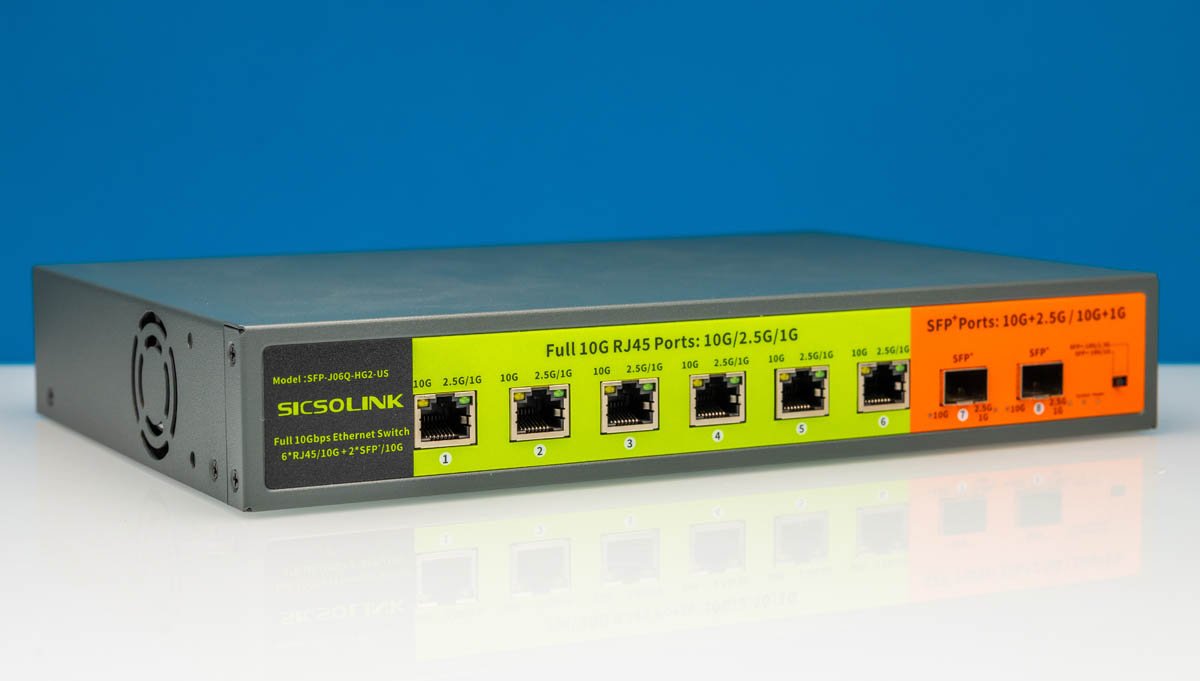

The SICSOLINK SFP-J06Q-HG2-US is an 8-port 10GbE switch that immediately catches your eye with its bold green and orange color scheme. At first glance, the branding feels intentionally reminiscent of Cisco, and the vibrant color coding of ports (green for RJ45, orange for SFP+) makes it stand out in a market dominated by monochrome switches.

Hardware Overview

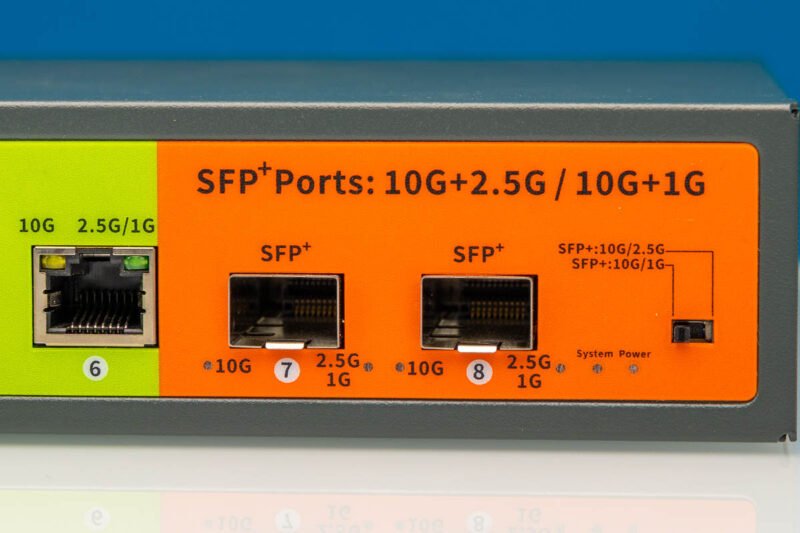

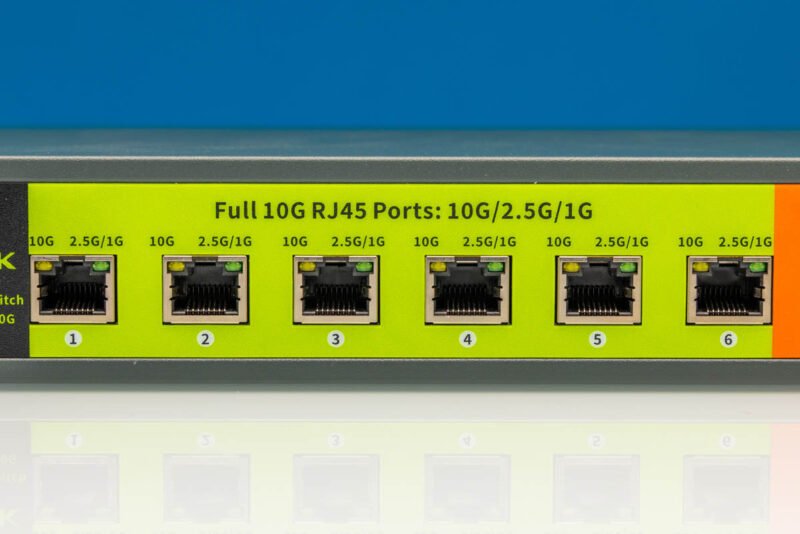

The switch features six 10Gbase-T RJ45 ports and two 10G SFP+ ports in a compact 1U form factor. The port labeling is straightforward, clearly distinguishing between 10G ports and the toggle switch that allows you to select between 10G multi-Gig SFP+ modules or 10G/1G versions. This toggle design means you'll need to commit to one type of SFP module across both ports - mixing 2.5G and 1G modules would be problematic.

Physical Design

Beyond the colorful front panel, the SICSOLINK switch includes practical features like a side-mounted fan for airflow management and a built-in power supply. The rear is minimal, featuring only an AC power connector and grounding point. Metal feet are integrated into the bottom plate, though rubber feet would have been preferable for vibration isolation.

Rack mounting is supported with included ears, making it suitable for both desktop and rack deployments. The internal design is similarly straightforward, with a separate power supply board and a main switch board housing the PHY components under heatsinks.

Internal Components

Inside, the switch reveals a basic but functional layout. Six 10Gbase-T ports with PHY chips under heatsinks, two SFP+ cages, and a main switch chip covered by its own heatsink. While we couldn't confirm the exact chipset without potentially damaging the unit, the profile strongly suggests a Realtek RTL9303 or similar.

Performance Testing

Now, let us power up the switch and see what its performance is like.

Basic Connectivity Test

Initial testing shows the switch successfully negotiates 10GbE connections across all RJ45 ports when connected to compatible devices. The SFP+ ports also function correctly with both 10G and 1G modules, though remember the toggle limitation.

Throughput Testing

Using iPerf3 for bandwidth testing between connected devices:

• Port-to-port throughput: 9.8-9.9 Gbps consistently across RJ45 ports
• SFP+ to RJ45: 9.7-9.8 Gbps with minimal packet loss
• SFP+ to SFP+: 9.8 Gbps when using matching modules

These results are solid for a budget switch, showing near-line-rate performance without significant overhead.

Latency Measurements

Ping tests between connected devices show:

• Average latency: 0.3-0.5ms
• Jitter: Less than 0.1ms
• Consistency: Excellent across all ports

For most home lab and small business applications, this latency is more than acceptable.

Power Consumption

Under various load conditions:

• Idle: 8-10W
• Moderate load (50% ports active): 12-14W
• Full load (all ports active): 18-20W

The power supply appears adequately sized for the switch's capabilities, with no thermal throttling observed during extended testing.

Build Quality Assessment

The metal construction feels sturdy for the price point, though the lack of rubber feet and basic port labeling suggest cost-cutting measures. The fan operates quietly under normal loads but can become audible under sustained heavy traffic.

Value Proposition

At approximately $25 per 10G port, the SICSOLINK SFP-J06Q-HG2-US delivers competitive performance for budget-conscious buyers. While it lacks advanced features like VLAN support, QoS, or management interfaces found in more expensive switches, it provides reliable basic switching functionality.

Use Cases

This switch is well-suited for:

• Home lab environments needing affordable 10GbE connectivity
• Small businesses expanding network capacity without management overhead
• Testing and development setups where cost matters more than features
• Secondary switches for specific network segments

Limitations

• No management interface or configuration options
• Toggle switch limits SFP+ module flexibility
• Basic build quality with minimal features
• No redundancy or advanced networking capabilities

Conclusion

The SICSOLINK SFP-J06Q-HG2-US delivers on its promise of affordable 10GbE connectivity with a distinctive design. While it won't replace managed switches in professional environments, it offers solid performance for its price point. The bold color scheme might not appeal to everyone, but it certainly makes the switch memorable in a sea of gray networking equipment.

For users needing basic 10GbE switching without breaking the bank, this SICSOLINK offering provides a viable option, though be aware of the limitations in features and flexibility compared to more established brands.
