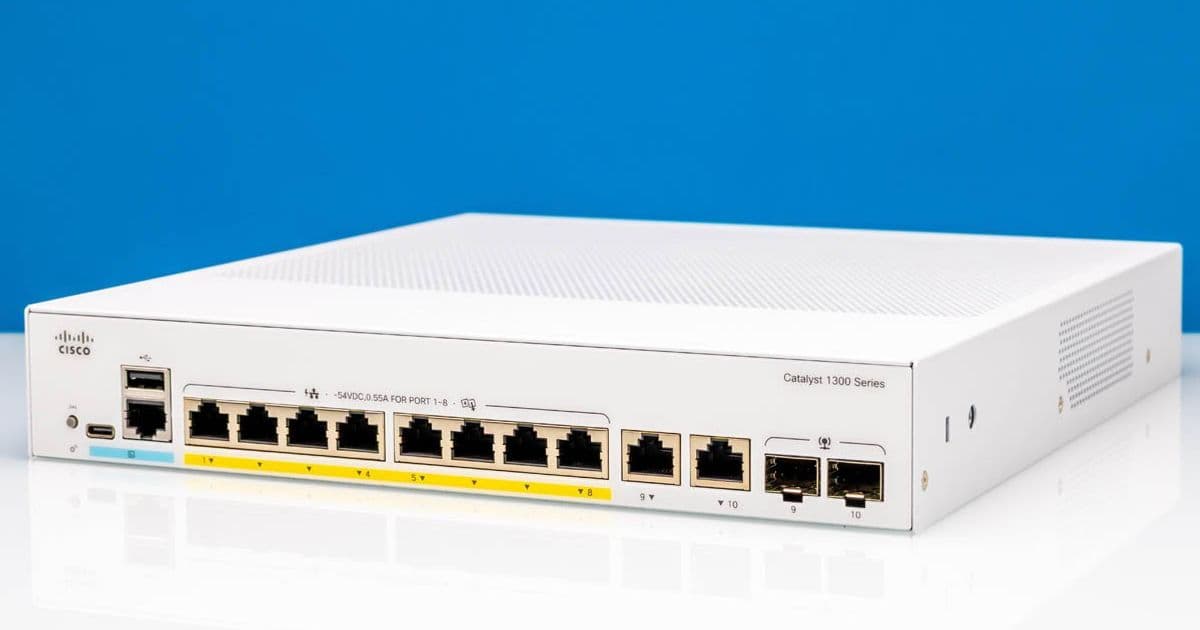

Cisco Catalyst C1300-8FP-2G Review: A 10-Port PoE Managed Switch with Unique Cooling Design

Cisco has re-entered the spotlight with its Catalyst C1300-8FP-2G, a 10-port managed switch that brings enterprise-grade capabilities to edge networking environments. This review explores a device that bridges the gap between basic managed switches and higher-end enterprise solutions, offering a compelling mix of features at a competitive price point.

External Hardware Overview

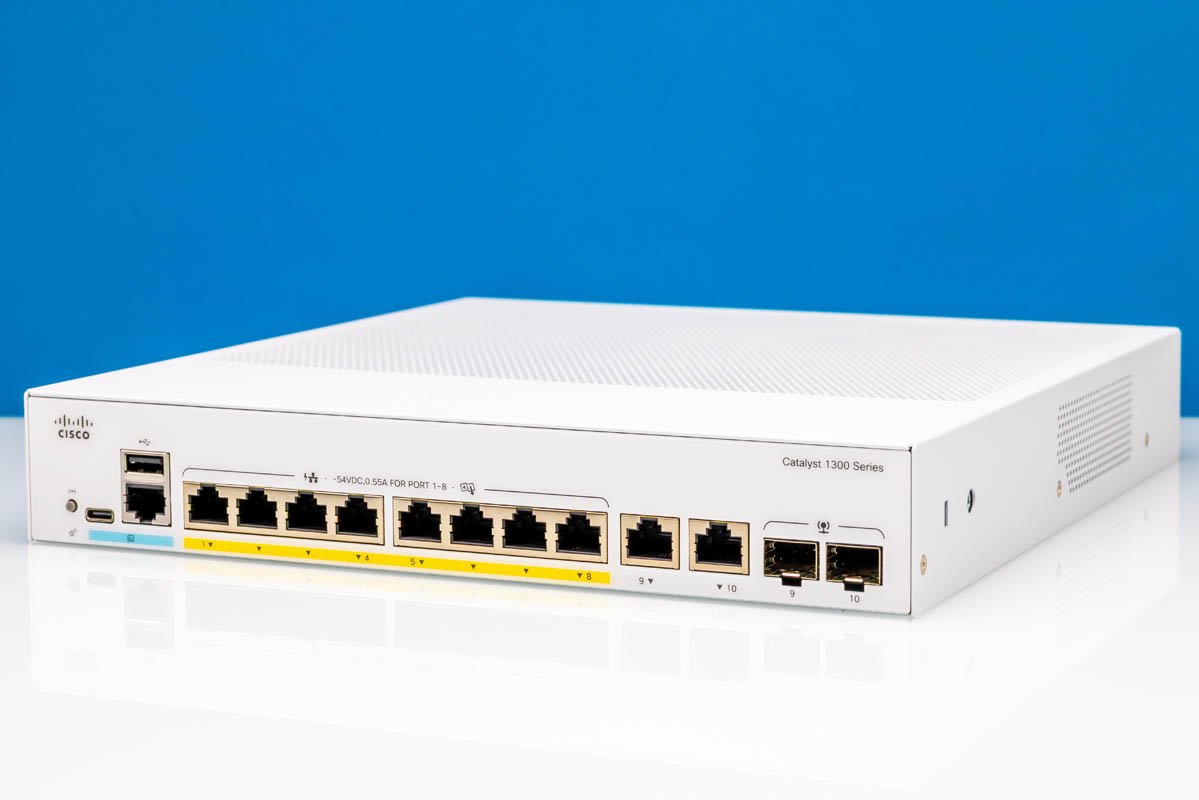

The C1300-8FP-2G immediately distinguishes itself from standard 1U switches through thoughtful design choices. While it maintains the familiar rackmount form factor, closer inspection reveals several unique characteristics.

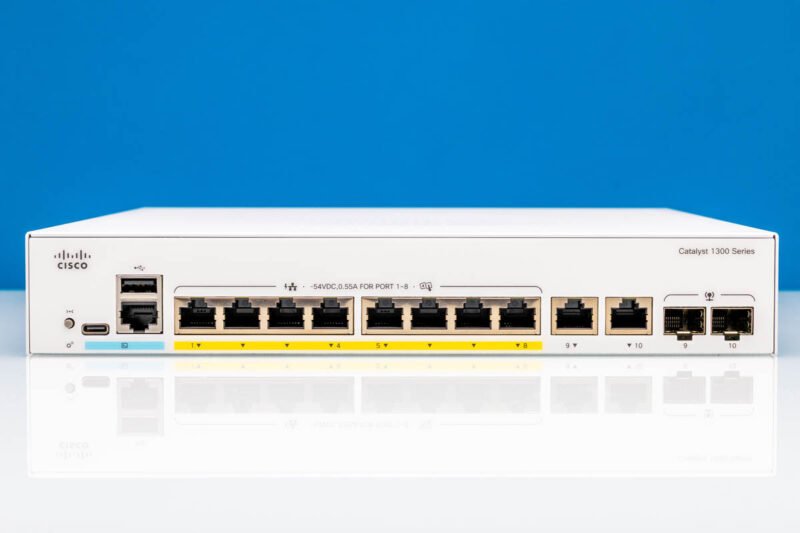

On the front panel, Cisco has prioritized CLI accessibility—a hallmark of enterprise networking equipment. Unlike lower-end alternatives such as the HPE Aruba Instant On 1960 series, this switch provides multiple interfaces for command-line access, catering to network administrators who prefer direct configuration methods.

The port configuration showcases Cisco's understanding of diverse deployment scenarios:

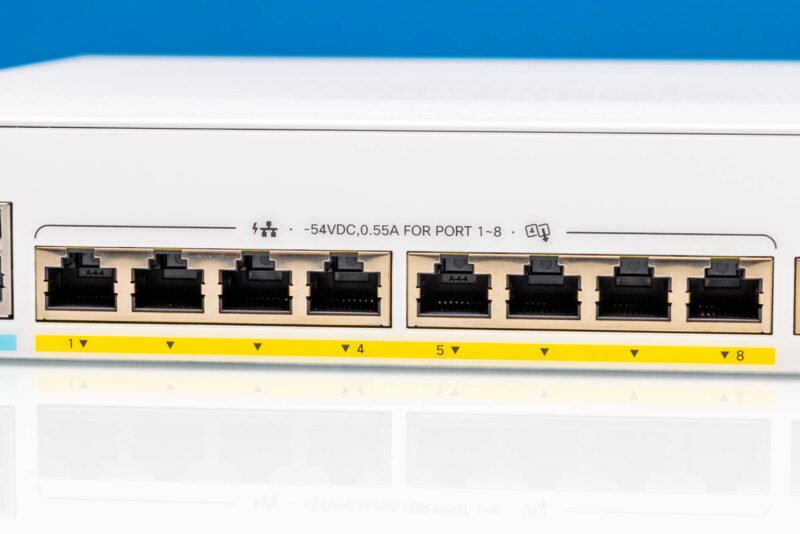

• Ports 1-8: Eight 1GbE ports with PoE+ capabilities, supporting powered devices like IP phones, wireless access points, and security cameras

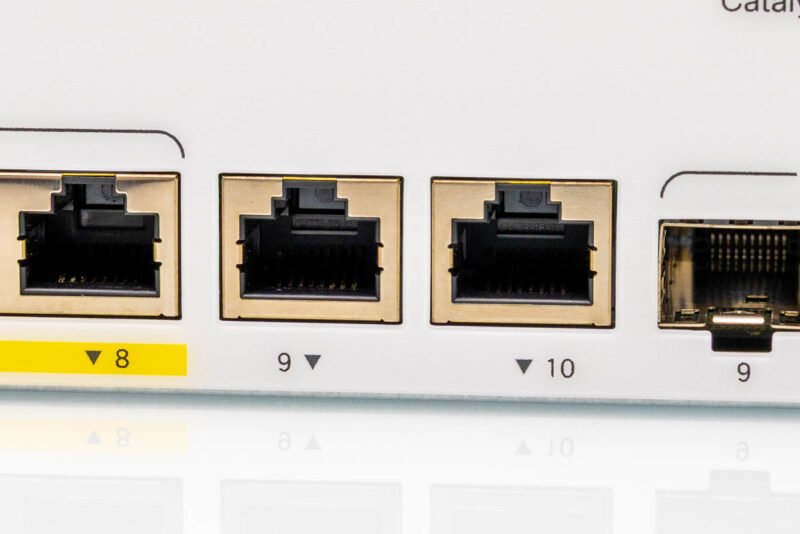

• Ports 9-10: Two combo ports offering both RJ45 and SFP options, providing flexibility for fiber connectivity when needed

This dual-port configuration is particularly noteworthy. The combo ports eliminate the need for separate fiber modules while maintaining copper connectivity as a fallback option.

Innovative Cooling Architecture

What truly sets this switch apart is its unconventional cooling solution. Rather than relying on traditional fan-based cooling, Cisco has implemented a passive thermal management system that's both effective and remarkably quiet.

The switch features prominent vents on both sides and the top panel, immediately signaling its unique thermal design. The rear houses a substantial heatsink that extends across the chassis width. This isn't cooling the switch fabric itself—instead, it's part of a sophisticated passive cooling system.

The white top cover serves a dual purpose: it provides easy access for maintenance while also functioning as part of the thermal management system. The cover fits snugly around the heatsink fins, creating an efficient heat dissipation pathway.

This passive cooling approach offers several advantages:

• Silent operation: Ideal for office environments, classrooms, and other noise-sensitive areas
• Reduced maintenance: No fans to fail or accumulate dust
• Improved reliability: Fewer moving parts mean longer operational lifespan
• Energy efficiency: No power consumption for cooling fans

Security and Physical Features

The C1300-8FP-2G includes several physical security features appropriate for edge deployments:

• Kensington lock point: Secures the switch against physical theft
• Internal power supply: Clean installation without external power bricks
• Mounting flexibility: Multiple mounting options including wall-mount capability

The bottom panel reveals thoughtful design for various installation scenarios. The switch can be rack-mounted in standard 19-inch racks or mounted on walls using the integrated brackets. This versatility makes it suitable for everything from wiring closets to classroom deployments.

Management and Configuration

As a managed switch, the C1300-8FP-2G offers comprehensive configuration options through multiple interfaces:

• CLI access: Full command-line interface for detailed configuration
• Web management: Browser-based interface for simpler tasks
• SNMP support: Integration with network monitoring systems
• Cisco Discovery Protocol: Enhanced network visibility and device discovery

These management capabilities position the switch well for environments where network administrators need granular control over traffic shaping, VLAN configuration, and security policies.

Target Deployment Scenarios

The C1300-8FP-2G is particularly well-suited for:

• Small to medium business branch offices: Where PoE+ support eliminates the need for separate power injectors
• Educational institutions: Silent operation and wall-mount capability ideal for classrooms
• Retail environments: Security features and flexible mounting options
• Remote office/branch office (ROBO) deployments: Compact size and robust management capabilities

Competitive Positioning

Compared to alternatives like the HPE Aruba Instant On series, the Cisco switch offers several advantages:

• Enterprise-grade CLI: More comprehensive command-line interface
• Passive cooling: Silent operation versus fan-based cooling
• Combo ports: Greater connectivity flexibility
• Cisco ecosystem integration: Seamless integration with other Cisco products

However, it's worth noting that the Cisco solution typically commands a higher price point, reflecting its enterprise positioning and feature set.

Conclusion

The Cisco Catalyst C1300-8FP-2G represents a thoughtful approach to edge networking hardware. By combining enterprise-grade management capabilities with innovative passive cooling and versatile port configurations, Cisco has created a switch that addresses real-world deployment challenges.

Its silent operation, robust security features, and comprehensive management options make it particularly attractive for environments where noise, reliability, and flexibility are paramount. While the price point may be higher than basic managed switches, the total cost of ownership benefits—particularly in terms of maintenance and operational flexibility—make it a compelling choice for organizations seeking enterprise-grade capabilities in edge deployments.

For network administrators evaluating options in the 1GbE managed switch market, the C1300-8FP-2G deserves serious consideration, especially in environments where its unique cooling design and comprehensive feature set align with deployment requirements.
