Cooler Master MWE Bronze V2 230V 650W Power Supply Review: A Competent Entry-Level Choice

The Cooler Master MWE Bronze V2 230V 650W sits at the entry point of Cooler Master's power supply lineup, representing a mature iteration designed to be certifiable, reliable, and inexpensive. As the company clears inventory for the incoming MWE V4 generation, street prices have dropped to remarkably competitive levels, making this unit worth examining for budget-conscious builders.

Design and Physical Characteristics

The 230V designation is significant - this unit was built exclusively for 230 VAC mains supply, the standard across most of Europe and large parts of Asia. This matters for certification context: Clearesult's 80Plus Bronze requirements at 230V are stricter than the equivalent 115V standard. A unit that clears Bronze under 230V conditions would very likely meet Gold, or at least Silver, if tested on a North American line.

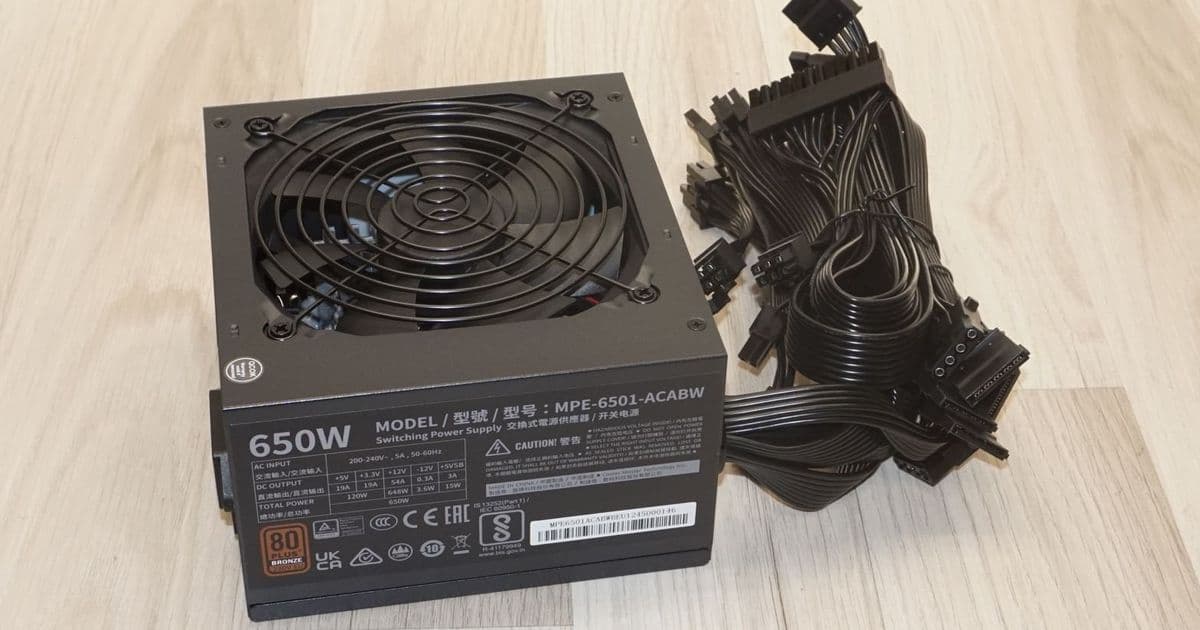

At exactly 140mm in length, the MWE Bronze V2 conforms to the ATX standard without deviation. The chassis is finished in satin black with a plain design - a decorative sticker on the right side is the only visual flourish. One unusual detail on the top panel is four punched holes serving as mounting points for the internal PCB, a technique more commonly associated with PSU construction from the 1990s than with modern units.

Internal Architecture

The OEM is Gospower, a Chinese manufacturer operating since 2006. The input filtering stage is properly equipped with four Y capacitors, two X capacitors, two filtering inductors, and a single rectifying bridge mounted on a basic heatsink. A physical metallic EMI shield is present at the input stage, which is something rarely seen at this price point.

The APFC circuit uses two Jilin Sino-Microelectronics JCS13N50FC MOSFETs and one diode. The passive components include a small taped inductor and a CapXon 470μF bulk capacitor rated at 85°C. This temperature rating is the concern here - sustained high temperatures inside the chassis will noticeably shorten this capacitor's service life.

The primary inversion stage employs two Jilin Sino-Microelectronics JCS18N50FH MOSFETs in a full-bridge configuration. On the secondary side, four NCE Power 40H12 MOSFETs generate the 12V rail through synchronous rectification, mounted on a pair of simple heatsinks. A vertical daughterboard handles DC-to-DC conversion for the 3.3V and 5V rails, keeping the minor lines isolated and regulated independently of the 12V output.

Cable Configuration

The cables are hardwired, which is expected at this price point. The wires are flat and ribbon-like, finished uniformly in black with matching black connectors. The connector count is generous for a 650W unit: four 6+2 pin PCI Express connectors are present, covering dual-GPU light gaming setups or configurations with a single power-hungry card and some headroom. There is no 12V-2x6 connector, which limits compatibility with the newest high-end GPU designs.

Performance Testing

Cold Test Results

The MWE Bronze V2 meets the 80Plus Bronze certification requirements comfortably on a 230 VAC input. Efficiency across the nominal load range is stable and consistent, averaging at 87.3%, with no significant drops at either end of the load curve. The fan increases speed near-linearly with load and does not cause acoustic concern at low-to-moderate output.

Hot Test Results

Average efficiency at 230 VAC under elevated ambient conditions reaches 86.3% across the nominal load range. The degradation compared to cold testing is modest, and there are no visible signs of thermal stress at full load. However, the fan tells a different story - it reaches maximum speed at 70% load and stays there, producing clearly audible noise through to 100% output.

Power Quality Analysis

Voltage regulation is mediocre by current standards. The 12V rail holds to within 2.1%, the 5V rail to 3.4%, and the 3.3V rail to 2.8%. These figures are not alarming for a budget unit but would be unacceptable in a mid-range or premium product.

Ripple suppression is equally unexceptional. The 12V rail peaks at 68mV, the 5V rail at 28mV, and the 3.3V rail at 26mV. All three sit well inside the ATX specification limits of 120mV on the 12V rail and 50mV on the minor rails.

Protection circuit behavior is acceptable but quite slack for a unit this stressed. The 3.3V rail triggers OCP at 140% of rated current, the 5V at 146%, and the 12V at 138%. OPP under hot conditions activates at 142% of rated output.

The Bottom Line

The MWE Bronze V2 230V 650W is a unit with an identity that hardly matches its price. Strip away the budget packaging, the nylon bag instead of foam, the basic leaflet, and the hardwired flat cables, and what is inside represents platform-level engineering that belongs in a higher class of product.

Gospower has used a platform and topologies more commonly associated with mid-tier products. DC-to-DC conversion for the 3.3V and 5V rails keeps the minor lines isolated and regulated independently of the 12V output, which is meaningful under asymmetric loading conditions and practically necessary for modern PCs.

Acoustics deserve a thorough mention. Under light and moderate load at room temperature, the unit performs quite well and will not trouble anyone. Once the ambient rises and/or the sustained load is high, the Hong Hua fan reaches its upper speed range and the result can easily get beyond just audible.

At the price it is currently offered, which is around 50€, it is a good deal. However, it can also be regularly found for under 30€, due to Cooler Master clearing the way for the MWE V4 that is coming soon. At such a low price, this unit makes a very strong case for itself in the context it was designed for - a mainstream gaming or home office PC running well within the rated output, in adequate ventilation, with no expectation of whisper-quiet operation at full load.

The five-year warranty provides assurance that Cooler Master stands behind the platform for the duration of a typical build's lifecycle. Do not overstress it, do not underestimate the thermal environment, and it will repay that restraint with years of reliable, clean power delivery.

Pros:

• Great platform with DC-to-DC conversion
• Fair power quality with good ripple suppression
• Physical EMI shield present
• Generous PCIe connector count
• 5-year warranty
• Competitively priced

Cons:

• Gets loud under sustained load
• Questionable parts selection (85°C capacitor)
• Rated at 40°C
• Basic accessory bundle
• No 12V-2x6 connector

For builders seeking an inexpensive, reliable power supply for mainstream systems, the MWE Bronze V2 represents one of the better values in the current market, provided its thermal and acoustic limitations are understood and accepted.
