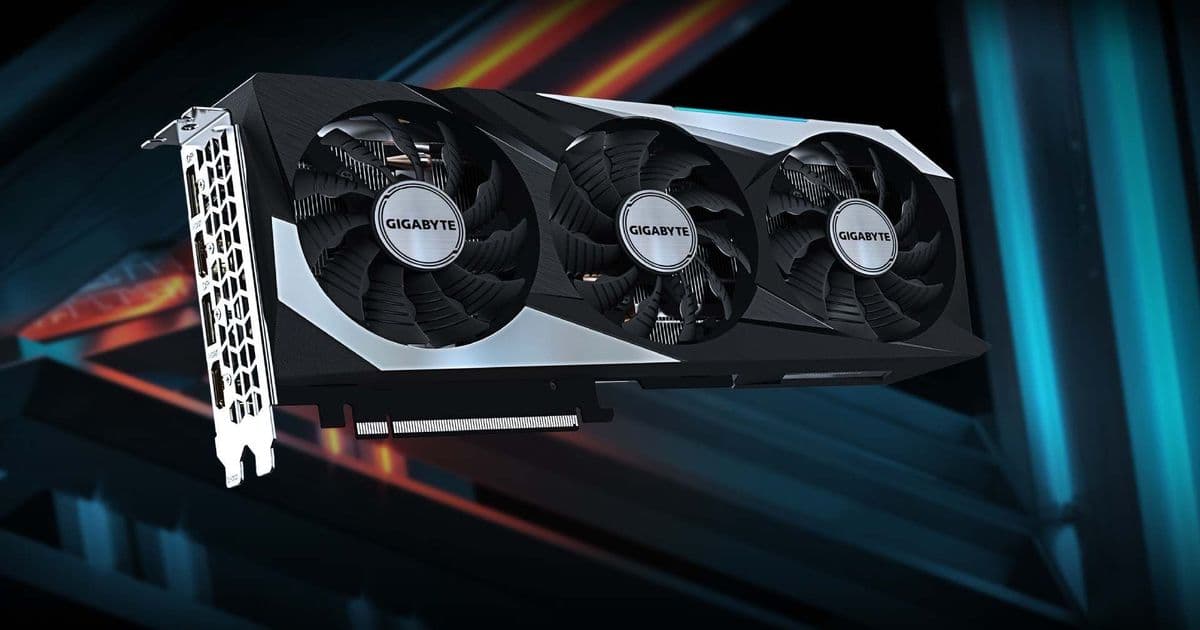

Frankenstein RTX 3070 with 16GB VRAM Created from Defective Cards, Doubles Performance in 4K Gaming

A remarkable modification project has demonstrated how technical expertise can overcome hardware limitations. An enthusiast known as AssassinWarlord successfully combined components from two defective graphics cards to create a fully functional RTX 3070 with 16GB of VRAM, effectively doubling the memory capacity of Nvidia's original design and significantly improving performance in VRAM-intensive workloads.

The Frankenstein Mod: Technical Details

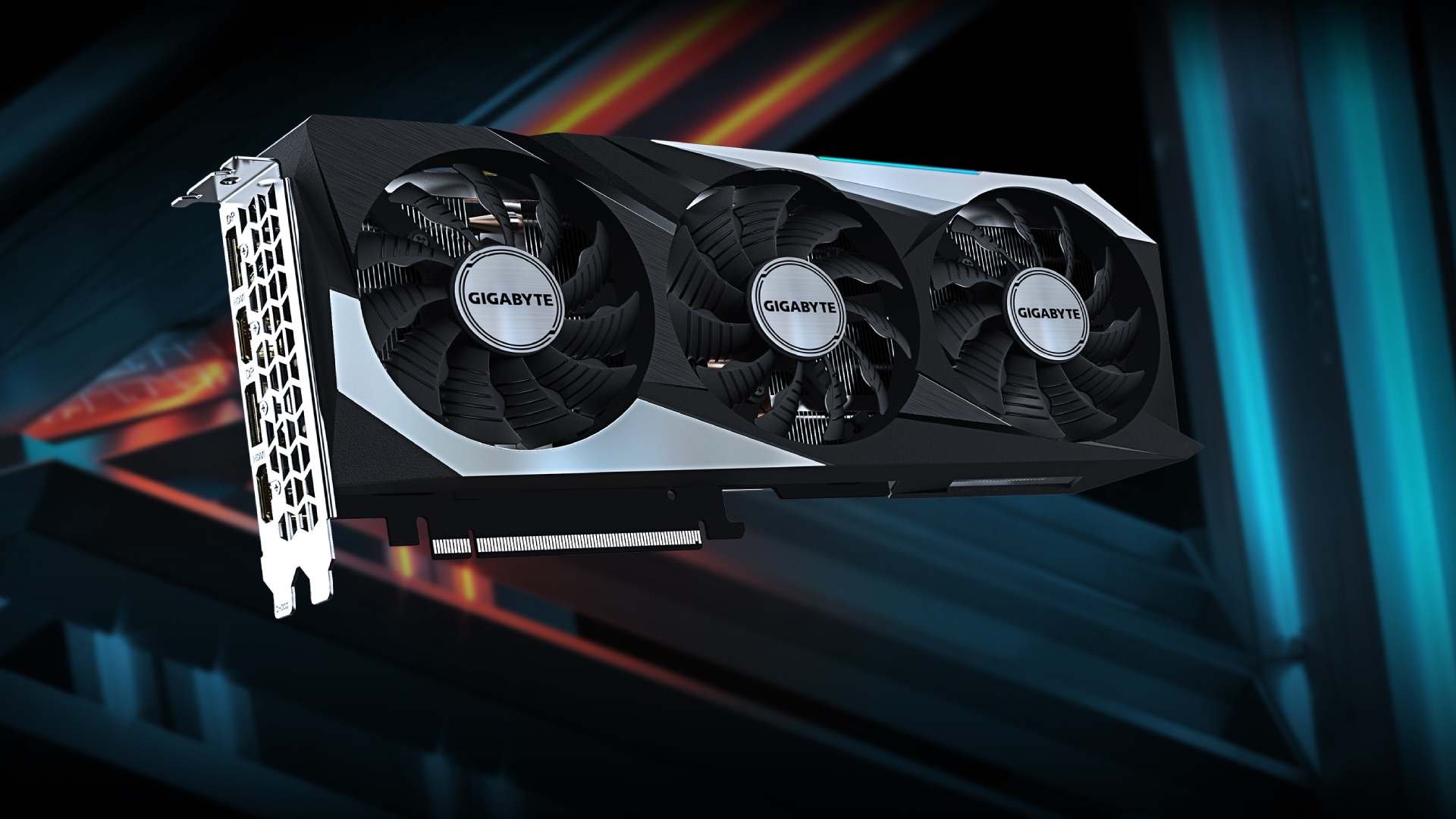

The project began with two non-functional cards: an Nvidia GeForce RTX 3070 with 8GB of VRAM and an AMD Radeon RX 6800 XT with 16GB of VRAM. Both cards had defects that made them unusable in their original state, but AssassinWarlord identified salvageable components that could be combined into a working product.

The core of the modification involved harvesting the eight BGA (Ball Grid Array) memory chips from both donor cards and reballing them onto the RTX 3070 PCB. This process required specialized skills and equipment, including a 3D-printed bracket for a GDDR6 reballing stencil. The modder noted that "the whole thing" was "actually not that difficult" once the proper tools and techniques were employed.

The technical specifications of the resulting card include:

• Original RTX 3070 GPU with 5888 CUDA cores
• 16GB of GDDR6 VRAM (8x 2GB Samsung memory ICs)
• Hardware switch to toggle between 8GB and 16GB modes
• Standard GeForce driver compatibility
• Idle power consumption of approximately 70W (with the DisableDynamicPstate fix)

Performance Impact: Doubling Frame Rates at 4K

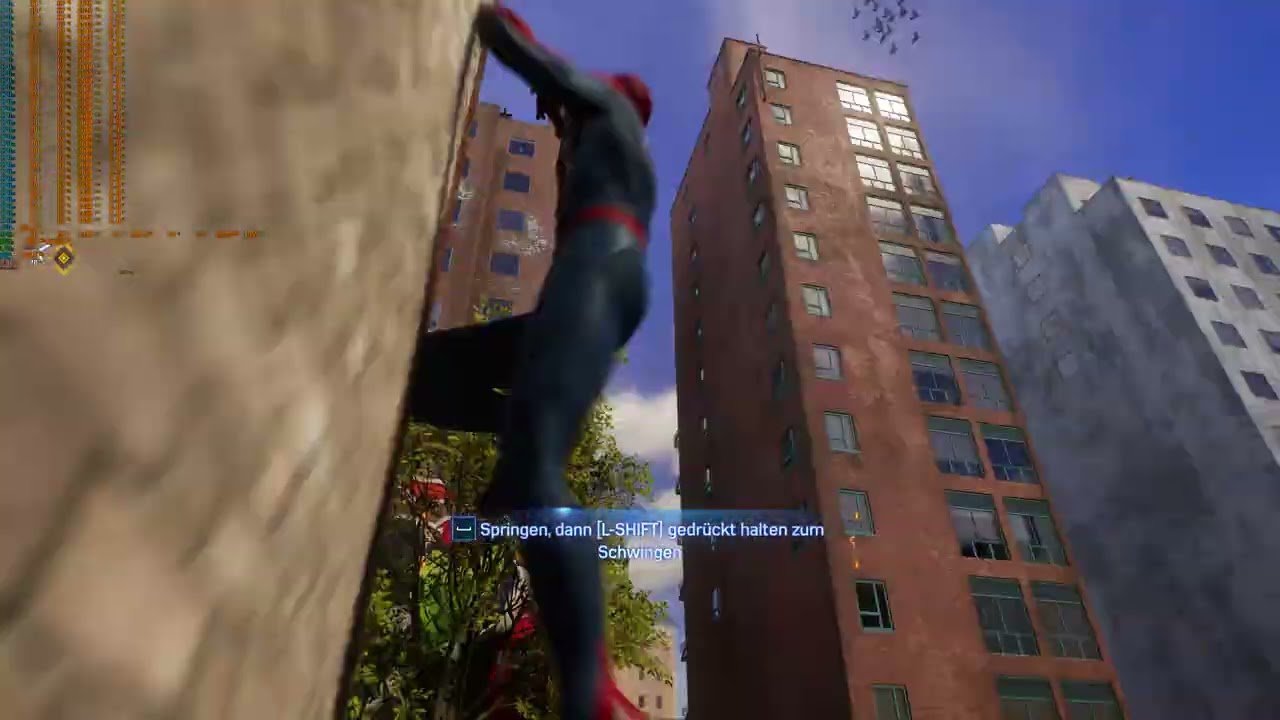

The most significant advantage of the 16GB VRAM configuration becomes apparent in modern, VRAM-intensive games. AssassinWarlord tested Marvel's Spider-Man 2 at 4K resolution with Very High settings, comparing performance between the 8GB and 16GB modes.

The results were dramatic:

• 8GB mode: approximately 20 fps
• 16GB mode: 40+ fps

This represents a 100% performance increase in one of today's most demanding gaming titles. The improvement stems from the RTX 3070's GPU being able to handle higher texture resolutions and more complex rendering without being bottlenecked by VRAM limitations.

Technical Challenges and Solutions

Despite the successful modification, several technical challenges emerged during the process:

1. BIOS Configuration: The system initially failed to recognize the full 16GB of VRAM. This was resolved by changing a resistor on the PCB.

2. Black Screen Issue: After GPU-intensive tasks, the system would black screen. Investigation revealed that memory timings set in BIOS were causing problems in the 16GB configuration.

3. Power Management: A RegEdit 'DisableDynamicPstate' solution was developed to prevent the GPU from downclocking or black screening after being taxed, though this increased idle power consumption to approximately 70W.

4. Memory Compatibility: The modder discovered that the original RTX 3070 design was compatible with 16Gb Samsung memory ICs, which are necessary to configure the graphics card with 16GB of VRAM total.

Market Implications and Consumer Impact

This Frankenstein RTX 3070 represents several interesting developments in the graphics card market:

1. Extended Product Lifespan: The project demonstrates how defective components can be repurposed, potentially extending the usable life of hardware that would otherwise be discarded.

2. Addressing VRAM Limitations: As modern games increasingly require more VRAM, the modification provides a solution for users with RTX 3070 cards who want to improve performance without purchasing entirely new hardware.

3. Technical Feasibility: While not for casual users, the project proves that advanced modifications can overcome manufacturer-imposed limitations.

4. Cost-Effective Performance Boost: Compared to purchasing a new graphics card, this modification offers a significantly cheaper way to upgrade VRAM capacity.

Broader Context in the GPU Market

The modification comes at a time when the GPU market is experiencing several significant trends:

• VRAM Requirements: Modern AAA titles are increasingly pushing the boundaries of traditional VRAM capacities, with many games performing poorly on cards with 8GB or less at high resolutions.

• Rumored RTX 3060 12GB: The article mentions that rumors are swirling about a reanimated RTX 3060 arriving with 12GB of VRAM, suggesting that manufacturers are responding to consumer demand for higher memory capacities.

• Component Shortages: The creative use of defective components highlights the ongoing challenges in the semiconductor supply chain, where even imperfect hardware can find new life through skilled modification.

Technical Feasibility and Accessibility

While the Frankenstein RTX 3070 is an impressive technical achievement, it's important to note the barriers to entry for similar projects:

• Specialized Equipment: The reballing process requires specialized tools including hot air stations, microscopes, and precision soldering equipment.

• Technical Expertise: The modder's characterization as a "high-level tech tweaker" underscores that this is not a beginner-level modification.

• Risk of Failure: The process carries significant risk of permanent damage to components if not performed correctly.

For those interested in attempting similar modifications, the forum source thread contains detailed information, including before and after synthetic benchmarks with various GPU and memory clocks tested.

Conclusion

AssassinWarlord's Frankenstein RTX 3070 represents an impressive technical achievement that combines creativity, skill, and deep hardware knowledge. While not a practical solution for most consumers, the project demonstrates several important concepts:

1. Hardware limitations are often artificial rather than technical necessities
2. Defective components can find new life through skilled modification
3. The performance benefits of increased VRAM are substantial in modern gaming
4. The line between enthusiast modification and practical hardware upgrade continues to blur

As games continue to demand more resources and the GPU market evolves, projects like this highlight the potential for creative solutions to hardware limitations. While most users will continue to purchase commercially available products, the Frankenstein RTX 3070 serves as both a technical showcase and a glimpse into the future of hardware modification and repurposing.
