G.Skill Trident Z5 Neo DDR5-6000 128GB Kit: Supply Constraints Meet AMD's Memory Sweet Spot

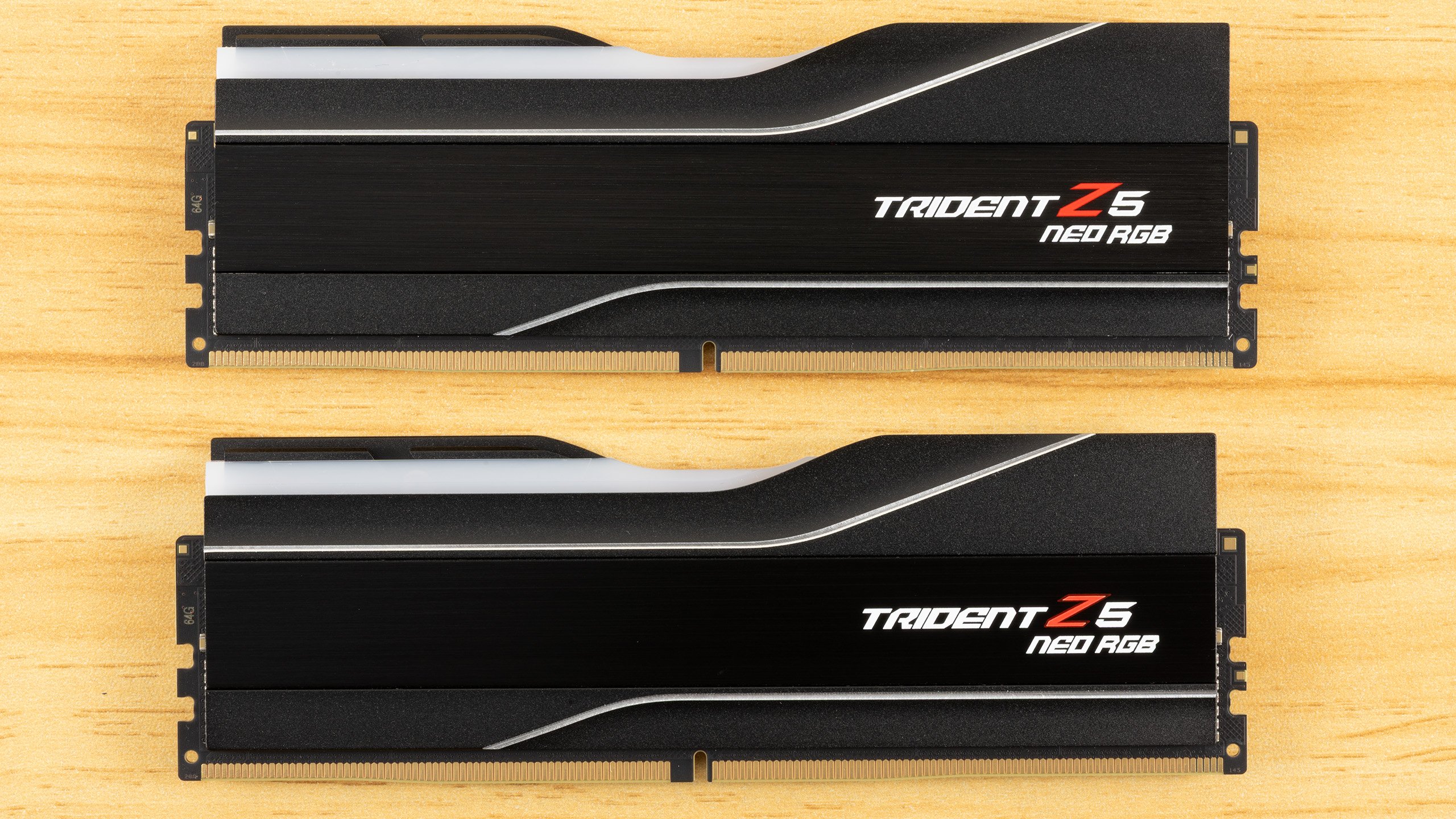

G.Skill has launched its Trident Z5 Neo RGB DDR5-6000 C34 memory kit, positioning 128GB (2x64GB) configurations as the optimal solution for AMD Ryzen platforms. This release arrives during a severe global DRAM shortage that has constrained high-capacity module production and inflated retail pricing by 281% since launch.

Architectural Implementation

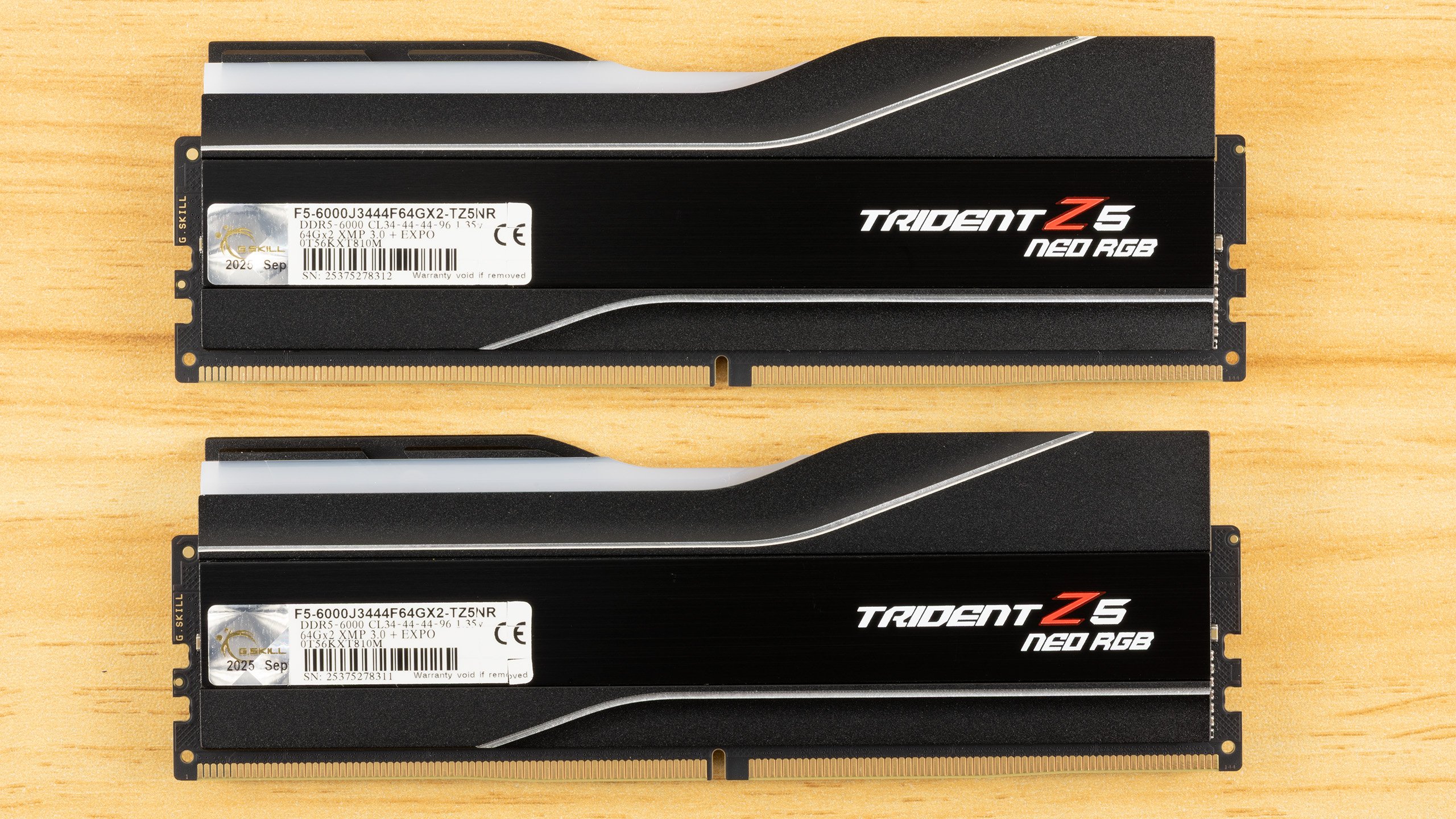

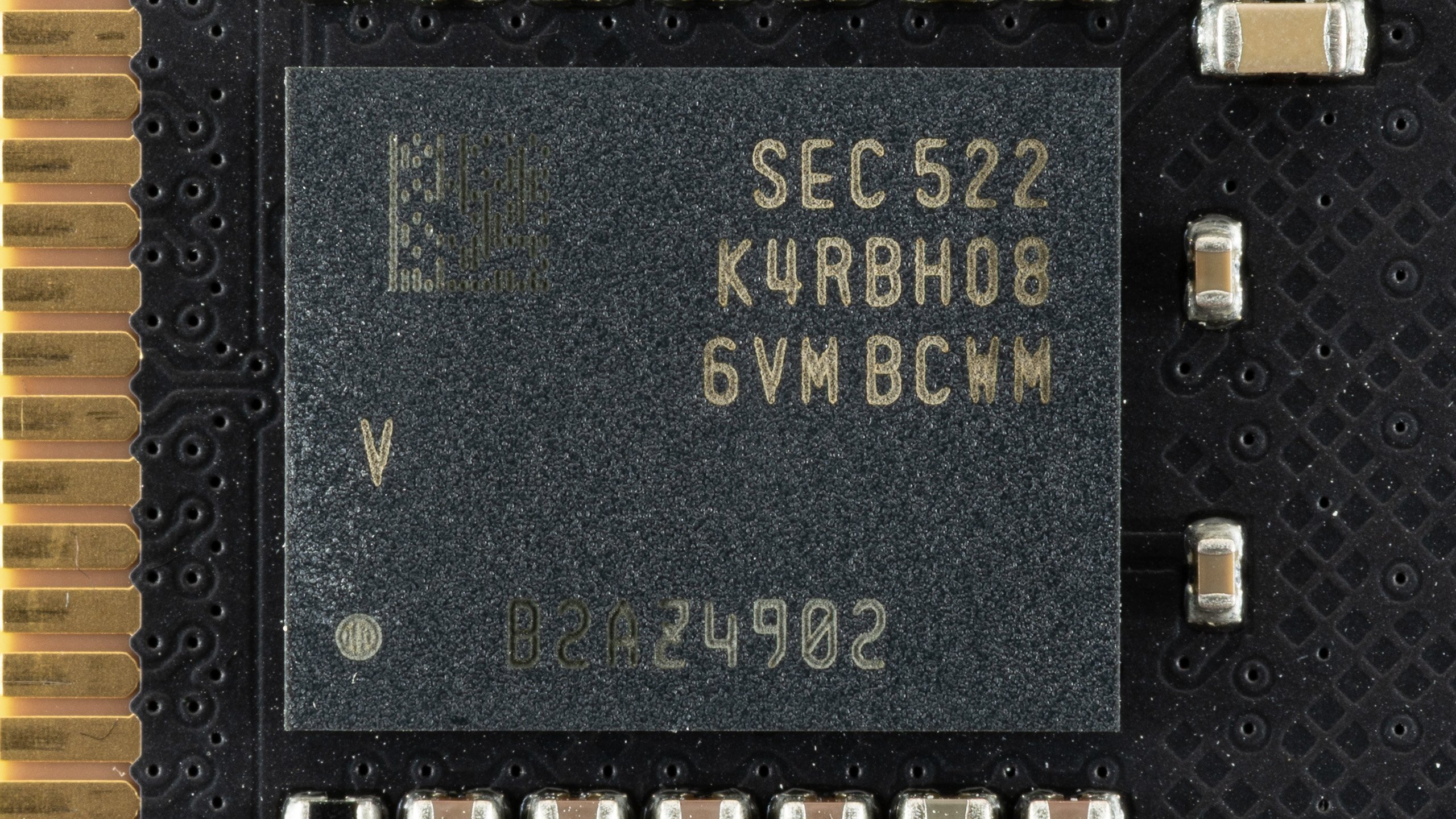

Each 64GB module employs Samsung's K4RBH086VM-BCWM (M-die) ICs arranged in dual-rank architecture. Sixteen 4Gb ICs populate the PCB (eight per side), paired with Richtek's "0P=CF MY2" power management IC for voltage regulation. The modules default to JEDEC-standard DDR5-5600 (46-45-45-90) but activate optimized timings via AMD EXPO profiles: DDR5-6000 at 34-44-44-96 with 1.35V. This configuration specifically targets AMD's unified memory controller (UCLK), maintaining a 1:1 ratio between UCLK and MEMCLK for latency-sensitive workloads.

Performance Validation

Benchmark comparisons against V-Color's DDR5-6400 128GB kit reveal platform-dependent advantages:

• AMD Ryzen 9 9900X: Trident Z5 Neo outperformed DDR5-6400 by 7-12% in synthetic and application tests due to avoided UCLK/MEMCLK desynchronization (2:1 ratio penalty at >6000MT/s)
• Intel Core Ultra 9 285K: Trailed DDR5-6400 by 3-8% in bandwidth-intensive tasks but led Adobe Lightroom processing by 5% Overclocking tests showed minimal frequency scalability (max 6333 MT/s at 1.45V) but achieved secondary timing reductions: tRCD/tRP lowered from 44 to 40 cycles (-9%), tRAS from 96 to 84 cycles (-12.5%).

Manufacturing and Market Dynamics

Production of 64GB DDR5 modules faces three supply chain constraints:

1. Die Harvesting: Lower yields from Samsung's 10nm-class process nodes increase IC costs
2. PCB Complexity: Dual-sided mounting requires specialized assembly lines
3. PMIC Allocation: Richtek controllers face competing demand from server DIMM production These factors elevated street prices from $419.99 MSRP to $1,599.99 – a 281% premium. For context, 64GB DDR5 modules currently constitute less than 8% of DRAM output according to industry shipment reports.

Strategic Positioning

With DDR5-6000 being AMD's verified frequency ceiling without performance penalties, G.Skill's timing-optimized kit represents a technical solution to architectural constraints. The 128GB capacity meets content creation and virtualization demands, though current pricing reflects scarcity economics. When supply normalizes, the Trident Z5 Neo's combination of Samsung M-die binning and EXPO calibration should establish it as the benchmark for high-capacity AMD systems.
