Gigabyte X870E Aero X3D Wood: Material Innovation Meets High-Performance AM5 Platform

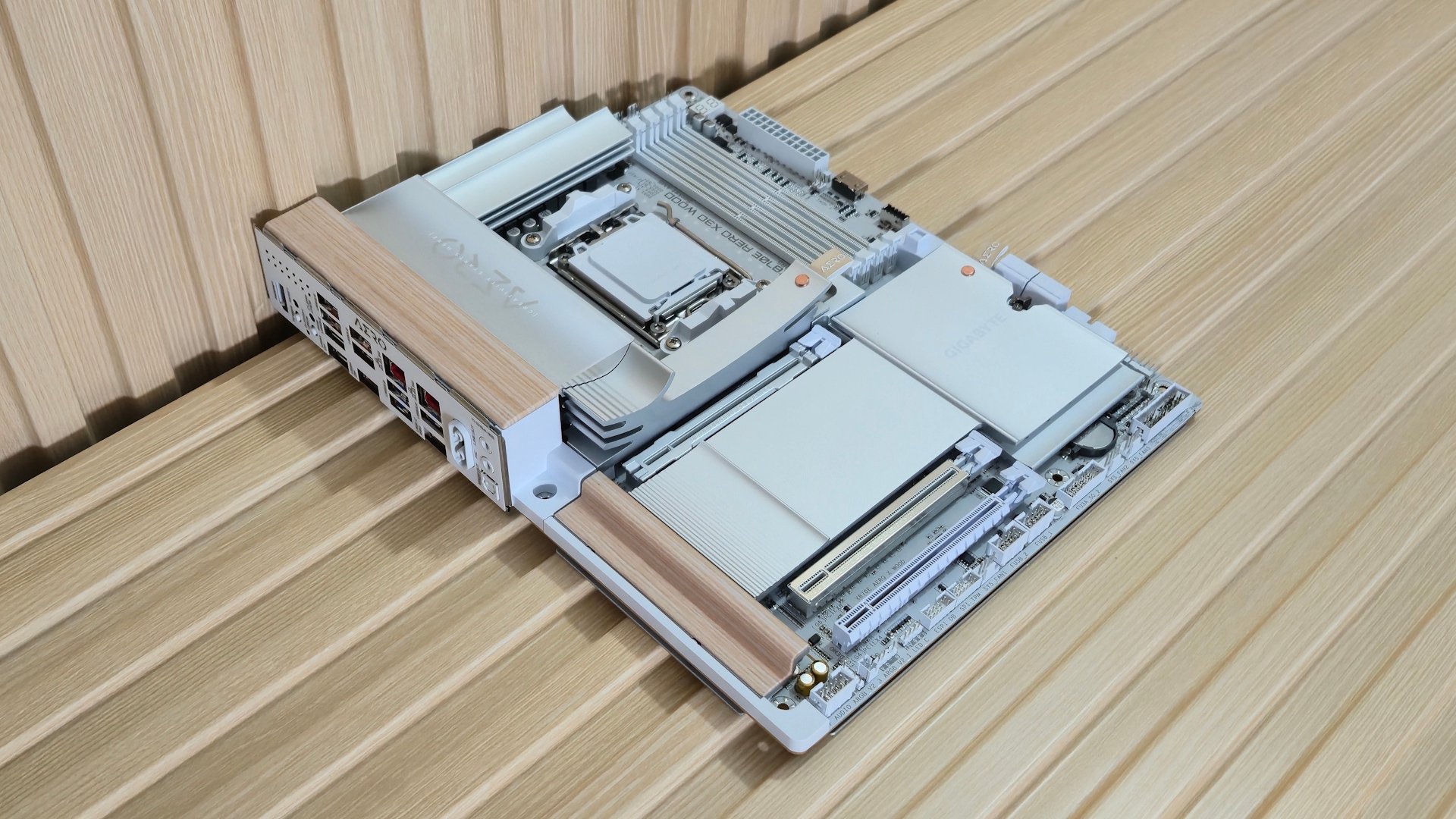

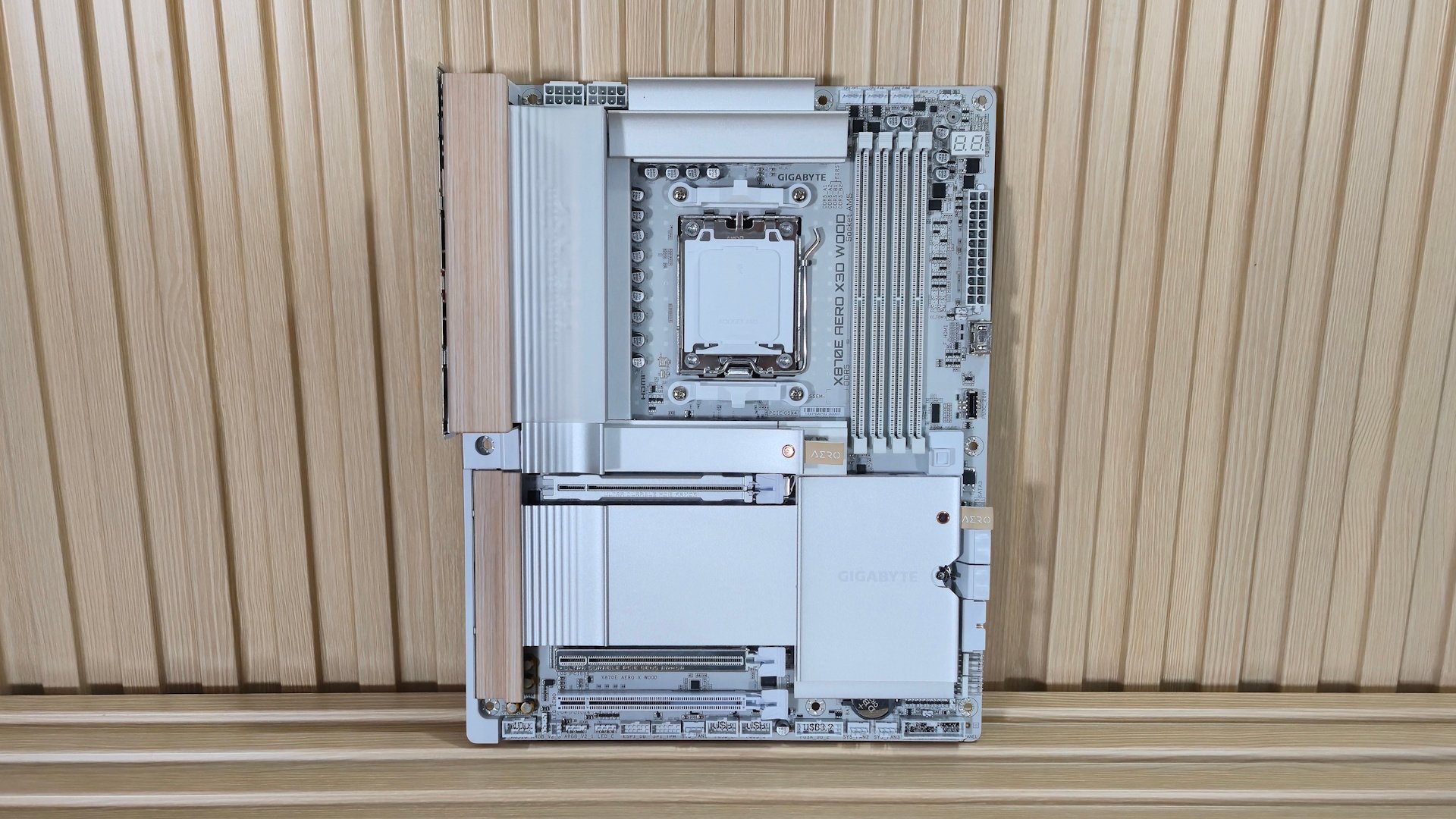

Gigabyte's X870E Aero X3D Wood motherboard marks a deliberate departure from conventional PCB aesthetics while maintaining the technical foundations expected of AMD's premium AM5 platform. This ATX board combines simulated wood grain elements with leather pull tabs, creating what Gigabyte terms a "statement piece" targeting builders seeking distinctive system aesthetics. Beneath this unconventional exterior lies hardware designed for AMD's Ryzen 7000/9000-series processors, including the recently released Ryzen 9 9850X3D.

Technical Architecture and Component Analysis

The X870E chipset provides the foundation for the board's connectivity, featuring PCIe 5.0 implementation across critical pathways. The power delivery subsystem employs a 20-phase design with 16 phases dedicated to Vcore using On Semiconductor NCP302155R DrMOS components rated for 55A continuous current (80A peak). While Gigabyte's specifications cite 60A capability, component datasheets confirm 55A operation. This configuration proved sufficient for stable operation with the 142W Ryzen 9 9900X during testing and should accommodate higher TDP processors like the 9950X with adequate cooling.

Storage connectivity includes four M.2 sockets, with two supporting PCIe 5.0 speeds:

• M2A_CPU: PCIe 5.0 x4 (128Gbps), 80mm modules
• M2B_CPU: PCIe 5.0 x4 (128Gbps), 110mm modules
• Two additional PCIe 4.0 x4 slots

Notably, bandwidth allocation involves trade-offs: Populating M2B_CPU reduces both PCIe 5.0 M.2 slots to x2 operation. Alternatively, dedicating full bandwidth to storage disables the dual USB4 (40Gbps) ports on the rear I/O.

Networking implements dual Realtek RTL8126 controllers for 5GbE Ethernet alongside MediaTek's MT7927 Wi-Fi 7 solution supporting 320MHz channels across 6GHz/5.8GHz bands. USB connectivity is extensive:

• 2× USB4 (40Gbps Type-C)
• 1× USB 3.2 Gen 2x2 (20Gbps Type-C)
• 5× USB 3.2 Gen 2 (10Gbps Type-A)
• 3× USB 3.2 Gen 1 (5Gbps Type-A)

The audio subsystem relies on Realtek's ALC1220 codec, positioning it behind competitors using newer ALC408x implementations at this price tier. Memory support extends to DDR5-9000 via overclocking, though achieving such speeds remains more feasible with APUs than standard desktop processors due to integrated memory controller limitations.

Performance and Market Position

Benchmark results across 25+ X870/B850 motherboards placed the Aero Wood among top performers in productivity workloads:

• 7-Zip compression: Highest recorded throughput
• Cinebench R23: Leading multi-core scores
• Blender rendering: Fastest scene completion times Gaming performance measured slightly above average in actual title testing despite lower synthetic 3DMark scores.

The board's $499-549 price bracket positions it against premium alternatives like ASUS ROG Crosshair and MSI MEG models. Its primary differentiation stems from the unique material treatment targeting boutique builds. However, component selection shows cost-optimization trade-offs:

• Last-generation audio codec
• Shared bandwidth between PCIe 5.0 M.2 and USB4
• 55A power stages versus 70A-110A competitors
