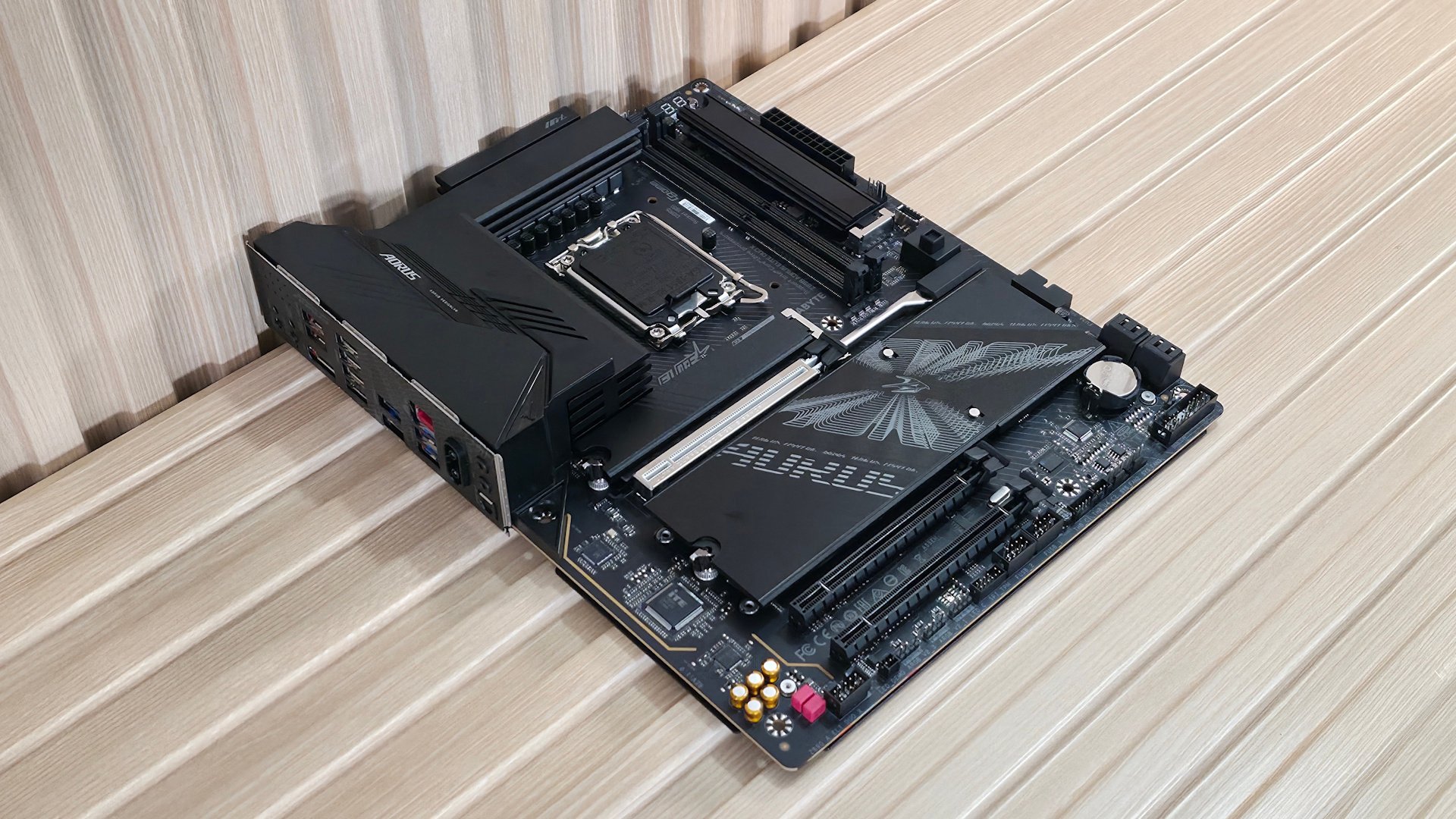

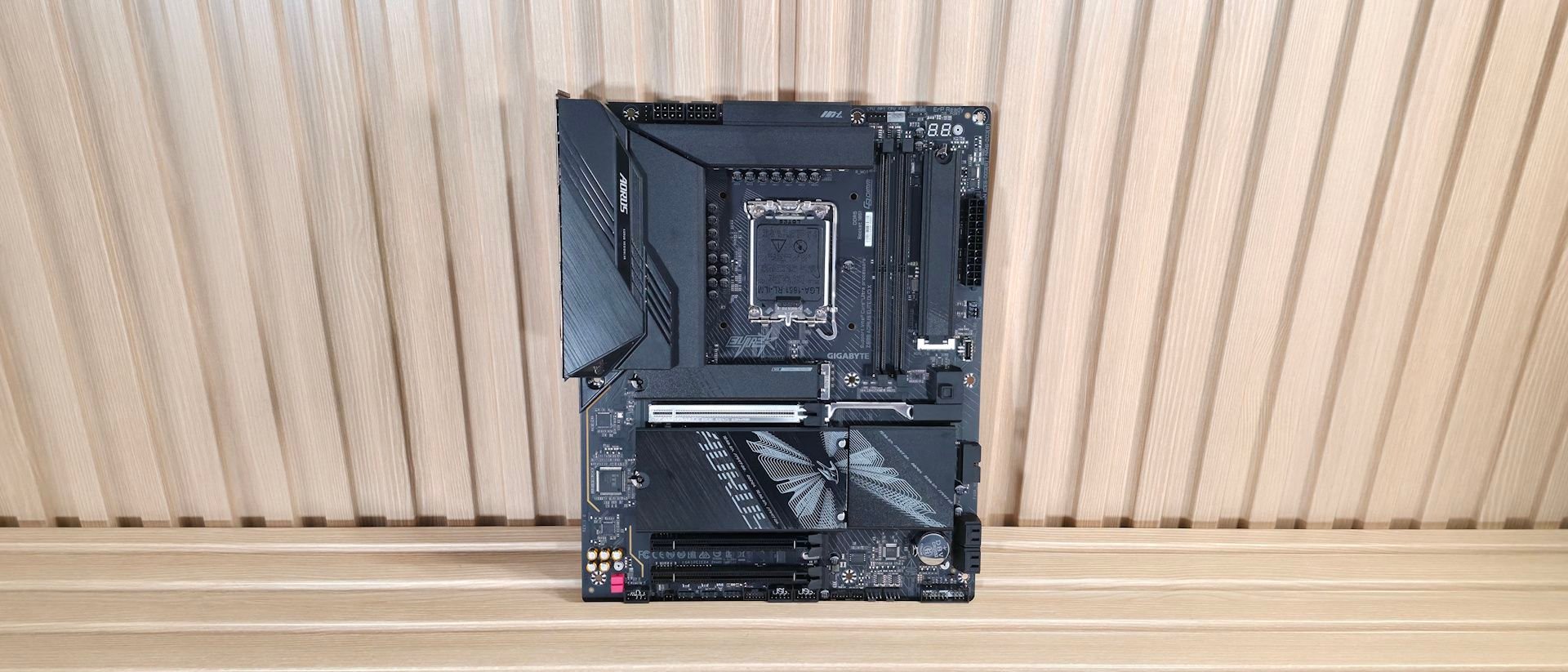

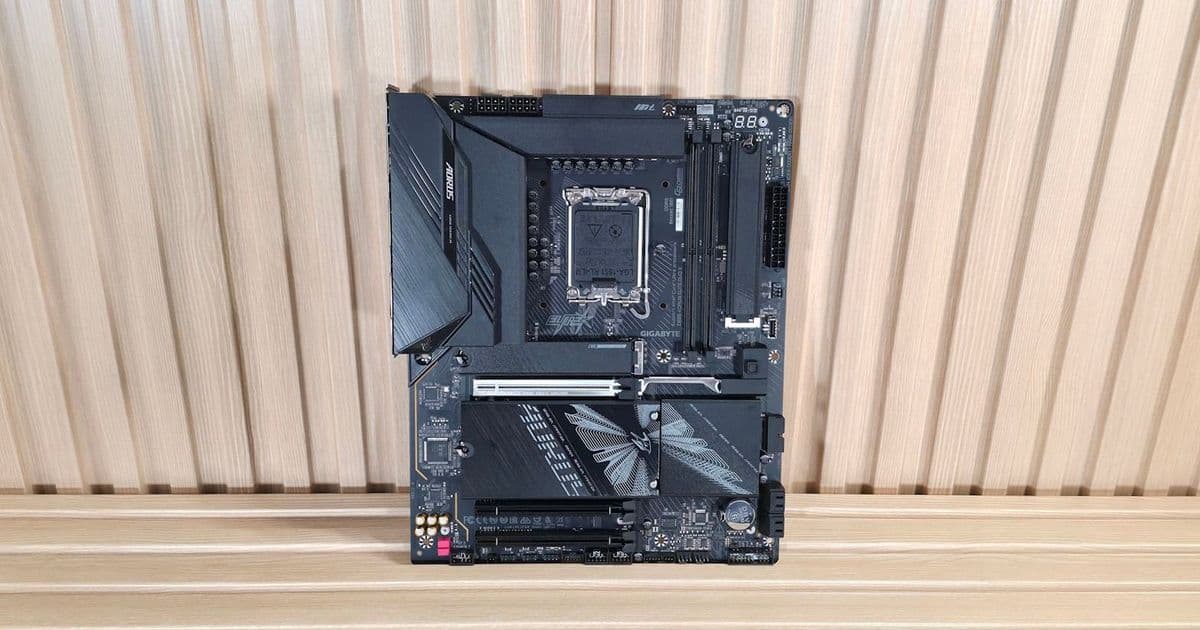

Gigabyte Z890 Aorus Elite Duo X: Budget Mid-Range Board with CQDIMM Support for Arrow Lake Refresh

The Gigabyte Z890 Aorus Elite Duo X represents an interesting entry in the budget mid-range motherboard segment, offering a unique combination of features that sets it apart from competitors. Priced at $279.99, this board targets users building systems with Intel's latest Arrow Lake refresh processors while providing specialized capabilities for those needing high-density memory configurations.

CQDIMM Support: A Key Differentiator

The standout feature of the Z890 Aorus Elite Duo X is its support for CQDIMMs (Clocked Quad-rank Unbuffered Dual In-line Memory Modules). This capability allows users to install up to 256GB of RAM using just two memory modules, with speeds reaching DDR5-8000 MT/s. Traditional memory configurations typically require four sticks to achieve such high capacities, but that approach forces significant compromises on speed due to increased electrical load on the memory controller.

Gigabyte's D5 Duo X technology enhances this capability through a direct path design that skips middle slots and eliminates signal reflection. The board officially supports DDR5-10266+ MT/s with standard DIMMs, though achieving these speeds requires high-quality memory modules and a CPU with a robust Integrated Memory Controller (IMC). The updated platform delivers DDR5-7000 speeds without IMC overclocking, providing solid baseline performance.

Arrow Lake Refresh Compatibility

As one of the first Z890 refresh motherboards to hit the market, the Aorus Elite Duo X fully supports Intel's latest Core Ultra 270K Plus and 250K Plus processors, as well as the original Core Ultra chips. This compatibility ensures users can take advantage of the latest Intel architectures without compatibility concerns.

Power Delivery and Thermal Management

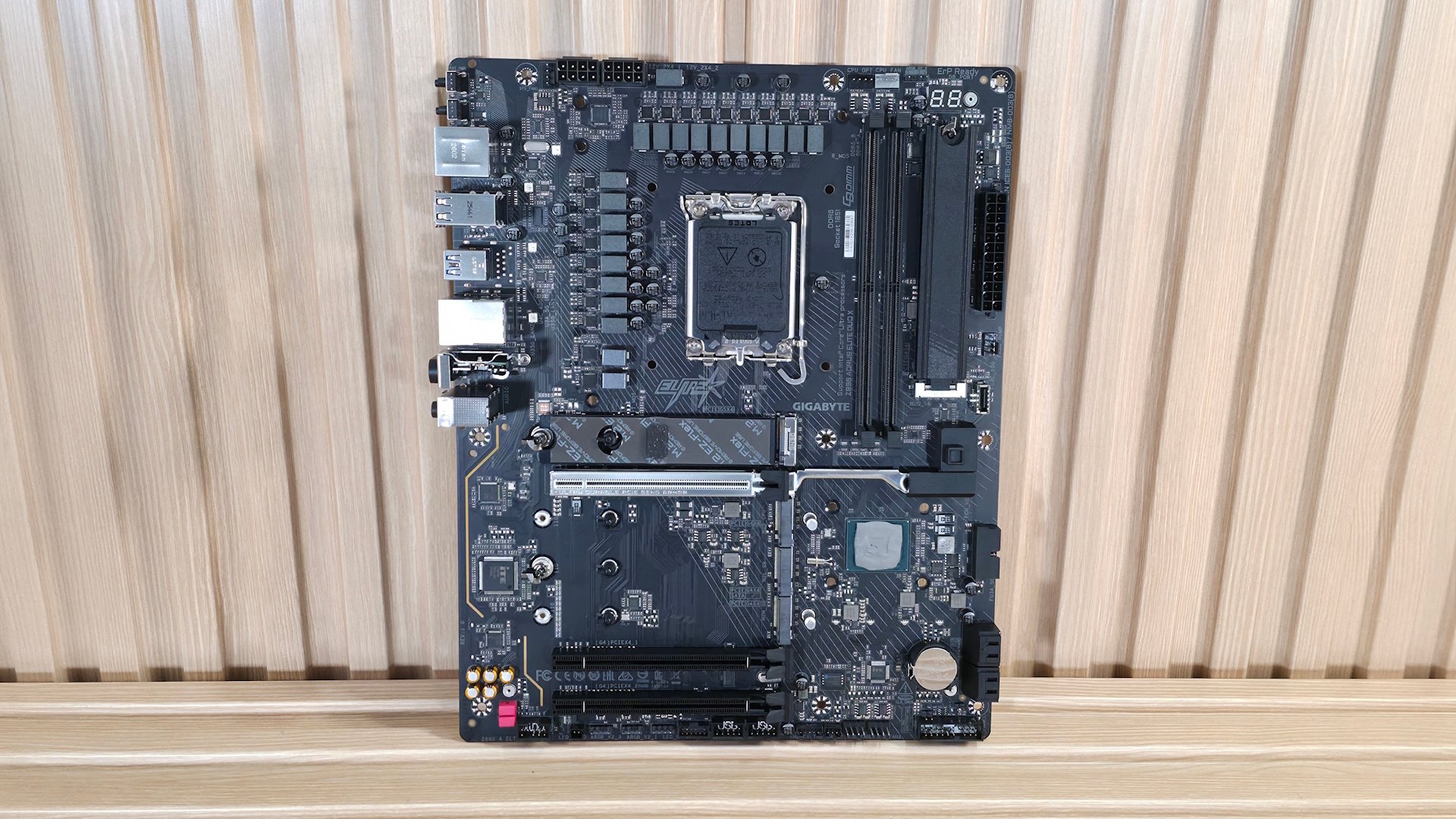

The motherboard employs a 19-phase voltage regulation design, with 16 dedicated to Vcore. Power is supplied through an OnSemi NCP81537 controller, utilizing 16 OnSemi NCP307155 60 SPS MOSFETs capable of delivering 960A of current. While this specification may seem modest compared to high-end boards, it's more than sufficient for the Core Ultra 7 270K Plus, Core Ultra 5 250K Plus, and even the Core Ultra 9 285K processors. The VRM heatsinks feature oversized designs with matte finishes, ensuring adequate cooling during sustained heavy loads and overclocking scenarios.

Expansion Capabilities

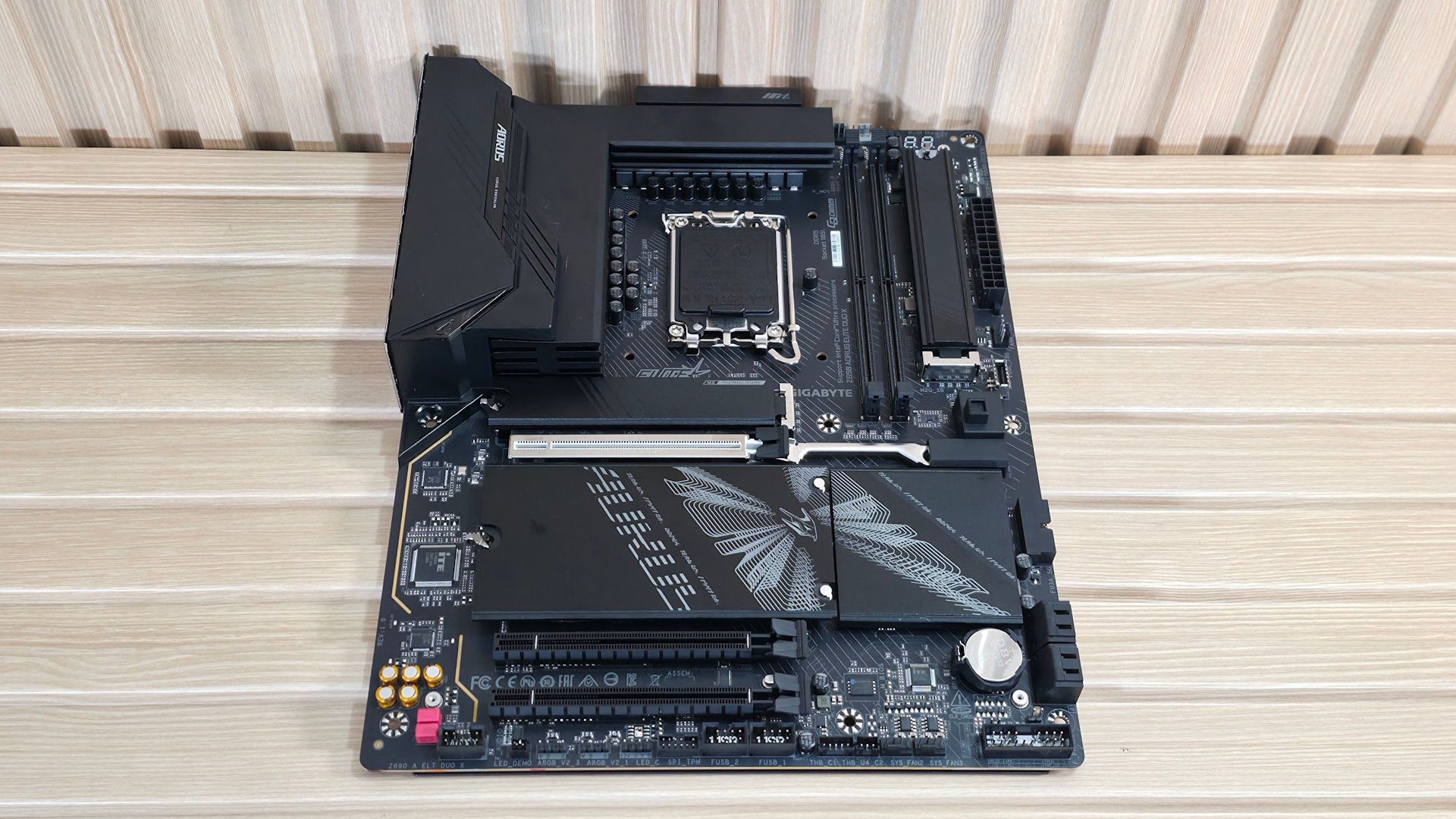

Storage connectivity represents a strong point for this mid-range board, with five M.2 sockets (one PCIe 5.0 and three PCIe 4.0) plus four SATA 6 Gbps ports. All M.2 slots support devices up to 110mm in length, with the primary PCIe 5.0 slot featuring its own dedicated heatsink. The three PCIe 4.0 M.2 slots share a common heatsink, and the bottom-most slot also supports SATA-based SSDs. All storage options support RAID 0/1/5/10 configurations for performance enhancement or redundancy.

Expansion includes three full-length PCIe slots: one PCIe 5.0 x16 slot reinforced with Gigabyte's "UD" design and featuring the company's PCIe EZ-Latch Plus mechanism for easy graphics card removal, plus two PCIe 4.0 x4 slots connected via the chipset. The board also includes six 4-pin fan/pump headers, each capable of delivering 2A/24W, sufficient for most cooling solutions including high-performance air coolers, AIOs, and custom water loops.

Connectivity and Networking

The rear I/O panel offers comprehensive connectivity, though with some compromises compared to higher-end models. Notably, it includes just one Type-C port (USB4 40 Gbps) rather than the dual Type-C configurations found on more expensive boards. The complete connectivity suite includes:

• 1 USB4 Type-C port (40 Gbps)
• 2 USB 3.2 Gen 2 (10 Gbps) Type-A ports
• 3 USB 3.2 Gen 1 (5 Gbps) Type-A ports
• 4 USB 2.0 (480 Mbps) Type-A ports
• 1 DisplayPort v2.1 output
• 1 Realtek 5 GbE Ethernet port
• Intel Wi-Fi 7 (BE200NGW) with 320 MHz support
• Audio stack with Realtek ALC1220 codec

The audio section utilizes the previous-generation flagship Realtek ALC1220 codec paired with a mix of standard and WIMA audio capacitors. While this remains a solid audio solution for this class of board, newer boards are beginning to feature the newer Realtek ALC408X codec.

Ultra Turbo Mode and Performance Features

Gigabyte includes its "Ultra Turbo Mode" feature, promising performance increases of up to 40% in specific scenarios when used with Ultra 200S Series (K-SKUs) CPUs. The mode is accessible through a single click in Gigabyte's software or via BIOS settings. During testing, the Level 2 setting provided worthwhile gains, while the Level 3 (Extreme) setting proved unstable for completing full benchmark suites, particularly heavily multithreaded tests like Cinebench R26.

The board includes several DIY-friendly features, including M.2 EZ-Latch Click and EZ-Latch Plus mechanisms for securing M.2 modules and their heatsinks, plus the PCIe EZ-Latch Plus for easy graphics card removal. The 64MB driver BIOS provides ample space for features and updates.

Market Positioning and Value Proposition

At $279.99, the Z890 Aorus Elite Duo X occupies an interesting position in the budget mid-range segment. Its CQDIMM support provides a unique advantage for users needing high memory capacity without sacrificing speed, though this benefit applies to a relatively small subset of users. For most mainstream consumers, the board's five M.2 sockets, Wi-Fi 7 connectivity, and capable power delivery offer strong value for the price point.

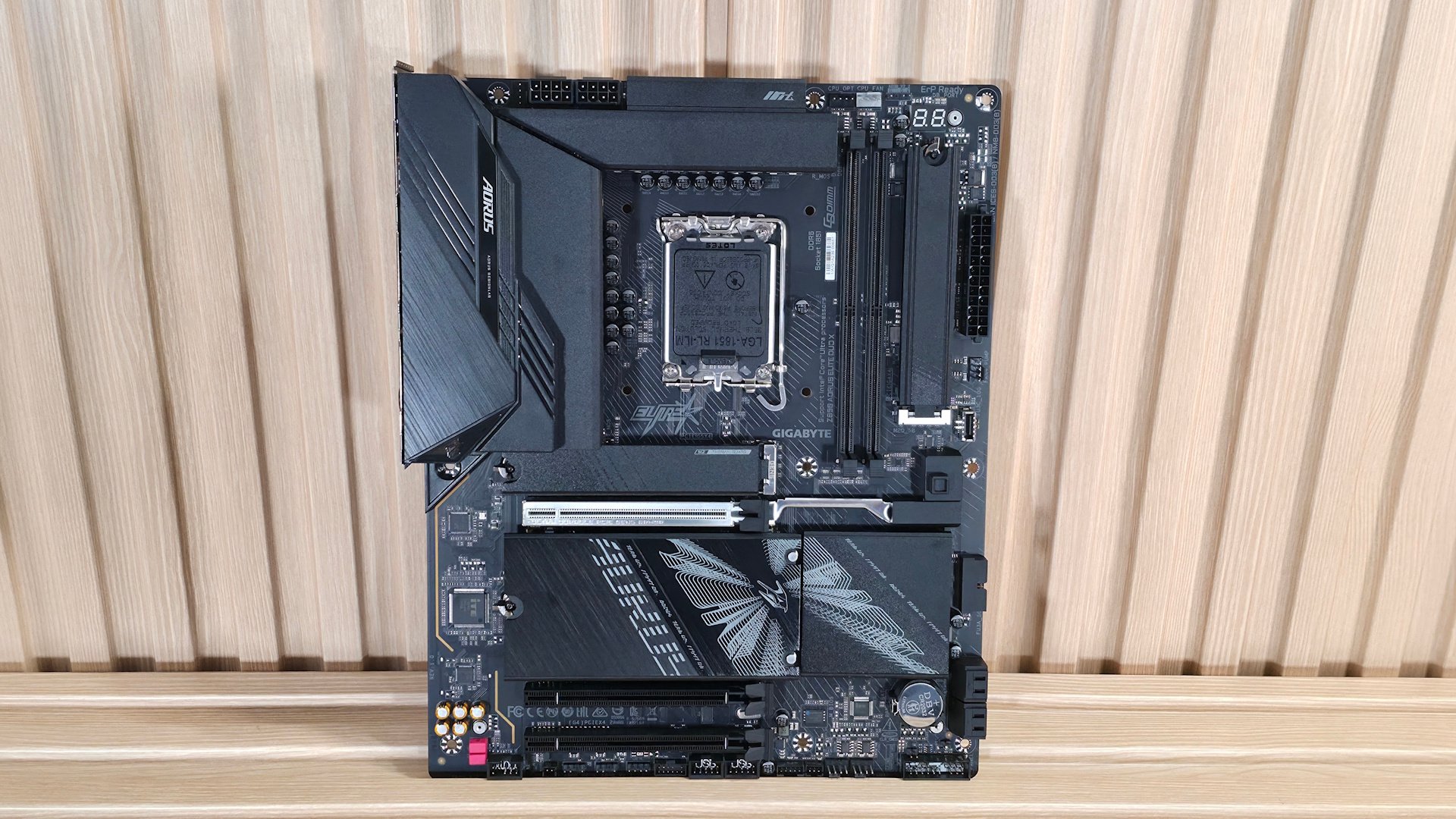

The motherboard faces stiff competition from other Z890 refresh boards in this price range, most of which lack the specialized CQDIMM support. However, competitors may offer more comprehensive connectivity options, such as additional Type-C ports or newer audio codecs. The board's design aesthetic, featuring a black PCB with grey accents and brushed-metal heatsinks, provides a clean, understated appearance that should complement most dark-themed PC builds.

Conclusion

The Gigabyte Z890 Aorus Elite Duo X delivers a well-rounded package for budget-conscious builders targeting Intel's latest Core Ultra processors. Its CQDIMM support represents a significant differentiator for users requiring high-density memory configurations, while the comprehensive storage options and capable power delivery ensure solid performance across a range of applications. The Ultra Turbo Mode provides accessible performance enhancement, though the most aggressive settings may require manual tuning for stability.

For users prioritizing maximum memory capacity with minimal physical DIMMs, or those building systems with the latest Arrow Lake refresh processors on a budget, the Z890 Aorus Elite Duo X presents a compelling option. While it may not offer the most comprehensive connectivity in its price class, its specialized features and solid overall performance make it a smart choice for specific use cases.
