GitHub's new Agentic Workflows feature introduces a sophisticated three-layer security architecture to safely run AI agents in CI/CD pipelines, addressing the unique risks of autonomous agents with secrets isolation, staged execution, and comprehensive logging.
When GitHub announced Agentic Workflows, the promise was clear: AI agents that can autonomously fix documentation, write tests, and refactor code. But as any developer knows, automation without guardrails is a recipe for disaster. What happens when an agent decides to spam your repository with issues, leaks API tokens, or pushes commits based on sketchy documentation? These aren't hypothetical concerns—they're the exact problems GitHub had to solve before shipping this feature.
The Trust Problem in Agentic Automation
Traditional GitHub Actions run in a single trust domain where everything shares the same permissions and access. This works great for deterministic automation, but agents are fundamentally different. They consume untrusted inputs, reason over repository state, and make decisions at runtime. Combine that with GitHub Actions' permissive execution environment, and you've got a potential security nightmare.
A rogue agent in this setup could interfere with MCP servers, access authentication secrets, and make network requests to arbitrary hosts. A buggy or prompt-injected agent with unrestricted access could act in unexpected and insecure ways—exactly what GitHub wanted to prevent.

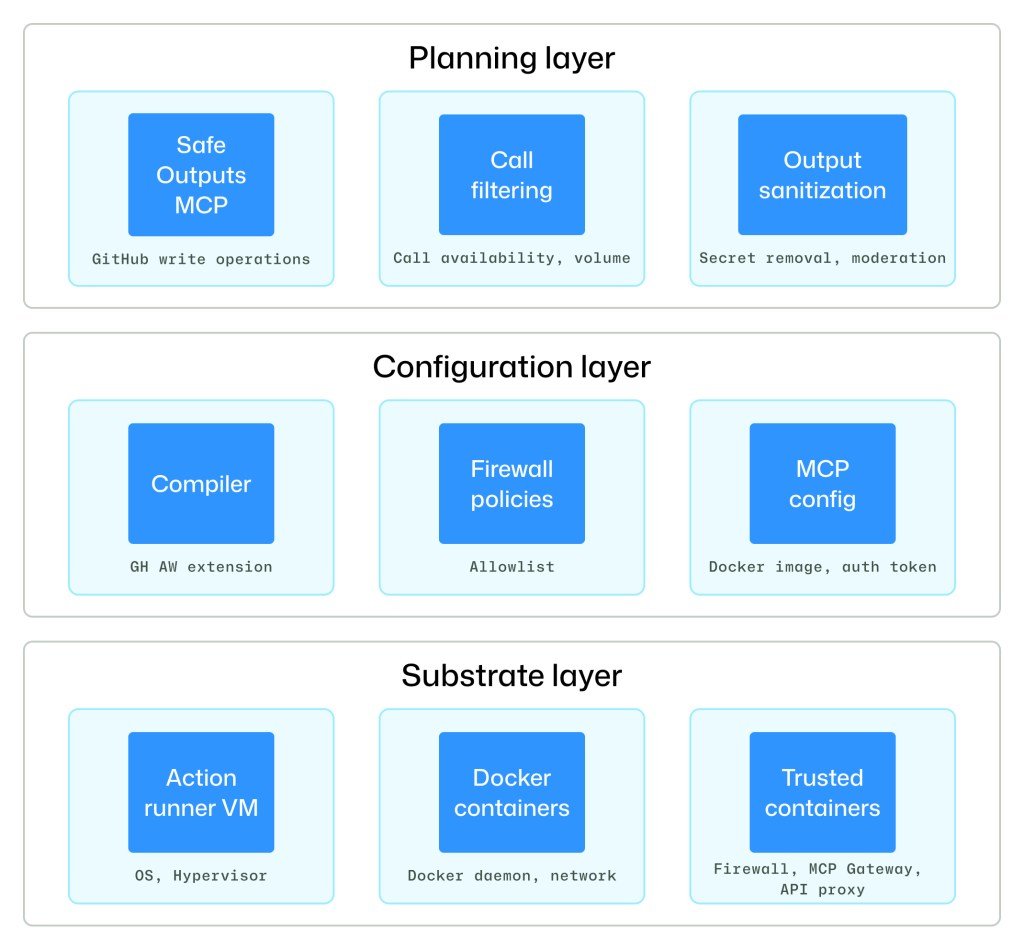

Three Layers of Defense
The security architecture for Agentic Workflows is built on three distinct layers, each providing a different kind of protection:
Substrate Layer: The Foundation
The substrate layer runs on a GitHub Actions runner virtual machine (VM) and several trusted containers. This layer provides isolation among components, mediation of privileged operations and system calls, and kernel-enforced communication boundaries. Even if an untrusted user-level component is compromised and executes arbitrary code within its container isolation boundary, these protections hold.
Configuration Layer: The Rules Engine
Above the substrate sits the configuration layer, which includes declarative artifacts and toolchains that interpret them to instantiate a secure system structure and connectivity. This layer dictates which components are loaded, how they're connected, what communication channels are permitted, and what privileges are assigned. Critically, externally minted tokens like agent API keys and GitHub access tokens are controlled here—the configuration determines which tokens are loaded into which containers.
Planning Layer: The Workflow Orchestrator
The planning layer's primary responsibility is creating staged workflows with explicit data exchanges between them. This is where the "safe outputs" subsystem lives, which we'll explore in detail below. The configuration layer dictates which components exist and how they communicate, but the planning layer determines which components are active over time.
Zero-Secret Agents: A Fundamental Trade-off
From the beginning, GitHub made a bold decision: workflow agents would have zero access to secrets. In traditional GitHub Actions, sensitive material like agent authentication tokens and MCP server API keys reside in environment variables and configuration files visible to all processes in the VM. This is dangerous because agents are susceptible to prompt injection—attackers can craft malicious inputs that trick agents into leaking sensitive information.

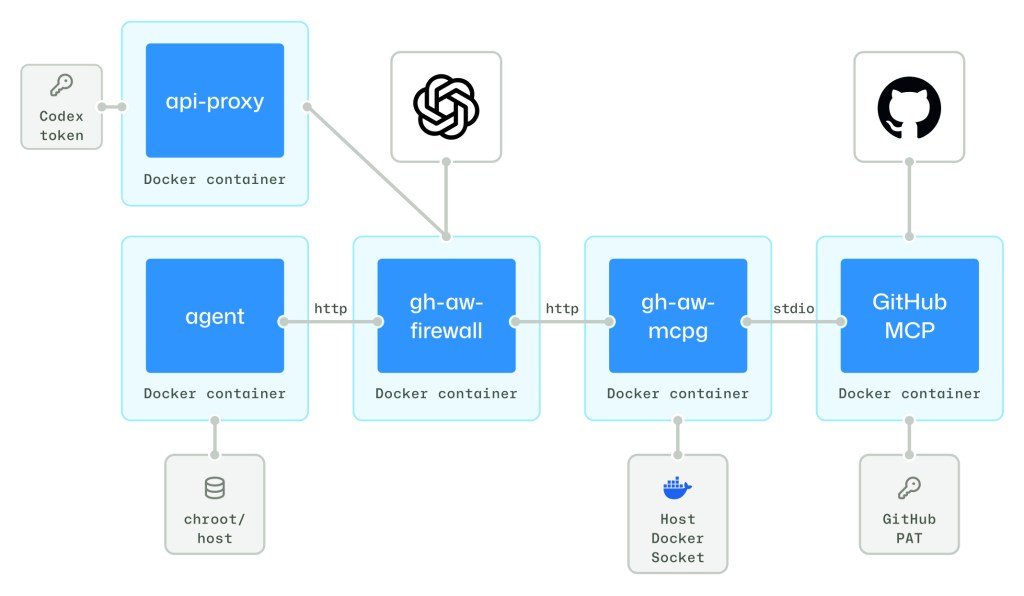

To solve this, GitHub isolates the agent in a dedicated container with tightly controlled egress: firewalled internet access, MCP access through a trusted MCP gateway, and LLM API calls through an API proxy. The MCP gateway runs in a separate trusted container, launches MCP servers, and has exclusive access to MCP authentication material.
For LLM authentication tokens, GitHub avoids exposing those directly to the agent's container. Instead, they place LLM auth tokens in an isolated API proxy and configure agents to route model traffic through that proxy.
Coding Workloads: The Chroot Solution
Zero-secret agents require a fundamental trade-off between security and utility. Coding workloads need broad access to compilers, interpreters, scripts, and repository state. Simply expanding the in-container setup would duplicate existing actions provisioning logic and increase the set of network destinations that must be allowed through the firewall.
GitHub's solution is elegant: they mount the entire VM host file system read-only at /host, then overlay selected paths with empty tmpfs layers and launch the agent in a chroot jail rooted at /host. This keeps the host-side setup intact while constraining the agent's writable and discoverable surface to what it needs for its job.
Staged Execution and Safe Outputs
Even without access to secrets, a prompt-injected agent can still do harm. It could spam a repository with pointless issues and pull requests, or add objectionable URLs and other content in repository objects. To prevent this, the agentic workflows compiler decomposes workflows into explicit stages.
For each stage, the system defines:
- Active components and permissions (read vs. write)
- Data artifacts emitted by that stage
- Admissible downstream consumers of those artifacts
While the agent runs, it can read GitHub state through the GitHub MCP server and can only stage its updates through the safe outputs MCP server. Once the agent exits, write operations buffered by the safe outputs MCP server are processed by a suite of analyses.
The safe outputs system allows workflow authors to specify which write operations an agent can perform (like creating issues, comments, or pull requests), limits the number of updates allowed (such as restricting an agent to creating at most three pull requests in a given run), and analyzes update content to remove unwanted patterns like output sanitization to remove URLs.
Only artifacts that pass through the entire safe outputs pipeline can be passed on, ensuring that each stage's side effects are explicit and vetted.
Comprehensive Logging: Visibility as a Security Control
Even with zero secrets and vetted writes, an agent can still transform repository data and invoke tools in unintended ways or try to break out of imposed constraints. Agents are determined to accomplish their tasks by any means and have a surprisingly deep toolbox of tricks for doing so.
Agentic workflows make observability a first-class property of the architecture by logging extensively at each trust boundary. Network and destination-level activity is recorded at the firewall layer, model request/response metadata and authenticated requests are captured by the API proxy, and tool invocations are logged by the MCP gateway and MCP servers.
GitHub also adds internal instrumentation to the agent container to audit potentially sensitive actions like environment variable accesses. Together, these logs support end-to-end forensic reconstruction, policy validation, and rapid detection of anomalous agent behavior.
Pervasive logging also lays the foundation for future information-flow controls. Every location where communication can be observed is also a location where it can be mediated. Agentic workflows already support the GitHub MCP server's lockdown mode, and GitHub plans to introduce additional safety controls that enforce policies across MCP servers based on visibility (public vs. private) and the role of a repository object's author.
The Future of Secure Agentic Automation
The architecture GitHub has built for Agentic Workflows represents a thoughtful approach to a difficult problem: how to safely run autonomous agents in a CI/CD environment. By treating agent execution as an extension of the CI/CD model rather than a separate runtime, GitHub has created a system that provides the guardrails developers need without sacrificing the benefits of automation.
As AI agents become more capable and prevalent in software development, this kind of security architecture will likely become the standard rather than the exception. The principles GitHub has established—defense in depth, zero secrets, staged execution, and comprehensive logging—provide a blueprint for safely integrating autonomous agents into critical development workflows.
The question isn't whether AI agents will transform software development, but whether we can harness their power without creating new security vulnerabilities. GitHub's answer is a sophisticated security architecture that lets developers enjoy the benefits of automation while maintaining control over what their agents can do.
