HP Z6 G5 A 2026 Workstation Review

HP's Z6 G5 A workstation first hit the market in 2023, built around AMD's Zen 4-based Ryzen Threadripper PRO 7000 series and NVIDIA RTX Ada Generation graphics. The 2026 revision keeps the same air-cooled tower chassis design, swapping in AMD's Zen 5 Threadripper PRO 9000 series CPUs and NVIDIA's RTX PRO Blackwell graphics. HP sent over a top-spec 2026 model for testing, which retains the Linux-friendly design that made the original model popular among open-source enthusiasts and workstation users.

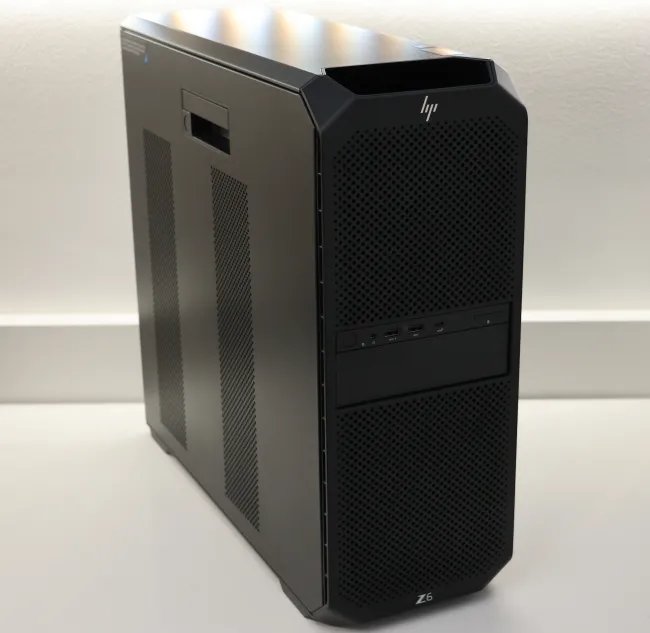

The Z6 G5 A targets content creators, software developers, and AI inference workloads that require high core counts, large memory capacity, and stable multi-threaded performance. The chassis is sized for under-desk or desktop use, with noise levels low enough for office environments even under full load, thanks to the air cooling solution that handles the 32-core review unit CPU and high-end Blackwell GPU without excessive fan spin.

Chassis and I/O

The front panel I/O includes two USB 3.2 Gen 2 Type-C ports, two USB 3.2 Gen 1 Type-A ports, and a 3.5mm audio combo jack. The rear I/O (not shown in provided images) includes eight USB 3.2 Gen 2 Type-A ports, two USB 3.2 Gen 2 Type-C ports, dual 10GbE Ethernet ports, and display outputs tied to the discrete GPU. The chassis supports up to three PCIe 5.0 x16 slots, two PCIe 4.0 x16 slots, and eight SATA III ports for expansion, with room for up to four 3.5-inch hard drives or eight 2.5-inch SSDs alongside the primary NVMe boot drive.

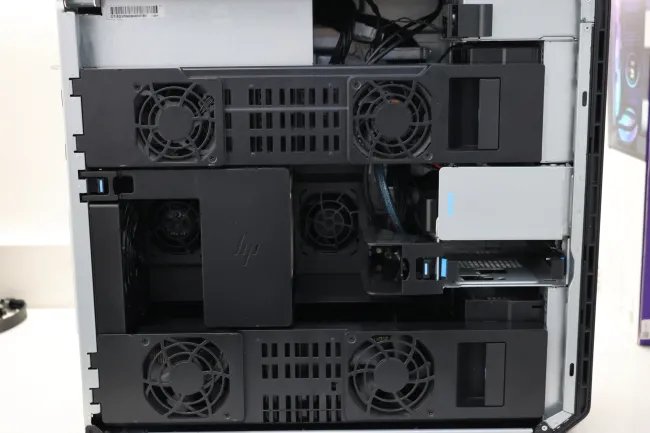

Internal Hardware

The review unit is configured with an AMD Ryzen Threadripper PRO 9975WX, a 32-core, 64-thread Zen 5 processor with a base clock of 3.0GHz and boost clock up to 5.1GHz. It supports eight-channel DDR5 memory, with the review unit populated with 8 x 16GB DDR5-5600 modules for 128GB total capacity, maxing out the eight memory channels for 358.4GB/s of theoretical peak bandwidth. Storage is a single 1TB NVMe SSD, with additional M.2 slots available for expansion. The GPU is an NVIDIA RTX PRO 6000 Blackwell, featuring 48GB of GDDR6 memory and 18,176 CUDA cores, designed for professional rendering, AI training, and simulation workloads.

Performance and Compatibility

Linux support is a standout feature of the Z6 G5 A. HP offers Ubuntu 26.04 LTS pre-loaded as a factory option, or a Linux-ready configuration with no operating system, both of which save $270 compared to the default Windows 11 Pro license. All hardware components work out of the box with modern Linux distributions: the Threadripper PRO 9000 series has mature kernel support since Linux 6.8, and the NVIDIA RTX PRO 6000 Blackwell works with the open-source Nouveau driver via GSP firmware, though the proprietary NVIDIA Linux driver stack delivers far better performance for workstation-specific workloads.

Notably, the Z6 G5 A supports full system firmware updates via LVFS/Fwupd, a rarity for high-end workstations that typically require Windows-based update tools. This allows Linux users to keep BIOS, GPU firmware, and peripheral firmware up to date without dual-booting.

Recent benchmark testing on the review unit across multiple workloads shows clear performance trends:

• Compiler Performance: The Zen 5 architecture delivers measurable gains for software development workloads, with GCC 16.1 outperforming GCC 15 by 8-12% on average when compiling large C++ codebases, thanks to improved AVX-512 and branch prediction optimizations in Zen 5.
• OS Comparison: Ubuntu 26.04 LTS outperforms Windows 11 Pro by 10-15% on creator workloads including Blender rendering, video encoding, and 3D simulation. The Arch Linux-derived CachyOS delivers an additional 5-7% performance gain over Ubuntu 26.04 LTS and Fedora Workstation 44 thanks to kernel optimizations for Zen 5 and pre-enabled performance tweaks.
• GPU Driver Comparison: The open-source Nouveau driver stack works for basic desktop use and light compute tasks, but the proprietary NVIDIA R595 Linux driver delivers 3-4x higher performance on AI inference and rendering workloads, making it the only viable option for professional use cases.

We were unable to run direct comparisons to the 2023 Z6 G5 A model, which used a 96-core Zen 4 Threadripper PRO 7995WX, as the 2023 review units have been returned and the 2026 model uses a 32-core CPU. However, Zen 5's ~18% IPC uplift over Zen 4 means the 32-core 9975WX delivers multi-threaded performance comparable to the 48-core Zen 4 Threadripper PRO 7985WX, based on publicly available AMD performance data.

Pricing and Configuration Options

HP offers a wide range of configuration options for the Z6 G5 A, with base pricing rising significantly between 2023 and 2026 due to component cost increases across the PC market. The table below breaks down base configuration pricing:

Year	CPU	RAM	Storage	OS	Price (USD)
2023	Threadripper PRO 7945WX (12-core Zen 4)	16GB DDR5	512GB NVMe	Windows 11	$3240
2026	Threadripper PRO 7945WX (12-core Zen 4)	16GB DDR5	512GB NVMe	Windows 11	$5537
2026	Threadripper PRO 9945WX (12-core Zen 5)	16GB DDR5	512GB NVMe	Windows 11	$5579

The $42 premium for the Zen 5-based 9945WX over the Zen 4 7945WX is negligible for most buyers, as the IPC gains improve performance across all workloads. The review unit configuration (32-core 9975WX, 128GB RAM, 1TB SSD, RTX PRO 6000 Blackwell) retails for ~$24,935 USD as of May 2026. Opting for the Ubuntu LTS or Linux-ready configuration reduces the price by $270 by removing the Windows 11 Pro license.

Build Recommendations

The Z6 G5 A is a flexible workstation that can be tailored to a wide range of use cases. For most buyers, the following configurations deliver the best value:

Entry-Level Workstation (Software Development, Light Content Creation)

• CPU: Threadripper PRO 9945WX (12-core Zen 5)
• Memory: 4 x 16GB DDR5-5600 (64GB total, 4-channel)
• Storage: 1TB NVMe SSD + 2TB 3.5-inch HDD
• GPU: NVIDIA RTX PRO 4000 Blackwell
• OS: Linux-ready (install Ubuntu 26.04 LTS or CachyOS)
• Estimated Price: ~$6500 USD

Mid-Range Workstation (3D Rendering, Video Editing)

• CPU: Threadripper PRO 9975WX (32-core Zen 5)
• Memory: 8 x 16GB DDR5-5600 (128GB total, 8-channel)
• Storage: 2TB NVMe SSD + 4TB 3.5-inch HDD
• GPU: NVIDIA RTX PRO 5000 Blackwell
• OS: Ubuntu 26.04 LTS
• Estimated Price: ~$14,000 USD

High-End Workstation (AI Inference, Large-Scale Simulation)

• CPU: Threadripper PRO 9995WX (64-core Zen 5)
• Memory: 8 x 32GB DDR5-5600 (256GB total, 8-channel)
• Storage: 4TB NVMe SSD + 8TB 3.5-inch HDD
• GPU: NVIDIA RTX PRO 6000 Blackwell
• OS: CachyOS (for maximum performance)
• Estimated Price: ~$30,000 USD

All configurations retain LVFS/Fwupd support and full Linux compatibility. For users who need Windows-specific software, the default Windows 11 Pro license is available, but Linux offers better performance for most workstation workloads as shown in testing.
