Geniatech's DB3506 industrial-grade single-board computer delivers specialized durability with a -40°F to 185°F operating range, Rockchip RK3506 processing, and industrial I/O interfaces for harsh environment deployments.
Industrial developers seeking Raspberry Pi alternatives now have a rugged new option with Geniatech's DB3506 single-board computer. Designed specifically for deployment in extreme environments, this SBC combines specialized hardware interfaces with an impressive operating temperature range of -40°F to 185°F (-40°C to 85°C), making it suitable for applications from arctic monitoring stations to factory floor machinery.
Technical Specifications Breakdown
At its core, the DB3506 uses Rockchip's RK3506 processor featuring an asymmetric quad-core design:
- 3x ARM Cortex-A7 cores handling primary computing tasks
- 1x ARM Cortex-M0 core dedicated to real-time I/O operations with sensors and actuators
- 512MB LPDDR3 RAM (configurable to 256MB or 1GB)
- 256MB or 512MB NAND flash storage
Connectivity options position this board for industrial scenarios:
- Dual Ethernet ports for network redundancy
- Dual-band Wi-Fi (2.4GHz/5GHz)
- HDMI output for local displays
- Touchscreen interface support
- 2x USB 2.0 ports
- Optional 4G/LTE modem support via mini PCIe slot
Critical industrial I/O interfaces include:
- RS-232/RS-485 serial communication
- CAN bus support
- UART interfaces
- 40-pin GPIO header

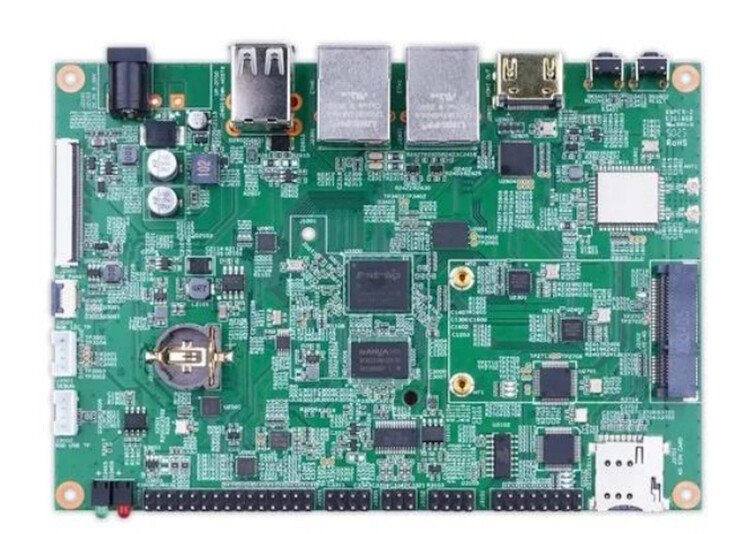

GPIO pins enable custom sensor and control integrations
The board's 5.75" x 4.02" (146mm x 102mm) footprint adheres to common industrial form factors, while its extended temperature tolerance allows deployment in environments where consumer hardware would fail.
Versus Raspberry Pi 5: Industrial vs Consumer Focus
While the Raspberry Pi 5 ($116 base model) delivers superior general-purpose performance with its Broadcom BCM2712 (quad-core Cortex-A76) and PCIe support, the DB3506 specializes in environmental durability and industrial interfaces:
| Feature | Geniatech DB3506 | Raspberry Pi 5 |
|---|---|---|
| Temp Range | -40°F to 185°F | 32°F to 104°F (0°C to 40°C) |
| Industrial I/O | RS-232/RS-485, CAN | Limited to GPIO |
| USB Standard | USB 2.0 | USB 3.0 |
| Processing | Cortex-A7 + Cortex-M0 | Cortex-A76 |
| Target Use | Industrial control systems | Consumer/hobbyist projects |
This comparison highlights the DB3506's specialization: Where Raspberry Pi prioritizes computing power and consumer interfaces, Geniatech emphasizes environmental hardening and industrial communication protocols.
Target Applications and Deployment Scenarios
The DB3506 addresses specific industrial needs:
- Industrial automation: With CAN bus and RS-485 support, it integrates directly with PLCs and motor controllers
- Environmental monitoring: Operates reliably in extreme outdoor conditions for agricultural or climate stations
- Embedded machine interfaces: Touchscreen support enables on-device dashboards for factory equipment
- Transportation systems: Vibration-resistant design suits vehicular or rail applications
Geniatech hasn't released public pricing, consistent with their B2B industrial model. Interested parties should contact Geniatech directly for purchasing information.
Conclusion: A Specialized Industrial Tool
The DB3506 fills a specific niche in the SBC market, offering hardened reliability that consumer boards like Raspberry Pi can't match. For developers needing deployment in temperature extremes or direct industrial interface support, it presents a compelling alternative. However, general-purpose tinkerers will find better value in Raspberry Pi's higher performance, lower cost, and extensive community support. As industrial IoT continues expanding into harsh environments, specialized boards like Geniatech's offering provide the necessary durability where standard computing solutions falter.
