Uber Engineering has released uForwarder, a scalable Kafka consumer proxy designed to overcome limitations in high-throughput event streaming systems. The proxy replaces direct Kafka consumer clients with a gRPC push interface, solving partition management issues and head-of-line blocking while enabling precise workload isolation.
Uber Engineering has open-sourced uForwarder, a push-based consumer proxy for Apache Kafka designed to address scalability limitations in high-throughput event streaming architectures. The system replaces direct Kafka consumer implementations with a gRPC-driven interface, centralizing offset management and solving critical operational challenges observed in Uber's internal deployment that handles trillions of messages daily.

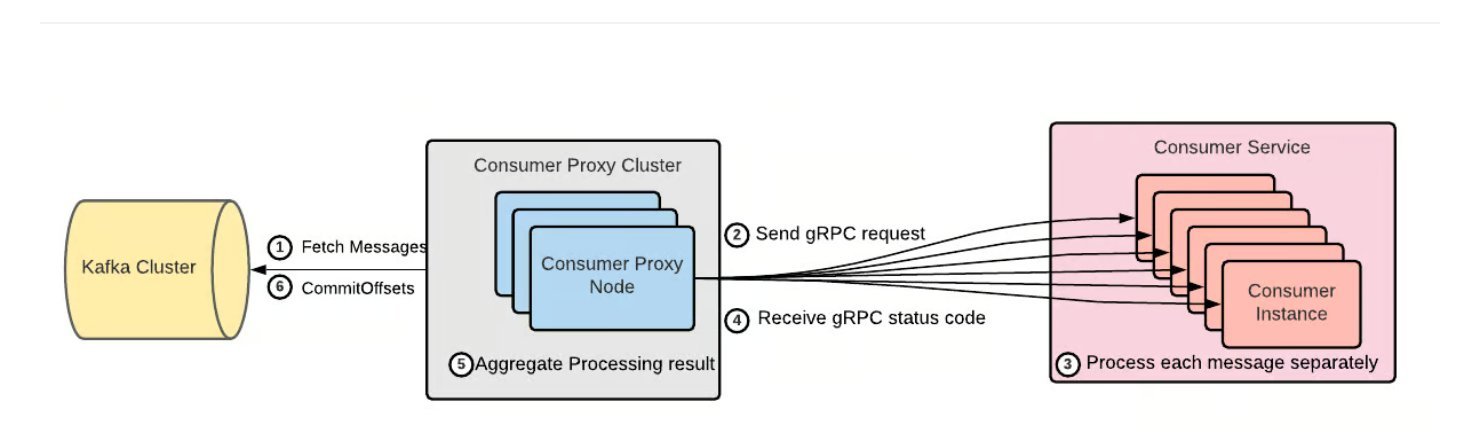

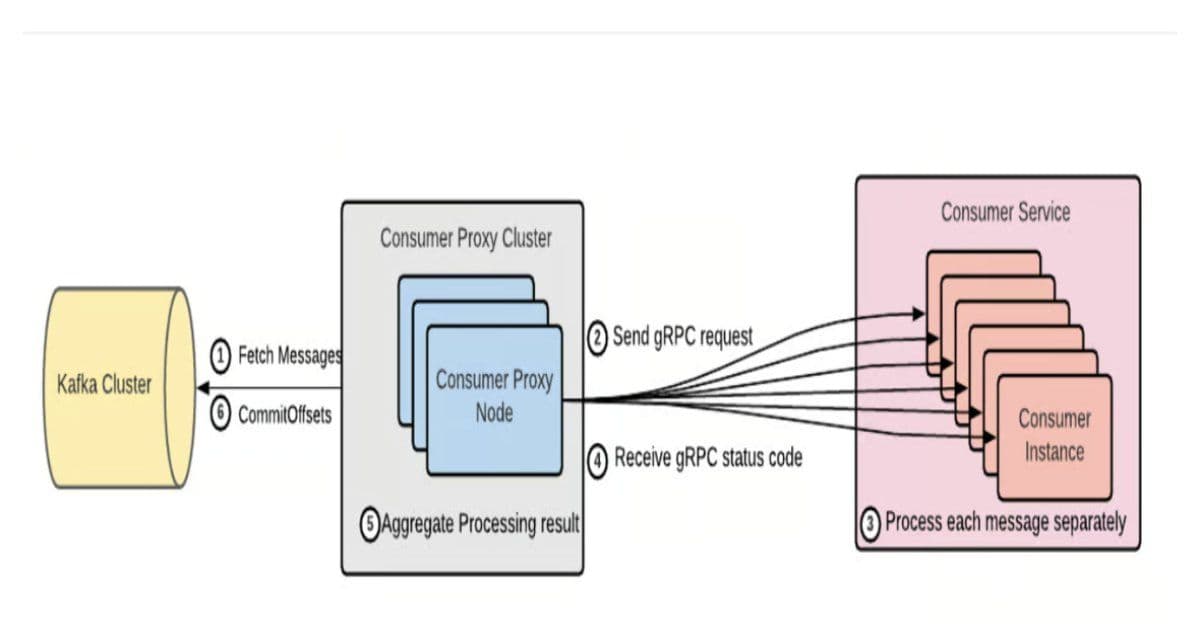

High-level uForwarder architecture (Source: Uber Engineering)
The Scaling Challenge
Uber's Kafka deployment processes over 1 trillion messages and multiple petabytes daily across 1,000+ downstream services. At this scale, standard Kafka consumer groups revealed four critical limitations:
- Partition stall vulnerability: Sequential processing caused head-of-line blocking when single messages failed
- Inefficient resource utilization: Thousands of proxy servers showed inconsistent CPU/memory usage
- Complex delay handling: Services implemented custom delay logic increasing complexity
- Weak workload isolation: Separating production/non-production traffic required complex topic or load-balancer configurations
Architectural Innovations
uForwarder introduces several architectural improvements:
Context-Aware Routing Messages carry routing metadata in Kafka headers that direct gRPC calls to specific consumer instances. This enables infrastructure-level filtering by region, tenant, or environment without application changes.

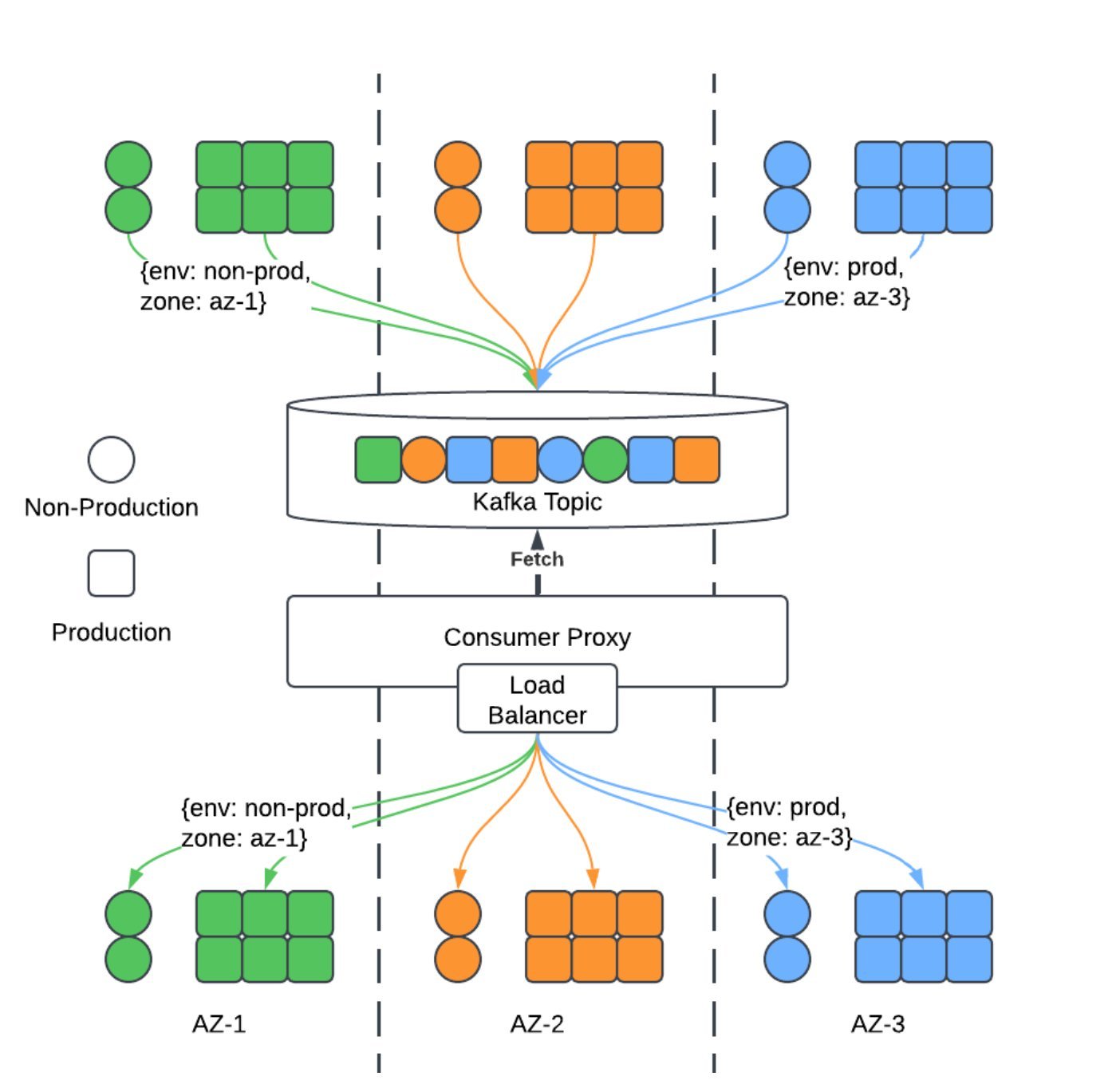

Context-aware routing implementation (Source: Uber Engineering)
Out-of-Order Commit Tracker Monitors commit progress independently using configurable thresholds. When stuck offsets are detected, problematic messages route to a dead letter queue while the commit pointer advances, eliminating partition stalls.
Consumer Auto-Rebalancer Continuously evaluates CPU, memory, and throughput metrics across workers. Dynamically redistributes partitions to balance load, scaling up rapidly during traffic spikes and scaling down gradually to maintain stability.
DelayProcessManager Enables partition-level pause/resume control instead of halting entire consumers. When dependencies are unavailable, only affected partitions buffer while others continue processing.

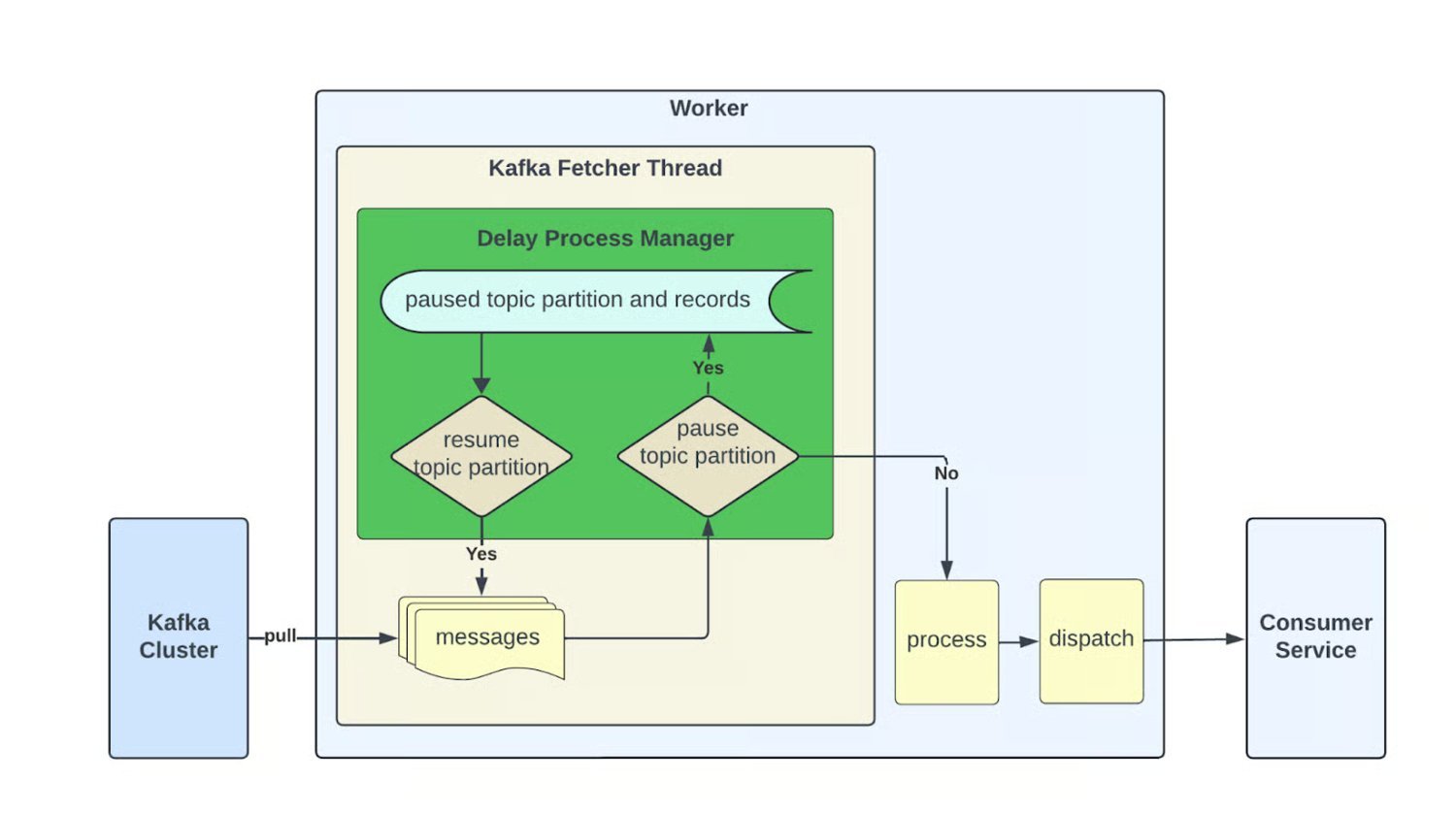

Delay processing in worker fetcher thread (Source: Uber Engineering)
Operational Benefits
In production, uForwarder demonstrates:
- 40-60% reduction in consumer lag during traffic spikes
- 30% improvement in hardware utilization through auto-rebalancing
- Elimination of partition blocking incidents
- Simplified consumer service logic by offloading offset management
Future Development
The engineering team is expanding queue capacity and implementing offset rewinding to handle delayed data processing. Native Protocol Buffers support is being added to allow services to receive structured messages directly, reducing serialization overhead.
uForwarder is available on GitHub with comprehensive documentation detailing deployment patterns and configuration options. The system represents Uber's solution to scaling event-driven architectures beyond Kafka's native consumer limitations.
