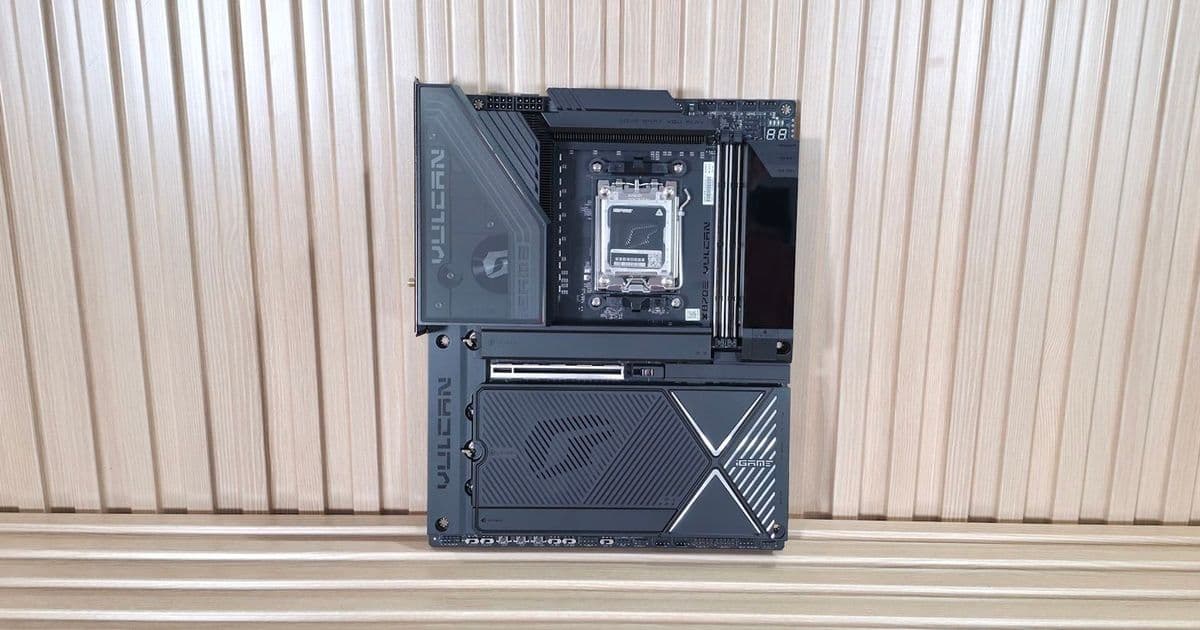

Colorful iGame X870E Vulcan OC V14: A Premium Contender in the High-End Motherboard Market

Colorful has made a significant move into the premium motherboard market with the iGame X870E Vulcan OC V14, a product that positions the brand closer to true high-end territory. Priced at approximately $679.99, this motherboard competes directly with established offerings from MSI, Asus, Gigabyte, and ASRock in the premium mid-range segment.

Technical Specifications and Architecture

The iGame X870E Vulcan OC V14 is built on the AM5 platform (LGA 1718) with the X870E chipset, featuring a sophisticated 22-phase voltage regulation system. The power delivery consists of 18 dedicated phases for Vcore, utilizing Renesas RAA2209004 110A SPS MOSFETs, capable of delivering up to 1,980 amps to the processor. This robust power design supports even the most demanding Ryzen 9000 series processors, including the Ryzen 9 9950X and 9950X3D, particularly when using extreme cooling methods.

Memory support extends to DDR5-8600+(OC) MT/s with standard Ryzen 9000 processors, and up to DDR5-10000+(OC) MT/s when paired with 8000-series APUs. The board accommodates up to 128GB of memory across its two DIMM slots, featuring a single locking mechanism for easier access.

Storage connectivity is a highlight of this motherboard, with three PCIe 5.0 x4 M.2 sockets (128 Gbps) and two additional PCIe 4.0 x4 M.2 sockets (64 Gbps). The implementation allows for three ultra-fast PCIe 5.0 drives without sacrificing entire slots or SATA port count, a significant advantage over competitors that often require lane sharing between M.2 slots and PCIe devices.

Advanced Features and Overclocking Capabilities

The motherboard includes several features targeted at enthusiasts and overclockers:

• Integrated BCLK controller with hardware adjustment buttons for precise base clock control
• LN2 mode switch for extreme overclocking with sub-ambient cooling
• Voltage measurement points for VDDCR, VDDIO, VDDCRSOC, and MISC
• Four LED debug lights (DIMM/CPU/GPU/Boot) and a 2-character LED debug code display
• X3D BIOS profiles optimized for high-cache X3D processors
• VGA Snap-fit quick-release functionality for graphics card installation

The Vulcan Smart Screen, a customizable LCD display, adds a premium touch, displaying system monitoring information or custom images. While useful when configured through the iGame Center software, it only shows a splash screen by default before powering off.

Connectivity and Expansion

The rear I/O panel offers comprehensive connectivity:

• Two USB4 40 Gbps Type-C ports
• Four USB 3.2 Gen 2 10 Gbps ports (red)
• Four USB 3.2 Gen 1 5 Gbps ports (blue)
• Two USB 2.0 480 Mbps ports (black)
• Realtek RTL8126 5 GbE Ethernet
• Mediatek MT9727 Wi-Fi 7 connectivity (320 MHz, 6 GHz, 5.8 GHz)
• Realtek ALC1220 audio codec with ESS ES9219Q DAC/AMP

The board also includes a USB 3.2 Gen 2x2 front panel connector supporting PD 3.0 charging at 60W, allowing for convenient charging of phones or small laptops.

Market Position and Competitive Analysis

Colorful's entry into the high-end motherboard market with the iGame X870E Vulcan OC V14 comes at a challenging time. Priced between $500-$680, it competes directly with established premium boards:

• MSI X870E Ace Max
• Asus ROG Crosshair X870E Dark Hero
• Gigabyte X870 Aorus Tachyon ($599.99)
• ASRock X870E Taichi OCF ($499.99)

The motherboard's key differentiators include its three PCIe 5.0 M.2 sockets with no lane sharing, integrated BCLK controller, and the Vulcan Smart Screen. However, the 32MB BIOS size may limit future compatibility with older CPUs, and the BIOS interface could benefit from a more modern design.

In testing with the Ryzen 9 9900X, the board demonstrated solid performance across benchmarking suites, confirming its capabilities as a gaming platform. The robust power delivery and extensive cooling solutions ensure stable operation even under heavy loads and overclocking scenarios.

Supply Chain and Availability

The iGame X870E Vulcan OC V14 is currently available in the UK and Far East markets, with potential US availability still uncertain. Colorful has traditionally focused on Asian and UK markets, with limited presence in the US, which may impact its ability to compete against established brands with broader distribution networks.

The comprehensive accessory package, including a screwdriver kit, white gloves, and thermal pads for M.2 sockets, demonstrates Colorful's commitment to the enthusiast market. However, the premium price point makes it a tough sell against more established competitors with similar capabilities and potentially better brand recognition.

Conclusion

The Colorful iGame X870E Vulcan OC V14 represents a significant step forward for the brand, delivering a feature-rich, high-performance motherboard that competes effectively in the premium segment. While stiff competition and brand recognition challenges remain, the board's robust power delivery, advanced overclocking features, and premium design position it as a viable option for enthusiasts seeking an alternative to the established 'big four' motherboard manufacturers.
