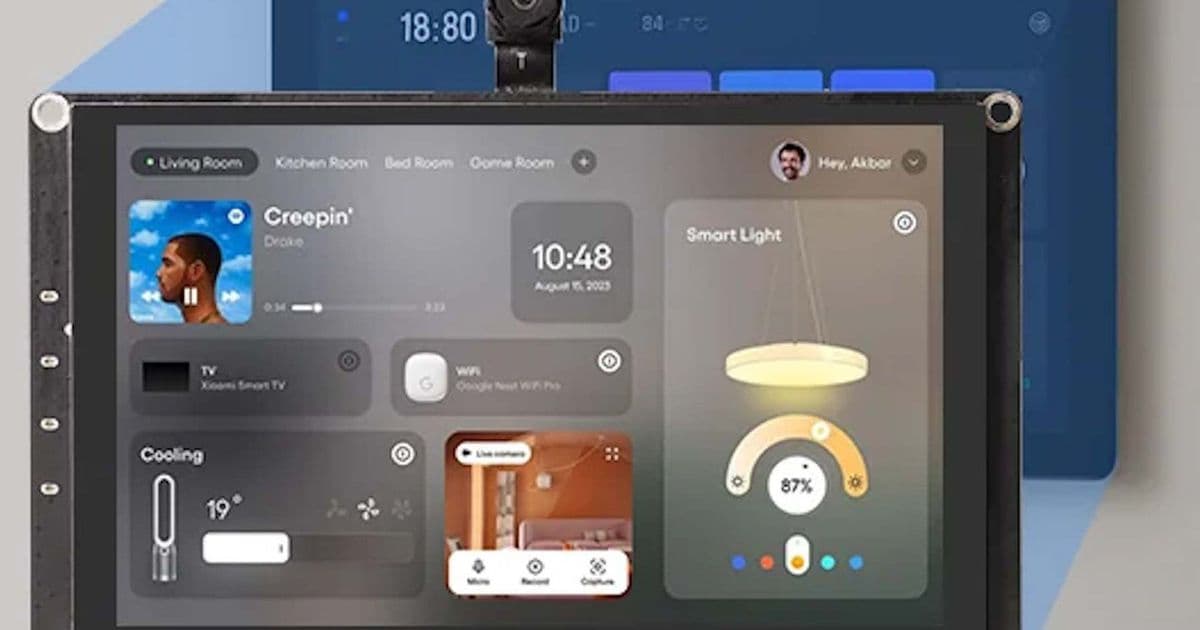

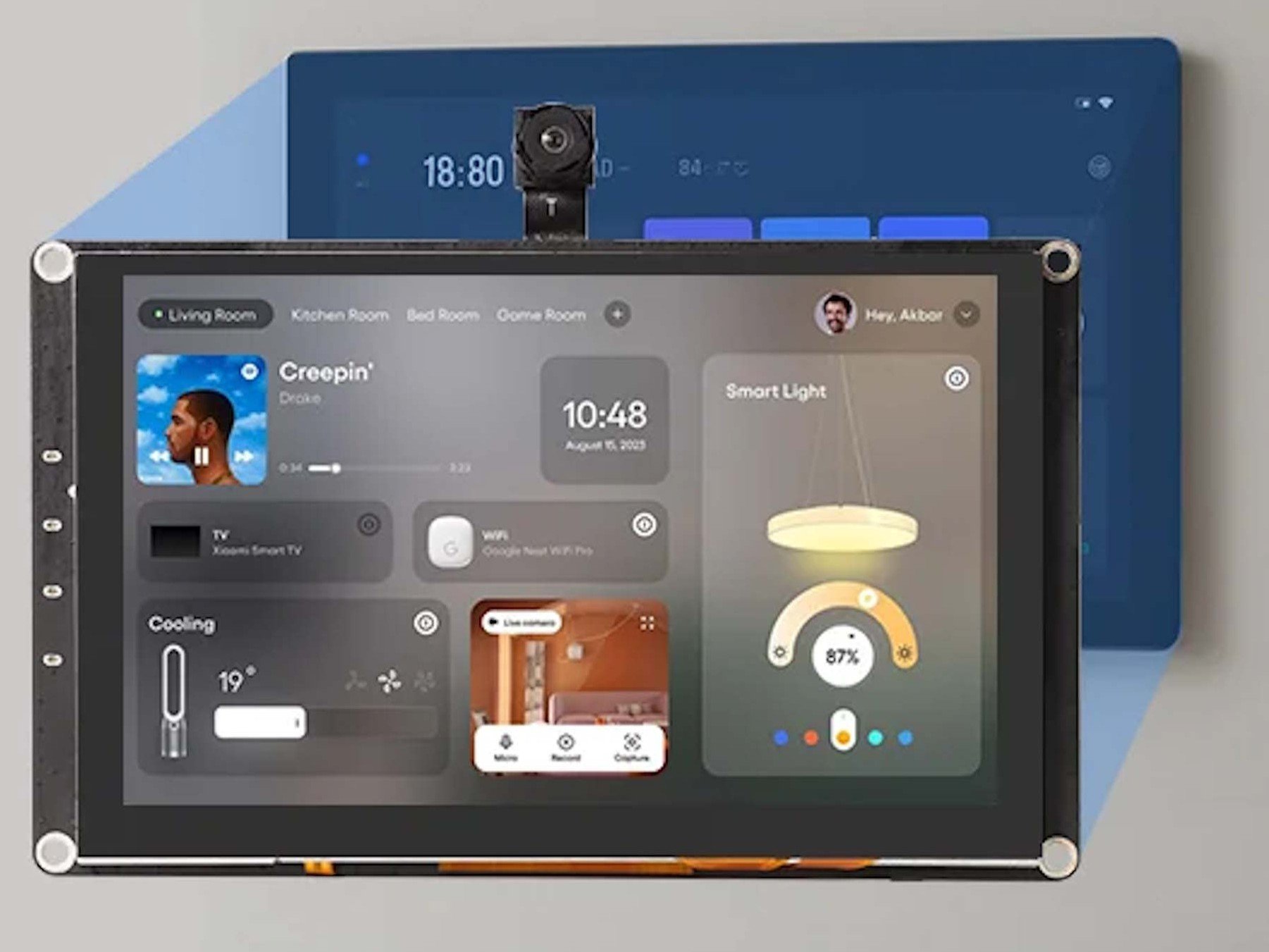

Elecrow's new CrowPanel Advanced offers an affordable 5-inch touchscreen display powered by ESP32-P4, designed for DIY smart home integration with modular wireless options.
Elecrow has launched the CrowPanel Advanced, a customizable smart display targeting DIY enthusiasts building home automation systems. Unlike commercial smart displays, this device emphasizes hardware flexibility over pre-built software, enabling tinkerers to create custom control interfaces for their connected devices.
Core Specifications and Features
- Display: 5-inch IPS LCD with 800×480 resolution and capacitive touch (5-point support)
- Processor: ESP32-P4 dual-core RISC-V CPU (400MHz)
- Connectivity: Modular wireless bay for Zigbee/LoRa modules + wired UART ports
- Camera Option: 2MP module available ($51 model vs $43 base version)
- Expandability: Direct sensor/actuator integration via GPIO pins
Performance and Software Approach The ESP32-P4's 400MHz dual-core processor won't run desktop OSes like Windows but handles embedded tasks efficiently. Users build interfaces using LVGL (Light and Versatile Graphics Library), which supports visual designers but requires coding proficiency. This positions the CrowPanel between Raspberry Pi solutions (more powerful but costlier) and closed commercial hubs (less customizable).
Modular Design Advantages The swappable wireless module is the standout feature:
- Base Unit: Wi-Fi/Bluetooth via ESP32-P4
- Expansion Options: Add Zigbee for smart home devices ($15-$20) or LoRa for long-range sensors ($20-$25)
- Wired Integration: UART ports connect directly to Arduino devices or industrial controllers
Practical Applications
- Home Use: Wall-mounted control panel for lights, security sensors, or HVAC
- Industrial: Equipment monitoring with custom status dashboards
- Gateway Function: Consolidate Zigbee/LoRa devices into single hub
Competitive Positioning
| Feature | CrowPanel Advanced | Raspberry Pi + Screen | Commercial Hubs |
|---|---|---|---|
| Price | $43-$51 | $70-$120+ | $100-$300 |
| Customization | High (code-level) | Medium (OS-level) | Low |
| Power Use | 2-3W | 5-15W | 4-10W |
| Wireless Flexibility | Modular swap | USB dongles | Fixed |
Target Audience This device suits:
- Hardware hackers wanting hands-on smart home integration
- Industrial designers prototyping control interfaces
- Tech enthusiasts comfortable with LVGL/Arduino ecosystems
Less experienced users should consider pre-built solutions, as creating functional interfaces requires coding. The CrowPanel Advanced ships without pre-loaded software, demanding DIY investment for setup.
The CrowPanel Advanced is available on Elecrow's website, with wireless modules sold separately.
