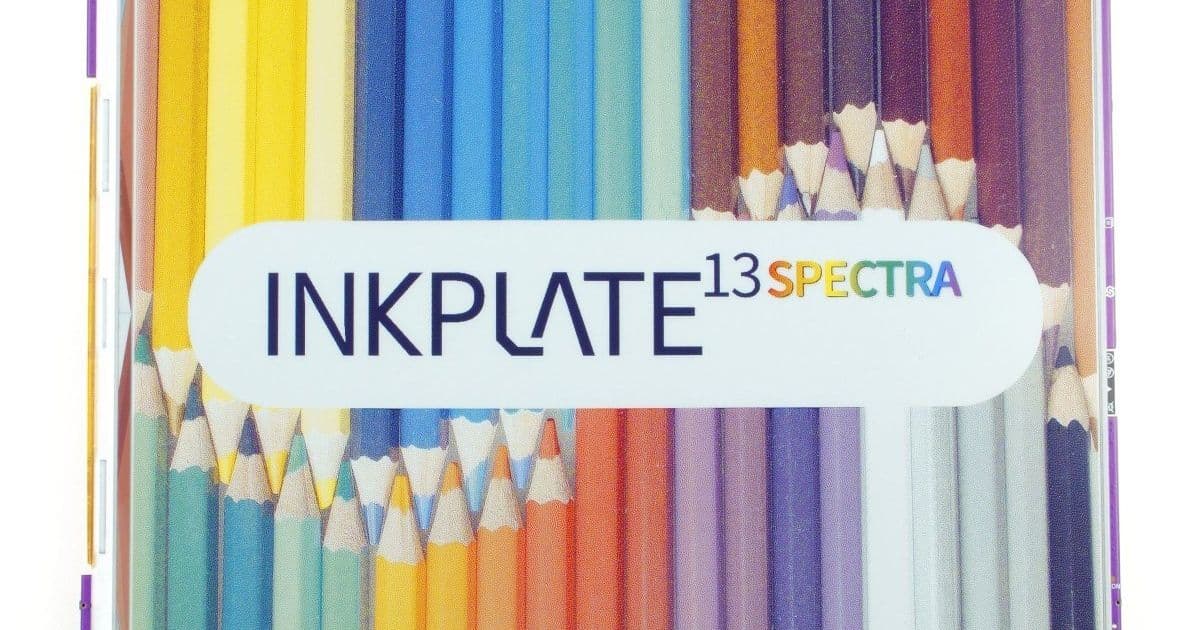

Inkplate 13SPECTRA Brings Large-Format Color E Ink to DIY Projects

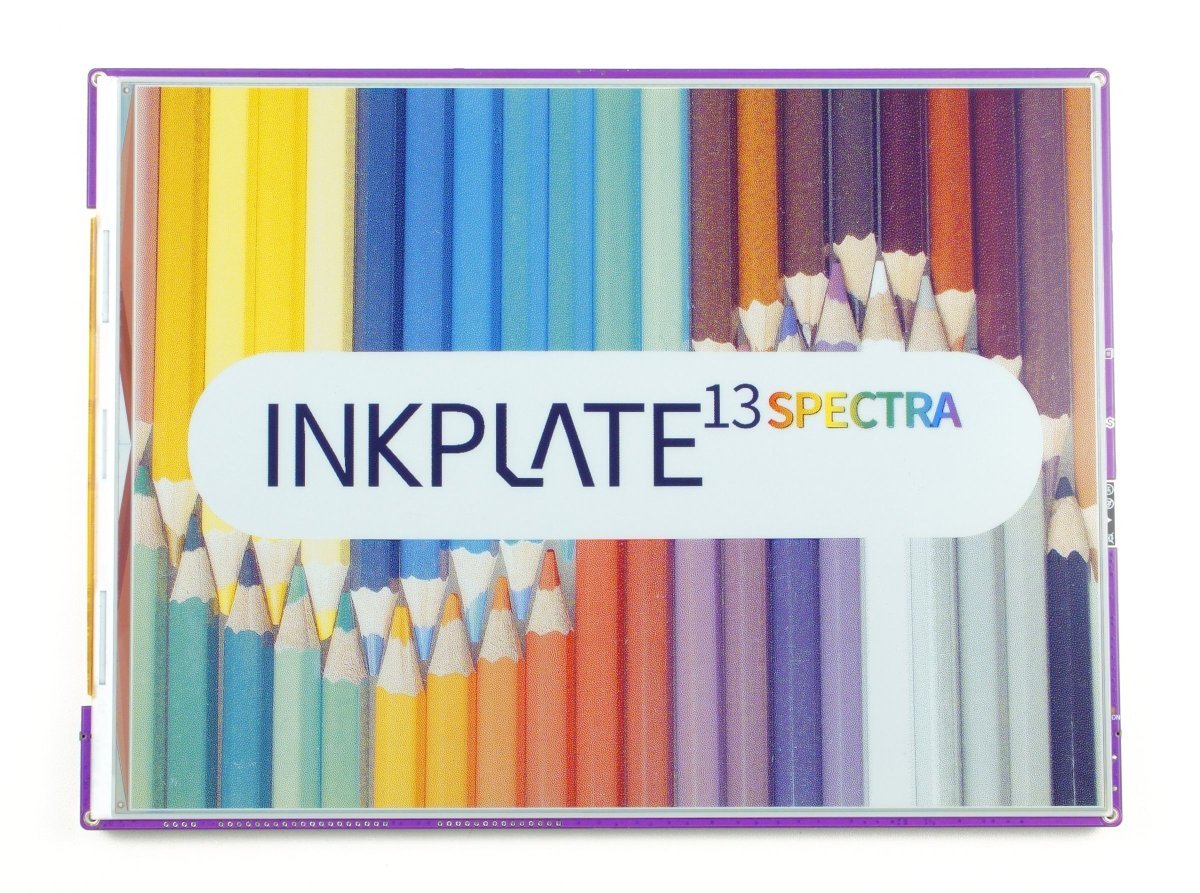

The Inkplate 13SPECTRA marks a significant expansion in the world of ePaper displays, bringing a large-format, color-capable screen to the DIY and maker community. This 13-inch display from Soldered Electronics combines E Ink Spectra 6 technology with an ESP32-S3 microcontroller, creating a versatile platform for digital signage, information displays, and creative projects that benefit from low power consumption and sunlight-readable output.

The display itself offers a 1600 x 1200 pixel resolution across its 13-inch diagonal, supporting six distinct colors: black, white, red, yellow, blue, and green. This color capability opens up new possibilities for visual applications beyond the traditional monochrome ePaper displays that have dominated the market. However, it's important to note that this technology isn't designed for video or animation. A full screen refresh takes approximately 19 seconds, making it suitable for static or infrequently updated content rather than dynamic media.

Powering the system is an ESP32-S3-WROOM-2-N32R16V microcontroller featuring a 240 MHz dual-core Xtensa LX7 processor. This provides sufficient computational power for custom applications while maintaining the low-power characteristics that make ePaper displays attractive for battery-powered projects. The board includes WiFi 4 and Bluetooth 5 LE connectivity, enabling wireless communication for IoT applications, remote updates, or integration with other smart devices.

For connectivity and expansion, the Inkplate 13SPECTRA features a USB Type-C port for both data transfer and power delivery, three Qwicc ports for modular expansion, and a microSD card reader for removable storage. The inclusion of a real-time clock with CR2032 battery backup support ensures timekeeping continues even when the main power is disconnected. Physical controls include dedicated power and wake-from-sleep buttons, while a JST connector accommodates a 3.7V Li-Ion battery for portable operation.

Memory specifications remain modest with 32MB of flash storage and 16MB of PSRAM, reflecting the device's positioning as a specialized display controller rather than a general-purpose computer. This architecture is well-suited for the types of applications the device targets, where the primary function is displaying information rather than complex computation.

Programming flexibility comes through support for both the Arduino IDE and MicroPython, allowing developers to choose their preferred development environment. This dual-language support broadens the potential user base, accommodating both traditional embedded developers and those who prefer Python's accessibility. The low-power combination of ePaper display and efficient processor enables impressive battery life, with the optional 3,000 mAh battery supporting several months of operation between charges.

Soldered Electronics offers two purchasing options through their Crowd Supply campaign. The premium package at $349 includes a 3D-printed enclosure and the 3,000 mAh battery, providing a complete, ready-to-use solution. For those who prefer customization or already have suitable enclosures, the base package at $309 includes just the display board and a USB-C cable.

The company has committed to releasing hardware and software source code for the Inkplate 13SPECTRA, continuing their tradition of open-source development. While the specific source files aren't yet available, existing Inkplate products have their resources hosted in the company's GitHub repository, providing a preview of the development ecosystem and community support that users can expect.

Potential applications for the Inkplate 13SPECTRA span a wide range of use cases. Digital signage represents an obvious application, where the large format and color capability can display eye-catching information in retail environments, offices, or public spaces. The low power consumption and sunlight readability make it particularly suitable for outdoor installations or locations where power access is limited.

Information displays for smart homes, offices, or public spaces can benefit from the device's ability to show calendars, news headlines, weather information, or other frequently referenced data. The color capability allows for visual categorization and improved readability compared to monochrome alternatives. Artists and designers might find creative applications in digital art displays, information kiosks, or interactive installations where the ePaper's unique visual characteristics add aesthetic value.

The music streaming application mentioned in the announcement demonstrates another practical use case: displaying album art and track information for music playing from a nearby device. This type of always-on, low-power display is ideal for home audio systems or personal music setups where visual feedback enhances the listening experience without requiring constant power consumption.

For developers and makers, the Inkplate 13SPECTRA represents an accessible entry point into large-format ePaper development. The combination of established development tools (Arduino IDE, MicroPython), wireless connectivity, and expandable hardware interfaces provides a solid foundation for custom applications. The device's specifications suggest it's particularly well-suited for projects where power efficiency, readability in various lighting conditions, and the unique visual characteristics of ePaper are prioritized over high refresh rates or color accuracy requirements.

As the crowdfunding campaign progresses, the success of the Inkplate 13SPECTRA will likely depend on the strength of the developer community that forms around it. The open-source commitment from Soldered Electronics, combined with the device's versatility and the growing interest in ePaper technology for both practical and creative applications, positions it well to become a valuable tool in the expanding ecosystem of programmable displays.
