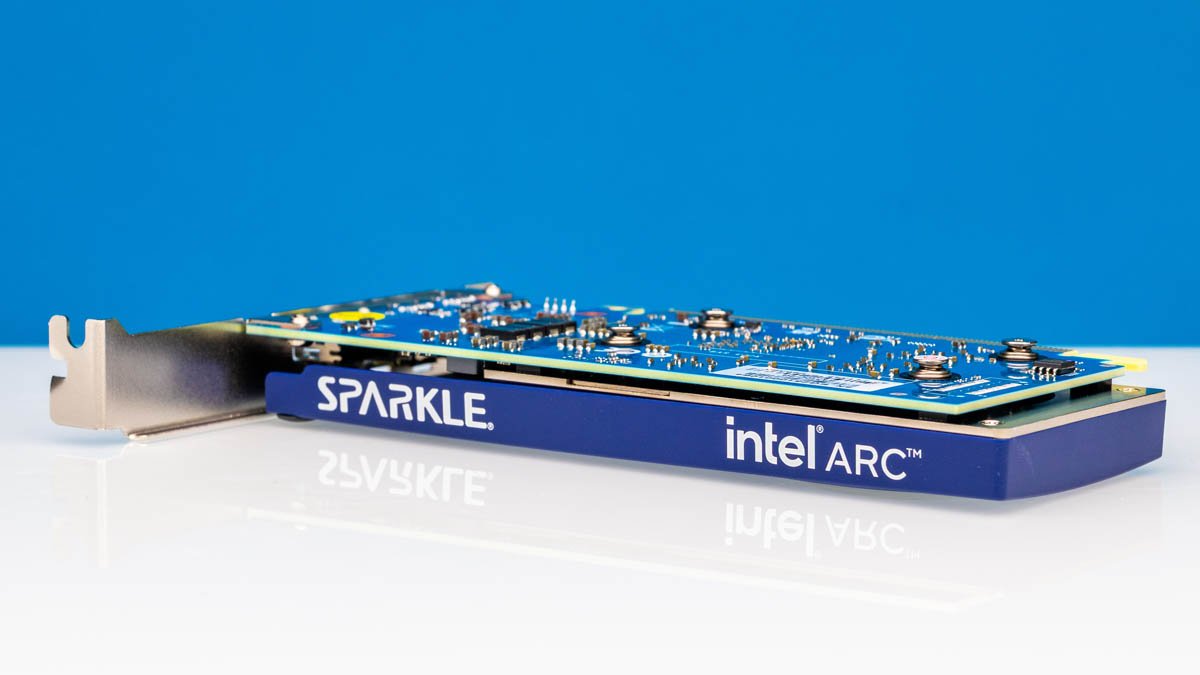

SPARKLE Intel Arc A310 Eco 4GB Low Profile PCIe GPU Quick Look

The holiday weekend brought a practical addition to our lab: the SPARKLE Intel Arc A310 Eco 4GB low profile PCIe GPU. While not designed to excite high-end gamers or AI researchers, this compact graphics card fills an important niche for systems that simply need a GPU for basic tasks and video processing.

Hardware Overview

The SPARKLE Intel Arc A310 Eco features Intel's Alchemist architecture with 6 Xe Cores and 96 XMX Engines. The 4GB of GDDR6 memory sits on a PCIe Gen4 x8 card that fits into a standard x16 connector. This configuration makes it particularly suitable for space-constrained environments where power efficiency and physical footprint matter more than raw performance.

Design and Form Factor

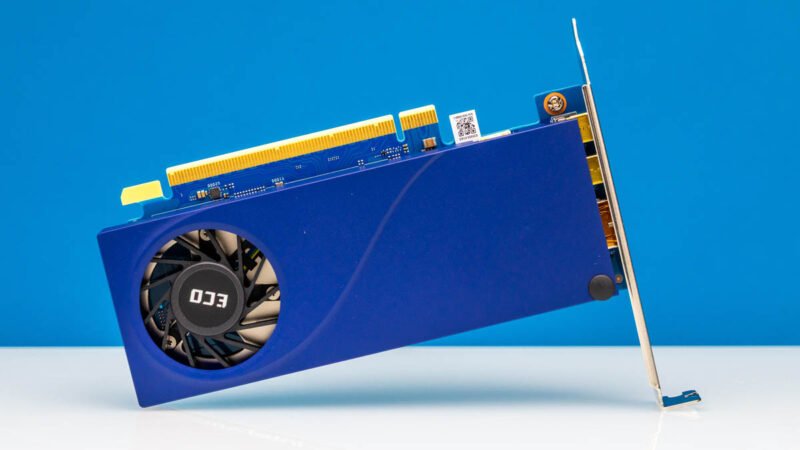

One of the most notable aspects of this GPU is its cooling solution. Unlike fanless designs that some users prefer for silent operation, the SPARKLE Arc A310 Eco employs an active cooling system. This approach makes sense for several reasons:

• Modern 1U and 2U servers can typically handle the ~50W thermal load without issue
• Small-form-factor PCs with limited airflow benefit from active cooling
• The fan helps maintain consistent performance under load

Physical Configuration

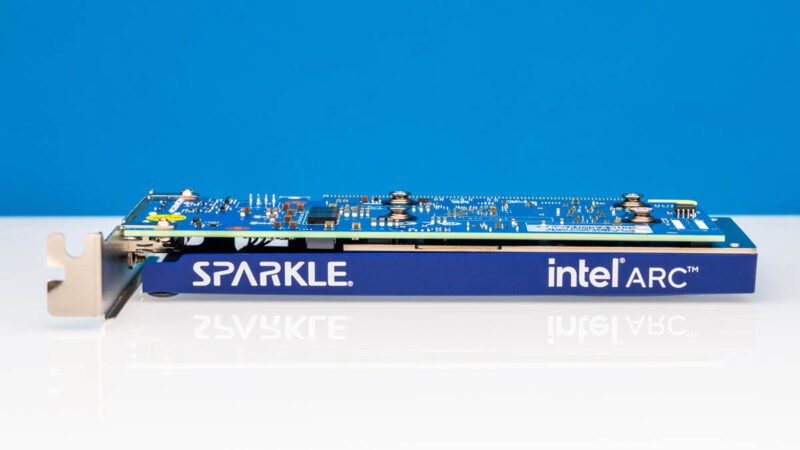

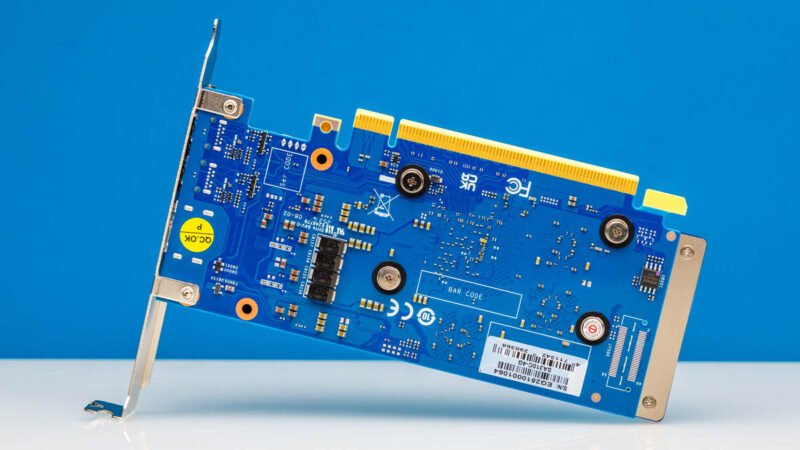

The card's design prioritizes flexibility in deployment. The rear bracket features mounting points that allow users to swap between full-height and low-profile configurations, making it adaptable to different chassis types. This versatility is particularly valuable for system builders working with diverse hardware platforms.

Connectivity Options

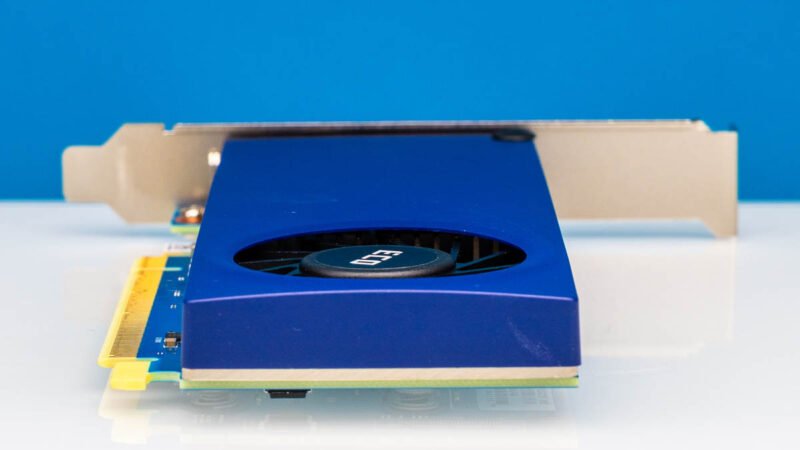

Rather than following the trend of large rear vents and complex airflow ducting, SPARKLE opted for a straightforward approach. The rear I/O panel provides:

• One HDMI port
• Two mini DisplayPort outputs

This selection covers most common display connectivity needs while maintaining the card's compact profile.

Performance Characteristics

In our testing with the Minisforum MS-02 Ultra, we installed the Arc A310 LP as an alternative to higher-power dual-slot GPUs. This allowed us to preserve the second expansion slot for additional hardware.

Using GPU-Z, we confirmed the card's identity as an Intel Arc A310 LP GPU. Performance testing revealed some interesting results:

• Vulkan performance: Showed measurable improvement over integrated graphics, but the difference wasn't dramatic
• OpenCL performance: Similar performance delta compared to onboard graphics

{{IMAGE:6}}

Practical Applications

The Arc A310 Eco isn't designed to compete with high-end gaming or AI accelerators. Instead, it serves specific use cases effectively:

Video Transcoding: The card supports h264, h265, and AV1 encode/decode, making it valuable for media servers and content creation workflows. This is particularly useful when paired with server-class Xeon or EPYC CPUs that lack integrated graphics capabilities.

Display Expansion: For systems needing additional display outputs without the power draw of larger GPUs, this card provides a practical solution.

Low-Power Systems: In environments where power efficiency is paramount, the ~50W TDP keeps energy consumption manageable.

Comparison to Alternatives

When evaluating the Arc A310 Eco against other options, several factors come into play:

• Against integrated graphics: Provides dedicated hardware for video encoding and additional display outputs
• Against NVIDIA alternatives: The NVIDIA RTX 5060 low-profile cards offer superior performance and CUDA support, but at higher power consumption and cost
• Against other Arc cards: Higher-end Arc GPUs provide better performance but sacrifice the low-profile form factor

Limitations and Considerations

The 4GB memory capacity and aging Alchemist architecture mean this card won't satisfy users seeking cutting-edge performance. The performance delta over modern integrated graphics, while present, may not justify the cost for all users.

Additionally, the active cooling solution, while beneficial for thermal management, introduces noise that may be undesirable in quiet environments.

Target Audience

This GPU is best suited for:

• System builders working with compact form factors
• Users needing video codec offloading capabilities
• Environments where additional display outputs are required
• Applications where power efficiency trumps raw performance

Final Assessment

The SPARKLE Intel Arc A310 Eco 4GB low profile GPU represents a practical solution for specific use cases rather than a general-purpose powerhouse. Its value proposition lies in its compact form factor, video encoding capabilities, and ability to provide dedicated graphics processing without consuming excessive power or space.

While it may not generate excitement among enthusiasts seeking maximum performance, it fills an important niche in the GPU ecosystem. For users with the right requirements—particularly those building compact systems that need video processing capabilities—this card offers a balanced combination of features, power efficiency, and physical footprint.

Sometimes, the most useful tools aren't the most exciting ones. The Arc A310 Eco exemplifies this principle, providing exactly what certain systems need without the overhead of more powerful alternatives.
