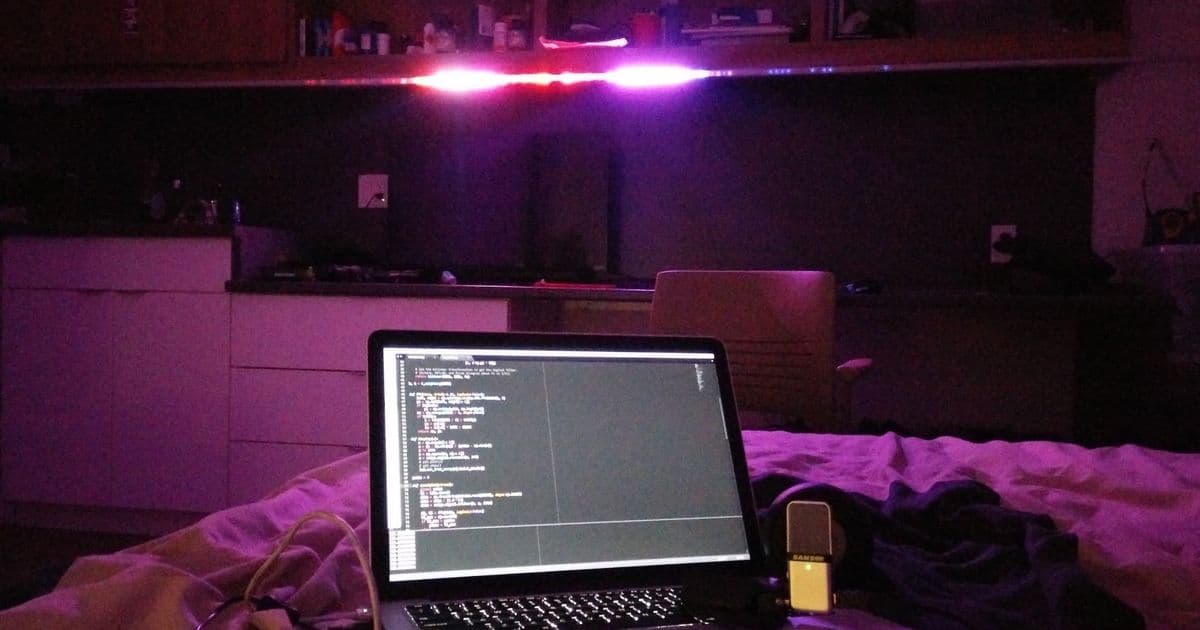

The Pixel-Poor Nightmare of Audio Reactive LED Strips

Ten years ago, I bought an LED strip with the naive ambition of making it react to music in real time. I figured it would take a few weeks. Instead, it became a decade-long odyssey through the surprisingly brutal world of audio visualization, teaching me more about human perception than I ever expected.

The Volume Trap

I started with the obvious approach: measure volume and map it to brightness. Read a 10-50ms chunk of audio, low pass filter it, and make the LEDs brighter when it's louder. Simple, right?

It worked, sort of. Each color channel responded to volume with different time constants—one fast, one slow, one in between. You could get something working in an afternoon, and it looked okay on a single RGB LED or lamp. But on an LED strip? It got boring fast.

The problem was fundamental: all the interesting frequency information was lost. The system had no understanding of what kind of sound it was reacting to, just how loud it was. It worked best on punchy electronic music and failed miserably on everything else. Volume alone tells you almost nothing about music.

The Naive FFT Dead End

Frequency domain methods seemed like the obvious next step. Compute a Fourier transform, get frequency bins, map them to LEDs. With 144 pixels on my one-meter strip, I thought: 144 bins, one per LED. Perfect.

It kind of worked. More of the audio was captured compared to the volume method. But the result was deeply unsatisfying. Almost all the energy concentrated in a handful of LEDs, leaving most of the strip dark. I tried cropping the frequency range, adjusting bin sizes, everything. Nothing solved the fundamental problem.

This is where most people give up or settle. A naive FFT on an LED strip looks lopsided and underutilized. The limitations are brutal when you only have hundreds of pixels instead of millions.

Pixel Poverty: The Central Constraint

Here's the brutal truth I learned: LED strip visualization is fundamentally harder than screen-based visualization. A screen has millions of pixels to work with. You can compute tons of audio features and display them all. If most are uninteresting, it doesn't matter—as long as some resonate with human perception, the visualization works.

An LED strip has hundreds of pixels at most. You can't afford to "waste" any pixels. Nearly every single LED has to be doing something that a human perceives as musically relevant. The margin for error is incredibly narrow.

I call this Pixel Poverty. It's the reason LED strip visualization is so difficult. You might think LED strips are simpler than screens, but the opposite is true. The feature famine is real, and it forces you to be right about which audio features are worth displaying.

The Mel Scale Breakthrough

I started reading speech recognition papers, trying to understand how their signal processing pipelines worked. Speech recognition has spent decades figuring out how to extract features from audio that match human perception. If you can't model what a human hears, you can't transcribe what they said.

That's where I found the mel scale. Humans don't perceive pitch linearly. The perceptual distance between 200Hz and 400Hz feels much larger than the distance between 8000Hz and 8200Hz, even though both spans are 200Hz. Our brains are heavily tuned to the speech band between roughly 300Hz and 3000Hz, and much less interested in frequencies far outside that range.

The mel scale transforms frequencies from Hz into a perceptual space where pitches are equally distant to a human listener. Instead of mapping raw FFT bins to pixels, which spreads the perceptually important frequencies across only a few LEDs, I mapped mel-scaled bins to pixels.

The difference was night and day. The entire strip lit up. Every LED was doing something meaningful. That was the breakthrough.

The Hidden Connection to Speech Recognition

What I realized is that the audio LED visualizer uses much of the same frontend as a traditional speech recognition pipeline. The mel filterbank, which speech systems use to extract perceptually relevant features before feeding them into a recognizer, is exactly what makes the LED strip come alive.

I take the output of the mel filterbank and feed it directly into the three visualizations. The audio visualizer implements most of the frontend of a traditional speech recognition pipeline. Speech recognition continues further into log energy and discrete cosine transforms, but the LED visualizer stops at the mel filter bank output and feeds it directly into the three visualization effects.

Smoothing and Spatial Perception

The mel scale solved the frequency mapping problem, but the raw output still flickered badly. Features changed too rapidly and the strip looked jittery and unpleasant. I needed the visualization to feel smooth and intentional, not noisy.

I applied exponential smoothing on a per-frequency-bin level, so each frame blends with the previous one. Features change gradually instead of jumping around. This eliminated the flicker without adding perceptible latency.

Then I discovered that convolutions were perfect for spatial smoothing. LED strips are 1D vectors, which makes them an ideal substrate for convolution operations. Different kernels gave me different effects: a narrow kernel for a max-like operation on adjacent pixels, wider kernels for gaussian blur. I could smooth the spectrum, soften transitions, and control how features blended spatially.

The Other Side of Perception

At this point I realized the visualizer needs perceptual models on both sides of the pipeline. On the input side, the mel scale models how humans perceive sound. On the output side, I needed to model how humans perceive light.

We don't perceive brightness linearly either. A raw linear mapping of audio energy to LED brightness looks wrong because our eyes have a logarithmic response. This led me into gamma correction and color theory: RGB, HSV, LAB, sRGB, complementary colors.

I learned that mapping frequency content to color is its own rabbit hole, and that getting the color palette right makes a surprising difference in how "musical" the visualization feels.

Three Effects, Many Limitations

I ended up with three visualizations. Spectrum renders the mel-scaled frequency content directly, one LED per perceptual frequency band. Scroll creates a time-scrolling energy wave that originates from the center and scrolls outward, with frequency content mapped to color. Energy pulses outward from the center with increasing sound energy.

I wish there were more, but these three work well together. The problem is that they work best on punchy electronic music with clear beats and strong contrast. Vocal-heavy music, jazz, classical piano, guitar, violin—all have different frequency and time domain characteristics. One piece of code can't perform well on all of them.

The Architecture and Real-Time Constraints

The project supports two main platforms. On a Raspberry Pi, the Pi handles both audio processing and LED rendering via GPIO. On an ESP8266, the audio processing runs on a PC in Python, and pixel data is streamed to the microcontroller in real time.

All of this has to work in real time, with no knowledge of what comes next. Longer audio chunks give you higher quality frequency data but add lag. Shorter chunks are fast and responsive but noisy. I ended up using a rolling window that overlaps successive chunks, which gives you better frequency resolution without adding much lag.

A Life of Its Own

The first version of this project was installed in the Engineering Physics clubhouse at UBC. We used it at parties. It was crude, but people liked it.

After I graduated, I spent a few weeks polishing the code, writing thorough documentation, and putting it on GitHub. It took off in a way I never expected. The project was covered by Hackaday in January 2017 and became popular on Reddit. As of today it has over 2,800 stars and 640 forks on GitHub.

People started sending me videos of what they built. Richard Birkby integrated the project with his Amazon Echo. In his video, he says "Alexa, tell kitchen lights to show energy" and his room lights up. I was blown away that people were taking my project and using it in ways I had never expected.

Another user who does AV at a club sent me a video of the strip in action during a DJ night, with dozens of people dancing in front of a live band. He wrote: "people were very happy... If they only knew this was the 6th Raspberry Pi doing stuff in the bar around them."

Someone made a YouTube video about the project because they felt it deserved more recognition. People around the world submitted pull requests adding beat detection, new effects, and code improvements.

The most rewarding part was learning that people used this as their first electronics project. Someone who had never soldered before bought an LED strip and a Raspberry Pi, followed the documentation, and got it working.

What's Still Missing

When a human manually codes an animation sequence for a specific song, the result is dazzling. Every beat and drop is perfectly timed. That hand-coded result is the gold standard, and automatic visualization is still far from it.

The biggest unsolved problem is making it work well on all kinds of music. The visualizer works best on punchy electronic music with clear beats and strong contrast. Vocal-heavy music, jazz, classical piano, guitar, violin all have different frequency and time domain characteristics. They call for different approaches.

The other thing I want to crack is capturing that essential quality of music that makes a human tap their foot. When you listen to a song, you feel something and your body wants to move. Writing code that mimics that response would make the visualizer dramatically better.

I think the future of audio visualization on LED strips will involve a mixture of experts tuned for different genres, likely using neural networks. I have this idea of generating a training dataset by listening to music while holding an accelerometer, and using the relationship between the audio signal and my body's physical response to train an AI-based visualizer.

The Hardest Thing I've Built

I started this as a fun LED project. I ended up spending years learning how humans perceive pitch, how to smooth noisy signals, how our eyes respond to brightness, and the difficulty of mapping sound onto light through a pixel-poor bottleneck.

Every commercial audio reactive LED strip I've seen does this badly. They use simple volume detection or naive FFTs and call it a day. They don't model human perception on either side, which is why they all look the same.

When the mel scale is tuned and the filters are dialed in and the colors map to the right frequency bands, the strip comes alive. You put on a song and the LEDs feel like they understand the music.

It's the hardest thing I've built, and I'm still not done with it.
