AMD's Ryzen 9 9950X3D2: Pushing 3D V-Cache Technology to New Heights with Dual CCD Implementation

AMD has expanded its high-end desktop portfolio with the Ryzen 9 9950X3D2 Dual Edition, a processor that represents the company's most ambitious implementation of 3D V-Cache technology to date. This new CPU, available in a limited-time bundle with premium motherboard and memory components, demonstrates AMD's continued investment in cache optimization as a competitive differentiator in the high-performance desktop market.

Technical Architecture and Manufacturing Innovation

The Ryzen 9 9950X3D2 Dual Edition introduces a significant architectural advancement by implementing stacked 3D V-Cache technology across both CCDs (Core Complex Dies) in the package. This configuration results in a total cache of 208MB, comprising 16MB L2 Cache and 192MB L3 Cache, making it the desktop processor with the largest cache ever manufactured by AMD.

Unlike previous implementations where 3D V-Cache was limited to a single CCD, the Dual Edition represents a manufacturing challenge that AMD has overcome through improved die stacking techniques and thermal management solutions. The processor maintains 16 cores and 32 threads, identical to the standard 9950X3D, but operates with a reduced maximum boost clock of 5.6 GHz and a significantly increased TDP of 200W, positioning it as AMD's most power-hungry desktop consumer chip to date.

The implementation of 3D V-Cache technology involves stacking additional SRAM layers directly on top of the processor cores, reducing memory latency and increasing bandwidth for data-intensive applications. This manufacturing technique requires precise alignment and thermal considerations, as the additional layers generate more heat than traditional chip designs.

Performance Analysis and Workload Optimization

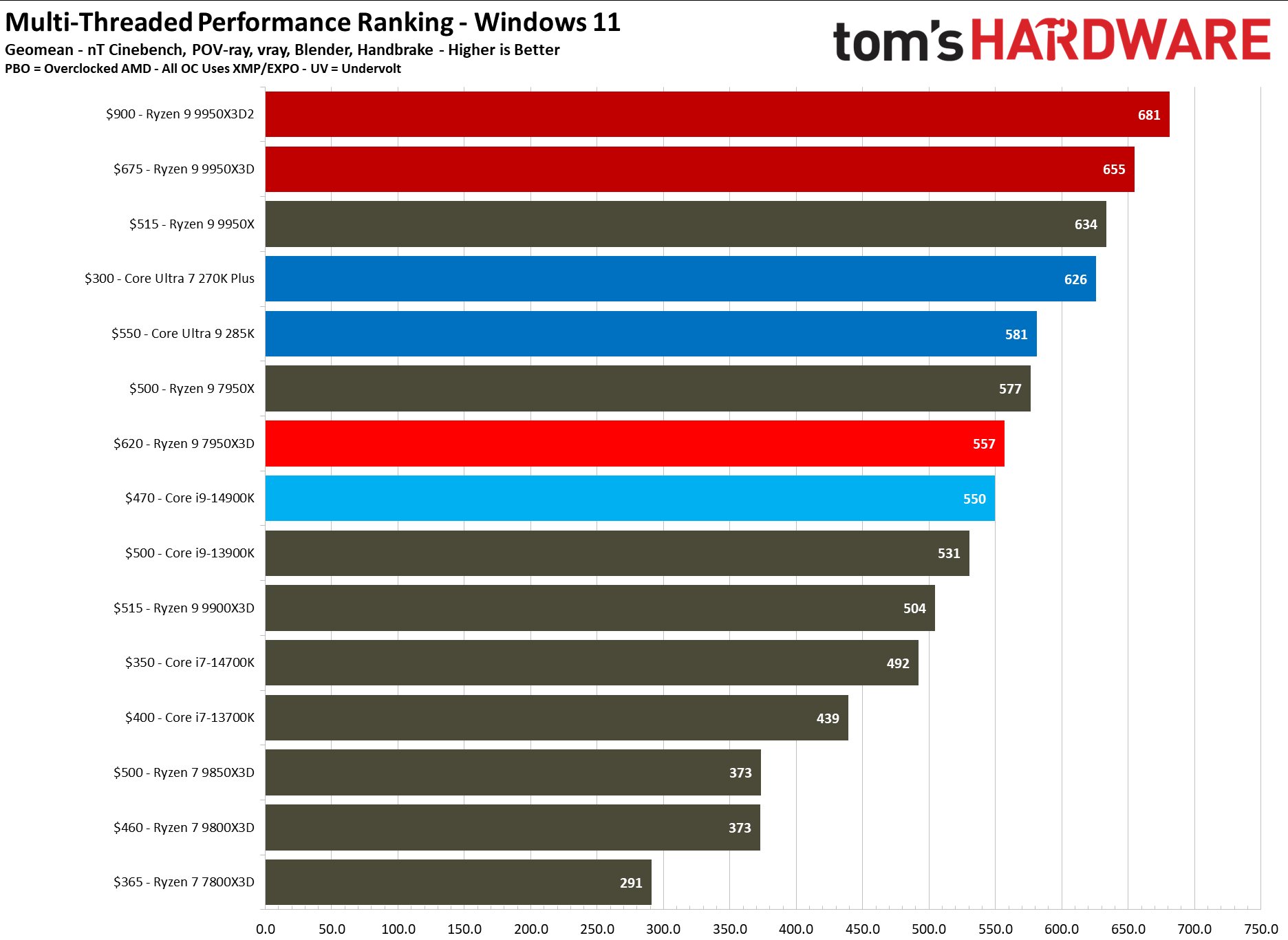

According to testing data, the Ryzen 9 9950X3D2 delivers a 3.9% increase in multi-threaded performance over the standard 9950X3D, making it the top performer in AMD's multi-threaded benchmark rankings. This improvement comes primarily from the expanded cache across both CCDs, which benefits applications that can utilize large datasets efficiently.

However, the processor shows no significant gaming advantages compared to existing chips like the 9800X3D or the standard 9950X3D. This limitation suggests that while 3D V-Cache technology provides substantial benefits for certain workloads, gaming performance remains constrained by other factors such as single-threaded performance and memory bandwidth.

The increased TDP of 200W necessitates robust power delivery solutions, which is why the accompanying Asus TUF Gaming X870E-PLUS WiFi 7 motherboard in the bundle features enhanced power delivery capabilities. This motherboard includes an enlarged VRM heatsink, multiple M.2 slots with heatsinks, and hybrid fan headers to manage the thermal demands of the high-end processor.

Market Positioning and Supply Chain Strategy

AMD's decision to bundle the Ryzen 9 9950X3D2 with a premium X870E motherboard and 32GB DDR5 memory reflects a strategic approach to addressing current market conditions. With RAM prices remaining elevated, the bundle offers compelling value at $1,292.99, representing approximately $372 in savings compared to purchasing the components separately.

This bundle strategy serves multiple purposes for AMD:

1. It encourages adoption of the new processor by reducing the total system cost
2. It promotes the entire AM5 platform ecosystem, including motherboards and memory
3. It helps clear inventory of high-end components while maintaining premium pricing
4. It creates a sense of urgency with limited quantities, driving quicker purchasing decisions

The inclusion of V-Color's unique OLED memory kit with a built-in display showing real-time system stats adds another dimension to the bundle, highlighting AMD's focus on both performance and user experience. This memory kit, optimized for AMD EXPO platforms, supports speeds up to 6,000 MT/s and features customizable multi-zone ARGB lighting.

Competitive Landscape and Future Implications

The Ryzen 9 9950X3D2 represents AMD's continued push into high-performance computing segments, particularly those that benefit from large cache sizes. While Intel has focused on core count increases and clock speeds, AMD's 3D V-Cache technology provides an alternative approach to performance enhancement that targets specific workload types.

The processor's limited gaming benefits suggest that AMD may be positioning this chip more for content creators, scientific computing, and other multi-threaded workloads rather than gaming enthusiasts. This diversification of product stack allows AMD to address different market segments with specialized solutions rather than relying solely on raw core counts.

From a manufacturing perspective, the successful implementation of 3D V-Cache across both CCDs demonstrates AMD's advancing semiconductor packaging capabilities. This technology could potentially be extended to future product lines, including potential mobile implementations where cache optimization might provide significant benefits in power-constrained environments.

The bundle pricing strategy also reflects current market dynamics, with component manufacturers and retailers working together to create value propositions that address specific pain points for consumers, such as elevated memory prices. This collaborative approach between CPU, motherboard, and memory manufacturers may become more prevalent as the PC market continues to evolve.

For consumers considering this bundle, the value proposition is strongest for those building high-end AMD systems focused on multi-threaded workloads. The savings on the memory component alone makes this bundle particularly attractive, as standalone DDR5 memory prices have remained elevated despite general component cost decreases.

As AMD continues to refine its 3D V-Cache technology and expand its implementation across product segments, the Ryzen 9 9950X3D2 Dual Edition represents an important milestone in the company's competitive strategy, demonstrating both technical innovation and market adaptability.
