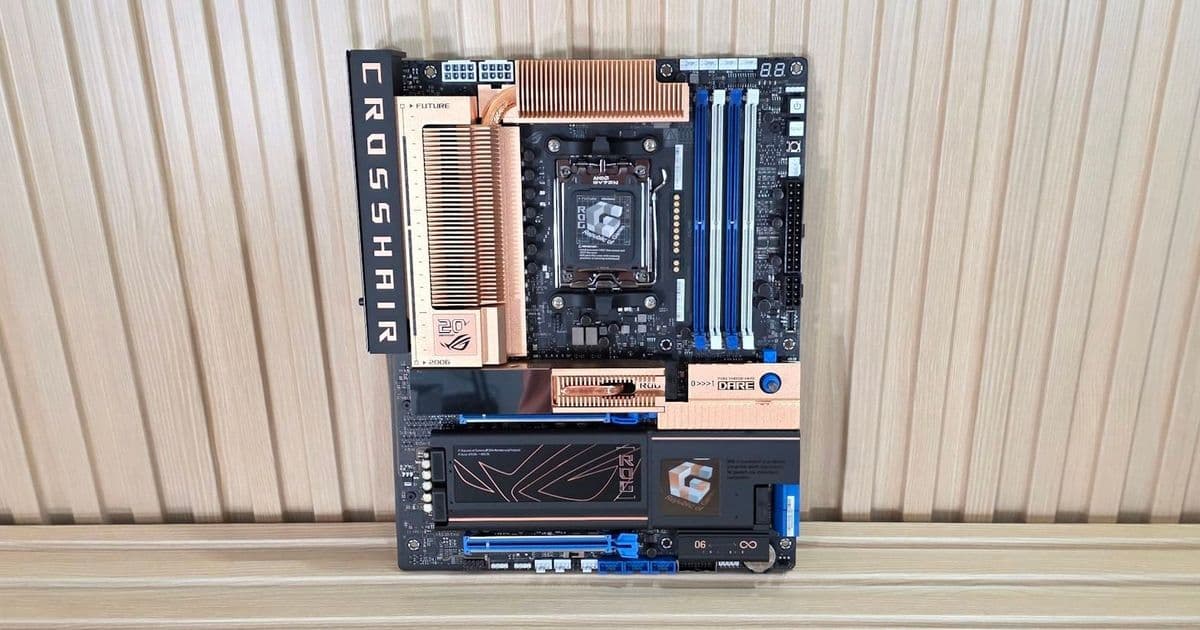

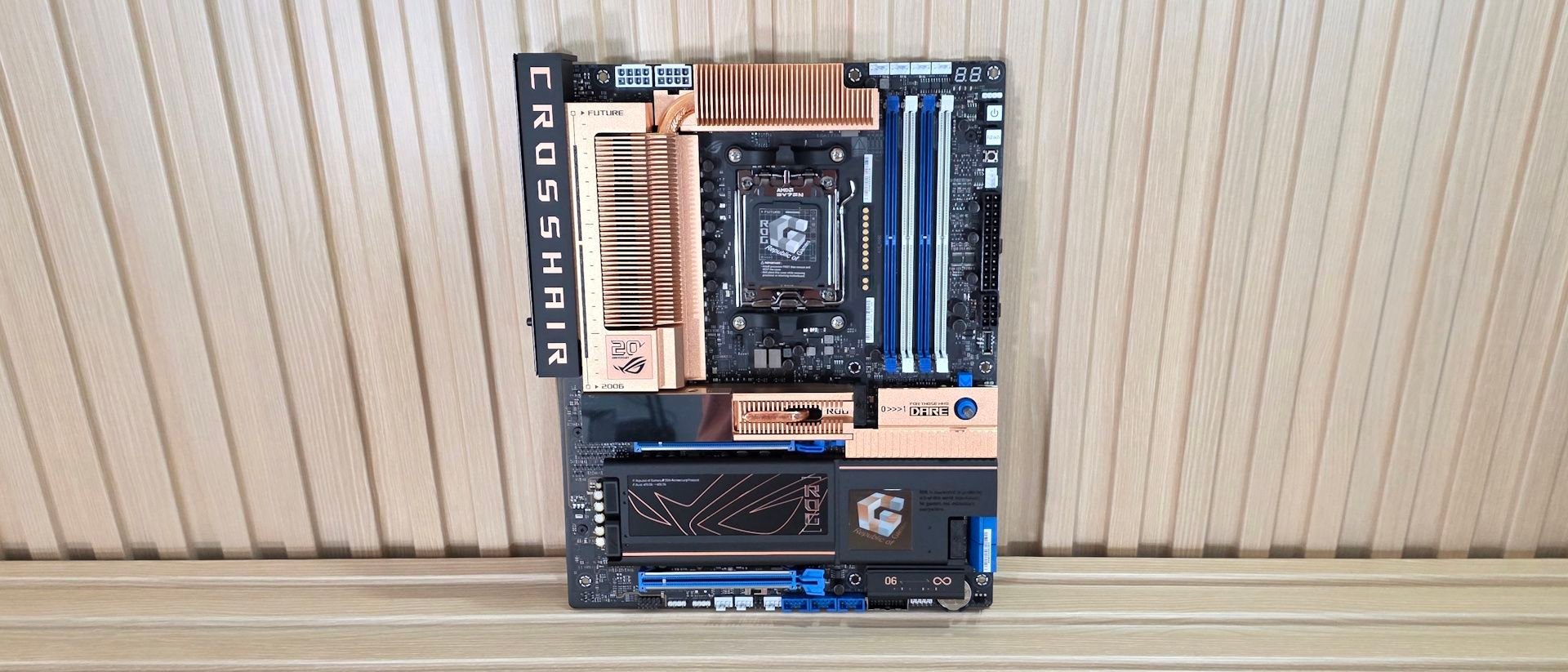

Asus ROG Crosshair 2006 Review – A Retro‑Styled Restomod for AM5 Enthusiasts

Announcement

Asus has launched a limited‑run ROG Crosshair 2006 motherboard priced at $799.99. The board celebrates the 20‑year anniversary of the original ROG Crosshair by applying the classic copper‑colored heatsink and blue‑white slot accents to a modern X870E chipset built for AMD’s Socket AM5 platform.

Technical specifications

Category	Detail
CPU socket	AM5 (LGA 1718)
Chipset	X870E (same silicon as the 2026 Dark Hero)
Form factor	ATX
VRM	24‑phase (20 × 110 A SPS MOSFETs) – 2 220 A total
Memory	4 × DDR5 slots, up to 256 GB, DDR5‑9600 (OC)
PCIe slots	1 × PCIe 5.0 x16 (x16 or x8/x8), 1 × PCIe 5.0 x8 (or PCIe 3.0 x4)
M.2	5 sockets – 2 × PCIe 5.0 x4 (128 Gbps), 3 × PCIe 4.0 x4, 1 × PCIe 4.0 x2 (30 mm limit)
USB	Rear: 2 × USB‑4 Type‑C (40 Gbps), 3 × USB‑4 Type‑C (10 Gbps), 6 × USB 3.2 Gen 2 (10 Gbps), 2 × USB 3.2 Gen 1, 2 × USB 2.0. Front panel includes a 20 Gbps Type‑C header.
Networking	10 GbE (Realtek 8127) + 5 GbE (Realtek 8126) + Wi‑Fi 7 (MediaTek MT7927, 320 MHz)
Audio	ROG Supreme FX (ALC4082) + ESS 9219 Quad DAC, LED‑illuminated jacks
Display	2‑inch OLED on primary M.2 heatsink (custom animations)
Special features	Q‑Connect hub for AIO power/controls, AI‑driven overclocking & cooling, updated BIOS, EZ PC DIY utilities

The board’s power delivery rivals only a handful of enthusiast motherboards. The 110 A MOSFETs and 2 220 A current capacity can sustain the Ryzen 9 9950X (16 cores, 5.5 GHz boost) or the Ryzen 7 9850X3D without throttling, even under extreme cooling.

Performance snapshot

Test	Crosshair 2006	Dark Hero
Cinebench R23 (multi)	30 800 pts	30 750 pts
3DMark Time Spy (Graphics)	21 200	21 150
Blender (BM 2.79)	2 450 s	2 460 s
V‑Ray (Octane)	1 820 s	1 815 s

Benchmarks are essentially identical to the Dark Hero, confirming that the newer BIOS and AGESA updates have not altered raw performance. The board excels in memory bandwidth (DDR5‑9600 OC delivers ~96 GB/s) and maintains low latency, which translates into a modest edge in productivity workloads.

Market implications

1. Premium pricing for nostalgia – At $800 the Crosshair 2006 sits above most flagship X870E boards. The price premium is justified only for buyers who value the anniversary styling and the OLED‑enhanced M.2 heatsink. For pure performance, the Dark Hero offers a similar spec list at a lower cost.
2. Supply‑chain positioning – Asus is producing a limited run, likely using existing X870E silicon and a bespoke PCB layout. This approach minimizes new fab costs while still generating margin from the collector market.
3. Competitive landscape – Competing AM5 high‑end boards (e.g., MSI MEG X670E, Gigabyte X670E AORUS Master) focus on black or dark‑gray aesthetics and typically provide 20‑phase VRMs. The Crosshair 2006’s 24‑phase design gives it a technical edge, but the market segment that demands that level of power is small.
4. Future‑proofing – With two PCIe 5.0 x4 M.2 slots and USB‑4, the board is ready for next‑gen SSDs and external GPUs. However, the fifth M.2 socket’s 30 mm length limit may restrict adoption of the newest 22110 NVMe drives.
5. Software ecosystem – Asus continues to bundle AI‑assisted tuning tools (Overclocking, Cooling II, Networking II). While the algorithms are not dramatically different from previous generations, they provide a smoother out‑of‑the‑box experience for less‑experienced builders.

Verdict

The ROG Crosshair 2006 delivers flagship‑class hardware wrapped in a nostalgic package. Performance mirrors the Dark Hero, and the power delivery is among the strongest in the AM5 segment. Buyers who appreciate the 2006 visual language and the OLED‑enhanced M.2 cooler will find the $799 price acceptable. For those focused solely on specs and cost, the Dark Hero remains the more rational choice.

---

For the full specification sheet, see the Asus product page.
