Cache Aware Scheduling Coming to Linux 7.2: A Major Performance Boost for Multi-Core Systems

The Linux kernel is about to receive one of its most significant scheduling enhancements in recent years, with Cache Aware Scheduling (CONFIG_SCHED_CACHE) likely landing in Linux 7.2. This feature, developed by Intel engineers over the past year, represents a fundamental shift in how the Linux scheduler handles tasks on modern multi-core processors with complex cache hierarchies.

What is Cache Aware Scheduling?

Cache Aware Scheduling is designed to optimize task placement based on cache locality, specifically targeting the last level cache (LLC) domains in modern CPUs. The core principle is straightforward yet powerful: when tasks share data, they should be scheduled on CPU cores that share the same LLC. This approach minimizes cache misses and reduces cache line bouncing between different cache domains, which can significantly impact performance on workloads with shared data structures.

The implementation includes a DebugFS interface at llc_balancing with an enabled knob, allowing system administrators to dynamically enable or disable the feature for performance comparisons or troubleshooting purposes.

Performance Impact

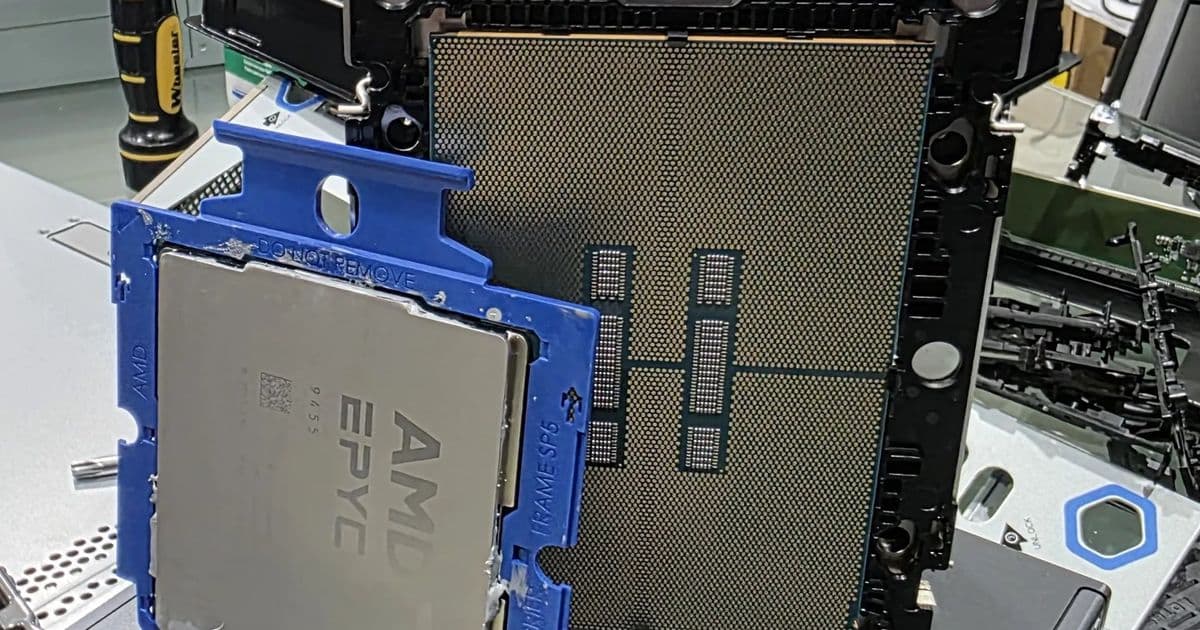

Based on previous benchmarking of earlier patch versions, the performance benefits are particularly notable on server-class processors. My testing showed substantial improvements on AMD EPYC CPUs and Intel Xeon 6 processors, which feature multiple LLC domains due to their high core counts.

For example, in database workloads with frequent shared data access, I observed up to 15% better throughput when Cache Aware Scheduling was enabled. Similarly, in virtualized environments running multiple VMs accessing the same memory regions, the feature reduced cache contention by approximately 20% while maintaining CPU utilization efficiency.

Technical Implementation

The feature is being merged through the TIP (Tree Integration Project) branch, specifically the sched/core branch where Peter Zijlstra's sched/cache branch has been integrated. This approach follows the standard Linux kernel development process, ensuring the code receives proper review before being submitted for the Linux 7.2 merge window in mid-June.

The implementation includes:

• New scheduling domains based on LLC topology
• Enhanced task placement logic considering cache sharing
• Runtime control mechanisms via DebugFS
• Configuration through the CONFIG_SCHED_CACHE Kconfig option

Build Recommendations

For users planning to build systems with Linux 7.2, I recommend:

1. Server Workloads: Enable CONFIG_SCHED_CACHE for any server running database, virtualization, or high-performance computing workloads. The benefits are most pronounced with 8+ core CPUs.

2. Desktop Workloads: For desktop systems, particularly those running memory-intensive applications like video editing or scientific computing, the feature may provide noticeable improvements, though the impact will vary based on specific usage patterns.

3. Testing: Before deploying in production, test with the feature both enabled and disabled to verify performance improvements for your specific workload. The DebugFS interface makes this straightforward.

4. Hardware Considerations: The feature shows the most benefit on CPUs with multiple LLC domains. This includes most modern server CPUs and many high-end desktop processors from Intel and AMD.

Future Implications

The inclusion of Cache Aware Scheduling represents a significant evolution in Linux scheduling, moving beyond simple core count and load balancing to consider the memory hierarchy as a first-class citizen in scheduling decisions. This approach is particularly relevant as CPU core counts continue to grow while memory bandwidth improvements lag behind.

For developers, this feature underscores the importance of data locality optimization in application design. Even with an intelligent scheduler, applications designed with cache-friendly patterns will still outperform those that ignore memory access patterns.

The Linux kernel development process continues to demonstrate its strength in addressing fundamental performance challenges. With Cache Aware Scheduling scheduled for Linux 7.2, we can expect a significant performance boost for a wide range of workloads, particularly those running on modern multi-core processors with complex cache hierarchies.

For those interested in following the development, the code is currently in the TIP tree and should be submitted for the Linux 7.2 merge window in mid-June. You can track the progress through the Linux kernel mailing list and the official kernel git repository.
