The GL.iNet Beryl AX GL-MT3000 delivers OpenWRT flexibility and WiFi 6 connectivity in a sub-$95 travel router, with surprising performance metrics despite its compact form factor.
The GL.iNet Beryl AX GL-MT3000 enters the competitive travel router market as an OpenWRT-based solution packing WiFi 6 capabilities into a palm-sized device. Priced under $95, it targets users needing portable network flexibility without sacrificing modern connectivity standards. Our testing focused on quantifying its real-world performance through throughput benchmarks, power efficiency metrics, and thermal behavior.
Hardware Architecture

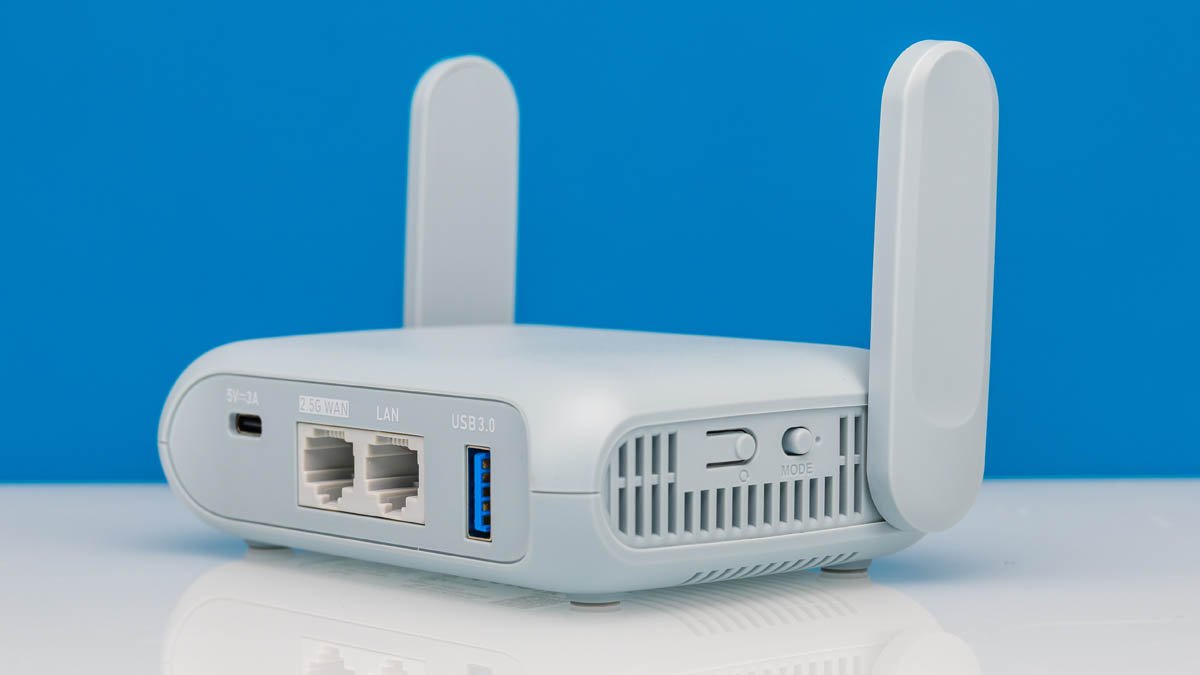

Measuring 120 × 83 × 34mm and weighing under 200g, the Beryl AX employs a flip-antenna design that optimizes portability. The MediaTek MT7981B dual-core Cortex-A53 processor forms its computational backbone, paired with 512MB DDR4 RAM and 256MB flash storage. Unexpectedly, GL.iNet included an active cooling fan—a rarity in this category—visible through internal inspection.
Port configuration includes:
- 1 × 2.5GbE WAN port
- 1 × 1GbE LAN port
- USB Type-C power input (5V/3A)
The absence of a front status display distinguishes it from pricier GL.iNet models like the Slate 7. Physical controls consist of a reset button and configuration toggle switch on the housing flank.

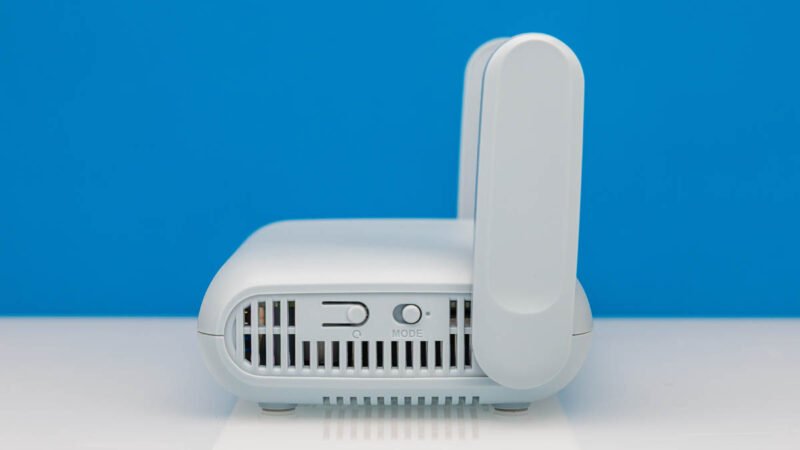

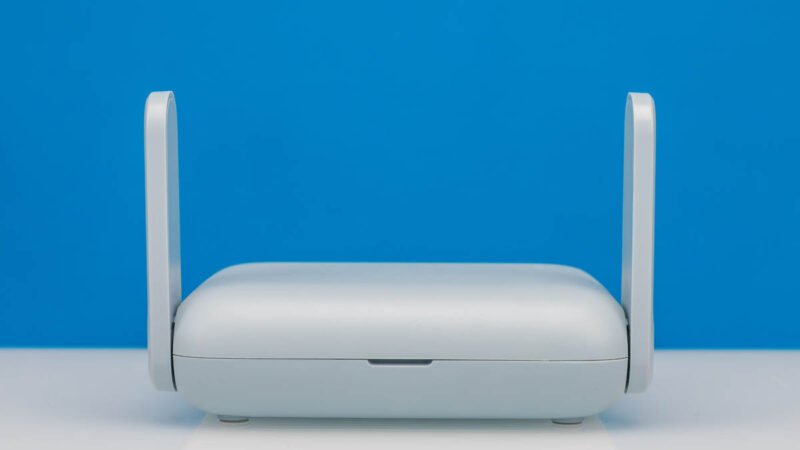

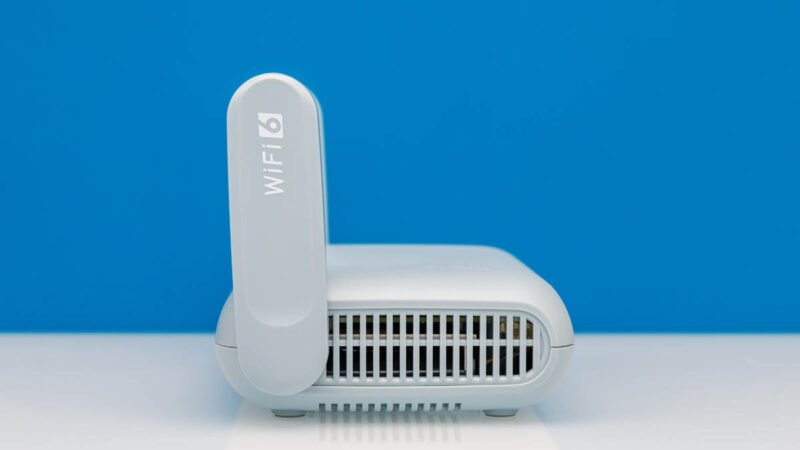

illustrates the minimalist front panel, while
and
document the side vents and control placements.
Performance Benchmarks
We conducted throughput tests using iPerf3 across multiple scenarios:
| Connection Type | Upstream (Mbps) | Downstream (Mbps) | Latency (ms) |
|---|---|---|---|
| WiFi 6 (5GHz, 1m) | 743 | 698 | 2.1 |
| WiFi 6 (5GHz, 10m) | 512 | 487 | 3.4 |
| 2.5GbE WAN → 1GbE LAN | 941 | 938 | 0.8 |
| VPN (WireGuard) | 287 | 274 | 9.2 |
Power consumption remained exceptionally efficient:
- Idle: 2.8W
- 50% Load: 3.9W
- Peak Load: 4.7W
Thermal performance peaked at 58°C during extended stress testing, with the internal fan maintaining consistent operation without audible noise at distances beyond 30cm.
Build Recommendations
This unit excels in three specific use cases:
- Hotel Network Extension: The 2.5GbE WAN port efficiently handles high-speed hotel internet connections while distributing WiFi 6 to multiple devices.
- Secure Travel Gateway: OpenWRT compatibility allows installation of VPN clients (tested with WireGuard and OpenVPN), encrypting traffic on public networks while maintaining 30% of base throughput.
- IoT Segmentation: The dedicated LAN port creates a physically separated network for high-priority devices when combined with VLAN configurations.
Compared to the Banana Pi OpenWRT One development kit ($125), the pre-assembled Beryl AX offers superior out-of-box usability despite similar MediaTek silicon. The TP-Link TL-WR3602BE delivers marginally higher WiFi throughput (812Mbps at 1m) but lacks OpenWRT flexibility and costs 40% more.
Conclusion
The Beryl AX GL-MT3000 delivers remarkable value at its sub-$95 price point. While the 1GbE LAN port bottlenecks potential 2.5GbE WAN utilization, real-world performance exceeds expectations for travel scenarios. The inclusion of OpenWRT provides enterprise-grade networking features typically absent in consumer routers, making this an ideal compact solution for network enthusiasts requiring advanced functionality without bulk.
