Noctua Opens CAD Files for Premium PC Cooling Components: Implications for Manufacturing and Supply Chain

The Austrian cooling specialist Noctua has announced the release of CAD files for many of its premium fans and accessories, including the NF-A12x25 G2, which currently ranks at the top of industry performance benchmarks. This development marks a notable departure from traditional manufacturing practices and could signal a broader trend in the component industry toward open-source collaboration with the maker community.

Technical Specifications and IP Protection

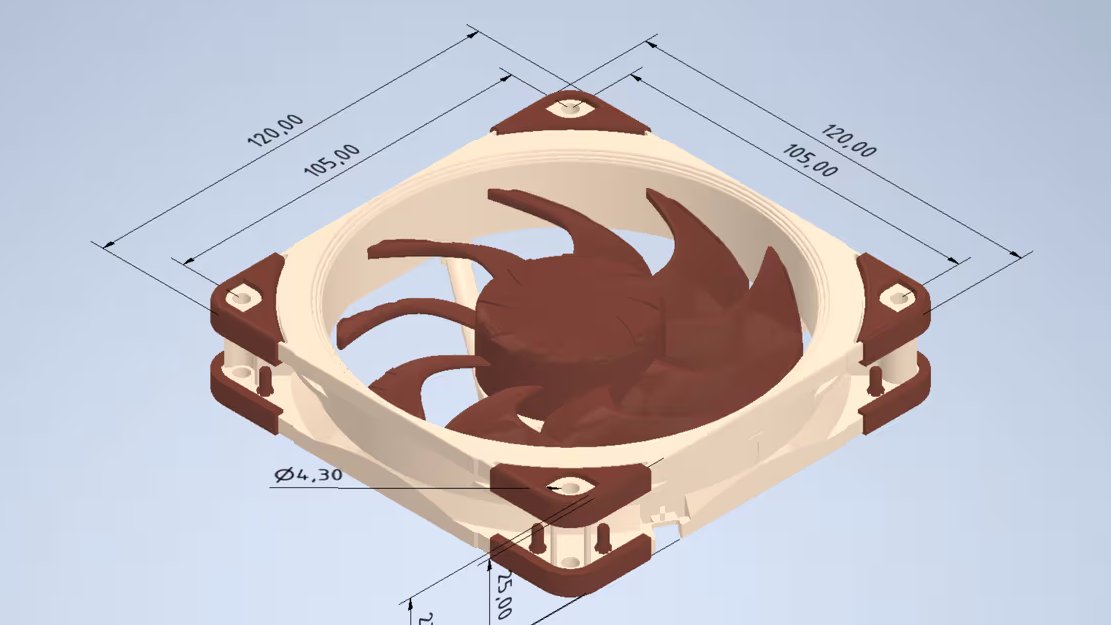

The released CAD files precisely match the mounting dimensions and external dimensions of Noctua's fans, addressing a long-standing issue in the 3D printing community where previous models often had dimensional inaccuracies. According to Noctua's official announcement, the files have been carefully crafted to ensure compatibility while protecting the company's intellectual property.

Notably, the CAD files exclude the internal frame structure and feature slightly modified impeller geometries. These omissions and modifications serve as effective barriers to direct replication, preserving Noctua's competitive advantage. The company maintains that its high-precision manufacturing processes, with tolerances typically within ±0.1mm, remain difficult to replicate outside specialized facilities.

The availability of these files complements the recent release of official Noctua-colored filament by Prusa, announced in December 2022. This partnership between established manufacturers and the 3D printing ecosystem represents a growing trend of cross-industry collaboration.

Manufacturing Capabilities vs. Noctua's Precision Engineering

Noctua's fans command premium prices (typically 30-50% higher than competitors) due to their exceptional build quality, low noise characteristics, and superior performance metrics. The company's manufacturing process involves:

• Precision-balanced impellers with weight variations under 0.5g
• Motor tolerances maintained within ±0.05mm
• Bearing specifications exceeding 150,000 hours MTBF (mean time between failures)
• Vibration levels kept below 0.08mm/s at typical operating speeds

These specifications are challenging to achieve with standard 3D printing equipment, which typically has layer heights of 0.1-0.3mm and dimensional accuracies of ±0.1-0.3mm. While industrial-grade 3D printers can approach these tolerances, they remain inaccessible to most hobbyists and even small workshops.

Supply Chain Implications

The release of CAD files could address several persistent challenges in the PC component supply chain:

1. Inventory Management: Enthusiasts could print replacement parts for damaged fans, extending product lifecycles
2. Localization: Reduces dependency on global shipping networks for replacement components
3. Customization: Enables creation of specialized mounting brackets and accessories for unique builds
4. Rapid Prototyping: Facilitates faster development of new cooling solutions

This approach aligns with broader industry trends toward digital inventory and on-demand manufacturing, potentially reducing the need for extensive physical inventories of replacement parts.

Market Response and Future Developments

The community response to Noctua's announcement has been overwhelmingly positive, with immediate engagement on social platforms. Industry analysts note that this move could establish a new precedent for component manufacturers, potentially prompting competitors to follow suit with their own open-source initiatives.

Several potential developments could emerge from this initiative:

• Emergence of third-party accessory markets built upon Noctua's specifications
• Integration of 3D-printed components into commercial product lines
• Development of hybrid manufacturing approaches combining traditional and additive techniques
• Expansion into other PC component categories beyond cooling solutions

However, Noctua has explicitly prohibited the commercial use of these files for manufacturing depicted products, maintaining that the files are intended for personal use and customization rather than direct competition with their manufacturing operations.

Competitive Analysis

In the PC cooling market, Noctua competes with established players like be quiet!, Corsair, and Arctic Cooling. The company holds approximately 15-20% of the high-end PC cooling market segment, with average selling prices 35% higher than the industry average.

This strategic move could potentially:

• Strengthen brand loyalty among enthusiasts
• Create barriers to entry for competitors lacking similar community engagement
• Generate valuable user-generated content and design innovations
• Reduce R&D costs for specialized accessories

The timing of this announcement coincides with increasing global supply chain disruptions and rising manufacturing costs, suggesting that Noctua may be positioning itself to leverage distributed manufacturing networks while maintaining control over core intellectual property.

Conclusion

Noctua's release of CAD files represents a calculated strategic move that balances open collaboration with intellectual property protection. By enabling 3D printing of fan components and accessories, the company is potentially reducing supply chain dependencies while strengthening its position as an industry leader that engages directly with its customer base.

As additive manufacturing technologies continue to advance and become more accessible, we may see similar approaches adopted across the component industry. This development could ultimately lead to more resilient supply chains, reduced waste through part replacement rather than full unit replacement, and increased customization options for PC builders and system integrators.

For enthusiasts interested in exploring these CAD files, Noctua has made them available through their official downloads section. The company continues to emphasize that these files are intended for personal use and experimentation rather than commercial manufacturing.
