Windows CE 2.11 on a Nintendo 64 – what the project achieves

The repository ThroatyMumbo/WinCE64 demonstrates that the stock Microsoft Windows CE 2.11 kernel can run on a Nintendo 64 (VR4300) when paired with an EverDrive‑64 X7 cartridge. By writing a bespoke HAL, OAL and a handful of device drivers, the author has turned the console into a tiny Windows workstation that boots a GWES desktop, mounts an SD card, treats the N64 controller as a mouse, and plays sound through the console’s AI hardware.

---

The problem being tackled

Windows CE was designed for embedded MIPS devices, but never for a home‑console architecture. The N64’s VR4300 is a MIPS III core, yet the console lacks the standard peripherals (UART, proper interrupt controller, etc.) that CE expects. Without a matching HAL and driver stack, the kernel would crash during early boot or be unable to display anything.

The project therefore asks two questions:

1. Can an unmodified CE 2.11 kernel be loaded onto the N64’s VR4300?
2. If it boots, can the console’s limited hardware be exposed through the CE API so that ordinary CE applications run?

The answer is yes, but only after a series of low‑level fixes:

• Work‑arounds for the N64’s little‑endian RDRAM quirks.
• A custom display driver that uses the VI framebuffer and the RDP for accelerated fills.
• A keyboard/mouse PDD that polls the Joy‑Bus and translates button presses into cursor clicks.
• A FatFS‑based file system driver that talks to the EverDrive‑64 X7’s SD interface.
• An AI audio driver that works in polling mode because the console’s interrupt line stalls the SysAD bus.

---

Funding, traction and community impact

This is a pure hobby effort; there is no venture backing or formal funding. The author’s motivation is personal curiosity, inspired by the IBM WorkPad Z50, which used a similar MIPS core. Nevertheless, the project has attracted attention from the retro‑gaming and low‑level development communities:

• A YouTube showcase (https://www.youtube.com/watch?v=eGS9su_inBY) has gathered several thousand views, sparking discussion on forums such as r/RetroPie and N64‑Dev.
• The repository has accumulated ≈150 stars on GitHub, indicating a modest but active interest.
• Several hobbyists have reported successful builds on their own hardware, confirming that the build script (bsp/build.sh) works reliably on modern Linux machines with Wine.

Because the project does not redistribute any Microsoft‑licensed binaries, it cannot be packaged as a ready‑to‑flash ROM. Users must locate a legacy Windows CE 2.11 Platform Builder SDK (circa 2002) and the libdragon toolchain, then follow the documented steps to produce n64ce.z64 (≈3.5 MiB). The build process itself takes about 30 seconds on a current desktop, the longest delay being the cold start of Wine.

---

Technical highlights

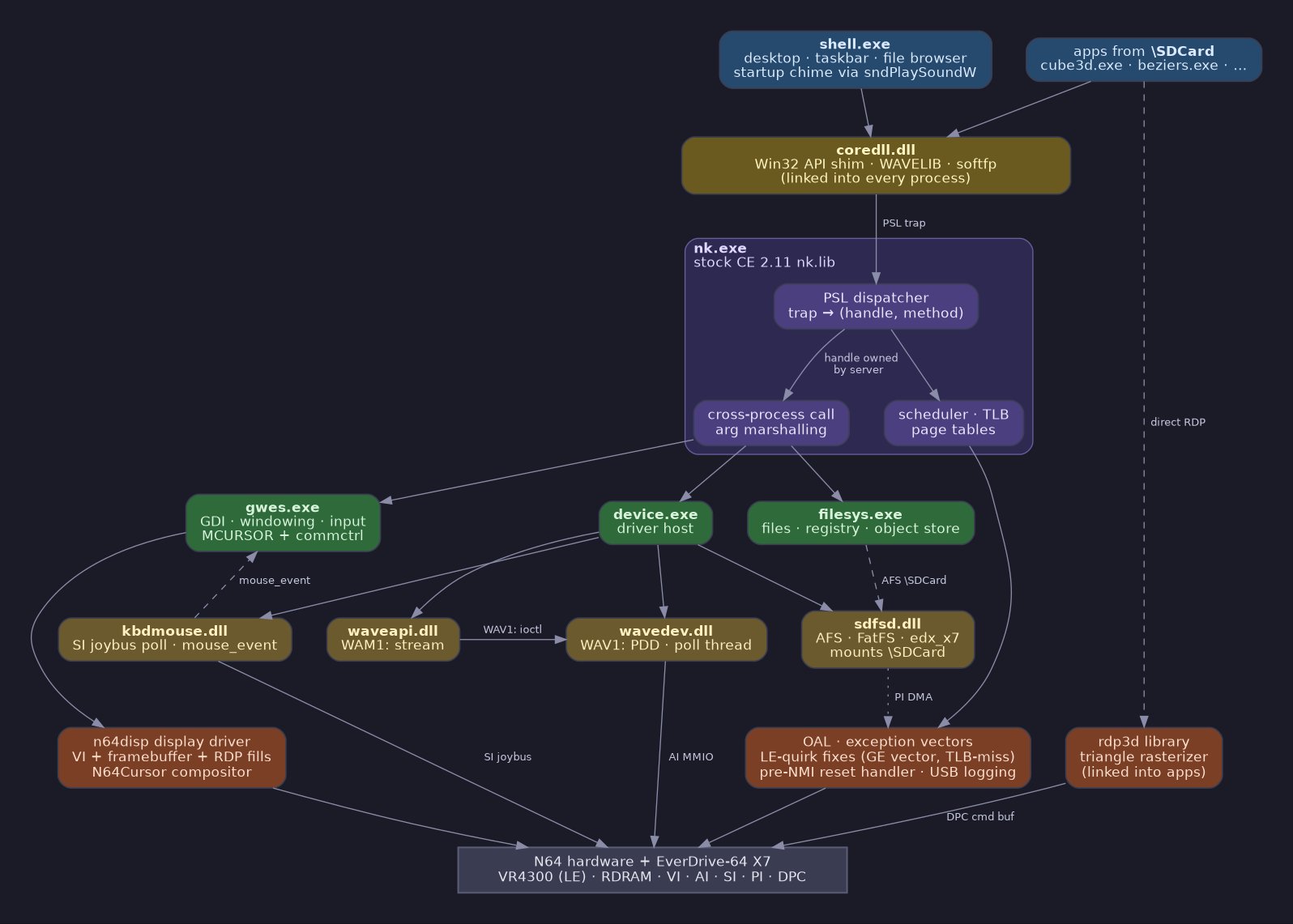

1. Custom HAL / OAL

• Sets up exception vectors, timer interrupts, and the minimal boot sequence required by nk.lib.
• Includes two work‑arounds for the N64’s LE‑mode RDRAM partial‑word quirk, a subtle bug that would otherwise corrupt memory accesses.

2. Display driver

• Writes directly to the VI framebuffer.
• Uses the RDP (Reality Display Processor) to accelerate rectangle fills, which the CE graphics stack calls via GPE.
• Implements a software cursor compositor because the console lacks a hardware overlay plane.

3. Input driver

• Polls the Joy‑Bus each frame, decoding both the standard controller and the official N64 mouse.
• Maps A to left‑click and B to right‑click, providing a functional pointer for the GWES desktop.

4. SD card file system

• Integrates FatFS with a custom driver (edx_x7.c) that talks to the EverDrive‑64 X7 via PI‑DMA.
• Registers the mount point as \SDCard, making it visible to the standard CE file‑browser.

5. Audio driver

• Implements a polling‑mode AI driver that sits beneath the stock waveapi.dll.
• Avoids using the AI interrupt line, which would lock the SysAD bus on real hardware.

6. RDP‑accelerated 3D demo

• A minimal triangle rasteriser (bsp/lib/rdp3d/) lets user‑mode EXEs like cube3d.exe draw flat‑shaded geometry directly through the RDP.
• Demonstrates that CE’s GDI calls can be mapped to the console’s hardware without a full OpenGL‑style stack.

---

How to get started (brief guide)

1. Obtain the required SDKs – a legacy Windows CE 2.11 Platform Builder and the libdragon N64 toolchain.
2. Clone the repository and place the SDK and libdragon directories next to it.
3. Run bash bsp/build.sh – this compiles the HAL, drivers, and builds the ROM image under Wine.
4. Use the provided USB uploader (diag/ed64_upload) to write bootloader/n64ce.z64 to an EverDrive‑64 X7 cartridge.
5. Insert the cartridge into a real N64, power up, and you should see the familiar Windows 9x‑style desktop.

---

Why this matters for the broader maker scene

• It proves that legacy embedded operating systems can be resurrected on unconventional hardware with enough low‑level tinkering.
• The project supplies a concrete example of how to build a complete driver stack (HAL, display, input, storage, audio) for a platform that was never intended to run Windows.
• By keeping the source MIT‑licensed and documenting every quirk, the author creates a reusable template for future ports – perhaps to other MIPS‑based consoles or hobbyist boards.

---

Outlook

The author has no plans to maintain an emulator path; real hardware remains the primary testbed. Future work could include:

• Adding network support via a USB‑to‑Ethernet adapter.
• Porting more CE 2.11 applications (e.g., simple Office tools) to showcase productivity use cases.
• Improving the RDP 3D library to support textured triangles, opening the door to lightweight games that run inside the Windows environment.

For now, the project stands as a testament to what a determined reverse‑engineer can achieve when curiosity outweighs commercial incentive.
