Dell Bolts Down Nvidia GPU Power Connectors in Prebuilt PCs Amid Ongoing Meltdown Concerns

Dell has implemented an unconventional engineering approach to address persistent 16-pin power connector failures in its latest prebuilt desktop PCs. The company's EBT2250 workstation, recently dissected in a Japanese teardown by Chimorogu, reveals a proprietary solution where the 12V-2x6 power connector for Nvidia GPUs is mechanically bolted to prevent movement—a direct response to widespread reports of melting connectors across the industry.

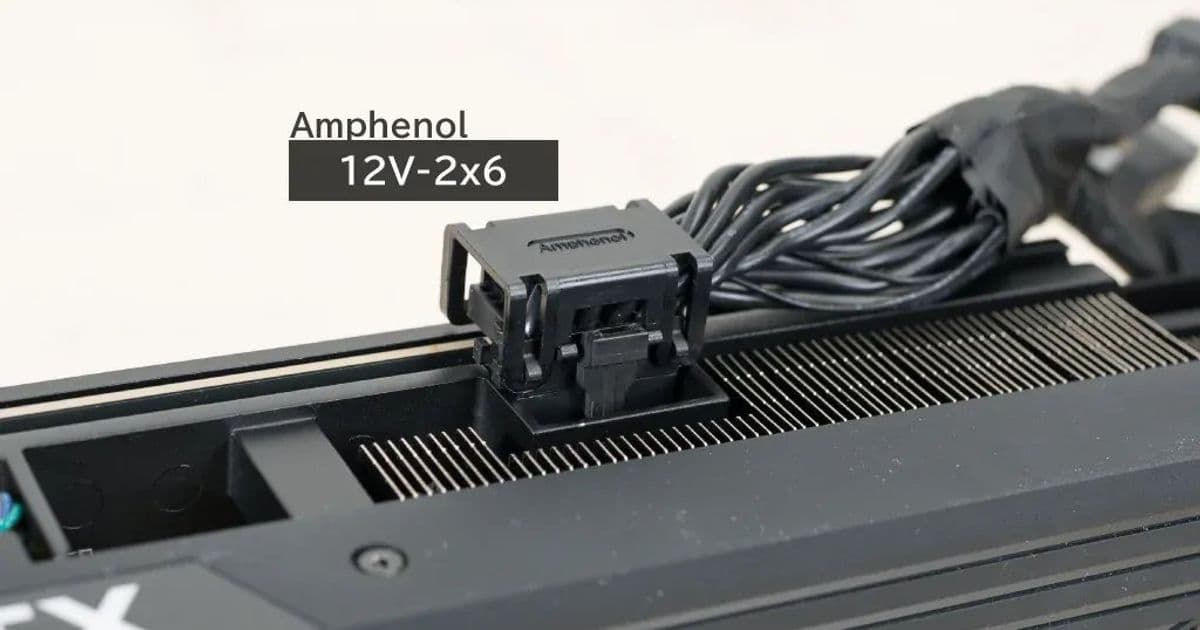

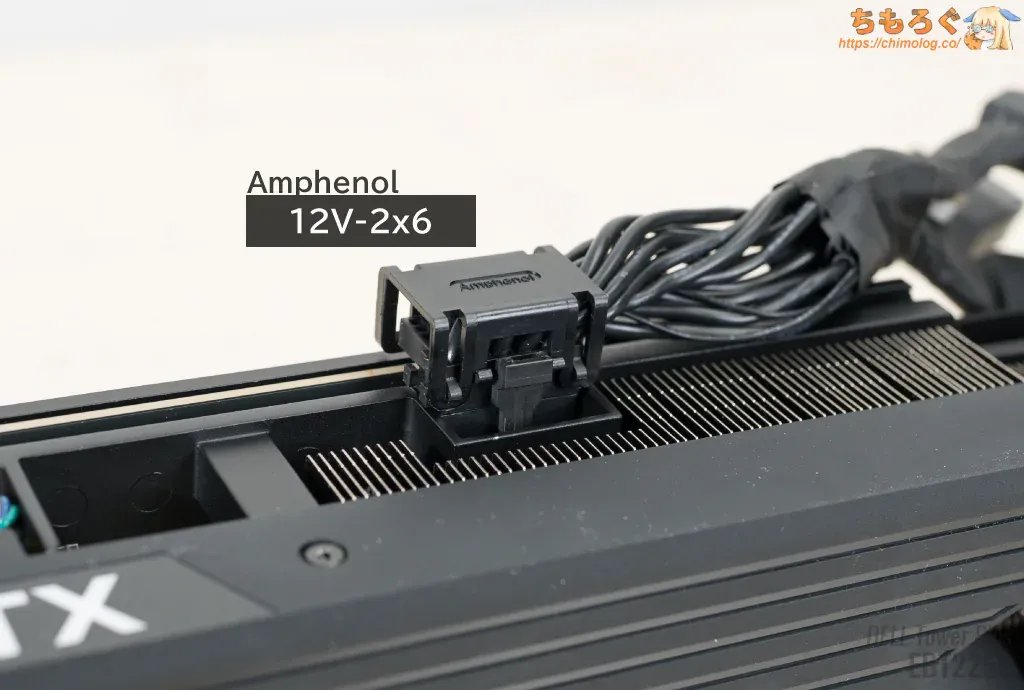

Technical analysis shows Dell uses genuine Amphenol metal retention brackets to immobilize the female connector housing. This eliminates the microscopic movements and imperfect connections that cause resistance buildup and subsequent overheating. Notably, Dell sidesteps native 16-pin cabling entirely. Instead, an adapter converts two standard 8-pin PCIe connectors from the power supply to the secured 12V-2x6 interface. The LITEON-manufactured 1000W 80+ Platinum PSU lacks native ATX 3.0/3.1 support, necessitating this conversion layer.

Despite housing a Dell-customized RTX 5070 Ti—a GPU with a 190W TDP well below the 300W threshold where connector issues typically manifest—the company implemented both the bolted connector and a dedicated GPU sag bracket. This conservative engineering highlights how seriously Dell treats the failure risk. Industry data indicates that when a single pin in the 16-pin connector loses contact, adjacent pins can experience up to 150% current overload, creating localized temperatures exceeding 150°C within minutes.

{{IMAGE:4}}

Market implications are significant: Dell's solution validates ongoing concerns about the 12V-2x6 connector's fundamental reliability, particularly in closed-case systems lacking airflow around connectors. While other manufacturers have implemented software monitoring or PSU-side protections, Dell's hardware-level approach represents the most physically invasive mitigation seen from a Tier-1 OEM. This engineering choice adds approximately $3-5 to BOM costs but potentially saves thousands in warranty claims. Industry analysts note that if Dell—with its massive purchasing power—avoids native implementation, it signals deeper skepticism about the connector standard's maturity.

The EBT2250's specifications include Intel's Core Ultra 275K processor and 32GB DDR5-5600 memory, positioning it as a mainstream workstation. Dell's connector strategy may become a blueprint for other OEMs facing similar reliability challenges, especially as next-gen GPUs push power thresholds higher. With PCI-SIG still refining the 12V-2x6 specification, hardware-level fixes like Dell's could remain necessary through at least 2027.
