Your Computer is a Cosmic Ray Detector - And That's a Problem

Your computer is a cosmic ray detector. Literally.

Cosmic rays hit computer RAM all the time. If your RAM is not ECC protected, it will likely flip a random bit. A single bit in billions of bits. Does it matter? Yes. Yes it does.

Bit flips manifest in many ways - computer clusters suddenly dying, data silently being corrupted, and even squatting on domain names that are a bit adjacent. To start your very own bit flip detector, simply run make and ./bitflip. The source code has no dependencies and is worryingly simple.

Detection is via allocating a slice of zeroed memory, in our case a gigabyte, and then once per minute going through to ensure they're actually all zeroes. Magic!

The Hidden Threat of Cosmic Rays

We tend to think of our computers as deterministic machines - input goes in, predictable output comes out. But what if I told you that invisible particles from space are randomly flipping bits in your RAM right now?

Cosmic rays are high-energy particles originating from outside our solar system. When they strike Earth's atmosphere, they create showers of secondary particles, including neutrons and muons. These particles can penetrate buildings and electronic devices, occasionally interacting with the silicon in your computer's memory.

When a cosmic ray hits a memory cell, it can deposit enough energy to change the state of a bit from 0 to 1 or vice versa. This is called a "soft error" or "single event upset" (SEU). For most consumer-grade computers without ECC (Error-Correcting Code) memory, these errors go undetected and uncorrected.

Real-World Consequences

The implications of cosmic ray-induced bit flips are more serious than you might think:

System crashes and data corruption: In 2003, a cosmic ray was blamed for a bit flip that caused an election in Belgium to record 4,096 extra votes for one candidate. In 2008, a Qantas Airbus A330 experienced an inflight upset that injured 119 people, with cosmic rays being one of the suspected causes.

Security vulnerabilities: Bit flips can potentially be exploited for security attacks. Researchers have demonstrated how carefully crafted cosmic ray-like events could bypass memory safety mechanisms or cause privilege escalation.

Financial losses: In high-frequency trading systems, a single bit flip could result in millions of dollars in incorrect trades. For scientific computing and data centers, corrupted data can invalidate months of research or cause service outages.

How the Bitflipped Detector Works

The genius of the bitflipped project lies in its simplicity. Here's how it detects cosmic ray impacts:

1. Memory allocation: The program allocates a large chunk of memory (1GB by default) and initializes all bits to zero.

2. Periodic verification: Every minute, the program scans through the entire memory region, checking that all bits remain zero.

3. Detection: If any bit has flipped to 1, the program detects this change and reports it.

The larger your available RAM, the more sensitive your detector becomes. A desktop with 32GB of RAM can monitor 32 times more memory than a system with 1GB, increasing the likelihood of detecting cosmic ray impacts.

Pro Tips for Maximum Detection

Altitude matters: Background radiation from cosmic rays increases with altitude, from 0.3 mSv per year at sea level to 1.0 mSv per year for higher-altitude cities. For best results, use this on a plane or in outer space.

RAM size: The bigger your RAM, the bigger your detector. Use a desktop's RAM if you can - more memory means more potential targets for cosmic rays.

Avoid ECC RAM: Don't run this on expensive equipment as it may have ECC RAM which will ruin your fun. ECC memory automatically detects and corrects single-bit errors, making cosmic ray impacts invisible to this detector.

Beware compression: Smart memory systems like those in Macs may compress least-used chunks of memory when running low on RAM. Since zeroes compress very well, this effectively reduces the size of your cosmic ray detector.

The Broader Implications

This project highlights a fundamental challenge in computing: our digital systems exist in a physical world subject to quantum effects and particle physics. As transistors shrink and memory densities increase, the susceptibility to cosmic ray interference grows.

For critical systems - aviation, medical devices, financial infrastructure - this is why ECC memory is standard. But for consumer devices, the cost-benefit analysis often doesn't justify the expense. Yet as our reliance on computers grows and the consequences of errors become more severe, perhaps we need to reconsider this trade-off.

Try It Yourself

Ready to turn your computer into a cosmic ray detector? The bitflipped project is available on GitHub with no dependencies and simple setup. Just run make and ./bitflip to start monitoring your system for cosmic ray impacts.

Remember: you're not just running a program - you're conducting real physics experiments with particles that traveled millions of light-years to flip a bit in your computer. That's pretty amazing when you think about it.

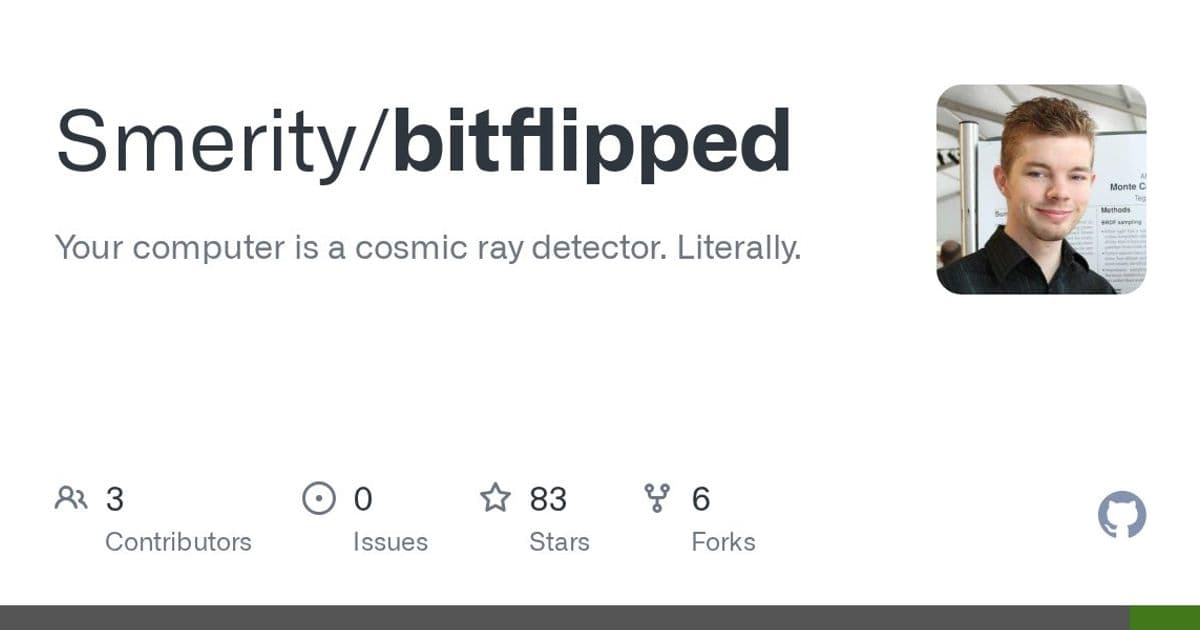

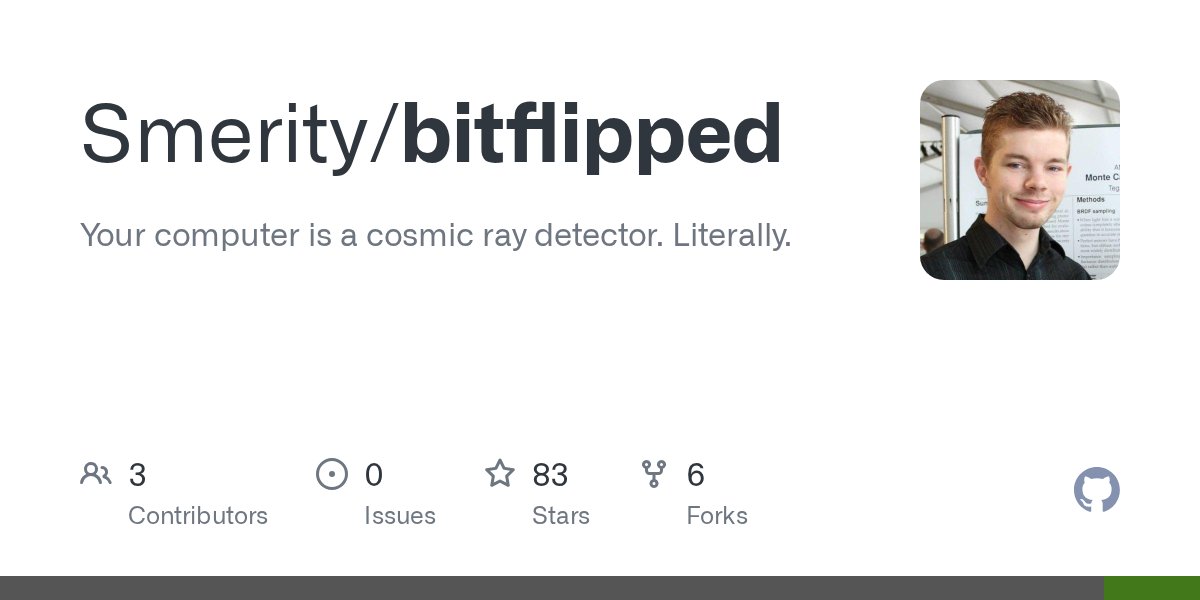

Source: Smerity/bitflipped on GitHub
