Zig’s Emerging 2D Canvas: A Deep Look at the z2d Graphics Library

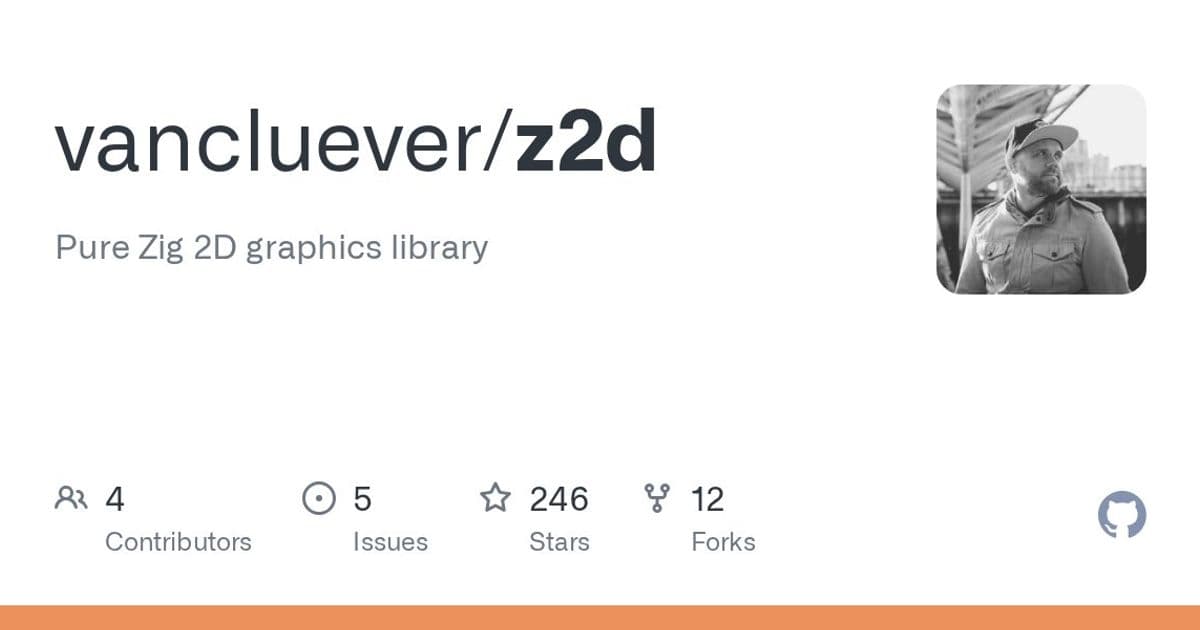

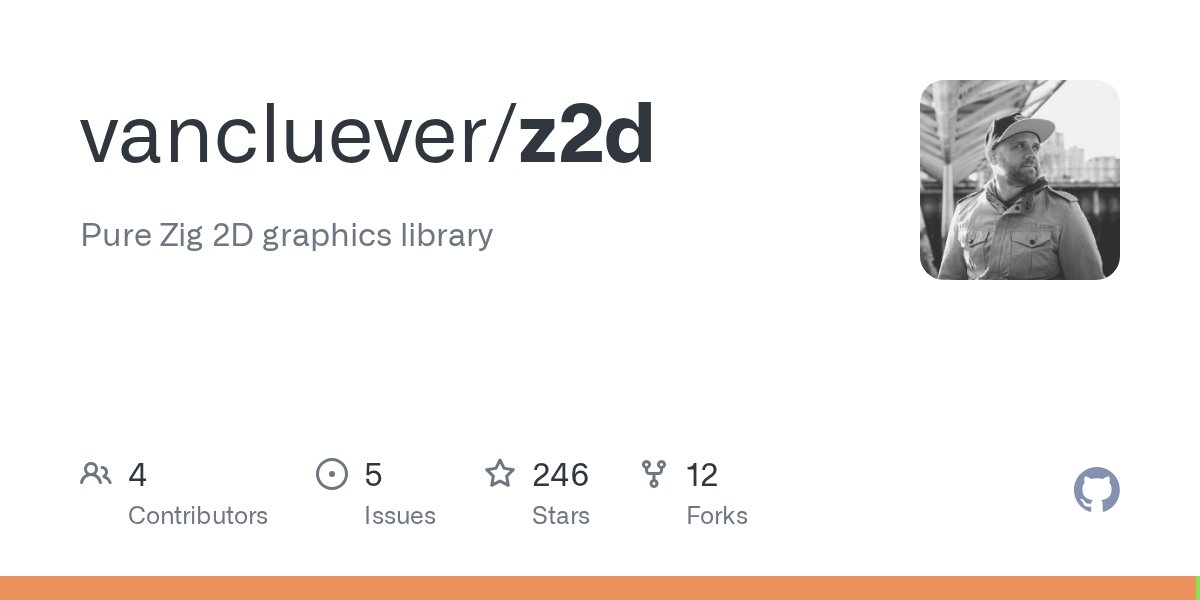

Zig has long been celebrated for its low‑level control and safety guarantees, yet its ecosystem has lacked a native, feature‑rich 2D rasterizer. The z2d project, hosted at https://github.com/vancluever/z2d, attempts to fill that gap by providing a pure‑Zig library that mirrors the philosophy of the venerable Cairo graphics stack while embracing Zig’s idioms.

---

Core Argument: Why a Zig‑First 2D Engine Matters

The central claim of the z2d README is straightforward: developers need a library that can turn vector primitives—lines, cubic Bézier curves, and text—into pixel data without leaving the Zig language. This matters for three intertwined reasons:

1. Performance‑Critical UI – When building custom UI toolkits or game overlays, the overhead of crossing language boundaries (e.g., calling into C‑based libraries) can dominate frame budgets. z2d’s unmanaged APIs allow direct manipulation of buffers, eliminating allocation churn.
2. SVG‑Style Rendering – Modern applications increasingly rely on scalable vector graphics for icons, diagrams, and responsive layouts. A Zig‑native rasterizer that understands paths, gradients, and blend modes opens the door to a fully‑featured SVG pipeline without external dependencies.
3. Learning and Ecosystem Growth – By exposing both high‑level Context abstractions and low‑level compositor primitives, z2d serves as a teaching platform. New Zig contributors can study a real‑world graphics pipeline while staying within the language’s safety model.

---

Key Architectural Elements

1. Context, Surface, and Pattern

At the heart of z2d lies a Context object, reminiscent of Cairo’s drawing state. The Context orchestrates the flow of Patterns (pixel or color sources) into Surfaces (the destination buffers). This separation encourages reuse: a single gradient pattern can be applied to many surfaces, and surfaces can be swapped without rebuilding the drawing state.

2. Paths and Primitives

Paths store the vector description of shapes. They support:

• Lines – simple straight segments.
• Cubic Béziers – the workhorse for smooth curves, enabling accurate SVG path rendering.
• Arcs – circles are native; ellipses are generated via affine transformations.

The library also supplies helper functions for constructing common shapes, reducing boilerplate for typical UI elements.

3. Stroke and Fill Styles

z2d implements a comprehensive set of stroking options:

• Joins: miter, bevel, round.
• Caps: butt, square, round.
• Dashed lines with configurable offsets, allowing precise alignment of patterns to shapes.

Filling respects the non‑zero winding rule, matching expectations from SVG and PDF rendering.

4. Text Rendering

Text support is notable for a pure‑Zig library. It includes:

• Latin left‑to‑right layout with kerning and GPOS handling.
• Diacritics and composite glyphs, ensuring correct rendering of accented characters.
• Font loading from the filesystem or an in‑memory buffer, giving flexibility for embedded systems.

5. Transformations and Color Management

Transformations are expressed as an affine matrix, enabling rotate, scale, translate, and shear operations. Color handling spans several spaces:

• Linear, sRGB, and HSL.
• Interpolation across these spaces, with plans to add more (e.g., Lab) for perceptually uniform blending.

6. Compositor and Blend Modes

The compositor package exposes 28 operators covering Porter‑Duff and PDF blend modes. This breadth allows developers to replicate complex visual effects—multiply, screen, overlay—without resorting to shader code.

7. Pixel Formats and Export

Supported formats include RGBA, RGB, and alpha‑only, each in 8‑, 4‑, 2‑, and 1‑bit depths. Export is currently limited to PNG, with greyscale handling for alpha‑only buffers. The library also permits explicit RGB profile specification, a small but valuable step toward proper color management.

---

Implications for the Zig Ecosystem

A Viable Path to a Native SVG Renderer

The README outlines a roadmap toward a “reasonably feature‑complete SVG renderer.” With path rasterization, gradient fills, text layout, and blend modes already present, the remaining pieces—SVG’s XML parsing, clip paths, masks, and advanced filter effects—are largely orthogonal. The existence of a solid raster core dramatically lowers the barrier for community contributions that could complete the stack.

Enabling High‑Performance UI Toolkits

Frameworks such as Zig‑GTK or custom game UI layers can now rely on a pure‑Zig drawing backend. Because z2d can operate on static buffers, it integrates cleanly with GPU‑accelerated pipelines: render to an off‑screen buffer, then upload the texture to the GPU for compositing.

Educational Value

The dual‑mode API (high‑level Context vs. low‑level unmanaged calls) mirrors the design of libraries like Skia and Cairo, yet the source is entirely in Zig. Students can trace a pixel’s journey from a Bézier control point through the rasterizer to the final PNG, gaining insight into anti‑aliasing, sub‑pixel coverage, and blend mode mathematics.

---

Counter‑Perspectives and Limitations

While z2d is impressive, several practical concerns temper enthusiasm:

• Feature Completeness – The PNG exporter is rudimentary, and support for advanced SVG constructs (filters, patterns, masks) is still missing. Projects needing full SVG fidelity will need to supplement z2d or wait for future releases.
• Performance Benchmarks – The repository does not yet provide comparative benchmarks against established C libraries (e.g., Cairo, Skia). Without data, it is hard to quantify the performance gains promised by Zig’s zero‑cost abstractions.
• Community Governance – Public pull requests are closed, indicating a controlled contribution model. This may slow external development unless the maintainers open a more inclusive process.

---

Conclusion

z2d represents a thoughtful attempt to bring a mature, vector‑centric graphics model to the Zig language. By combining a Cairo‑inspired drawing context with low‑level compositor access, it offers both ease of use for typical UI work and the flexibility required for specialized rendering pipelines. Its current capabilities—robust path rasterization, text layout, a rich set of blend modes, and multi‑format pixel handling—lay a solid foundation for future SVG support and broader adoption within the Zig community. As the project matures and opens its contribution channels, it could become the de‑facto standard for 2D graphics in Zig, empowering developers to build responsive, high‑quality visual interfaces without abandoning the language’s core principles.

---

Further Reading

• Official repository: https://github.com/vancluever/z2d
• Documentation site: https://z2d.vancluevertech.com/docs
• License details: MPL 2.0 for the library, 0BSD for example code, CC‑BY‑SA 4.0 for the logo.
